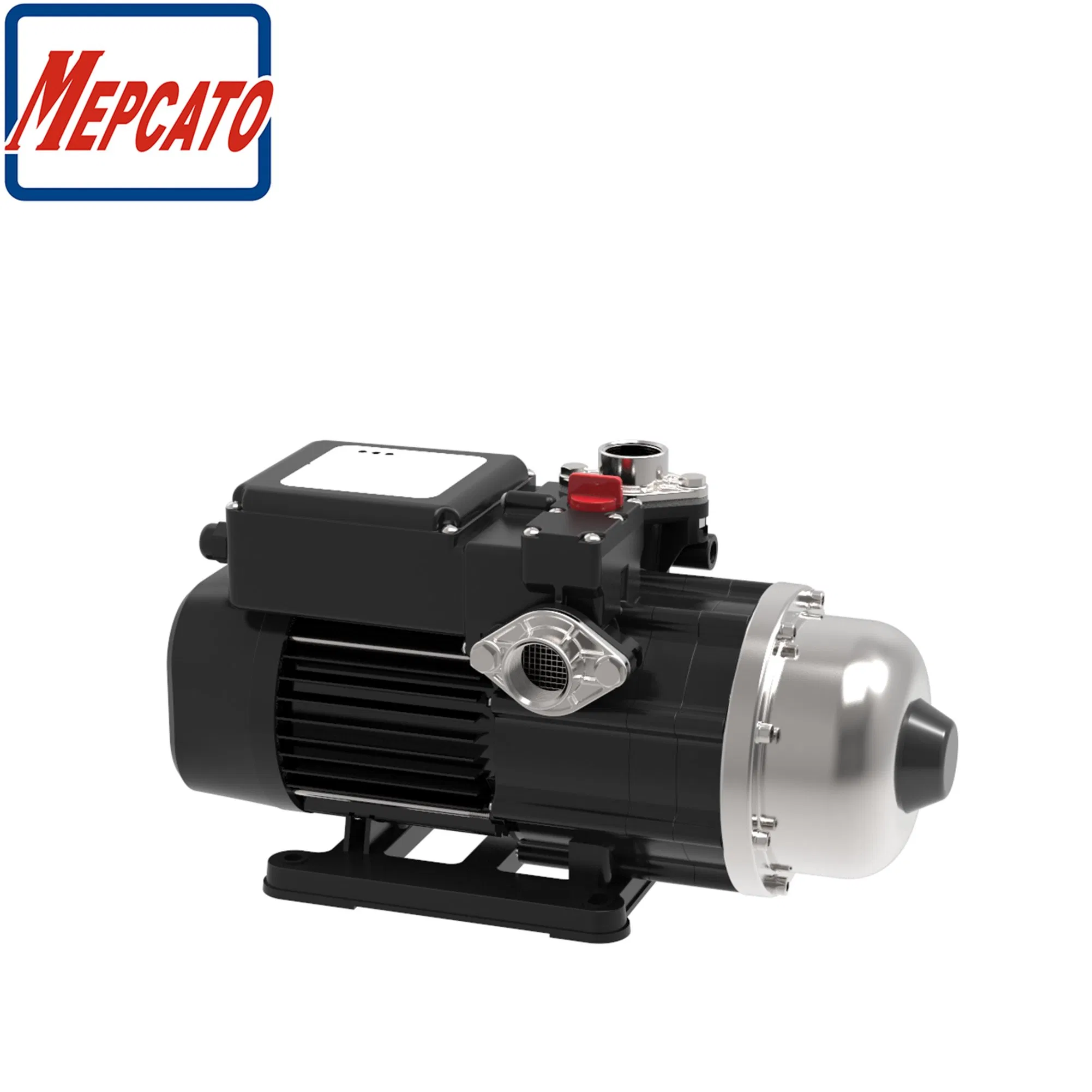

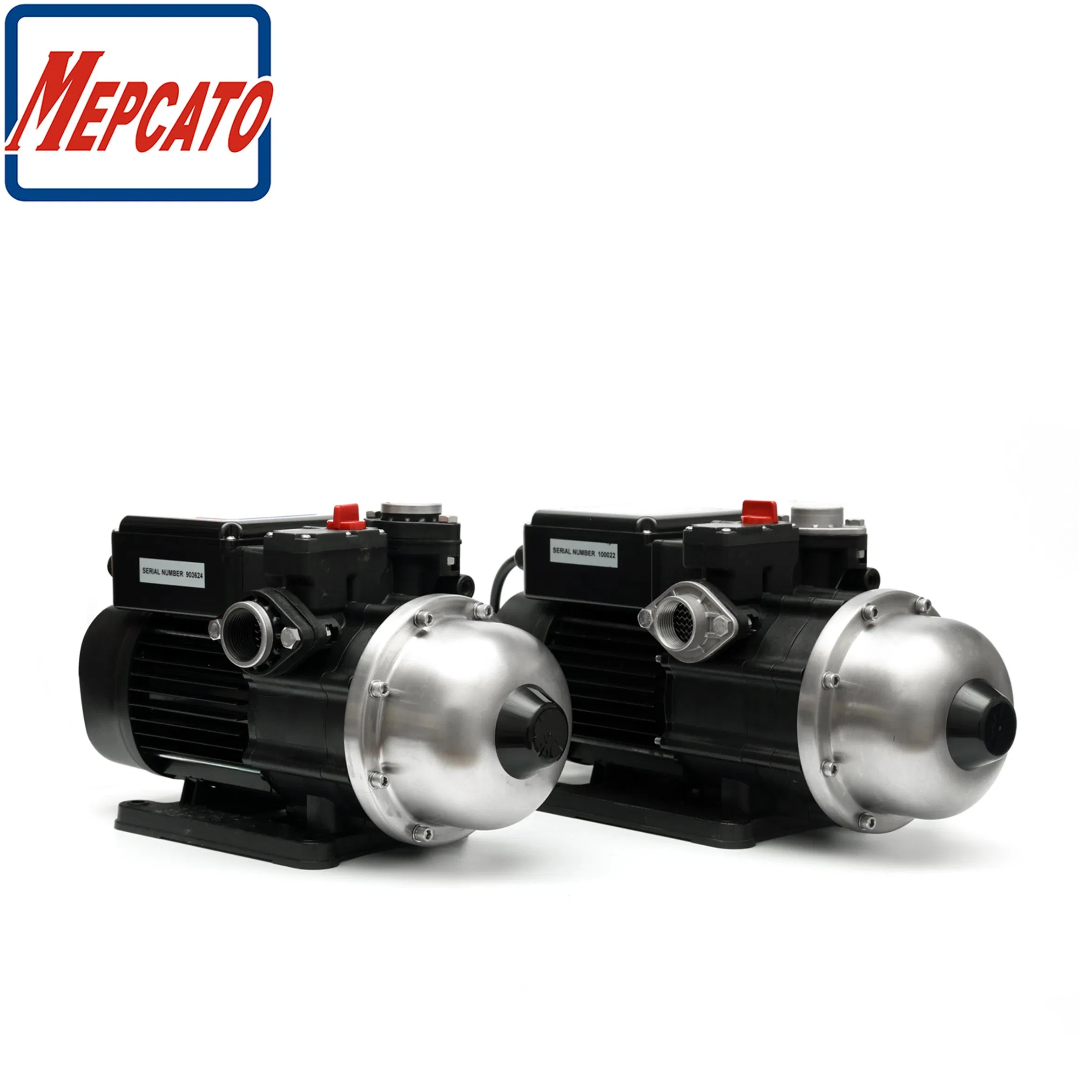

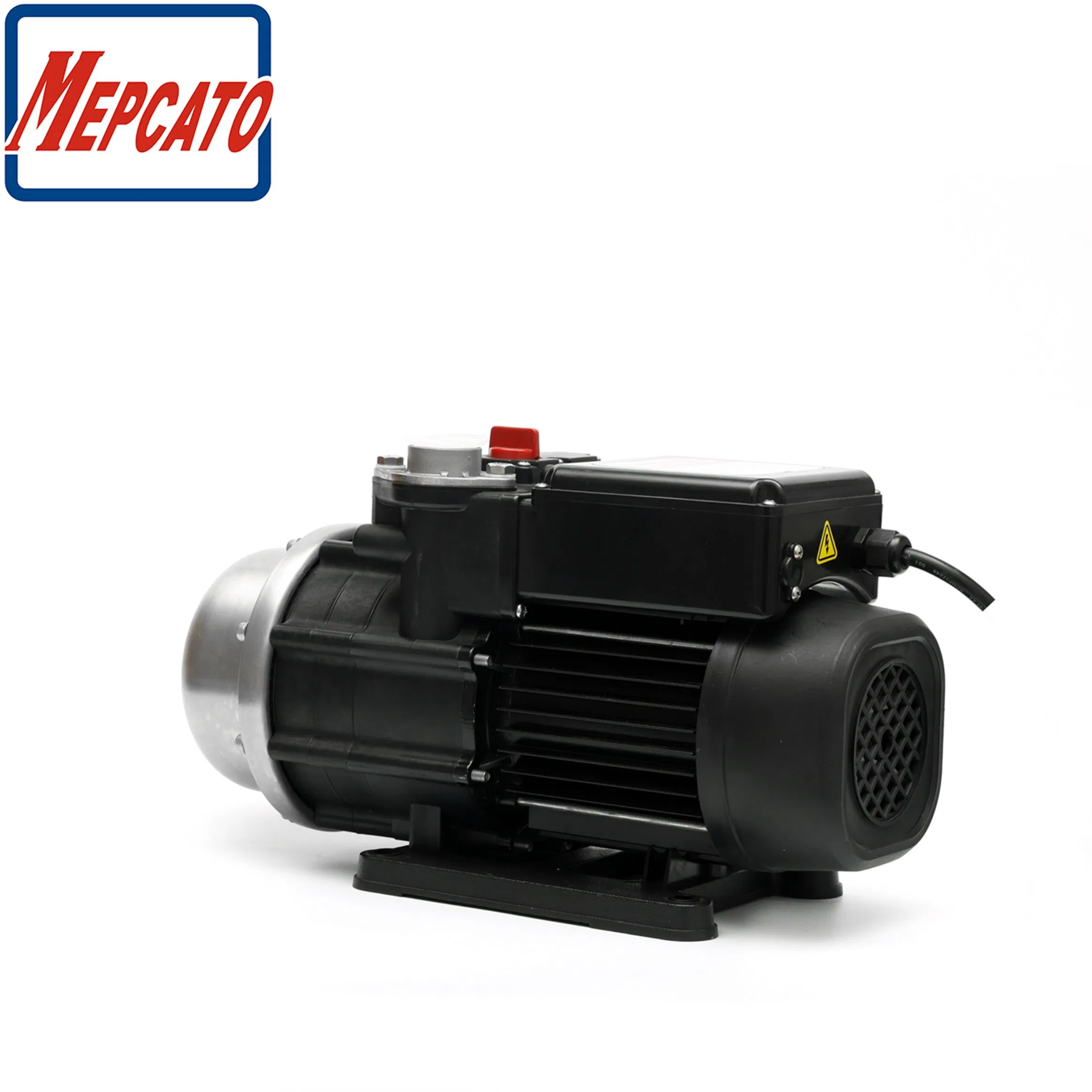

Smart Quiet Automatic Electric Portable Stainless Steel Hot Water Centrifugal Surface Booster Pump for Building Apartment House Water Supply Solar Energy System

Customization:	Available
After-sales Service:	on-Line
Warranty:	1 Year

📊 Basic Information

Model NO.

MD300/500/900/1100

Max.Head

30-50m

Max.Capacity

50-100 L/min

Driving Type

Motor

Impeller Number

Multistage Pump

Working Pressure

High Pressure Pump

Liquid

Clean Water

Origin

China

Max Suction

6m

HS Code

8413709990

📝 Product Description

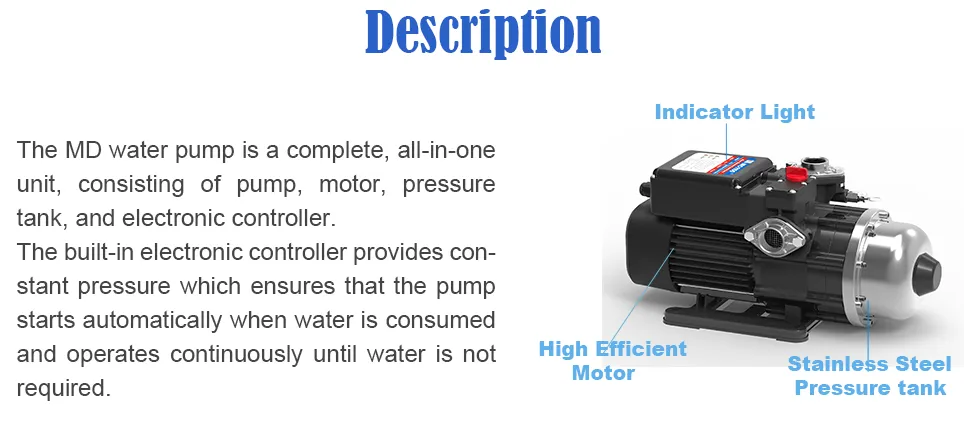

MD Electronic Control Booster Pump

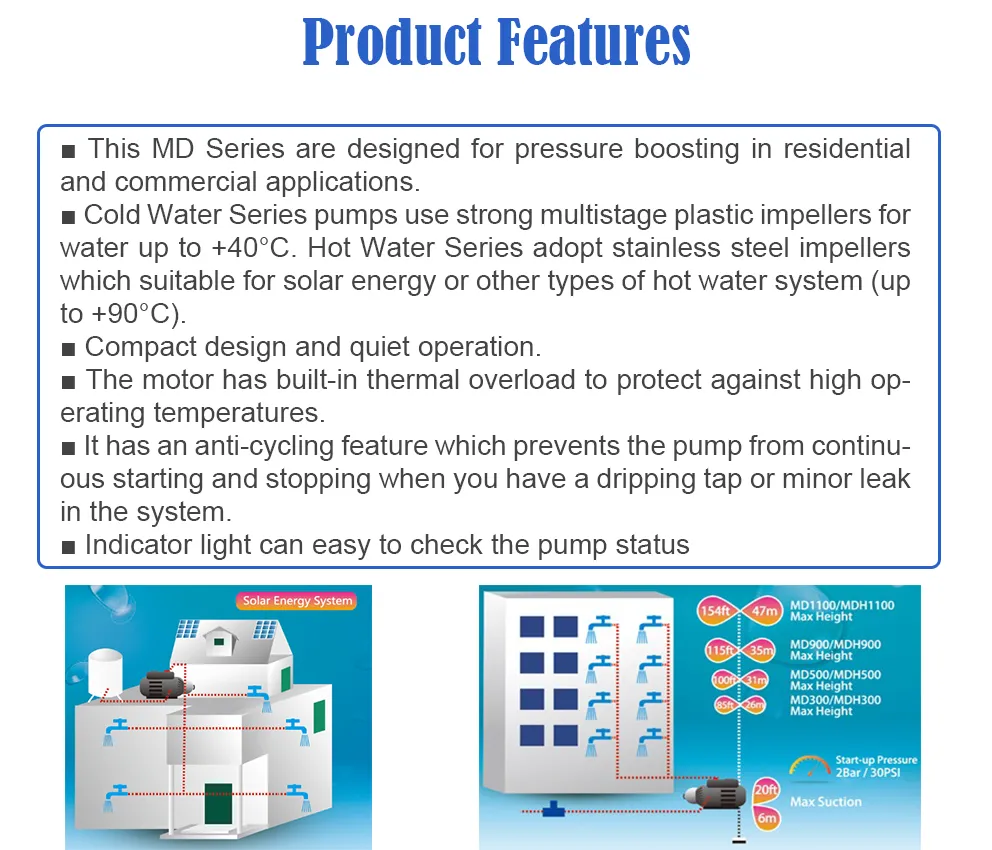

🌟 Key Features

⚙️ Operation Conditions

Suitable liquid: potable water or other clean or non-corrosive liquids.
Ambient temperature: Max. +40°C
Liquid temperature: +4°C ~ +90°C
Relative humidity: Max. 85% (RH)

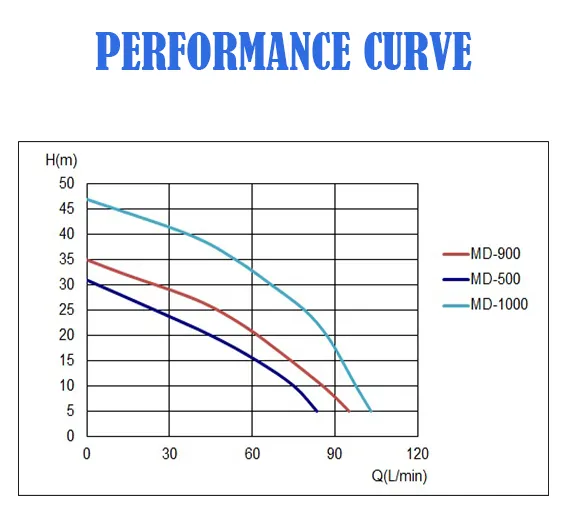

📈 Performance Data

Model	Input Power	Output Power	Voltage/Freq	Outlet/Inlet	Max Suction	Max Head	Max Capacity		Dimensions
Model	Watt	Watt	V/Hz	inch	m	m	L/min	m3/h	cm
MD300 / MDH300	300	200	220-240V/ 50Hz	1"	6	26	65	3.8	40x18x23.5
MD500 / MDH500	680	500				31	84	5
MD900 / MDH900	950	800				35	105	6.3
MD1100 / MDH1100	1100	950				47	105	6.3	42.5x18.5x23.5

* Voltage and frequency available upon request.

🏆 Our Advantages

Highly efficient motor design for 24 hours continuous duty use.
Adopt Italian imported mechanical seal for double waterproof protection.
Design with Oil Chamber for durable seal, lubrication, and cooling.
Motor with Thermal Protector to prevent failure due to accidental run-dry.
Internal wires connected by solid and reliable terminal design.
Power cable rubber seal filled with epoxy for humidity-resistance.
Laser-printed serial number on each pump for production tracking.
100% tested in production line, including low voltage start-up tests.

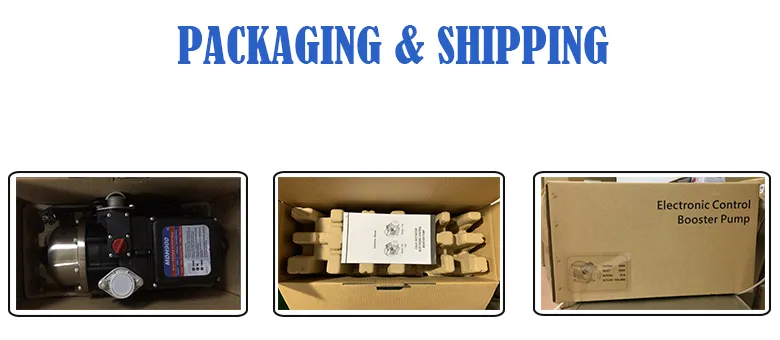

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: Can this booster pump handle hot water?

A: Yes, the pump is designed to handle liquid temperatures ranging from +4°C to +90°C, making it suitable for hot water supply systems.

Q2: Is the pump suitable for continuous 24-hour operation?

A: Absolutely. It features a highly efficient motor specifically designed for continuous 24-hour duty use without overheating.

Q3: What safety features are integrated into the motor?

A: Each motor is equipped with a Thermal Protector to automatically prevent motor failure caused by abnormal pump conditions or accidental dry running.

Q4: Does the pump require special maintenance for the seals?

A: The pump uses an Italian imported mechanical seal with an oil chamber design, which provides superior lubrication and cooling, significantly extending the life of the seals.

Q5: Can I request a specific voltage or frequency for my region?

A: Yes, while our standard configuration is 220-240V/50Hz, customized voltage and frequency options are available upon request to meet local requirements.

Q6: What is the maximum suction lift for the MD series?

A: The MD series booster pumps are capable of a maximum suction lift of up to 6 meters.
