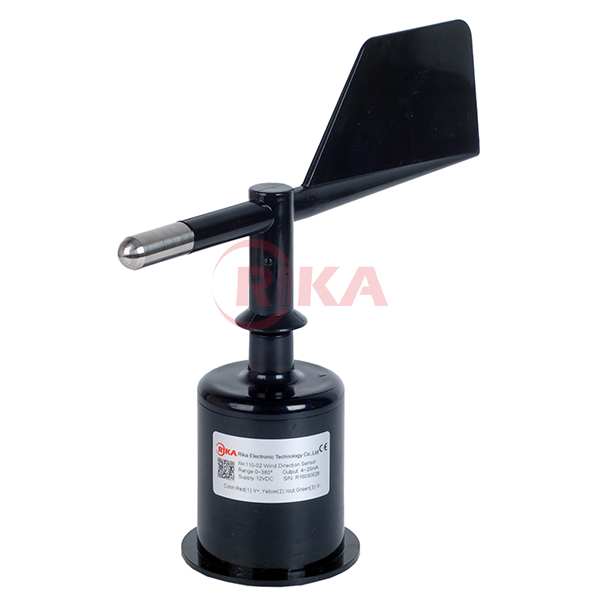

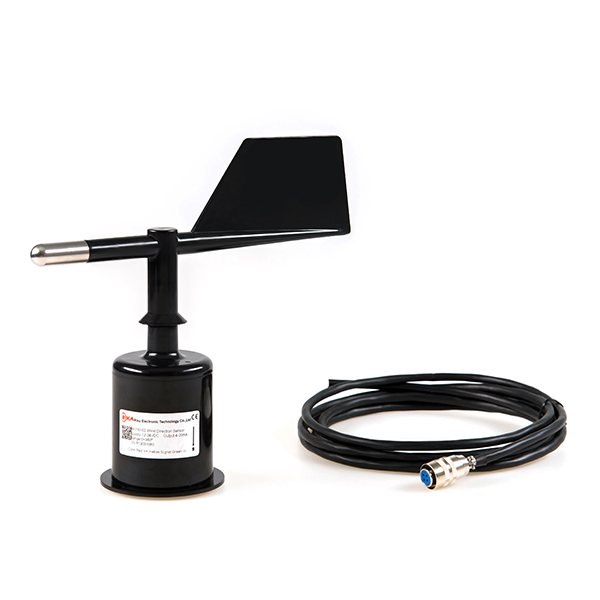

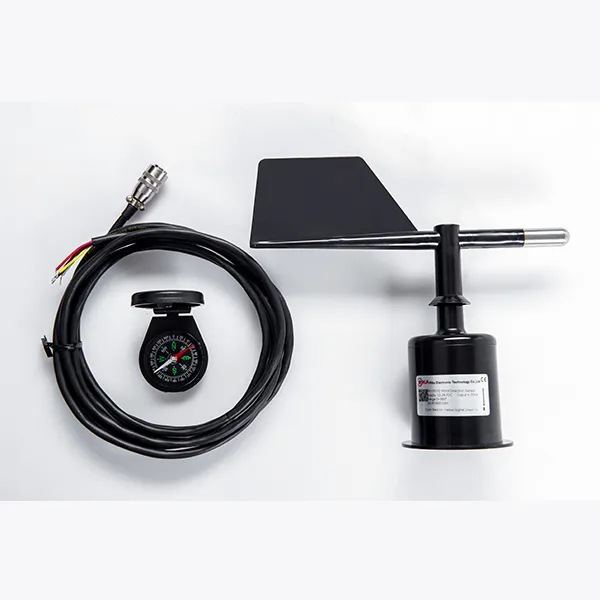

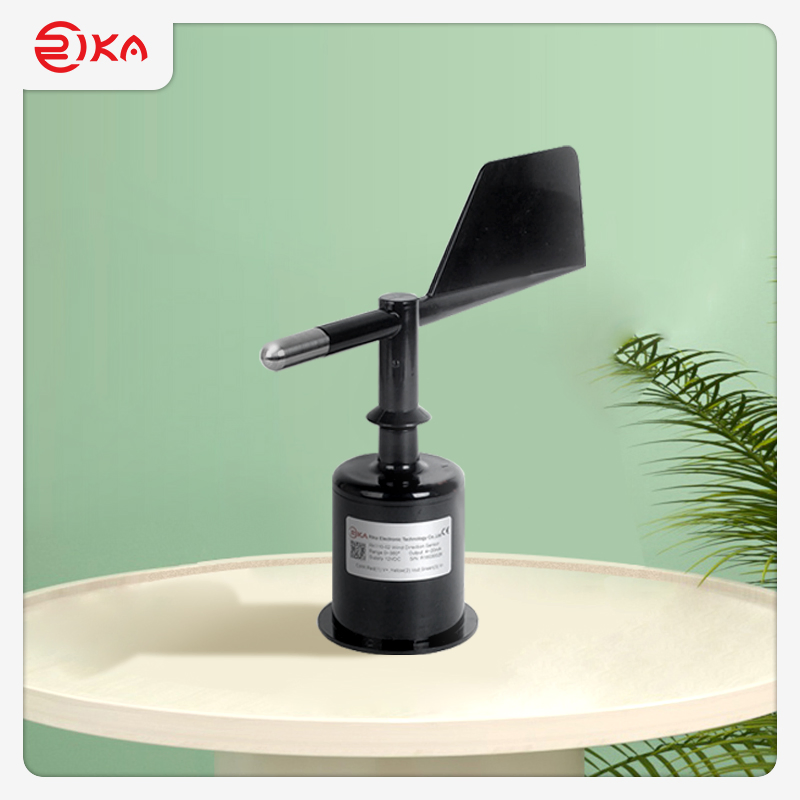

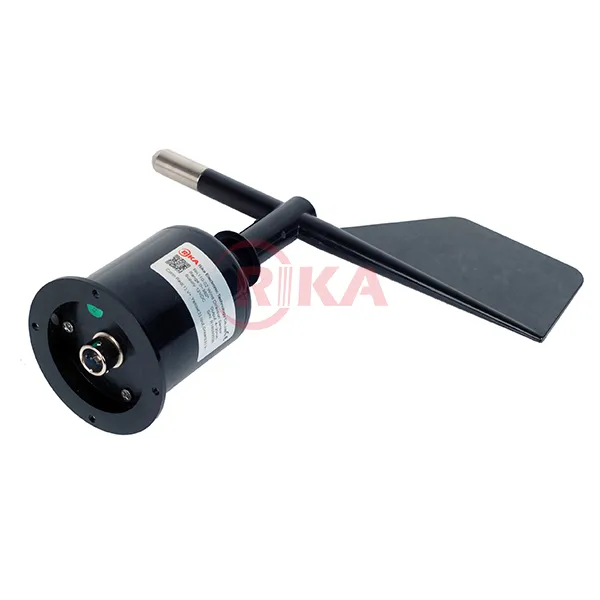

RK110-02 RS485 4-20MA Solar Energy Tracking System Weather Monitoring Wind Direction indicator Sensor
The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product features a wide range, good linearity, strong anti-lightning strike capability, and excellent performance.
Key Features:
Main Applications:
| Output | 4-20mA | 0-5V | RS485 |
| Supply Voltage | 5V, 12V-24V | 5V, 12V, 24V | 5V, 12V-24V |
| Load Capacity | <500Ω | >1kΩ | - |
| Range | 0~360° | ||
| Accuracy | ±3° | ||
| Resolution | 1° | ||
| Starting Threshold | <0.5m/s | ||
| Limit Wind Speed | 50m/s | ||
| Ingress Protection | IP65 | ||
| Operating Temp | -40ºC ~ +50ºC | ||
| Main Material | Carbon fiber | ||
| Dimension | Radius: 147mm, Height: 199mm | ||
