Product Description

Basic Information

Model NO.

400-700W ODA-144MHD Black

Number of Cells

144(12*12)

Material

Monocrystalline Silicon

Level

Tier 1

Application

Industrial

Certification

EST, ISO, CB, CE

Transport Package

Pallet; Container

Specification

400-700W

Product Description

Photovoltaic (PV) modules, or solar panels, are key solar energy components that interconnect and hermetically package dozens to hundreds of PV cells—typically semiconductor-based (e.g., monocrystalline/polycrystalline silicon)—into one robust unit. Shielded by tempered glass, EVA film, and a weatherproof backsheet, they resist harsh conditions (rain, dust, temperature swings) and last 25–30 years.

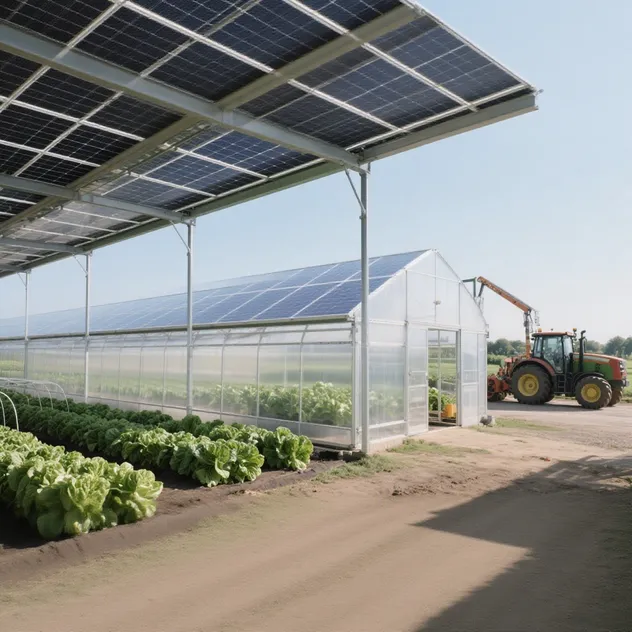

Linked via wiring, multiple modules form a solar array, often mounted on sun-aligned adjustable racks to boost sunlight absorption. Inverters are critical here: they convert the modules' direct current (DC) electricity to alternating current (AC)—the universal form for power use.

Technical Specification

MECHANICAL CHARACTERISTICS		ELECTRICAL PARAMETERS

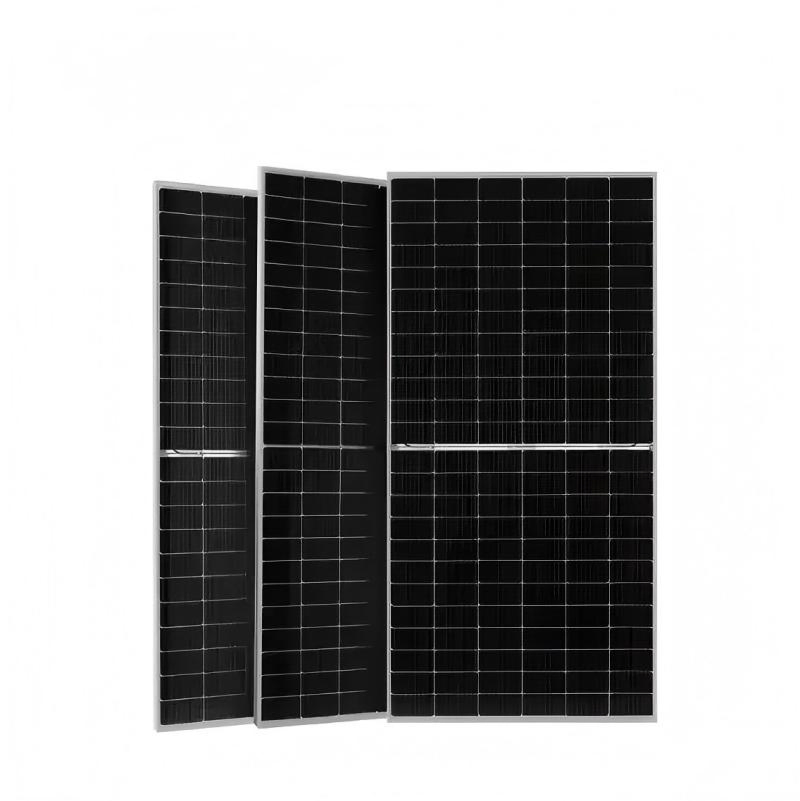

Model Type	182*91NType Bifacial Mono	Power Class	ODA580-36V-MHD
No. of Cells	144 (12×12)	Max Power (Pmax)	580W
Dimensions	2278113430mm	Max Power Voltage (Vmp)	42.37V
Weight	32kg	Max Power Current (Imp)	13.69A
Front Glass	2.0mm AR tempered glass	Module Efficiency	22.45%
Frame	Anodized Aluminium Alloy	Operating Temp	-40~+85°C

Product Features

SMBB Technology Better light trapping and current collection to improve module power output and reliability.

PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Higher Power Output Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.

Enhanced Mechanical Load Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).

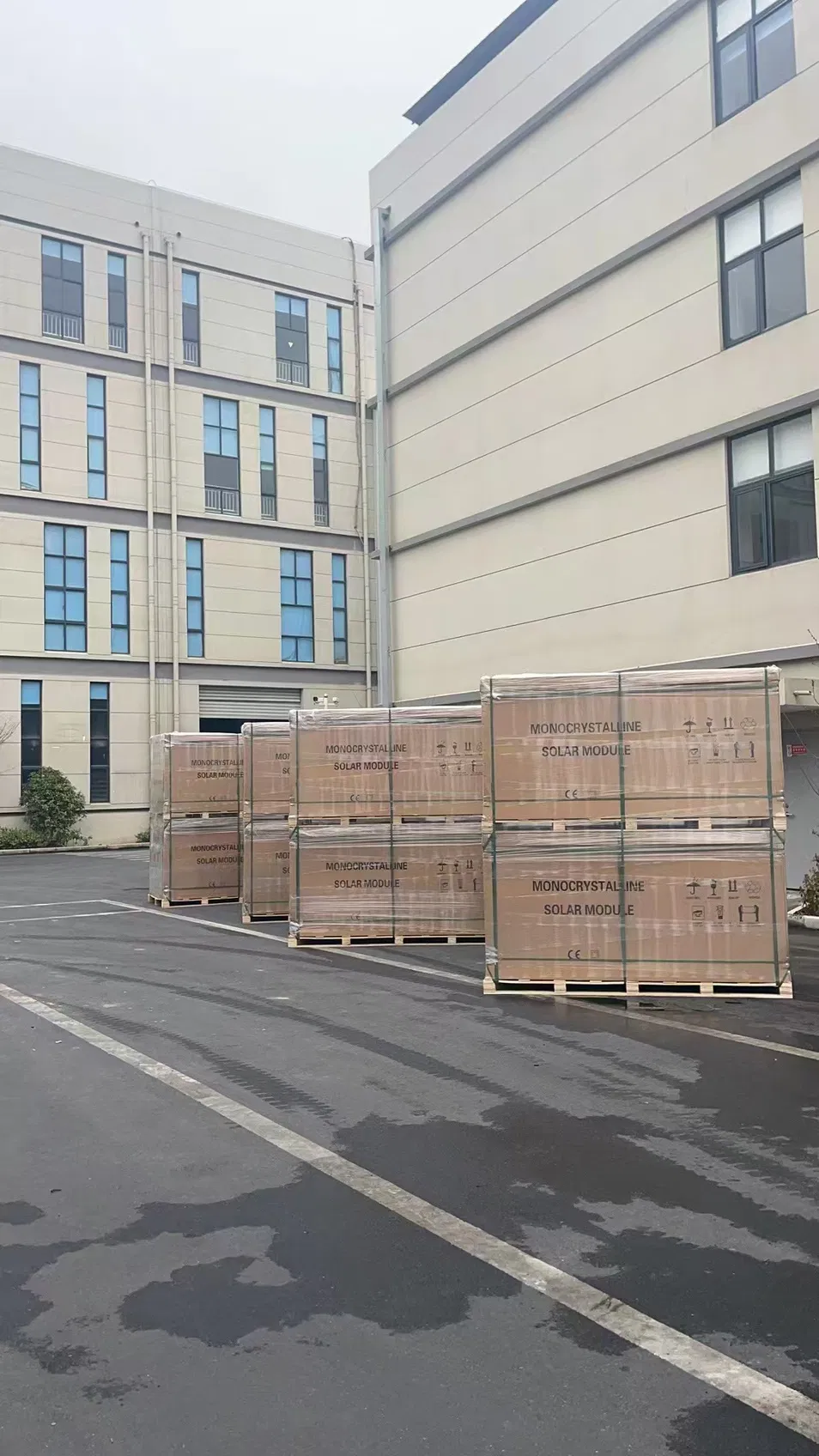

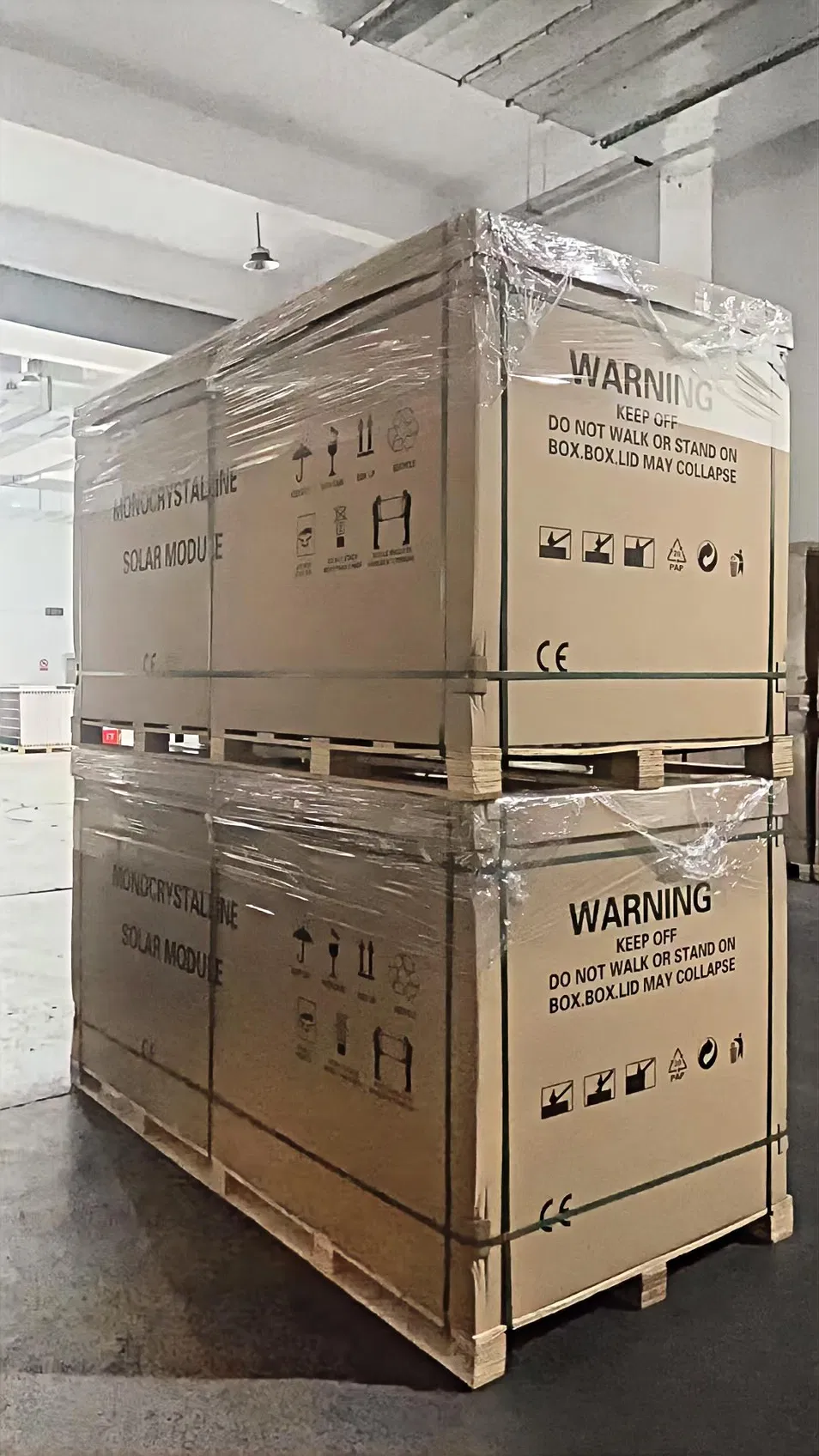

Packing & Logistics

Package Size

227.80cm * 113.40cm * 3.00cm

Gross Weight

34.000kg

40HQ Container

20 Pallets / 740 Pcs

Lead Time

30-45 Days

Quality Certifications

Frequently Asked Questions

What are the main installation requirements for these panels?

Ensure a tilt angle ≥15° (for latitude 40° regions), use galvanized brackets, and allow a 10mm thermal expansion gap for optimal performance and safety.

How is power degradation handled under warranty?

We provide on-site testing. There is an immediate replacement if measured power is less than 90% of the rated value; we offer free repair for degradation over 10% within the 25-year warranty period.

Do minor surface scratches affect the energy output?

Minor scratches (≤3mm) generally do not affect performance, but we recommend regular cleaning. However, deep scratches require replacement to prevent potential hot-spot damage.

Can I customize the size or colors of the modules?

Yes, we offer sizes compatible with 12V/24V/48V systems. While the standard color is black matte, custom colors can be provided with a surcharge.

What is the expected lifespan of your monocrystalline panels?

Our high-quality solar modules are engineered with durable materials to have an operational lifespan of 25 to 30 years under standard environmental conditions.

What certifications do your products hold?

Our solar panels are fully certified by international standards including ISO, CE, CB, and EST, ensuring reliability for industrial and residential applications.
