Technical Class
Continuous Wave Laser
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Laser Mold Welding Machine
Integrated Design
All Part Inside
Vacuum Pump
High Efficiency Vacuum
Smoke-Free Work
Environmental Protection
Material
Amorphous Silicon
Specification
5100*1750*2100mm

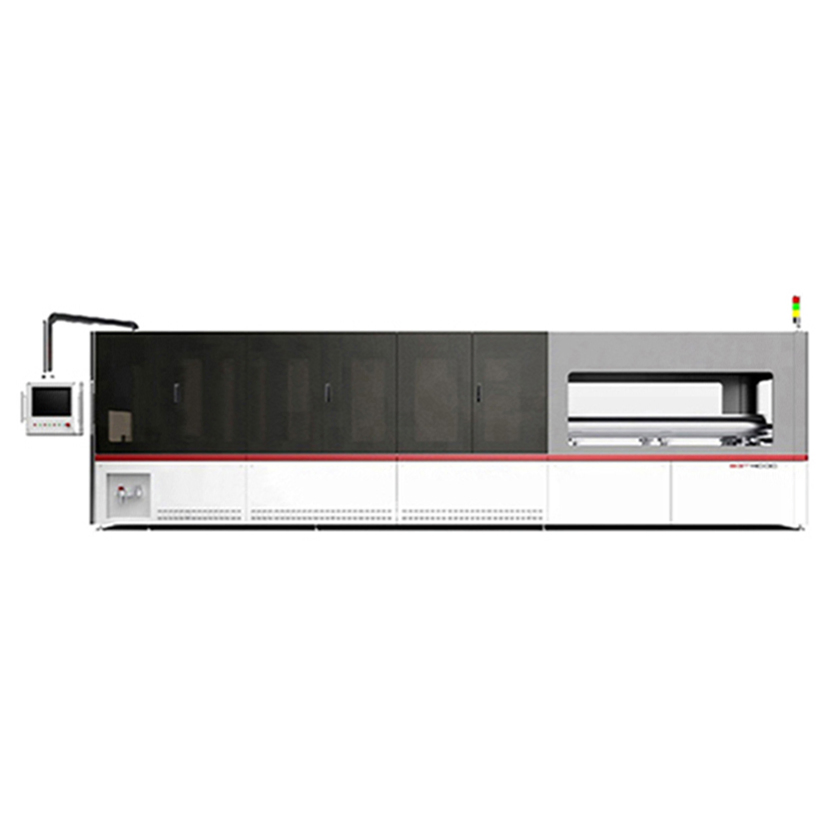

PV Module Production Line Solar Plate Making Machine Solar Tabbing Machine
Technical Parameters
| Welding speed |
4000 pcs/h |
Ribbon Specifications |
Thickness: 0.15-0.3mm
Width: 0.7-2mm |
| Welding Way |
Infrared welding |
Breakage Rate |
≤0.1% |
| Cells Grid Line |
2-6BB |
Power Supply |
AC380V(3phases, 5lines)/50~60Hz/35KW |
| Weld Band Width |
1.2mm, 1.6mm, 1.8mm, 2.0mm (optional) |
Cells per Battery |
1-12 pcs |
| Misalignment |
≤±0.1mm |
Battery Gauge |
156*156mm, 156*78mm |
| Machine Size |
7000×2148×2133mm |
Net Weight |
4500 Kg |
Product Characteristics
✓
Integration of cross-weld typesetting functions, saving factory space and ensuring simple, accurate typesetting.
✓
Fast switching between different battery plate types (4, 5, and 6 grids) in just 30 minutes.
✓
Supports full cell and cutting cell sizes, with a minimum size compatibility of 30*125mm or 30*156mm.
✓
High efficiency operation; a single operator can manage two devices simultaneously.

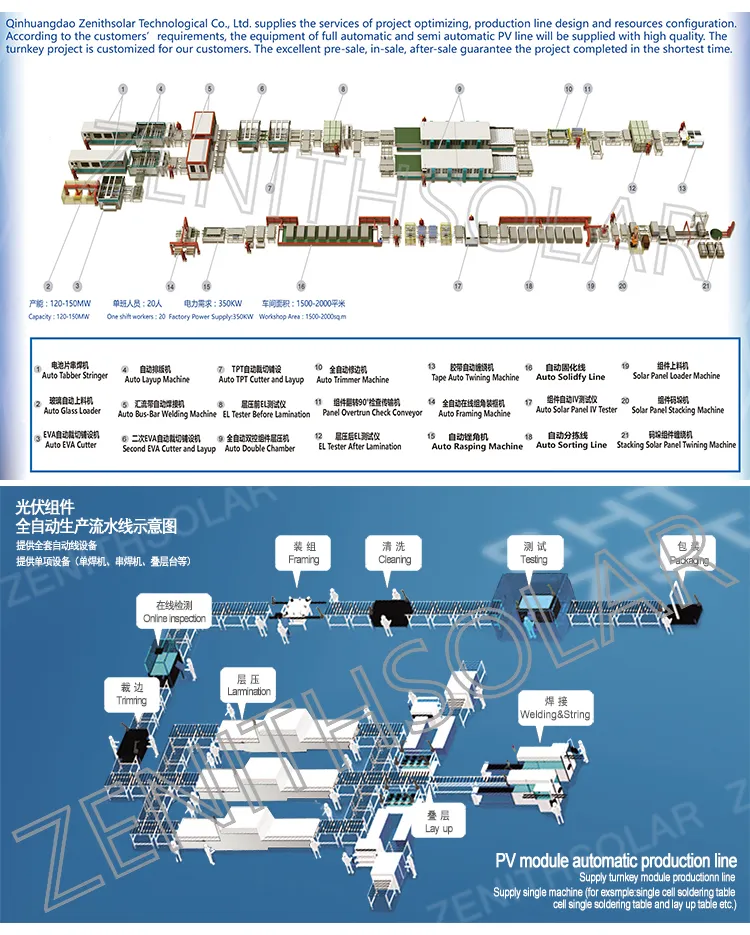

Production Line Solutions
Customized complete production lines are available. Engineers can adjust the layout and performance of the production line according to specific customer requirements.
FAQ
What is the welding speed of this solar tabbing machine?
The machine features a high welding speed of up to 4000 pieces per hour (pcs/h).
What types of solar cells can this machine process?
It is compatible with 156*156mm and 156*78mm battery gauges, supporting 2-6BB (Busbar) configurations.
How long does it take to switch between different grid types?
The switching speed is very fast, taking only about 30 minutes to transition between 4, 5, and 6 grids.
What is the breakage rate of the cells during production?
The machine is designed for high precision with a very low breakage rate of ≤0.1%.
Can the production line be customized?
Yes, we provide customized complete production lines where engineers can adjust the layout and performance based on specific requirements.
What is the minimum cell size the machine can handle?
The minimum size compatibility corresponds to 30*125mm or 30*156mm battery plates.
