Basic Information
Automatic GradeAutomatic
ApplicationIndustrial
Integrated DesignAll Part Inside
Vacuum PumpGermany High Efficiency
Work EnvironmentSmoke-Free / Eco-friendly
Number of Cells72PCS
CertificationCE, ISO
Speed3000PCS/Hour
Production Capacity100set/Year
OriginChina
Product Description

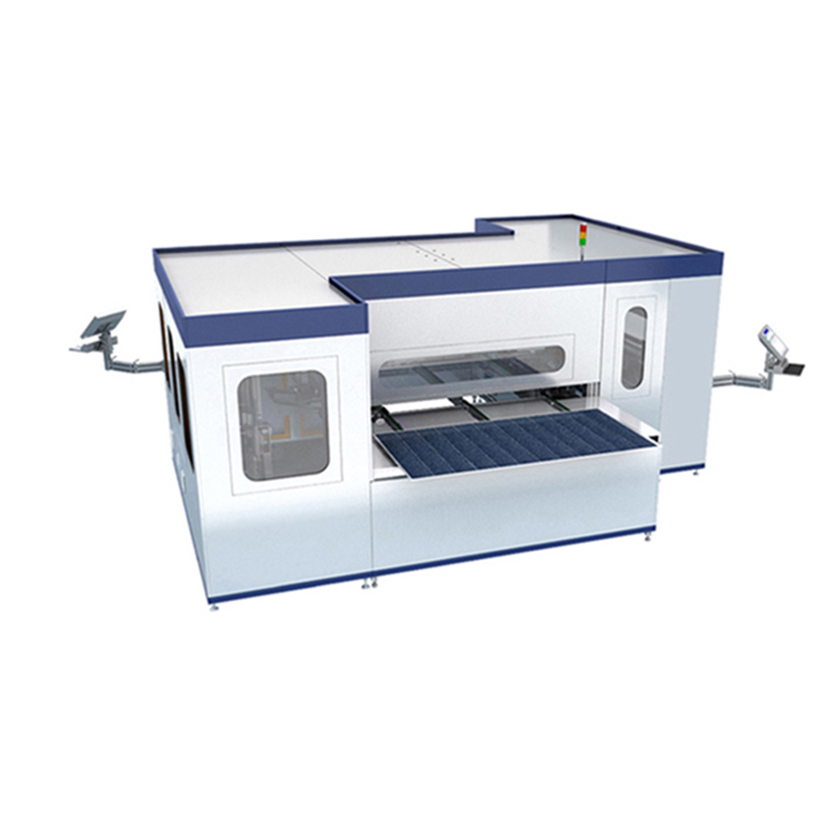

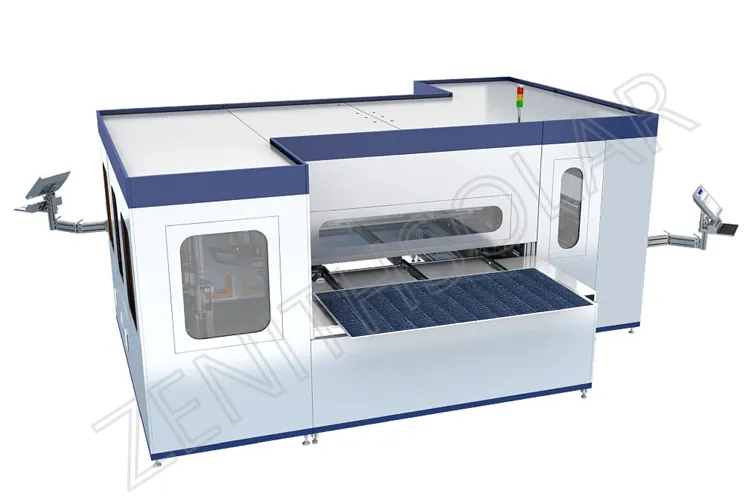

PV Module Production Line High Technical Auto Busbar Soldering Machine
Technical Parameters
| Module Version |
6 strings*10 pcs, 6 strings*12 pcs
Space between cells: 0-4mm
Space between strings: 2-6mm |
Ribbons Type |
Roll, automatic cutting
Thickness: 0.25-0.45mm
Width: 4-8mm
Roll weight: ≤12kg |
| Cell Types |
156*78mm |
Module Type |
Half-cell, three-part junction box |
| Cycle Time |
27s |
Module Size |
Width (980-1100) * Length (1630-2230)mm |
| Cell Busbar Qty. |
3-5BB, compatible with multi-grid (9BB, 12BB) |
Breakage Rate |
<0.05% (according to cells quantity) |
| Product Yield |
≥97% (according to module quantity) |
Power Supply |
AC380V, 3 phases, 5 lines, 50HZ |
Product Gallery
Frequently Asked Questions
What is the production speed of the auto busbar soldering machine?
The machine features a high-efficiency design with a production speed of up to 3000 PCS per hour and a cycle time of approximately 27 seconds per module.
Is this machine compatible with modern multi-busbar (MBB) cells?
Yes, it is highly versatile and compatible with 3-5BB cells, as well as newer multi-grid configurations such as 9BB and 12BB.
What is the expected breakage rate during operation?
The machine is engineered for precision, maintaining a very low cell breakage rate of less than 0.05%, ensuring high material utilization.
Does the machine support half-cell module production?
Absolutely. It is specifically designed to handle half-cell types and is compatible with three-part junction box module configurations.
What are the power and environmental requirements?
The system requires an AC380V, 3-phase power supply. It features an integrated Germany vacuum pump and is designed for smoke-free work to ensure environmental protection.
What certifications does this equipment hold?
This equipment is fully certified with CE and ISO standards, meeting international safety and quality requirements for industrial PV production.
