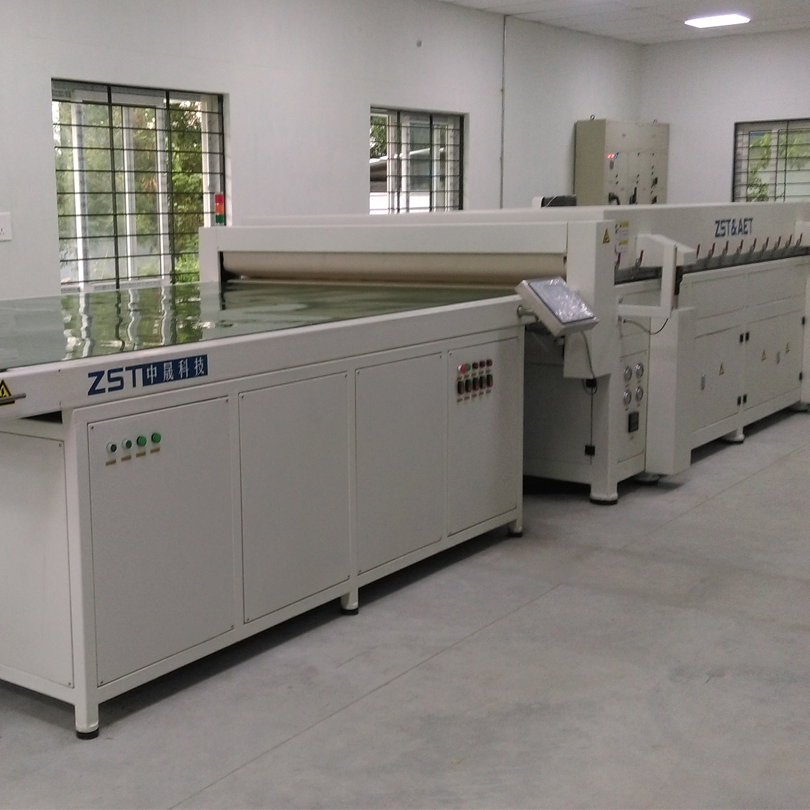

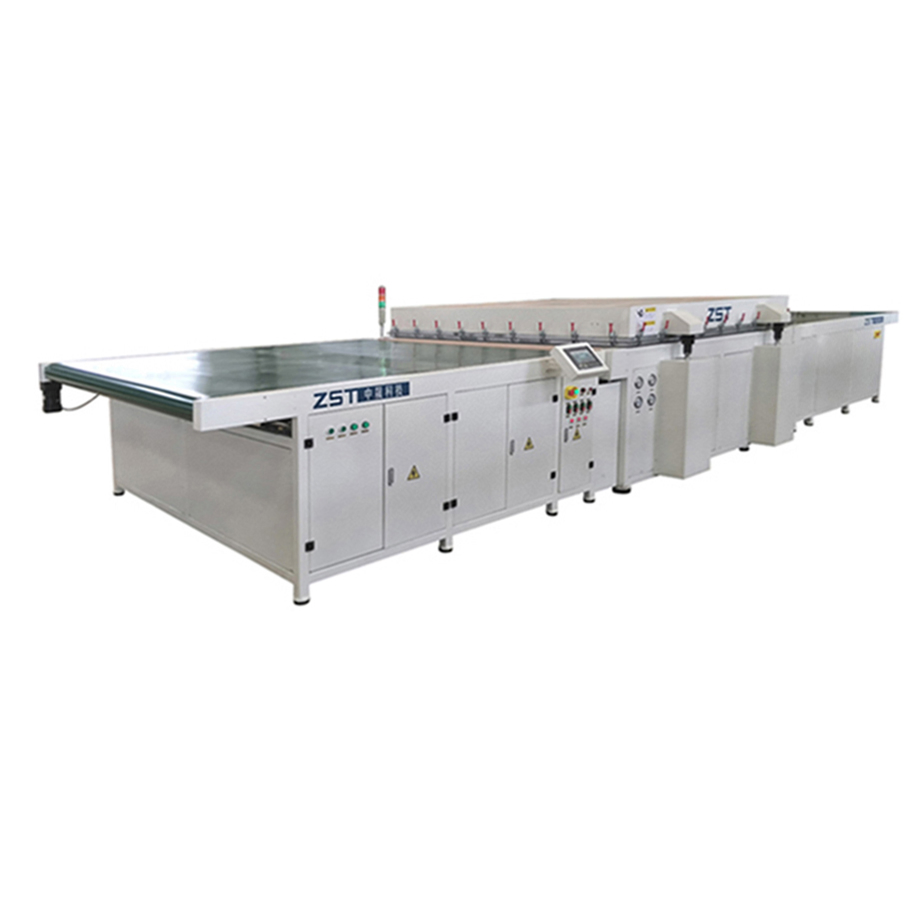

PV Lamination Machine Especially for Encapsulating Solar Module

1 / 2

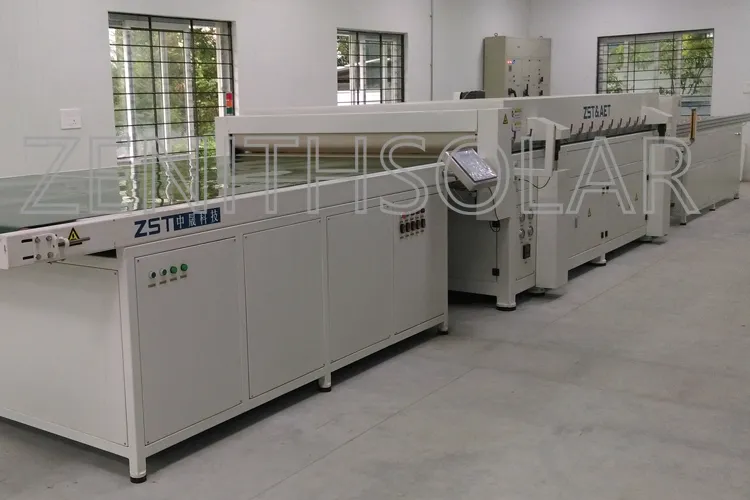

PV Lamination Machine Especially for Encapsulating Solar Module

Customization:	Available
After-sales Service:	Life Time
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Production Scope

Parts Production Line

Automation

Transmission Type

Flexible

Certification

CE, ISO

Manufacturing

Intelligent Manufacturing

Origin

Hebei, China

Capacity

100 Set/Sets Per Year

HS Code

848640

Negotiate the price according to specific circumstances

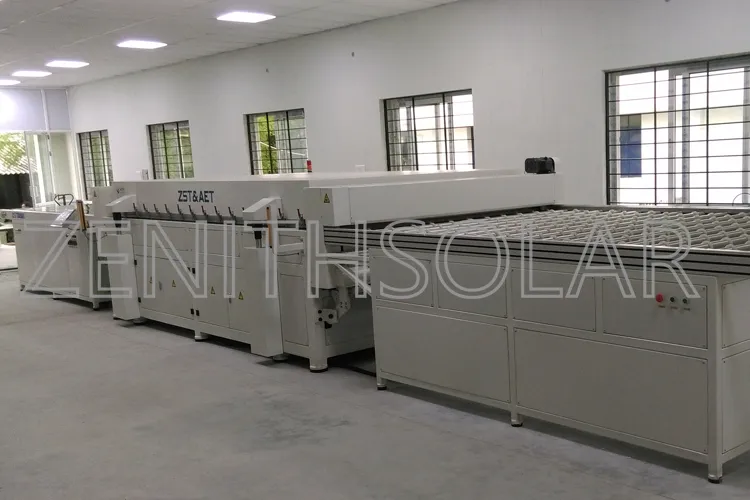

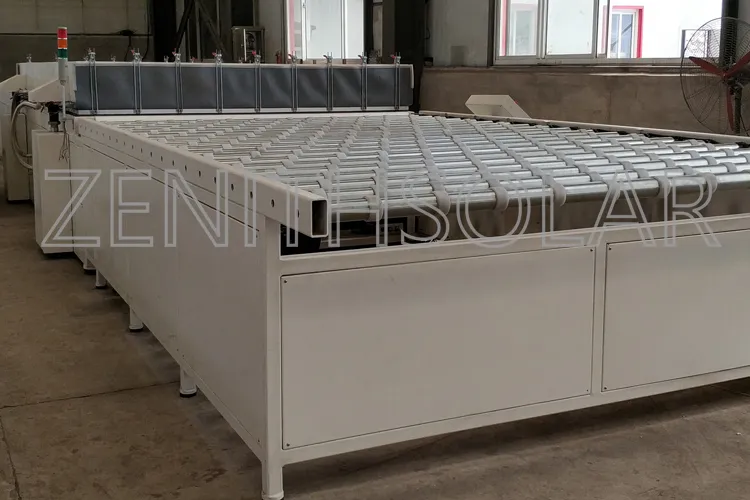

PV lamination machine especially for encapsulating solar module

Technical Parameters

Power	AC380V/50HZ/3Phases/5Lines	Capacity	5-15(1-3shift)MW/year
Compressed Air Flow	0.25m³/min	Vacuum Rate	100m³/H
Normal Power	10KW	Max. Power	34KW
Lamination Time	PVB/EVA: 12-15min	Lamination Area	2200*2140mm
Working Temperature	100-160ºC	Temperature Uniformity	≤±2ºC
Dimension	770026201350mm	Weight	7.5T

Key Characteristics

Integrated Design

Patented design where the vacuum pump and oil pump are placed inside the machine to save plant space.

Lower Noise

Equipped with high-quality vacuum pumps reducing noise to 65dB for a more comfortable working environment.

Smoke-Free Operation

Unique smokeless pump design eliminates the need for complex external exhausting systems.

Energy Saving

Engineered for efficiency, achieving approximately 30% energy savings compared to other standard brands.

Frequently Asked Questions

Q: What materials can this lamination machine process? A: The machine is designed for encapsulating solar modules using PVB or EVA materials with a cycle time of 12-15 minutes.

Q: How does the integrated design benefit my facility? A: By housing the vacuum and oil pumps internally, the machine significantly reduces its overall footprint, allowing for more efficient use of floor space.

Q: Is the machine certified for international standards? A: Yes, all machines in the PV production line have passed CE and ISO certifications, ensuring high safety and quality standards.

Q: What is the noise level during operation? A: Thanks to the high-quality vacuum system, noise is maintained at around 65dB, which is much lower than industry averages.

Q: What is the maximum lamination area available? A: The machine provides a generous lamination area of 2200*2140mm, suitable for various solar module sizes.

Q: Does it require an external exhaust system for smoke? A: No, the specialized pump design is smokeless, meaning no additional exhausting configuration is required.
