Ane Preofessional Designed Solar Wind Energy Completely Power Supply Solution Plan for Bts Station

1 / 5

Ane Preofessional Designed Solar Wind Energy Completely Power Supply Solution Plan for Bts Station

Customization:	Available
After-sales Service:	20years
Warranty:	5years

Send Inquiry

Product Description

⚡ Basic Information

Model NO.

AH-5KW

Output Type

AC Single Phase

Number of Blade

Three Blade

Rotating Shaft

Horizontal

Stress Way

Pitch Controlled

Power Range

10-100kW

Phase

Three Phase

Certification

CE, ISO, RoHS

Transport Package

Plywood Box

Origin

China

📋 Product Description

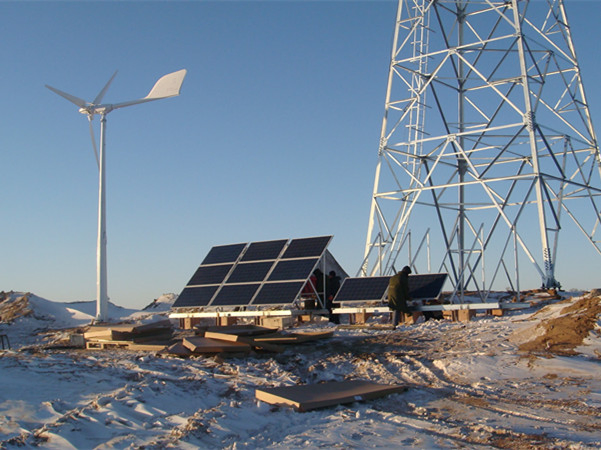

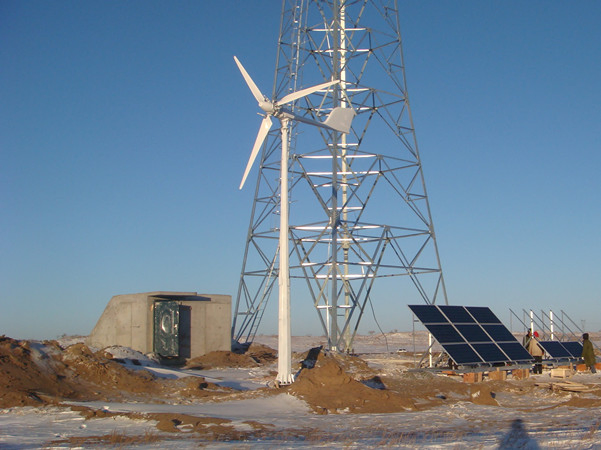

Communication Base Station Supply System Solution Plan

The new energy communication base station supply system is primarily designed for small base stations situated in remote areas without grid access. These stations typically have a 48V load with a rated power of approximately 500W and a daily consumption of 12kWh. By integrating a 5kW wind turbine with 5kW solar modules, this system ensures 24-hour continuous operation.

⚙️ System Configuration

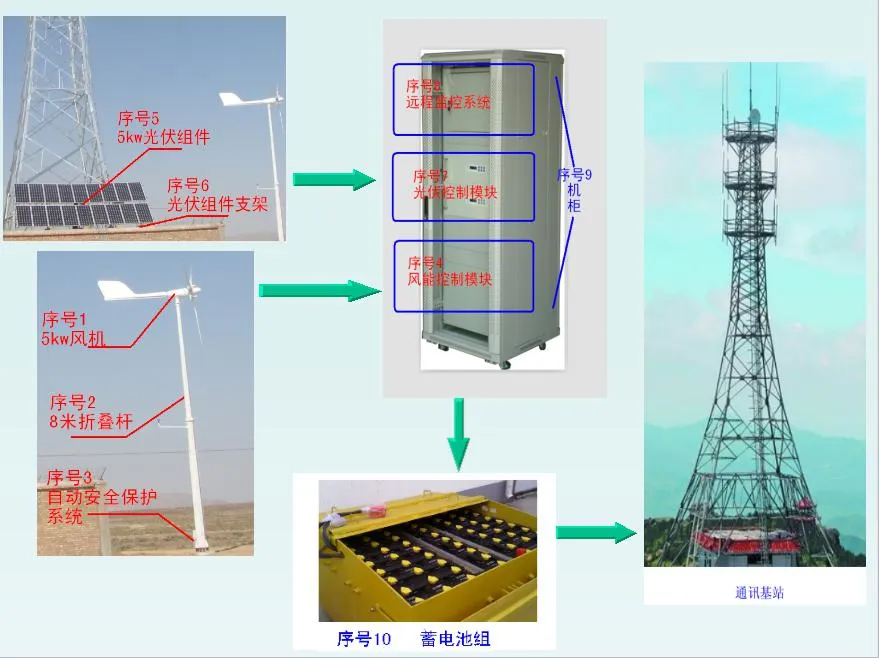

Example: 5kW Wind + 5kW Solar Hybrid System

No.	Name	Specification	Qty.
1	Pitch Controlled Wind Turbine	5kW/DC 200V	1
2	Tilt-up Tower and Accessories	8m/Two Segment	1
3	Auto Safety Protection System	BK-500	1
4	Wind Control Module	DC200V-DC48V	1
5	Solar Module	255W/Poly	20

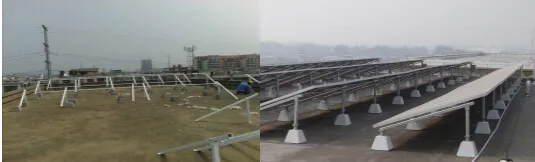

6	Solar Bracket	5kW Ground Mount	1 Set
7	Solar Control Module	TA48-S100	1
8	Remote Monitor System	GPRS	1
9	Equipment Cabinet	6006001600	1
10	Battery Group	2V/2000AH	24

🌟 System Advantages

1. 24-Hour Continuous Power Supply

Ensures all communication equipment runs normally without interruption.

✔Low Startup Speed: Mechanical pitch control allows the rotor to start at just 2.5m/s wind speed.
✔Stable High-Wind Output: Blade angles adjust automatically when wind exceeds rated speeds, providing 30% more output than standard turbines.

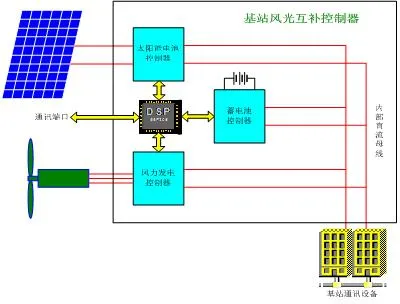

2. Professional Control Modules

Designed specifically for base stations with advanced battery management (floating/equalized charge) and MPPT technology for maximum efficiency.

The system converts high voltage (DC120V-350V) directly to DC48V/24V, reducing cable loss and eliminating intermediate links.

3. Easy Installation & Maintenance

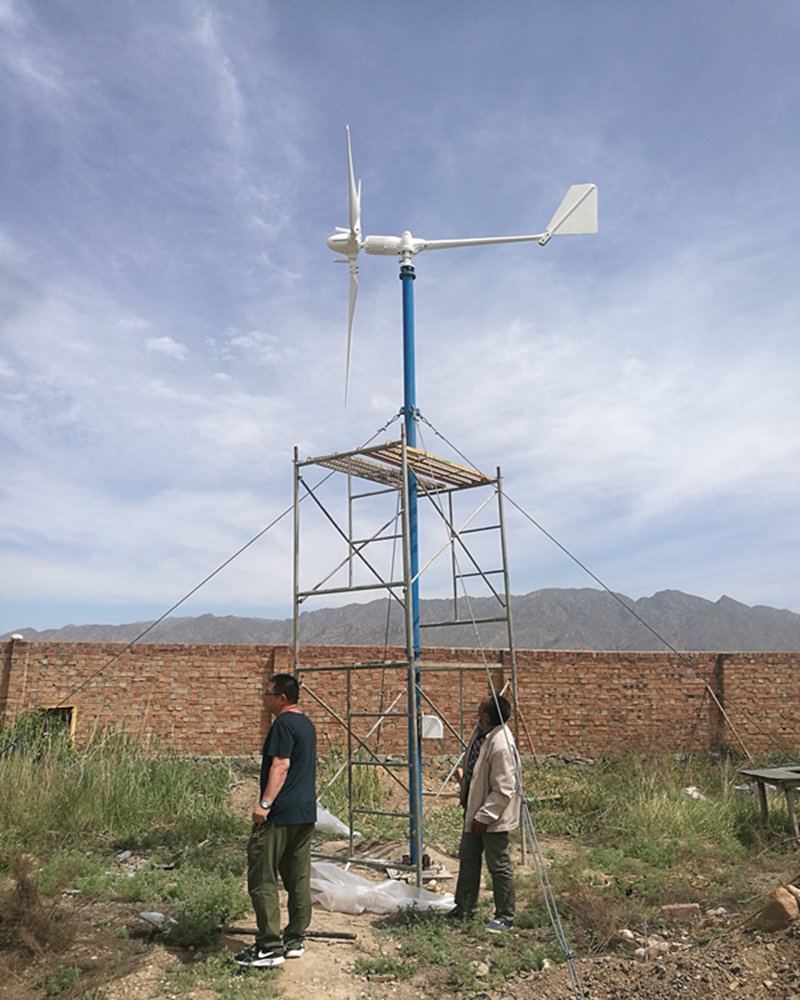

🛠️Tilt-up Tower: No cranes or heavy equipment required. Ideal for mountains and islands.
🛡️ASP System: Automatic safety protection monitors wind speed and voltage to brake the turbine during extreme conditions.
📱Remote Monitoring: Real-time status updates and data reading via GPRS/Mobile App.

📊 Technical Parameters (5kW)

Model	AH-5kW
Wind Rotor Diameter	5.6m
Blade Material	Fiber Glass Reinforced (3 pcs)
Rated / Max Power	5kW / 6kW
Rated Wind Speed	11 m/s
Startup Wind Speed	2.5 m/s
Working Wind Speed	3-30 m/s
Survival Wind Speed	60 m/s
Working Voltage	DC400V
Speed Regulation	Pitch-controlled
Stop Method	Automatic Electrical Brake
Generator Style	Three Phase, Permanent Magnet
Turbine Weight	400 kg

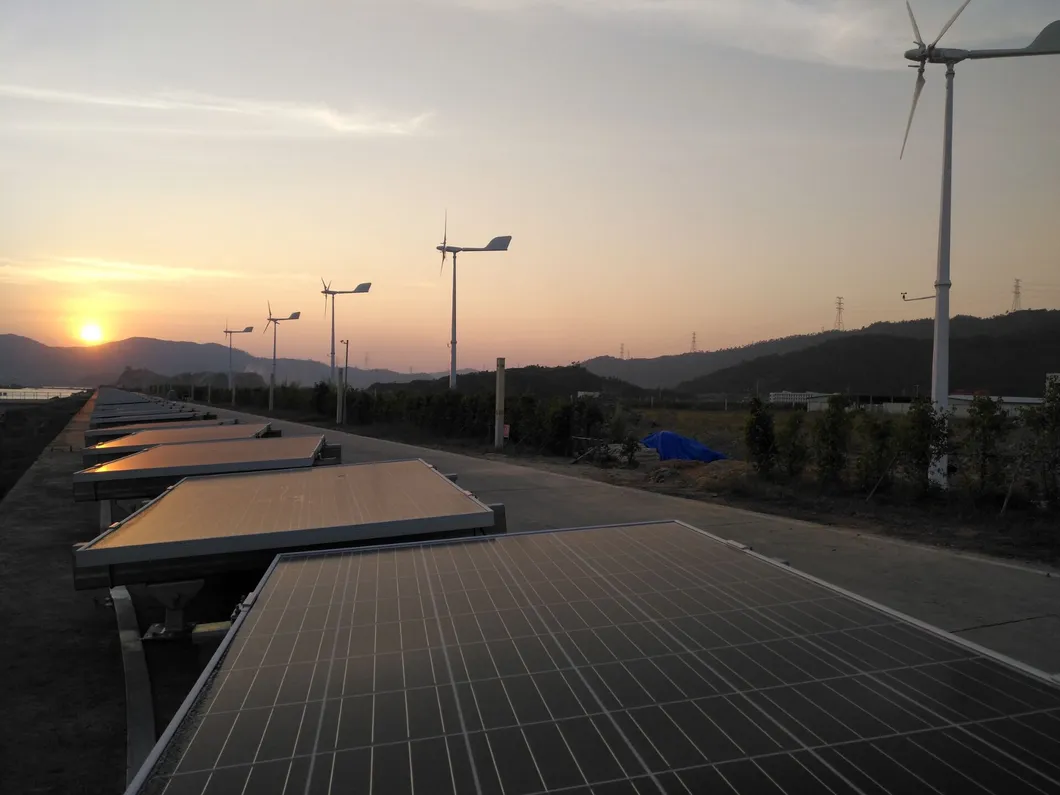

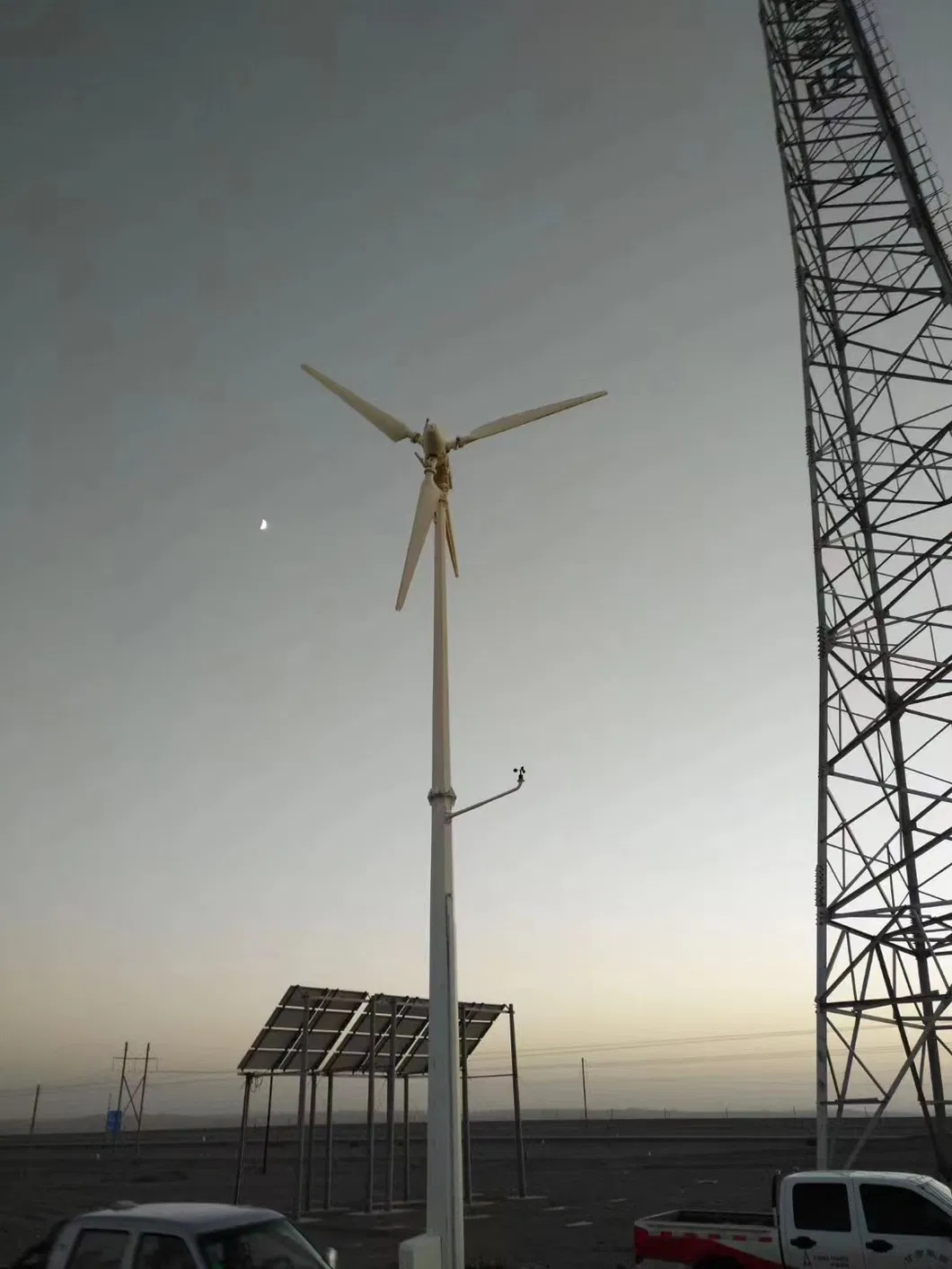

🌍 Global Projects

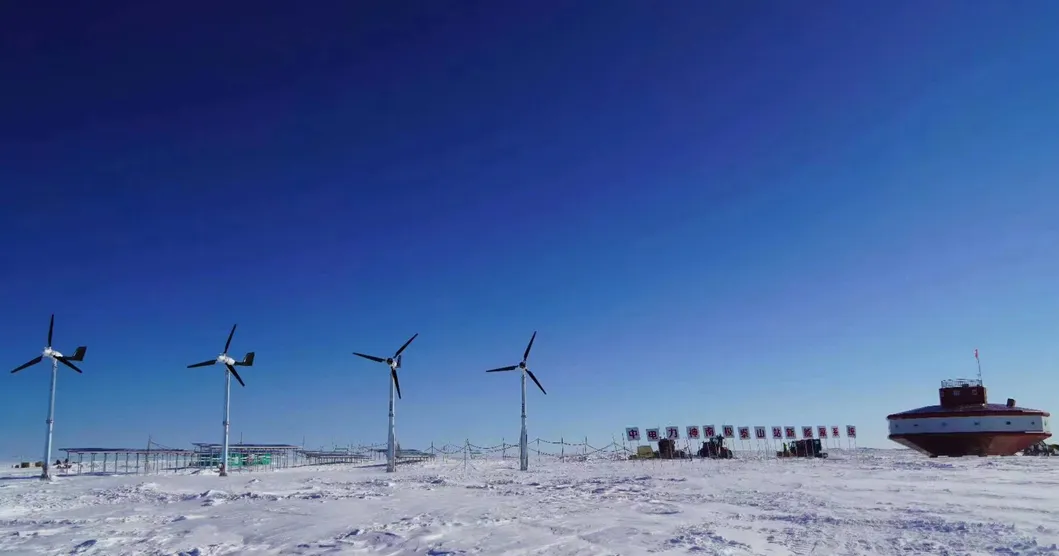

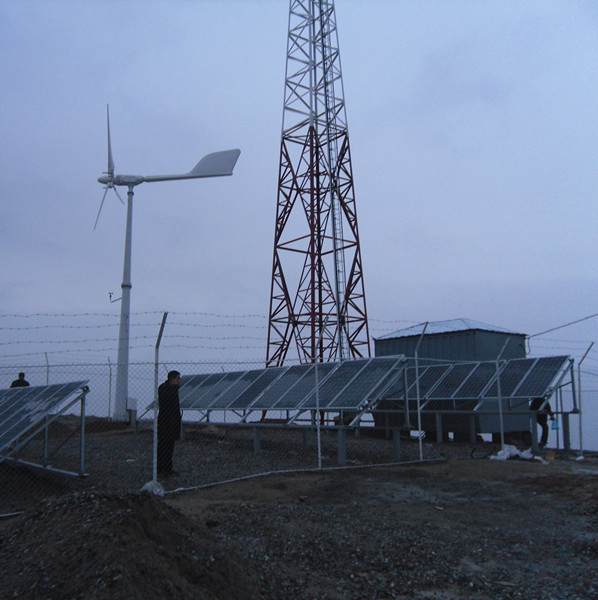

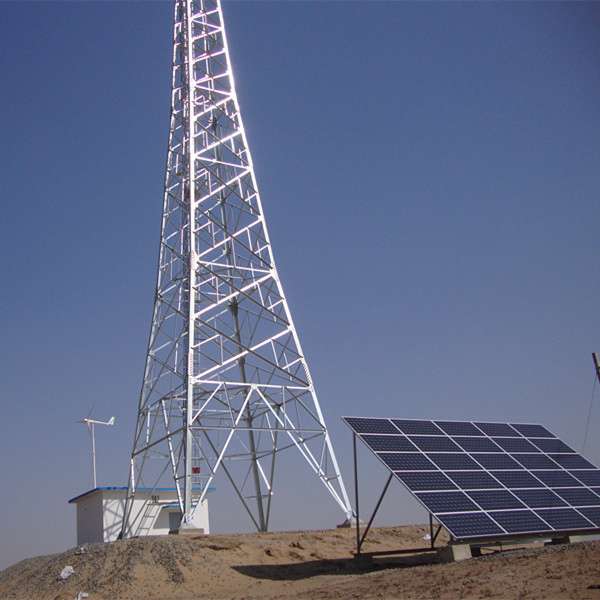

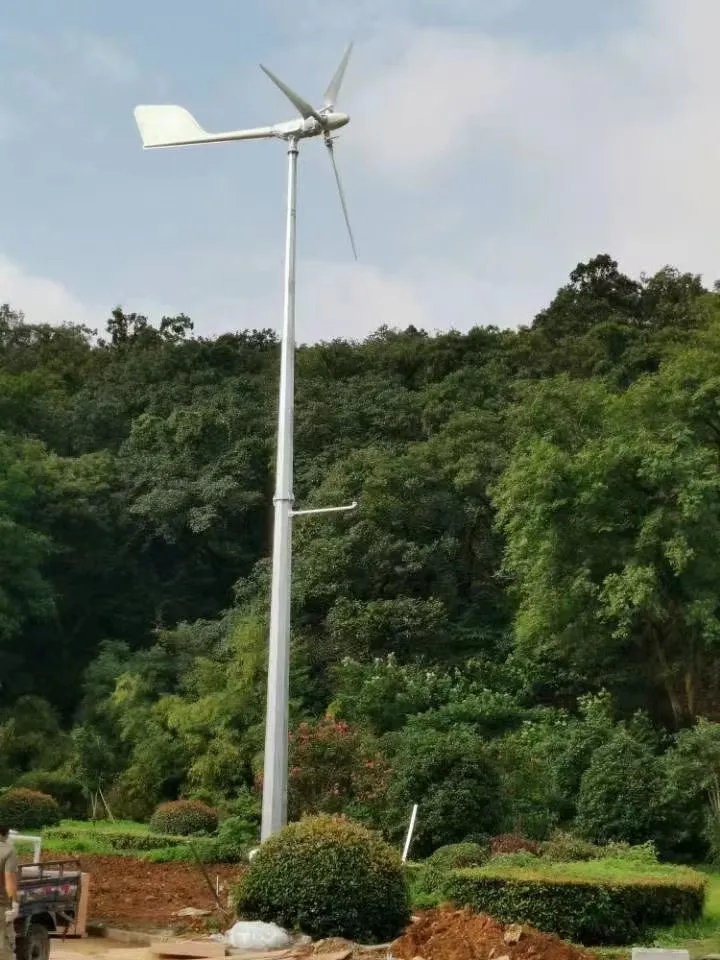

Our hybrid systems have been successfully deployed in over 1,000 locations worldwide, including large-scale installations in Northwest China and Central Asia, providing reliable power to remote communication hubs since 2009.

❓ Frequently Asked Questions

What is the minimum wind speed required for the turbine to start?

The system features a double-degree pitch control mechanism that allows the wind rotor to start at a very low wind speed of 2.5m/s.

How does the system handle extremely high wind speeds?

The Automatic Safety Protection (ASP) system monitors environmental wind speeds. If speeds exceed safe limits (e.g., 25m/s), it automatically engages the electrical brake to protect the turbine.

Is heavy machinery needed for installation?

No, the system uses a tilt-up tower design which can be installed without cranes, making it perfect for remote mountains or islands where heavy equipment cannot reach.

Can I monitor the system performance remotely?

Yes, the system includes a GPRS-based remote monitoring module that allows you to check real-time running status and power data via a computer or mobile app.

What is the typical daily power output?

For a standard 5kW wind + 5kW solar configuration, the system is designed to meet a daily consumption of approximately 12kWh, ensuring 24/7 operation for base stations.

What kind of maintenance does the system require?

Thanks to the tilt-up tower and integrated control cabinet, maintenance is simple and low-cost. The ASP system also allows for unattended operation in most environments.
