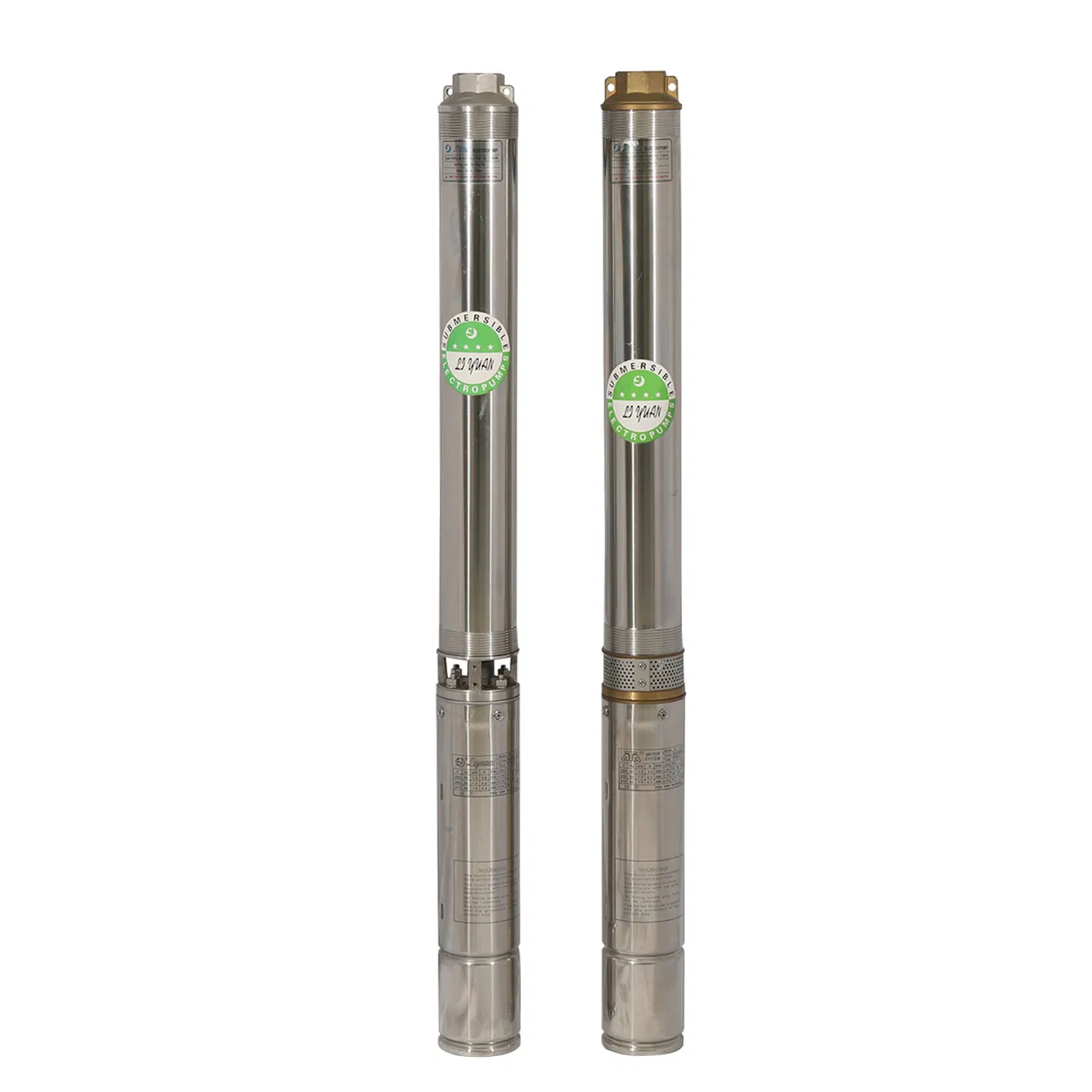

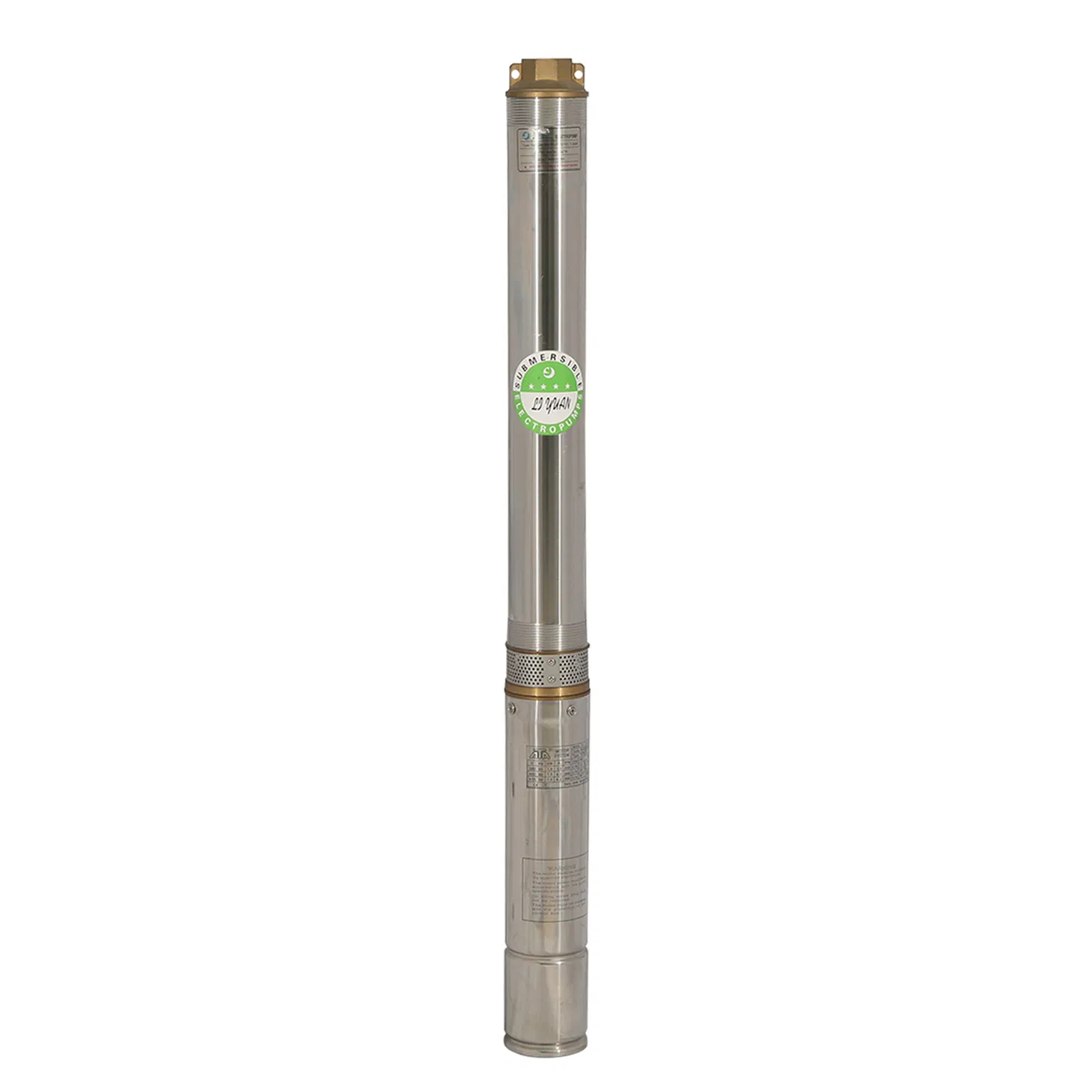

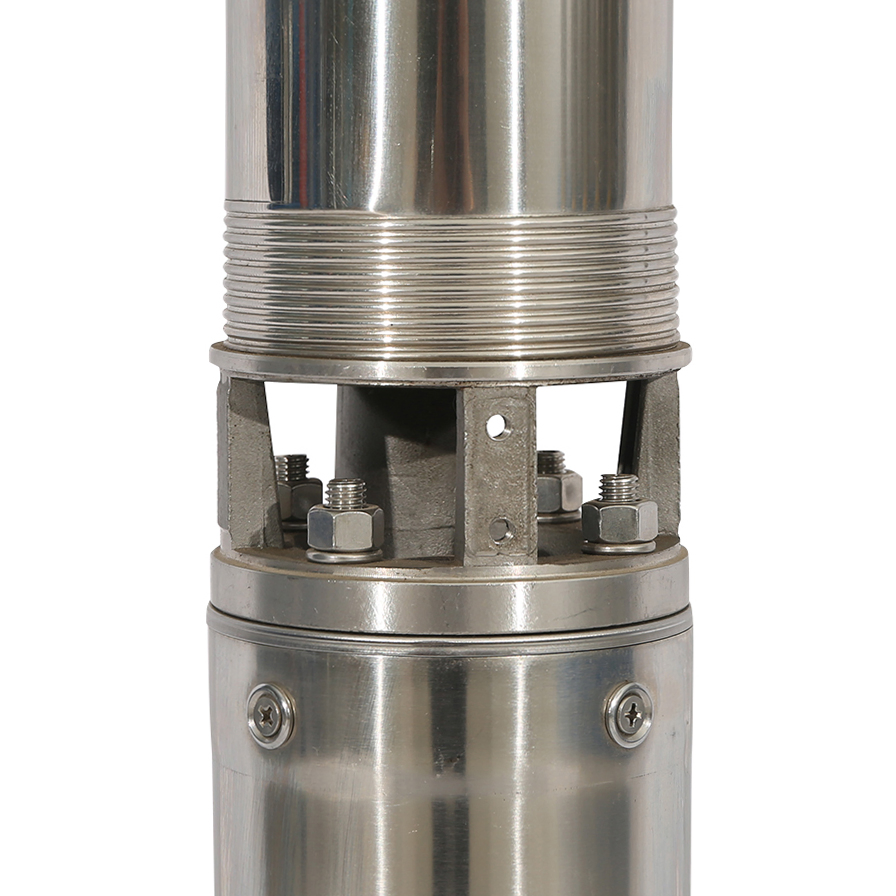

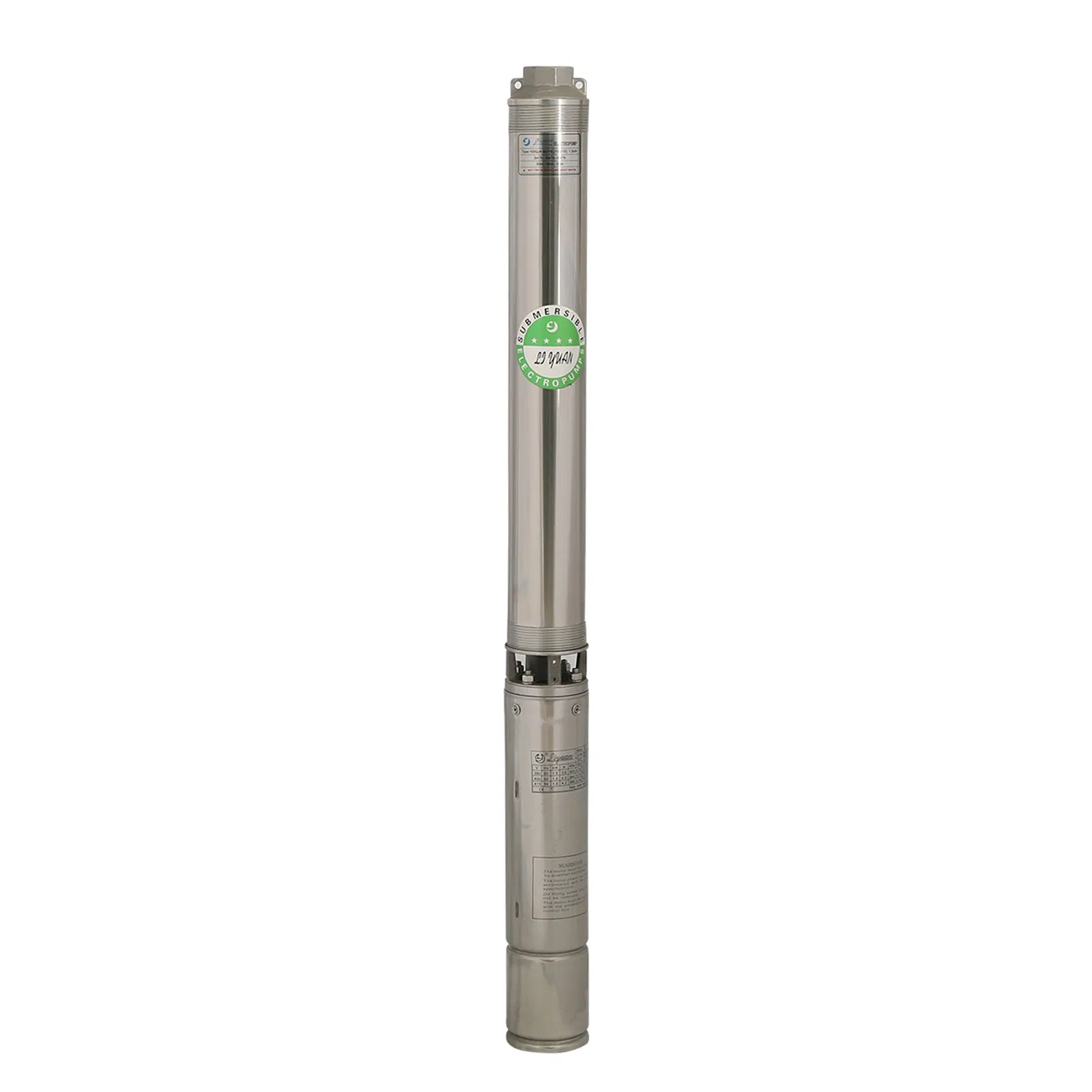

Portable High Head Submersible 200 Meter Deep Well Solar Powered Water Pump for Irrigation

1 / 5

Portable High Head Submersible 200 Meter Deep Well Solar Powered Water Pump for Irrigation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.:

LY-Submersible Pump

Driving Type:

Motor

Material:

Stainless Steel

Structure:

Multistage Pump

Power:

Electric

Theory:

Centrifugal Pump

Classification:

Deep Well Pump

Voltage:

220V-400V

Frequency:

50/60Hz

Rotation Speed:

2850rpm

Agriculture Submersible Deep Water Well Pump Motor

🔭 Technical Specifications

Description	Deep Well Water Pump
Pump Size	3" ,4",5",6",8",10",12"
Power Range	0.3hp - 300hp
Material	High Grade Stainless Steel
Medium	Clear water, Hot water, Acid and Alkaline water (Customizable)
Controller	MPPT AC Inverter / Multi-function Controller
Power Source	Solar, Solar/Electric Hybrid

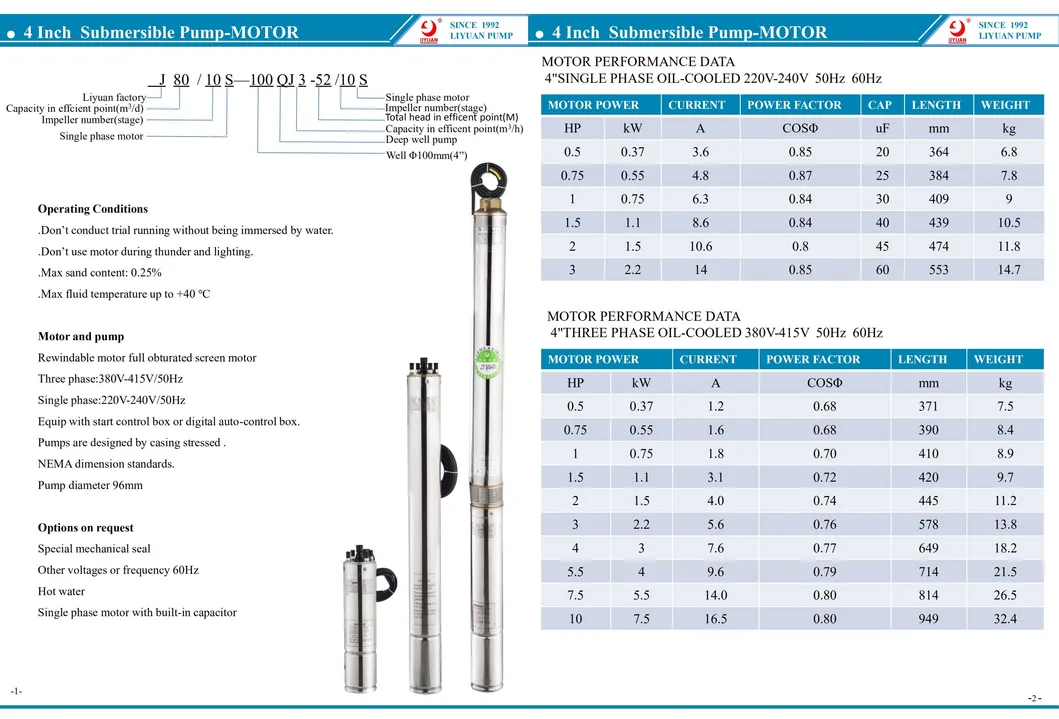

Model No.		Universal Model	Motor Power		Flow Rate (m³/h)
1 Phase	3 Phase	Universal Model	HP	KW	3	4	5	6	7
J150/7S	J150/7	100QJ6-26/7(S)	1	0.75	39	36	31	26	22
J150/9S	J150/9	100QJ6-34/9(S)	1.5	1.1	50	46	42	34	28
J150/13S	J150/13	100QJ6-50/13(S)	2	1.5	71	67	63	50	41
J150/18S	J150/18	100QJ6-70/18(S)	3	2.2	105	100	90	70	57
-	J150/26	100QJ6-110/26	4	3	150	145	132	110	82

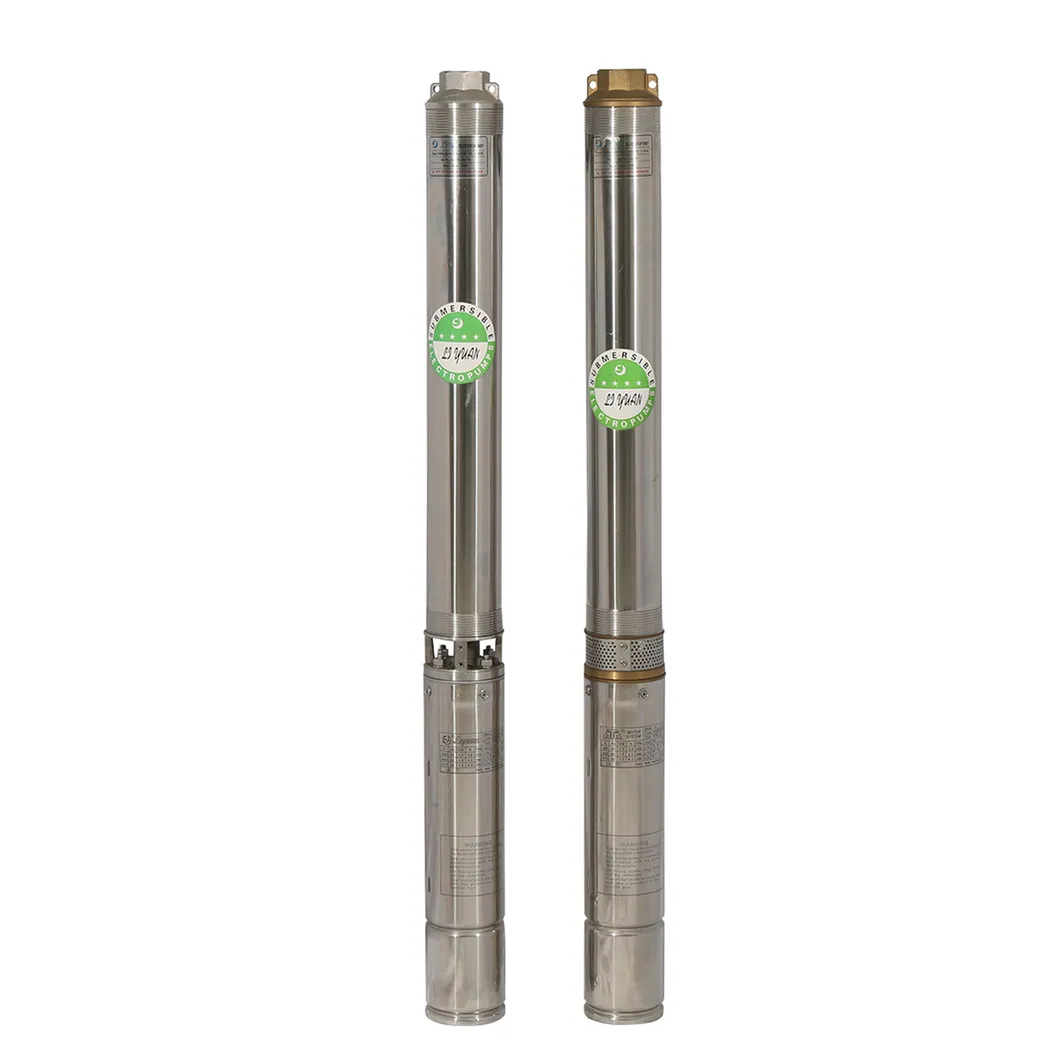

📷 Product Gallery

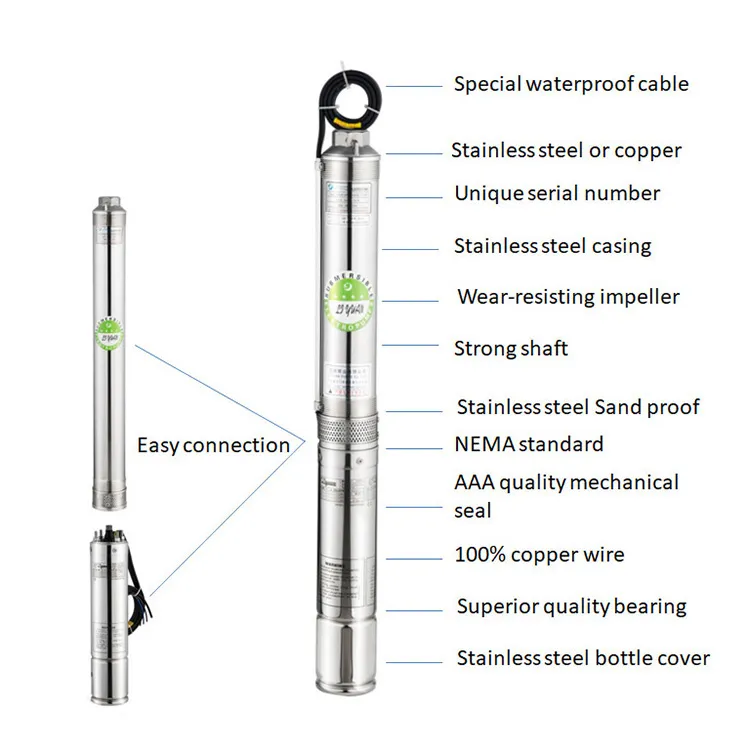

⭐ Key Product Features

✓ CE standard approved for high safety and quality.
✓ Unique item numbering for easy tracking.
✓ Thicker pipe walls compared to standard market products.
✓ Premium bearings including domestic, NSK, or SKF options.
✓ Self-designed impellers for optimized flow and performance.
✓ 100% pure brass wire motor with larger and deeper slots.
✓ Strict quality control from material receiving to final packaging.

🚚 Packaging & Delivery

Package Size:

100cm * 40cm * 30cm

Gross Weight:

10.00kg

Lead Time:

7 - 15 days (depending on quantity)

Transport:

Plywood Case Packaging

❓ Frequently Asked Questions

1. What materials are used in the construction of these pumps?

The pumps are primarily constructed from high-quality Stainless Steel, with hull material options including S.S, Cast Iron, and Brass.

2. What power sources can be used with this submersible pump?

These pumps can be powered by standard Electric sources (AC 220V-400V) or through Solar and Solar/Electric hybrid systems using an MPPT inverter.

3. Is it possible to use this pump for hot or acidic water?

Yes, the pump is designed for clean water but can be customized to handle hot water as well as acidic and alkaline water environments.

4. What is the typical delivery time for an order?

The normal lead time is between 7 to 15 days, depending on the specific order quantity.

5. Does the pump meet international quality standards?

Yes, all products are manufactured in an ISO 9001:2008 approved environment and have passed CE standards.

6. What is the motor speed and frequency of the pump?

The motor operates at a rotation speed of 2850rpm and is compatible with both 50Hz and 60Hz frequencies.
