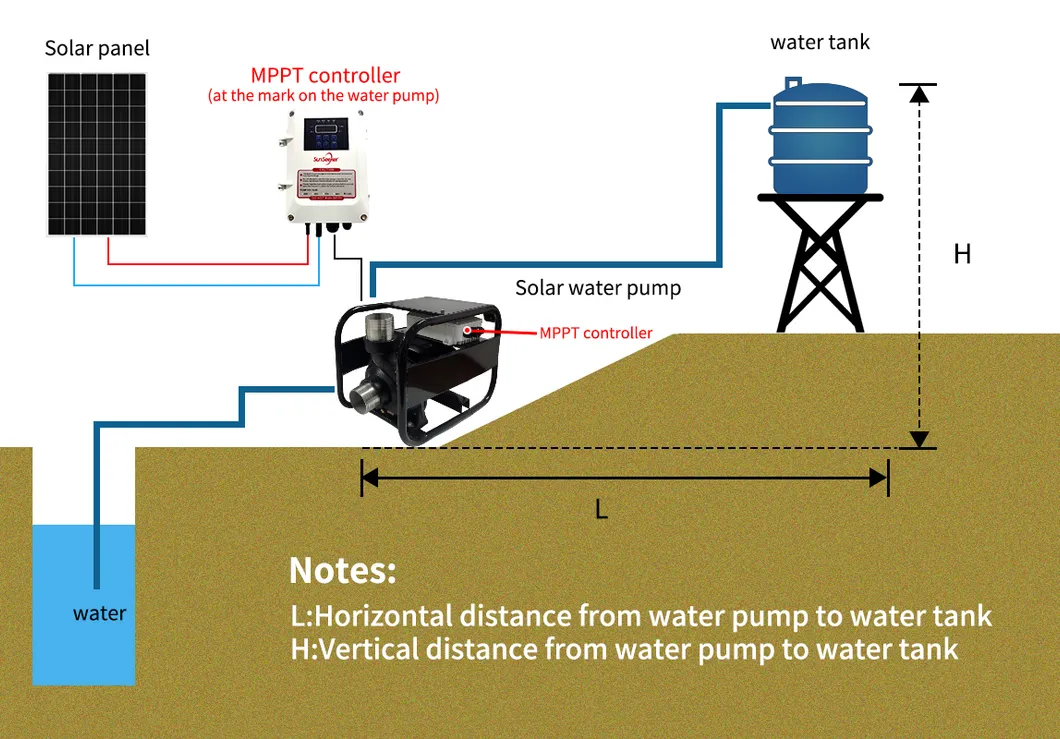

1) L: Horizontal distance from pump to tank
2) H: Vertical distance from pump to tank
3) Total Head = H + L * 10%
1) Estimated Time: 5 hours
2) Daily consumption (m³)
3) Actual Flow = Daily consumption / Time (m³/h)

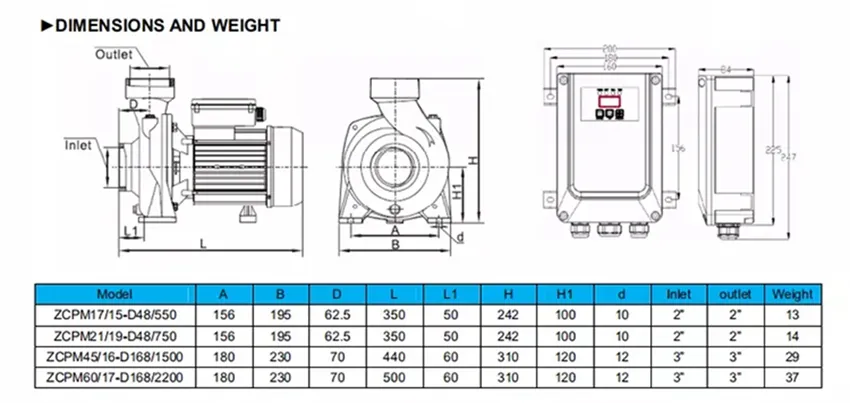

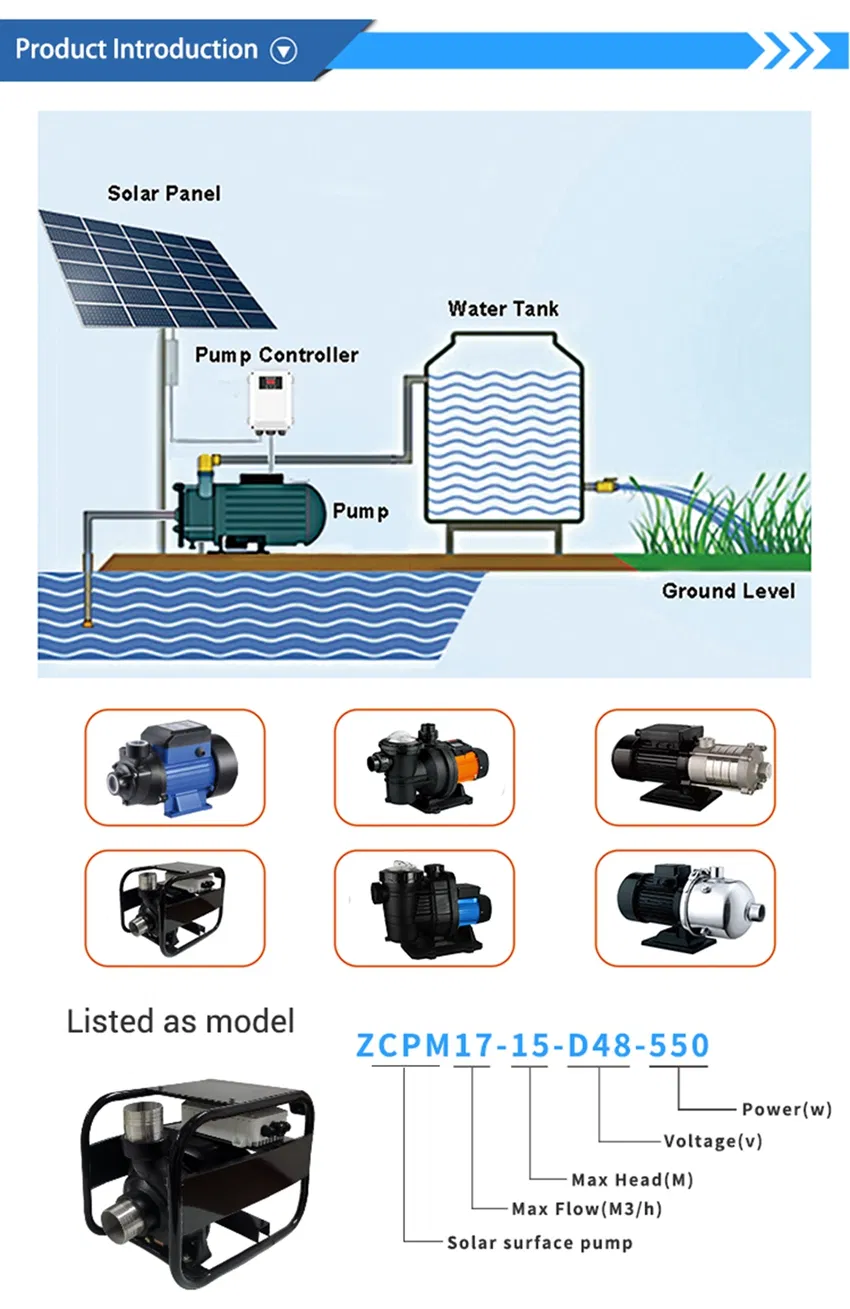

| Model | Impeller | Voltage (V) | Power (W) | Power (HP) | Max Flow (m³/h) | Max Head (M) | Max Suction (M) | Inlet/Outlet | Solar Panel (W) |
|---|---|---|---|---|---|---|---|---|---|
| ZCPM17-15-D48-550 | Brass | 48 | 500 | 0.75 | 17 | 15 | 8 | 2"x2" | 800 |
| ZCPM21-19-D72-750 | Brass | 72 | 750 | 1 | 21 | 19 | 8 | 2"x2" | 1050 |
| ZCPM26-15-D72-1100 | Brass | 72 | 1100 | 1.5 | 26 | 15 | 8 | 2"x2" | 1650 |
| ZCPM50-17-D96-1500 | Brass | 96 | 1500 | 2 | 50 | 17 | 8 | 3"x3" | 2200 |

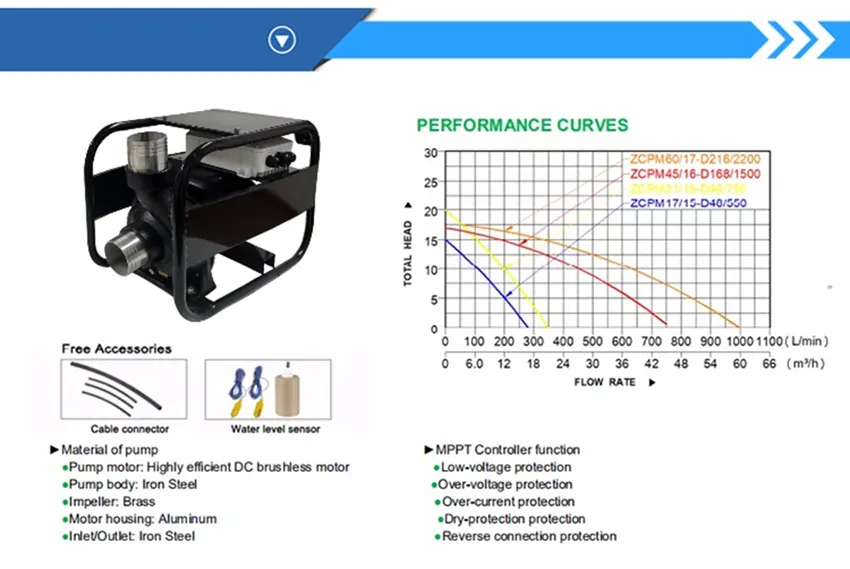

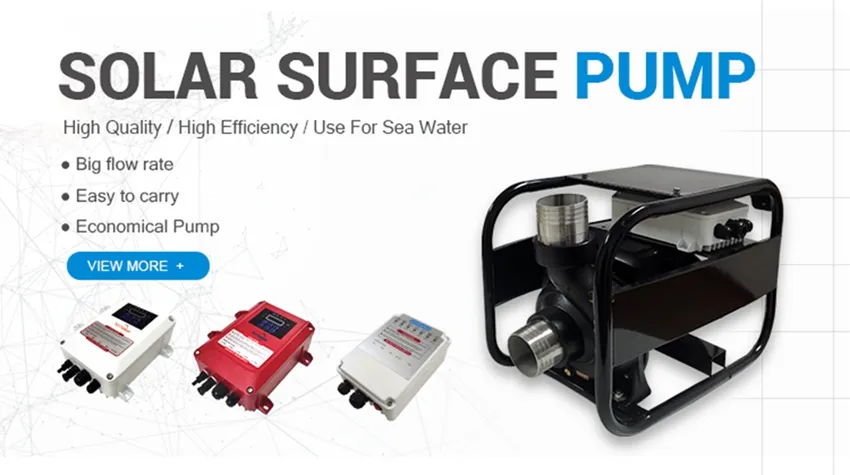

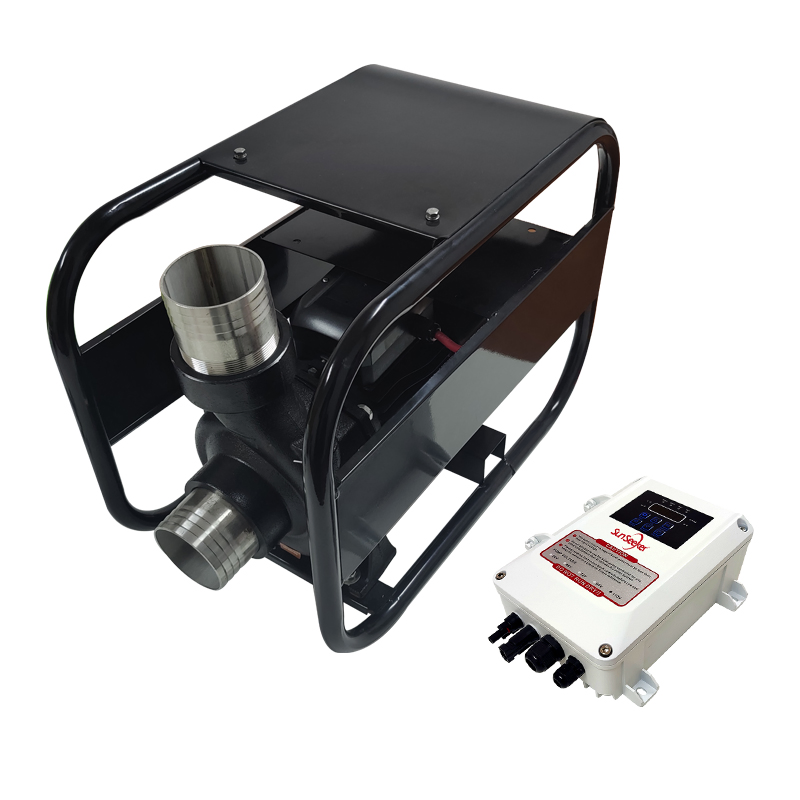

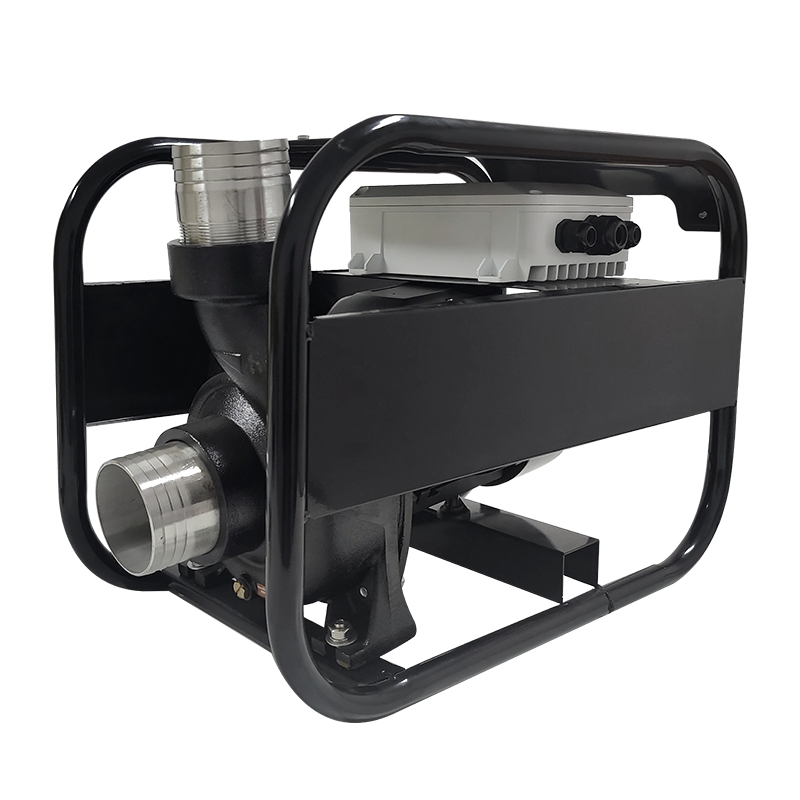

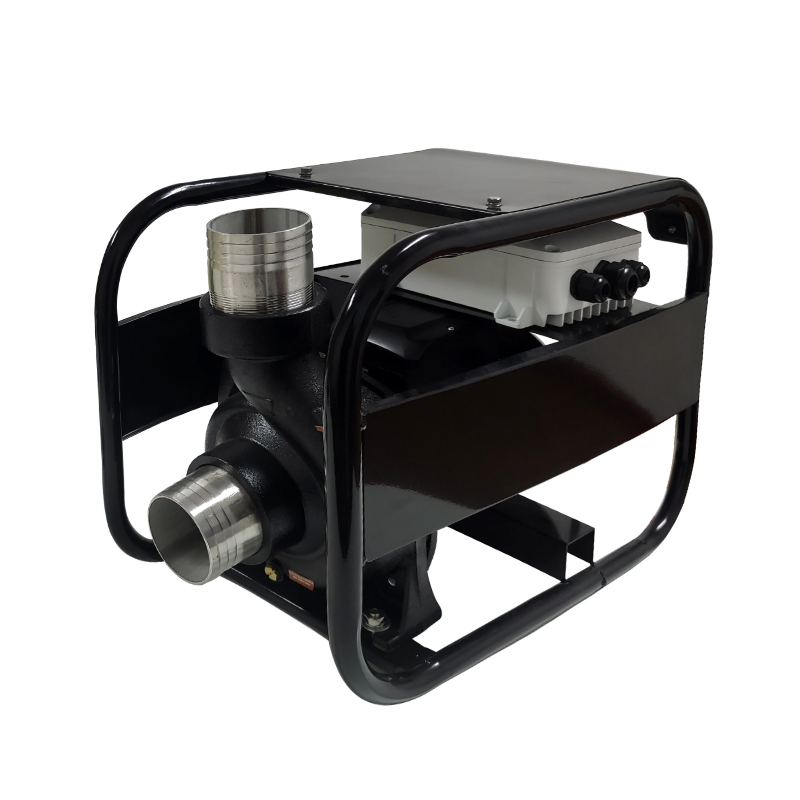

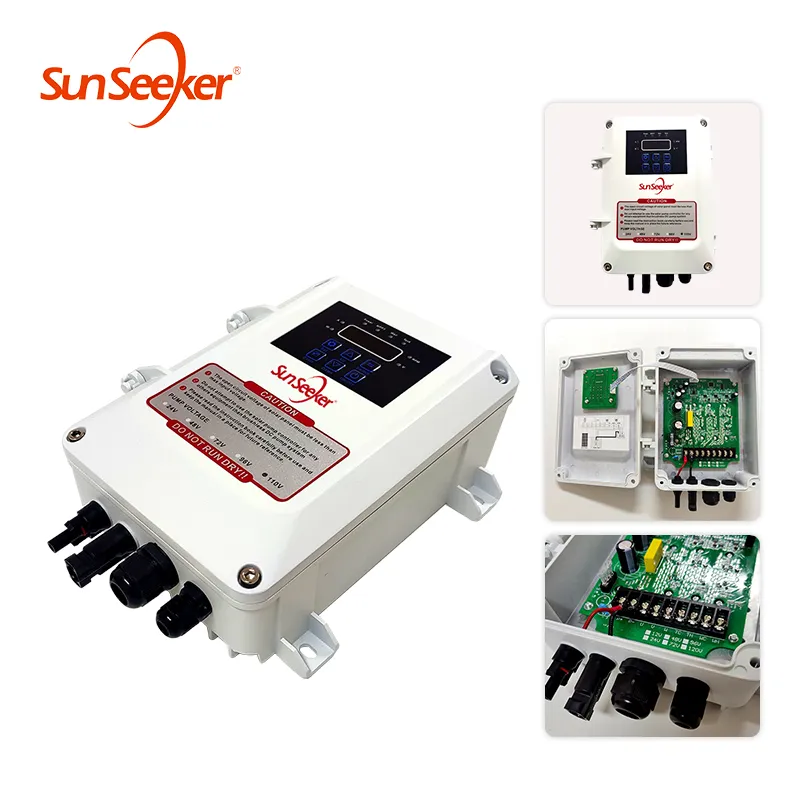

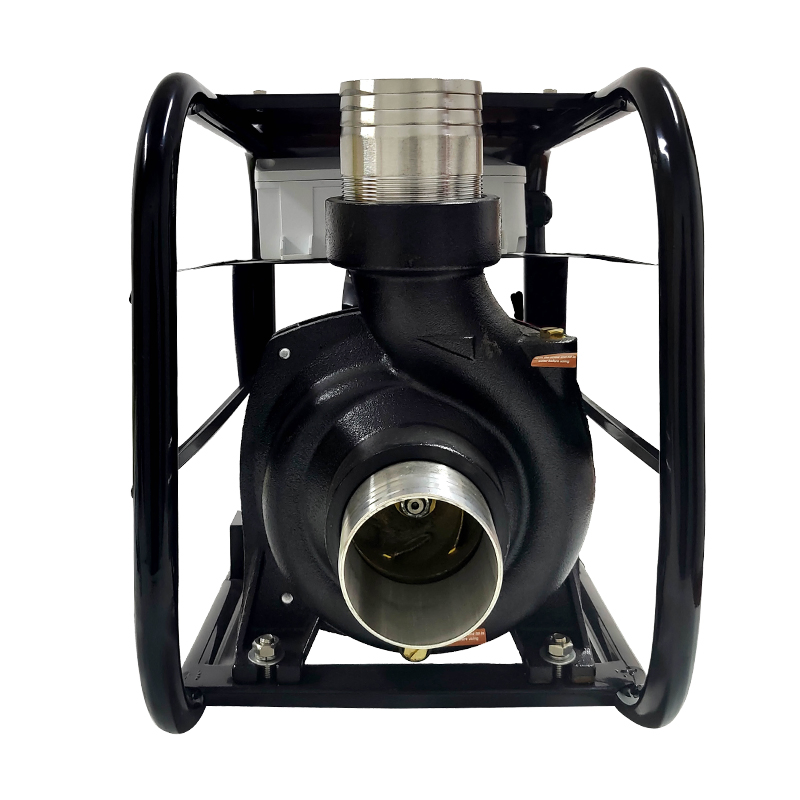

Solar DC Portable Surface Pump: Integrated with MPPT control and constructed with special materials suitable for salty water.
