Brief Introduction

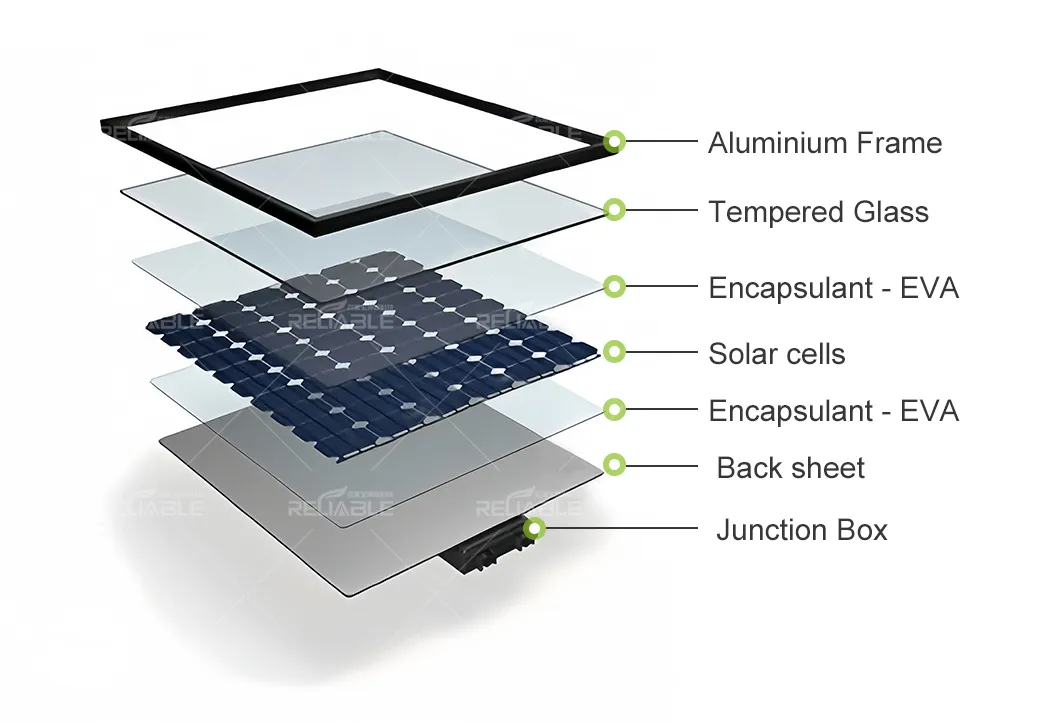

Solar panel structure: Aluminum frame — Tempered glass — Encapsulant — EVA — Solar cell — Encapsulant — EVA — Backsheet junction box.
We can recycle the metals (copper, silver, etc.), silicon, plastics, and glass generated throughout the process.

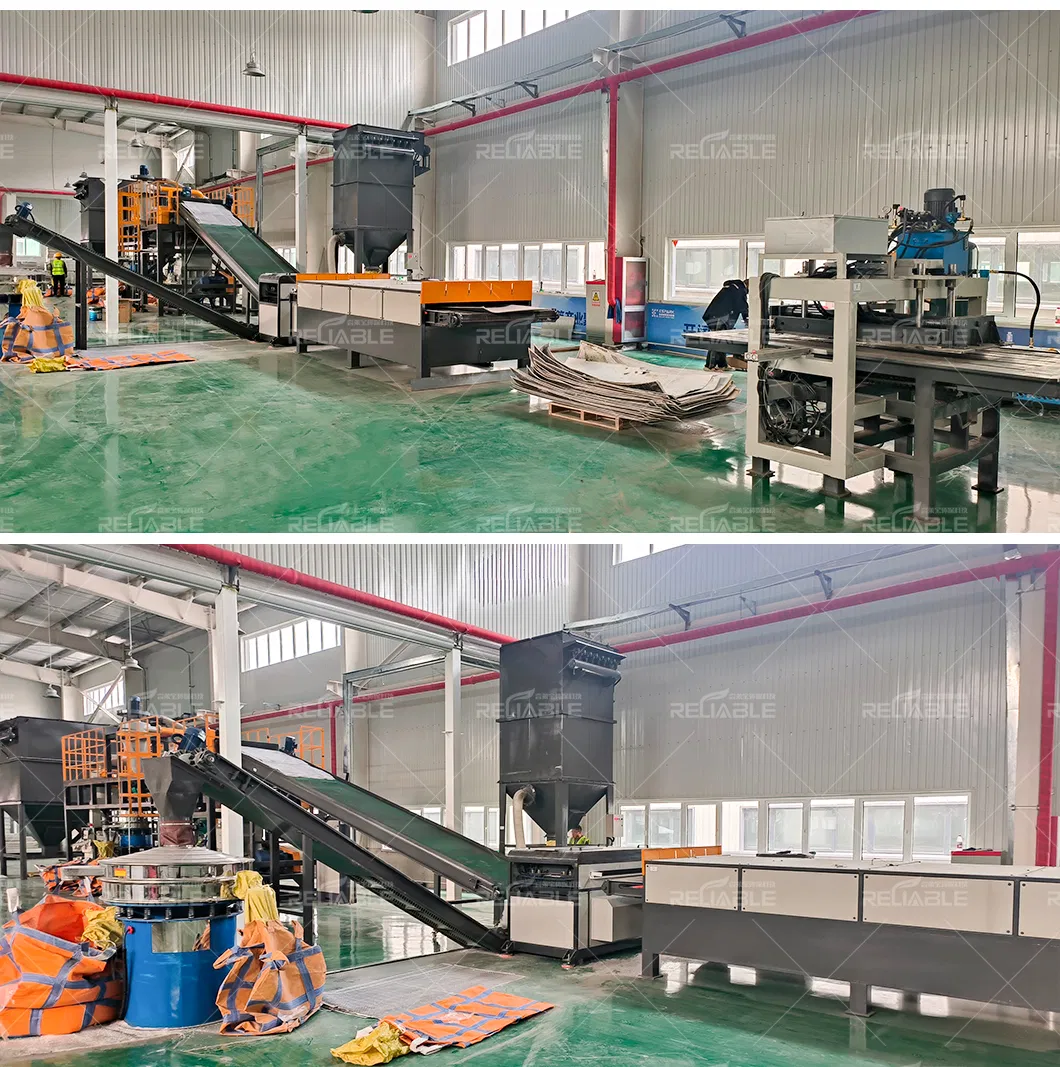

Production Process

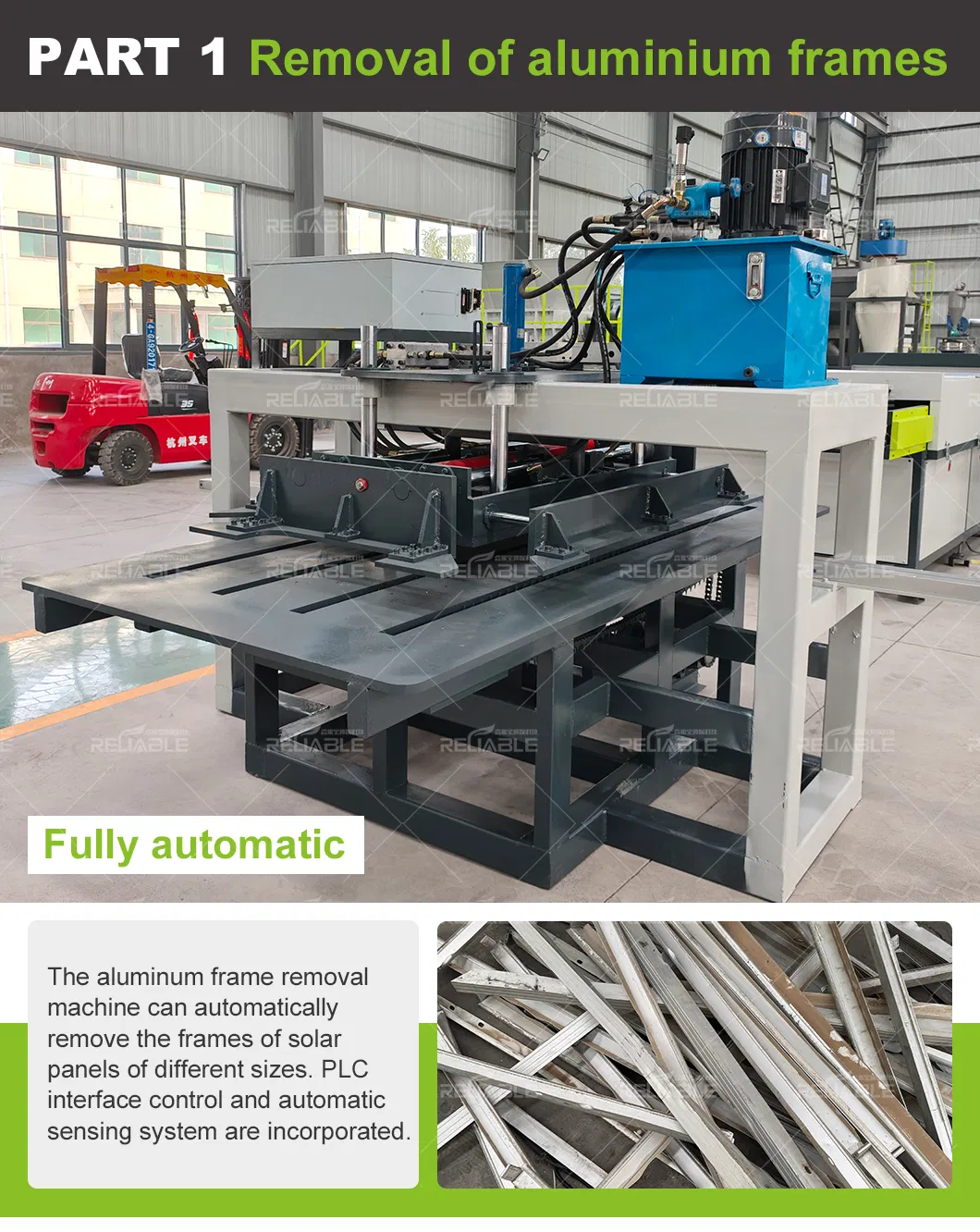

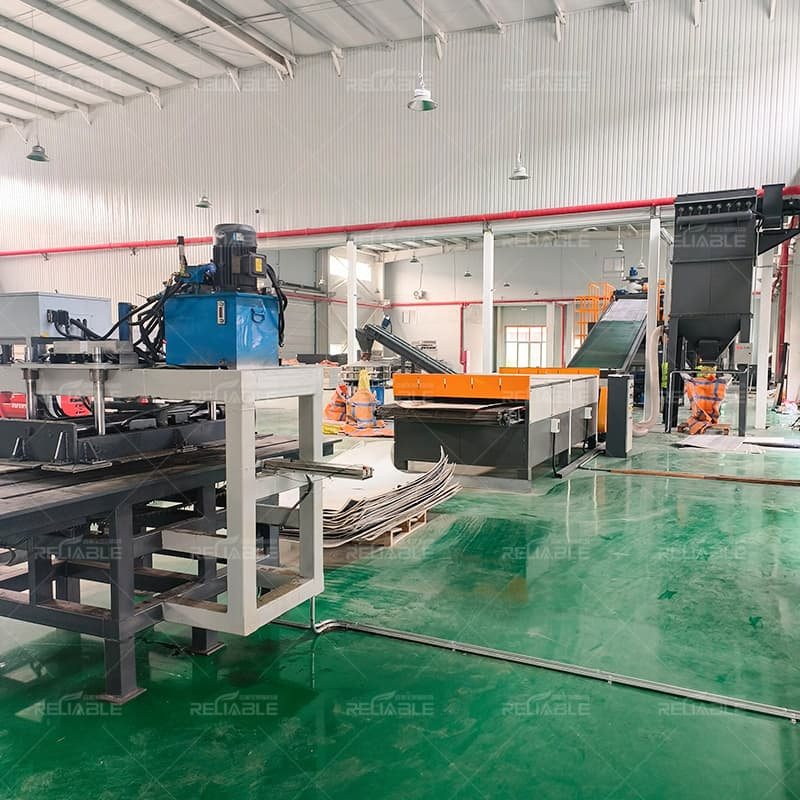

Frame Removal: The photovoltaic panel frame removal machine employs compression to eject and separate the aluminium alloy frames. Separation rate exceeds 99%, with a recovery purity exceeding 98%.

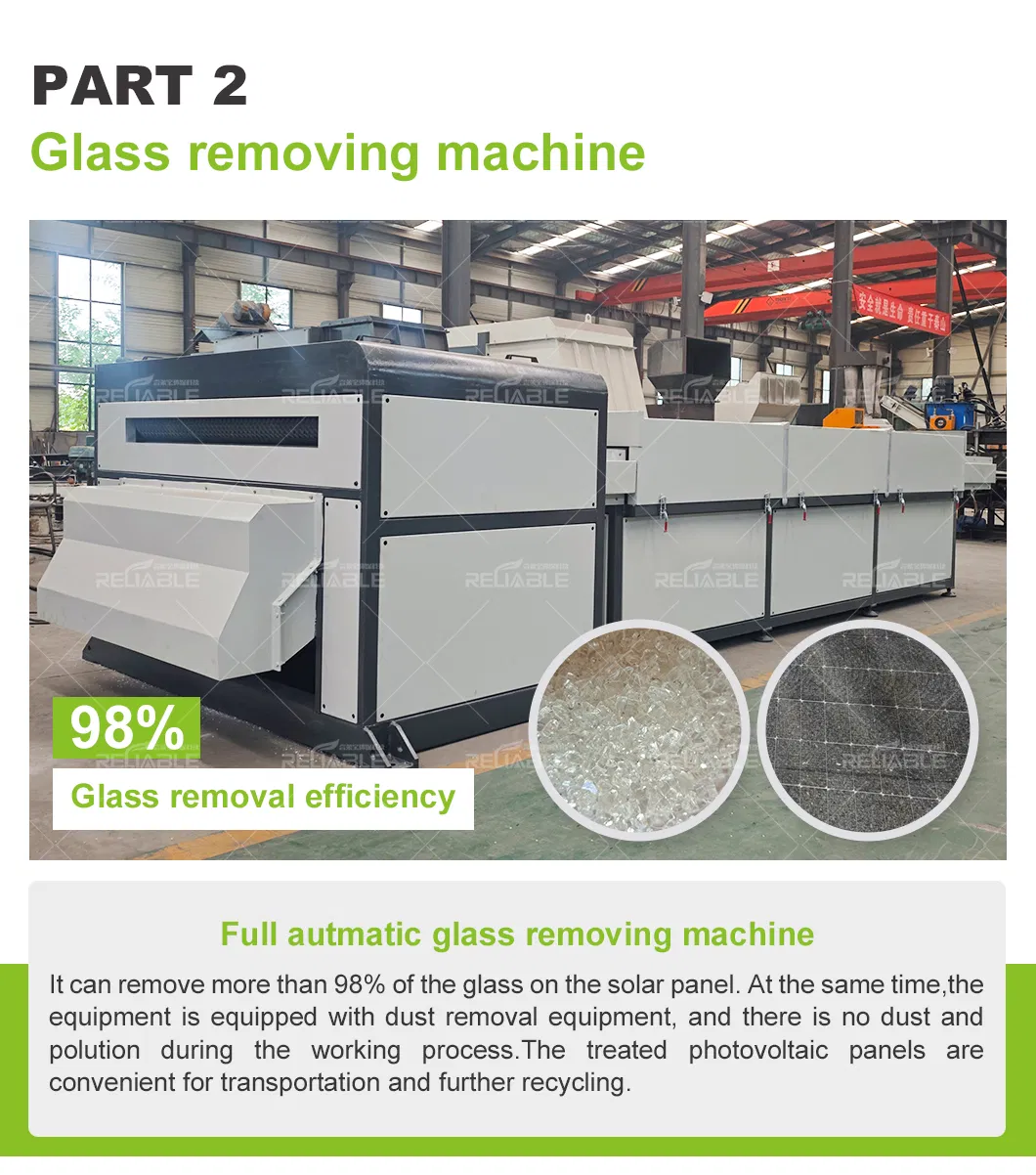

Glass Removal: Processing time per panel is approximately 30 seconds. Glass removal rate reaches 98%, with a recovery purity of 98%.

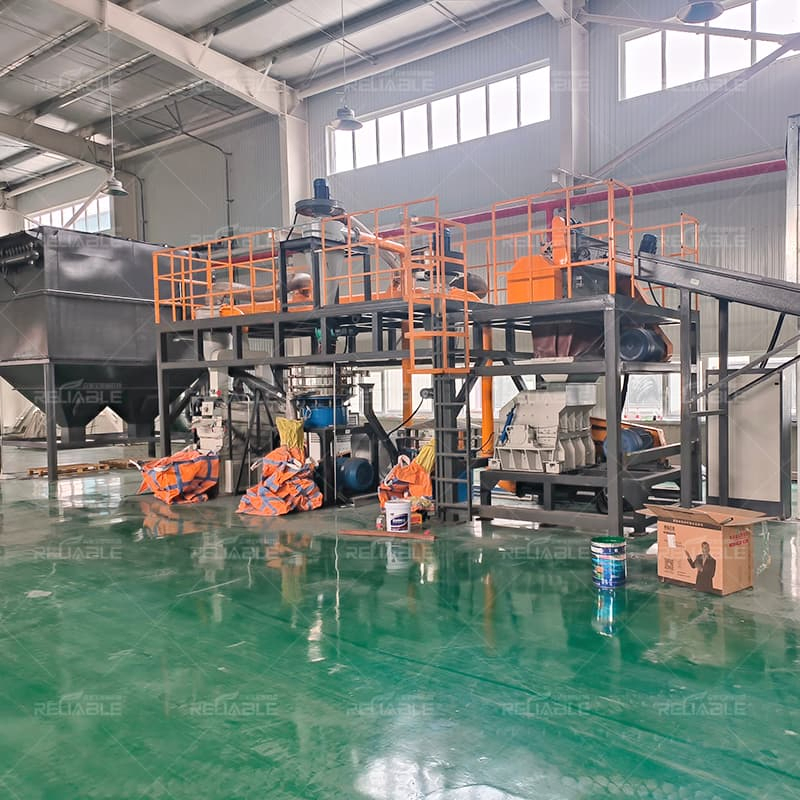

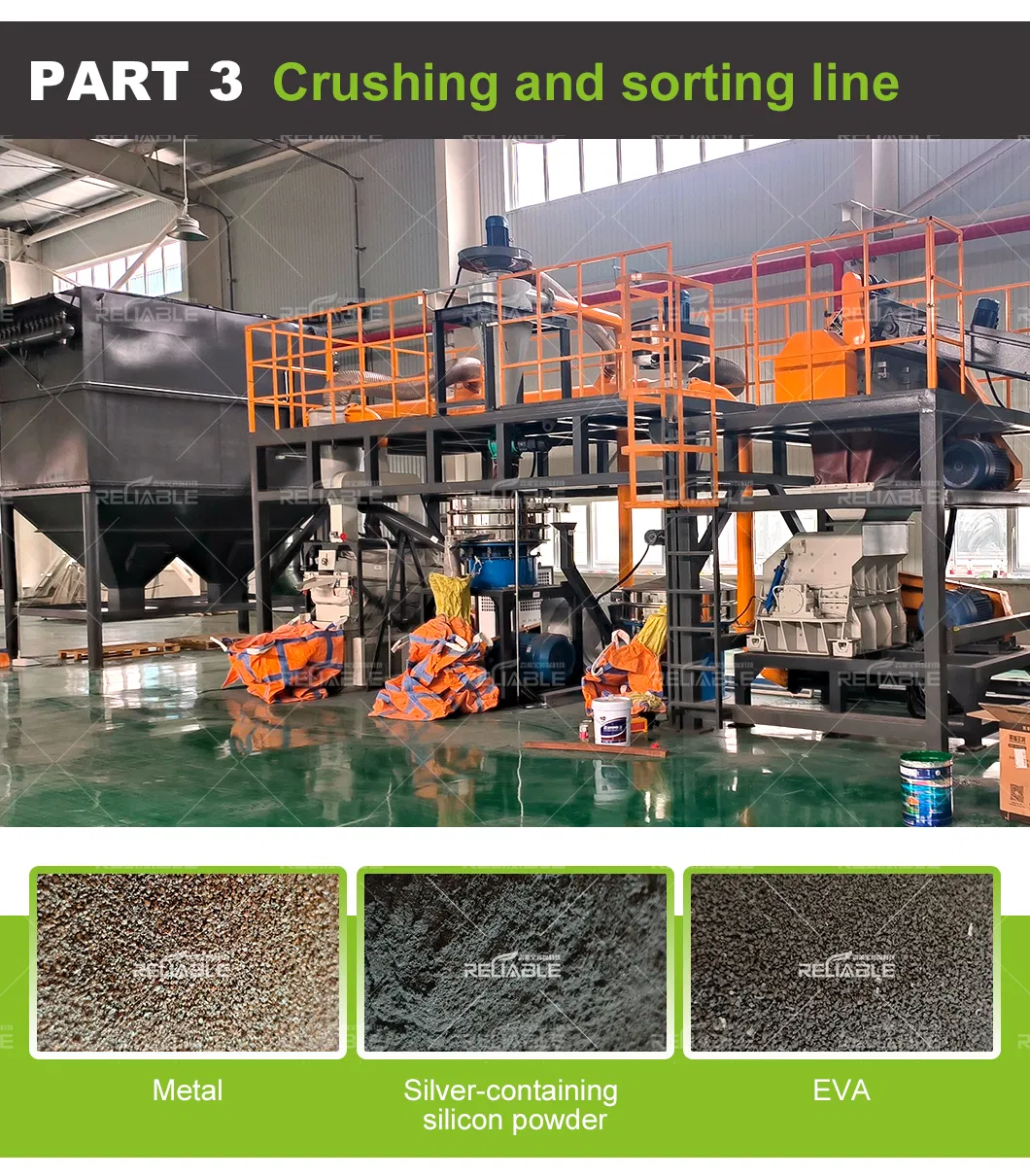

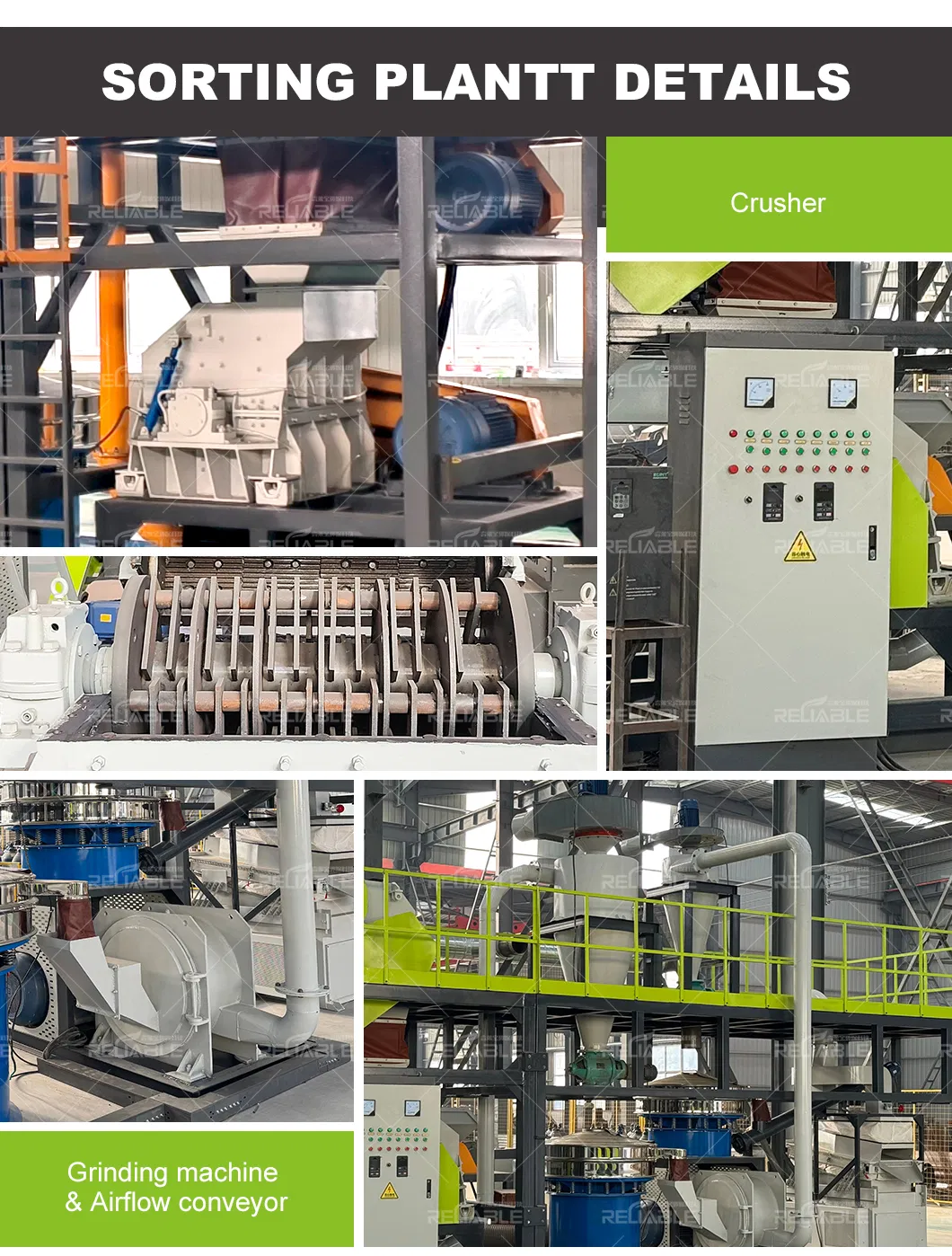

Crusher: Shreds solar cells into granular particles for further refinement.
Grinder: Performs fine grinding to prepare material for subsequent sorting.
Screening Equipment: Separates materials into distinct fractions including silver-containing silicon powder and copper-plastic mixtures.

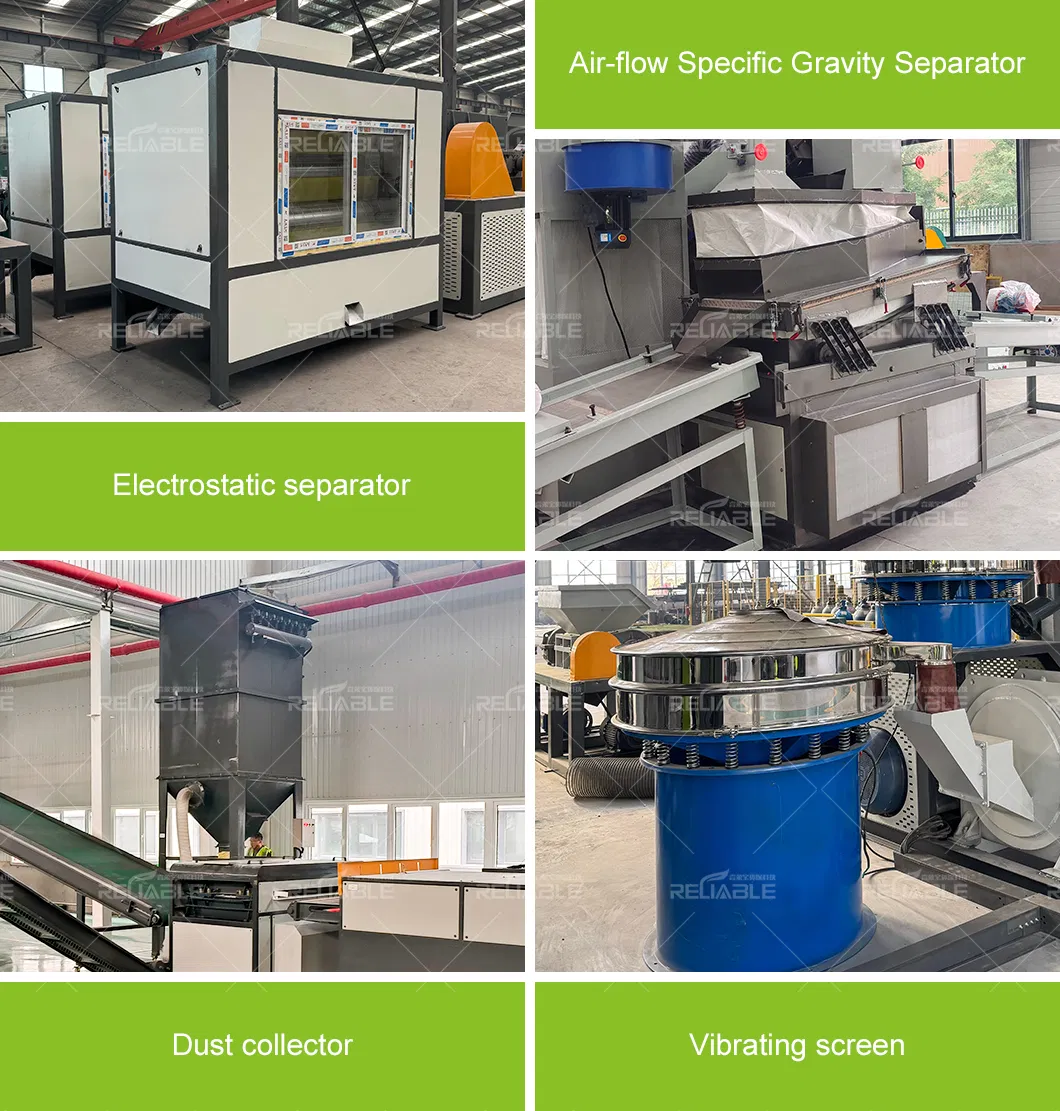

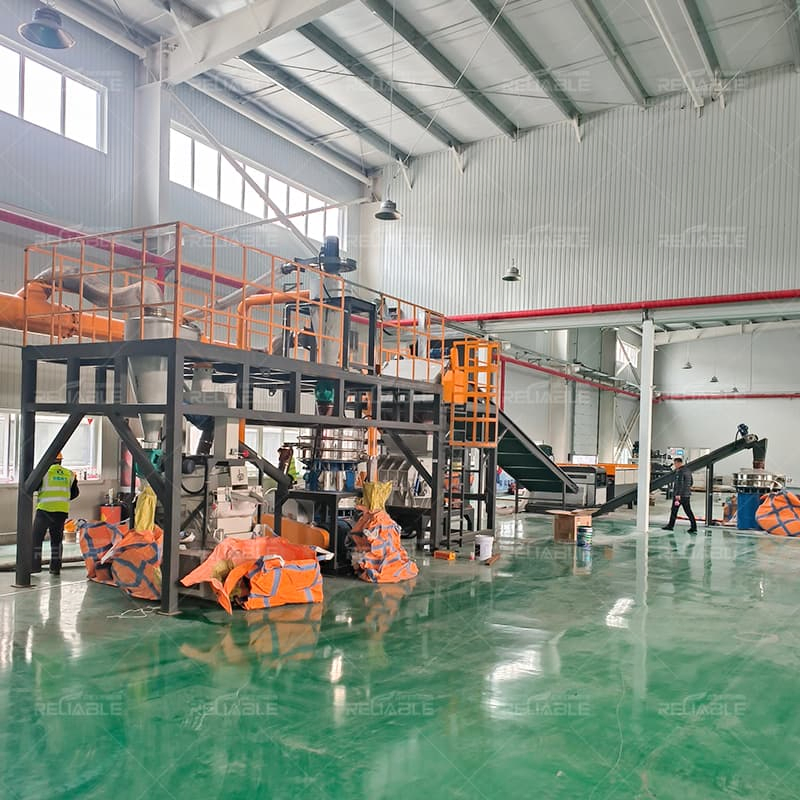

Sorting System: Utilizes air classification, density separation, and material segregation to isolate copper, silicon, plastics, and other components.
Frequently Asked Questions
1. What is the core function of this photovoltaic module recycling equipment?
This equipment is used to process scrapped single-glass photovoltaic modules. It separates and recycles materials such as glass, aluminum, silicon, silver, and copper from the modules through professional processes.
2. What is the recovery efficiency of the materials?
The removal and recovery rate of the aluminum frame reaches 99%, and the glass removal/recovery rate reaches 98%, enabling high-purity recovery of core materials.
3. What are the main process configurations?
The system includes a frame disassembly machine, glass removal machine, crusher, grinder, screening equipment, and a final sorting system.
4. What is the processing speed for a single panel?
The glass removal link takes about 30 seconds per piece. Combined with the full line, it allows for continuous and efficient batch processing.
5. What final products can be obtained?

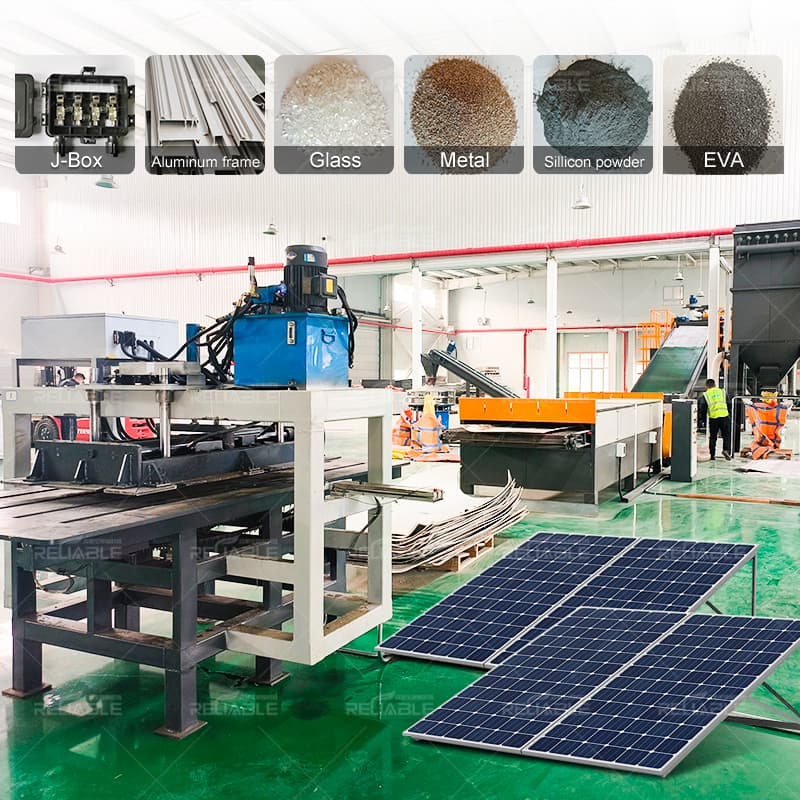

The output includes high-purity silicon powder, copper powder, glass granules, and plastic powder, which can all be reused in industrial production.
6. Does the equipment handle different types of PV modules?
Yes, in addition to standard single-glass modules, we offer physical recycling facilities for double-glass modules and pyrolytic equipment for diverse recycling requirements.
