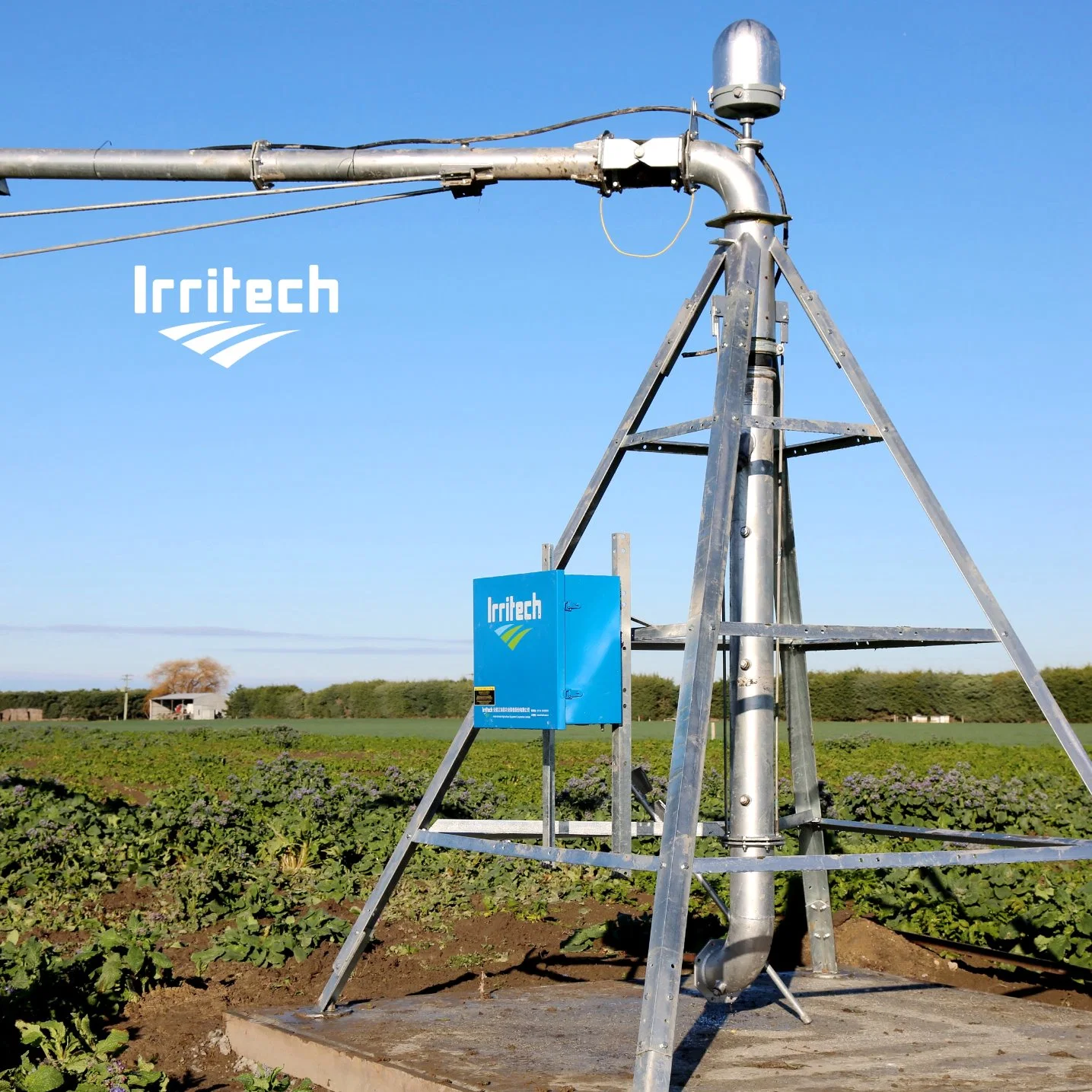

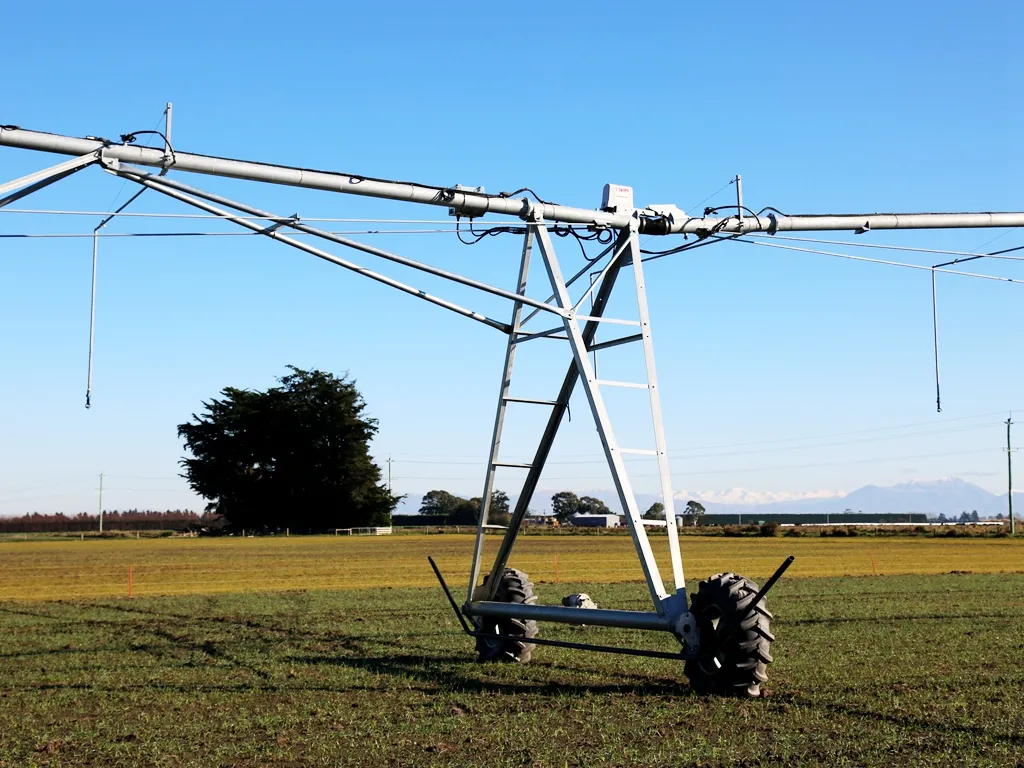

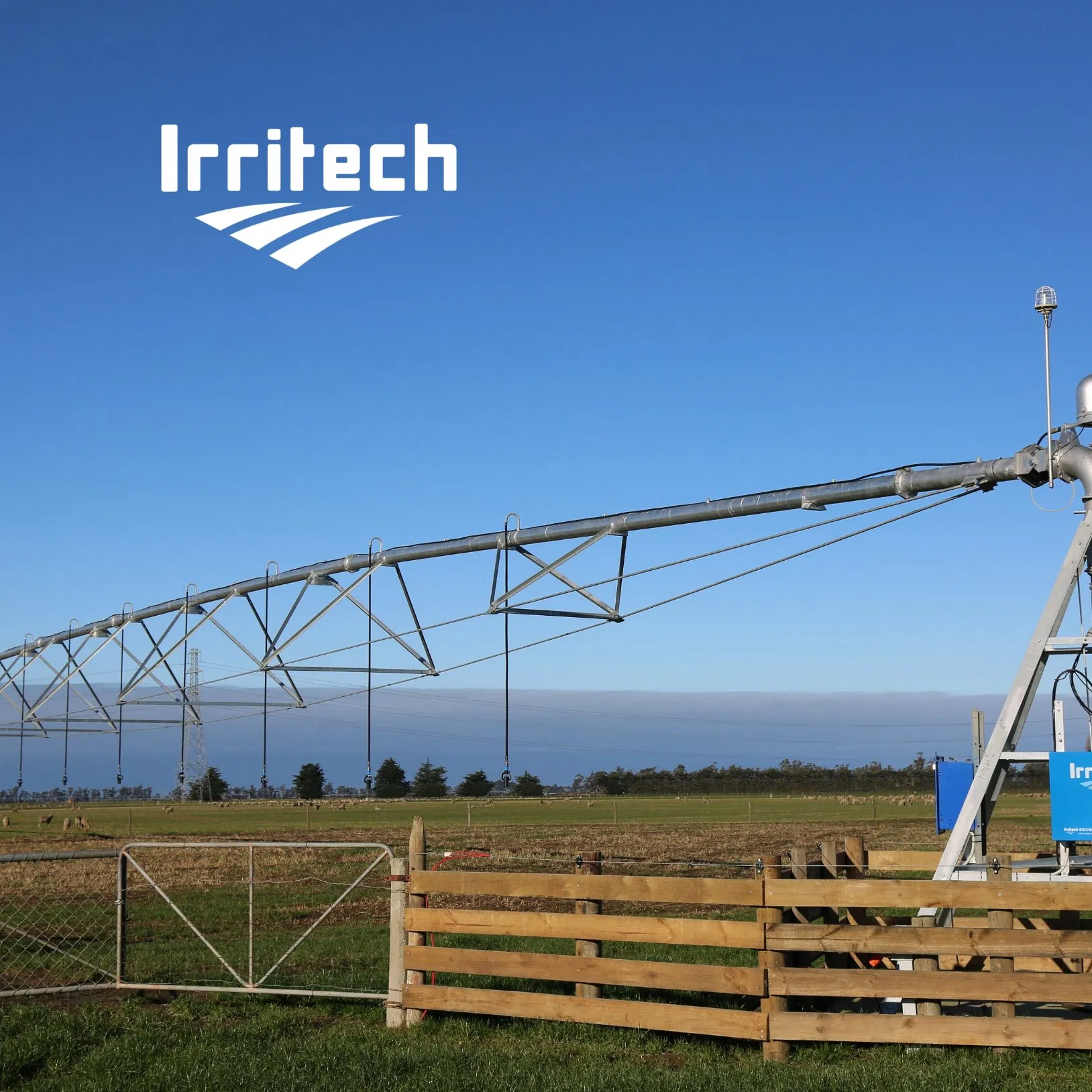

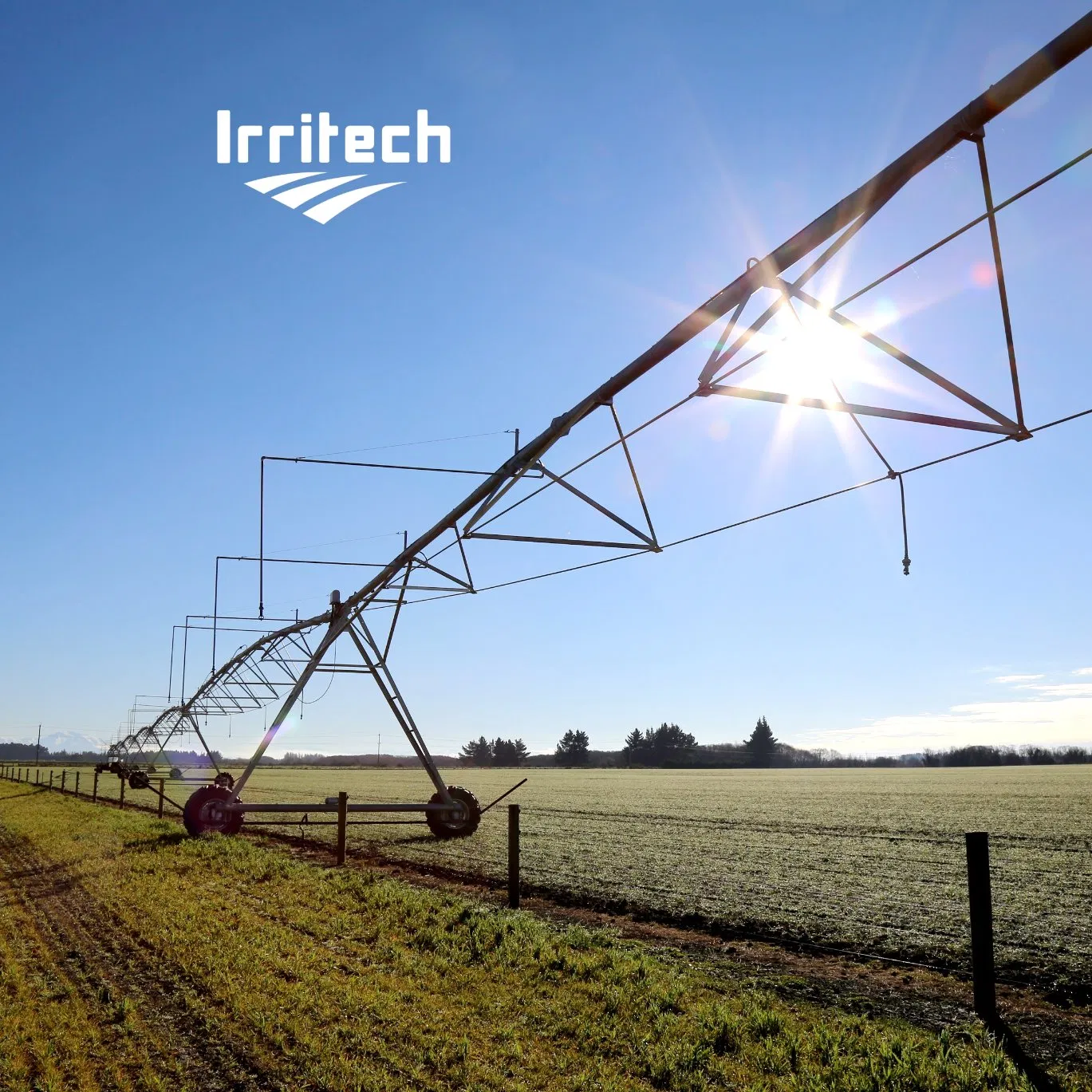

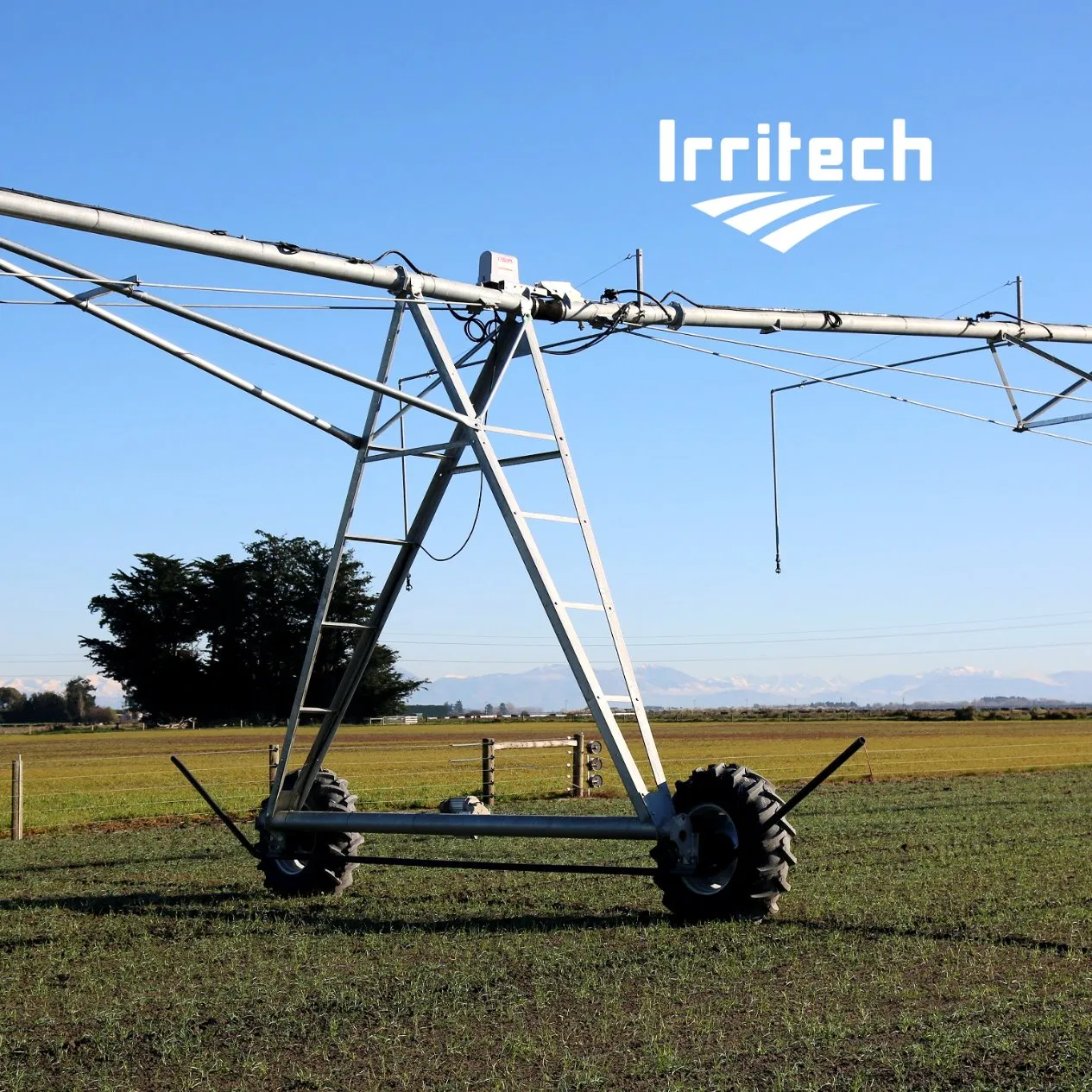

Pivot, also called center pivot or clock pivot, is a large-scaled automatically running irrigation equipment, quite suitable for corn, wheat, alfalfa, potato, grain, vegetable and sugarcanes and cash crop etc. A single pivot could cover a very large field.

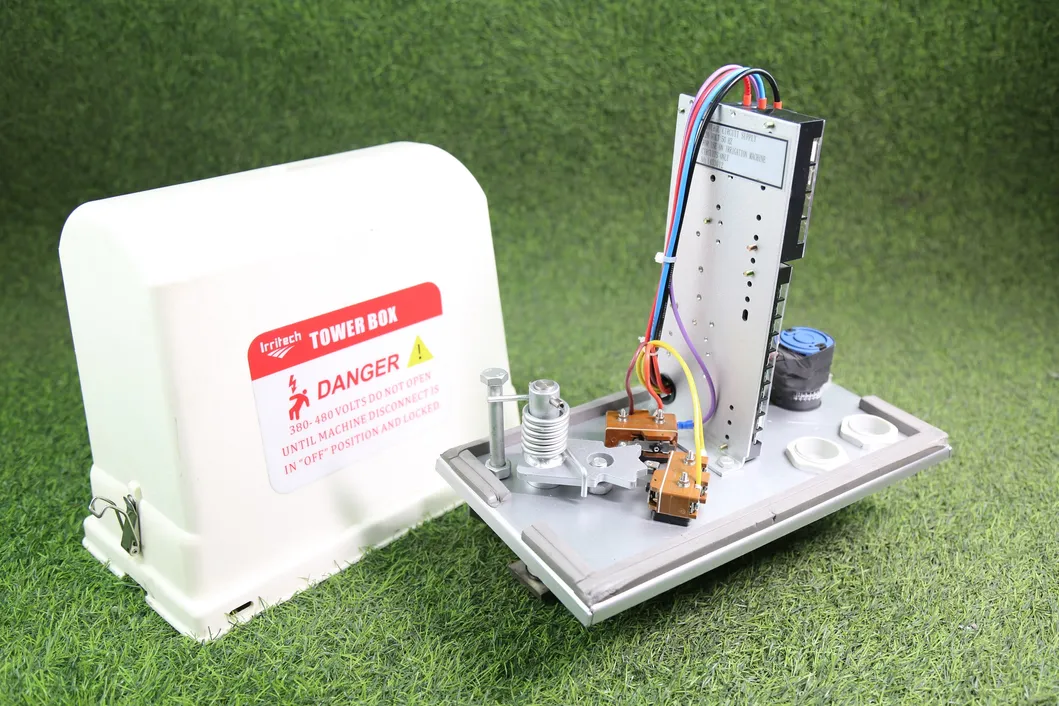

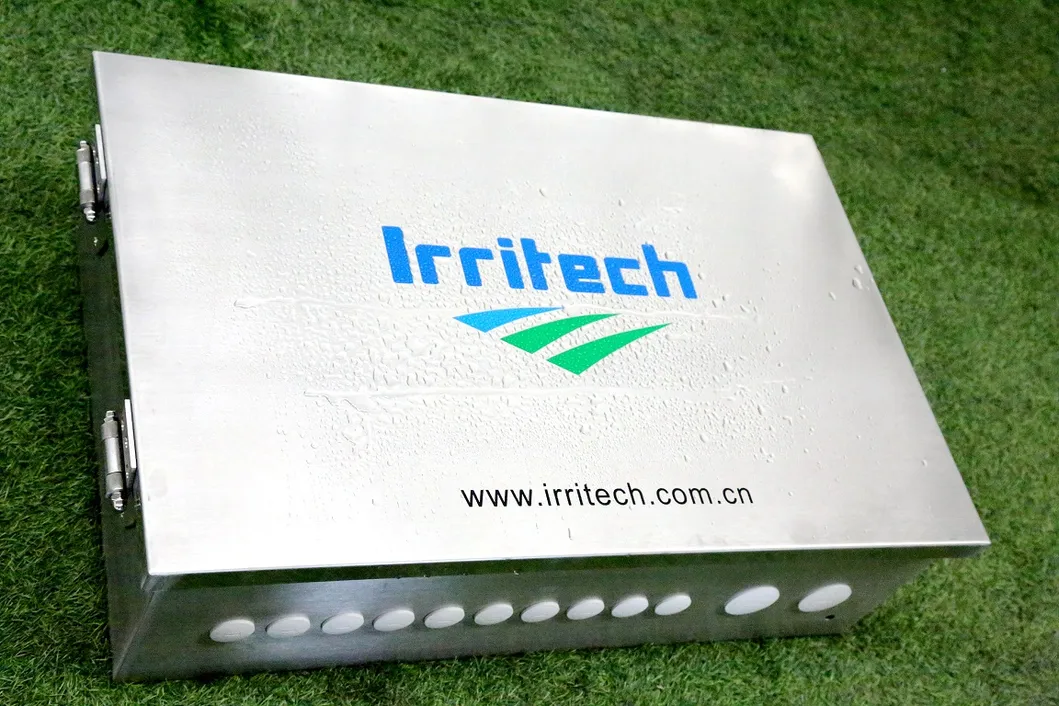

We use genuine high-quality motors, gearboxes, couplers, and collector rings. Our systems feature indicator lights underneath the tower box for instant visual alerts if there is a break in the safety circuit. The stainless steel control panel includes LED lights for safe night operation and QR codes for quick access to troubleshooting videos.
| No. | Item | Span Specification |
|---|---|---|
| 1 | Center Pivot | 6 5/8''(168mm) or 8 5/8''(219mm) |
| 2 | Pipe Spec. | 5''(127mm); 6 5/8''(168mm) or 8''(203mm) |
| 3 | Span Length | 37.5m; 43.3; 49.1; 54.9; or 60.7 |

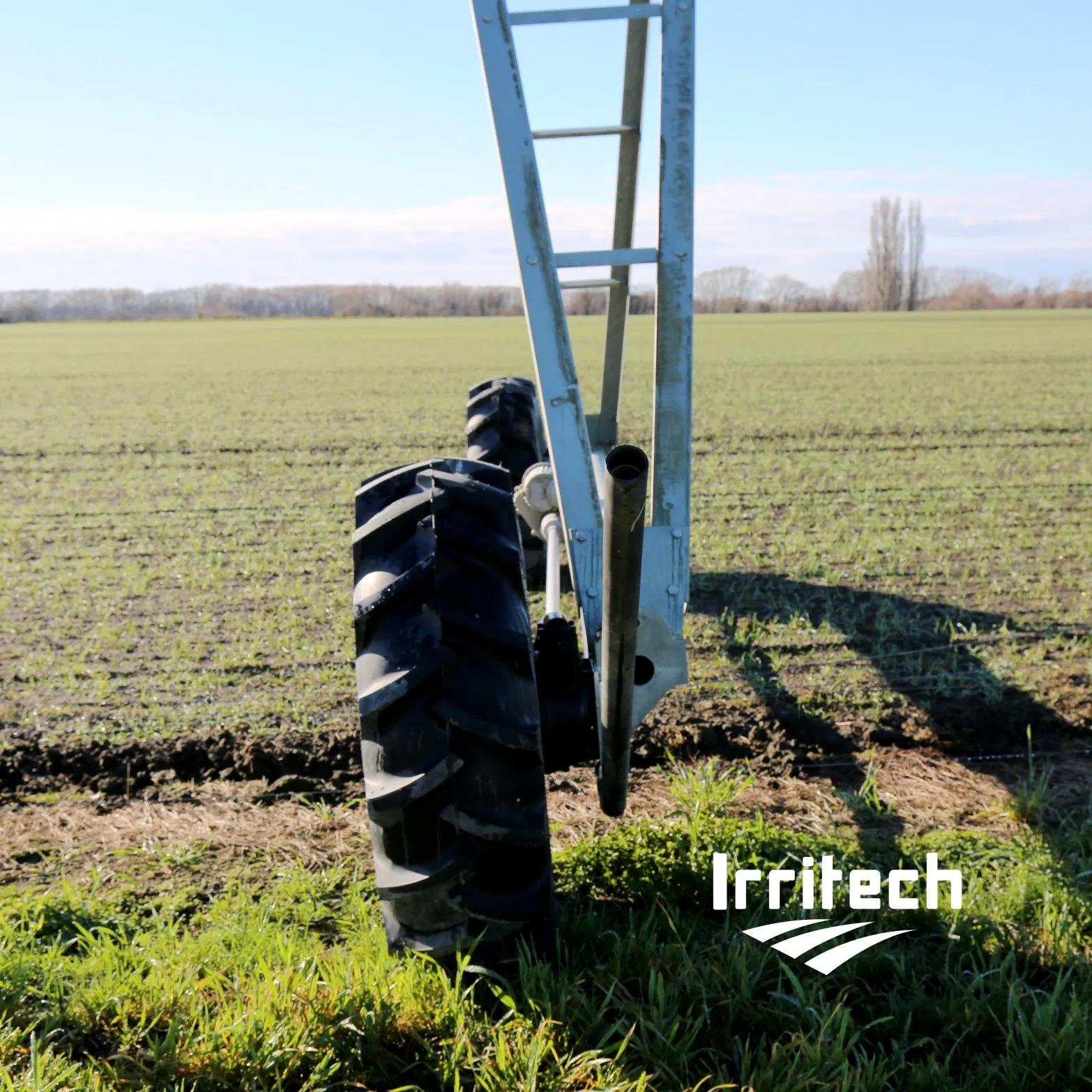

| 4 | Tire Spec. | 14.9-24 or 11.2-24; including Vacuum and inner tube |
| 5 | Cable Spec. | Armored Cable, passed the UL certification |

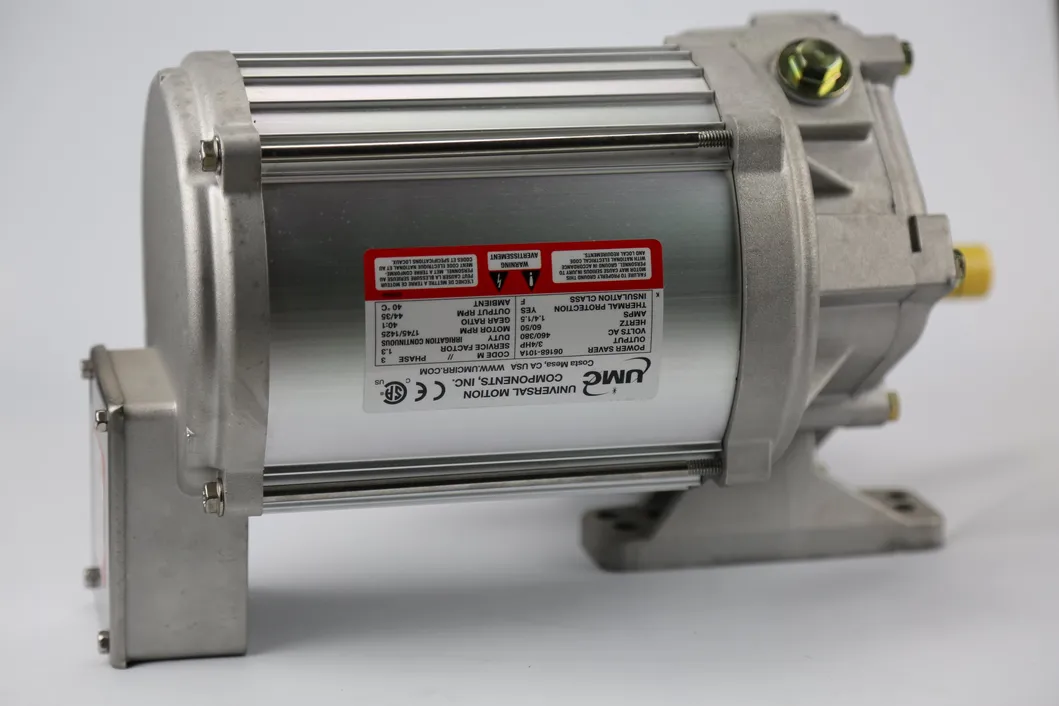

| 6 | Motor | 1.5hp (25.5:1) or 0.75hp (40:1) |

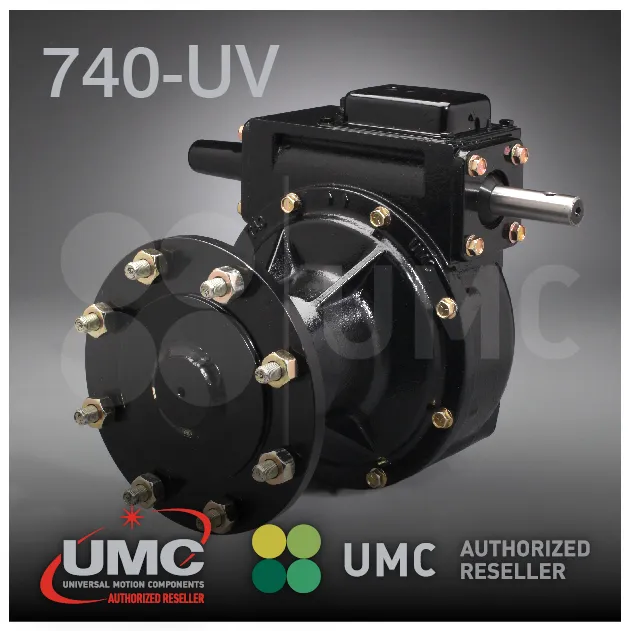

| 7 | Gear Box | 50:1 or 52:1 |
| 8 | Length of OH | 2.7m to 25m |
| Diameter | Length(m) | Outlet Spacing | Crossing Altitude | G.W with water |
|---|---|---|---|---|
| 219 mm | 43.3 m | 192 cm or 288 cm | 2.99 m | 3410 kg |
| 219 mm | 49.1 m | 192 cm or 288 cm | 2.93 m | 3770 kg |
| 168 mm | 54.8 m | 192 cm or 288 cm | 2.86 m | 3080 kg |
| 168 mm | 60.6 m | 192 cm or 288 cm | 2.83 m | 3320 kg |
We supply standard exporting wooden boxes to load irrigation accessories. All components are securely packed into 40 HQ containers for global shipment via major shipping lines.
As a high-tech enterprise, we focus on labor-saving, water-saving, and power-saving solutions. Our fully automatic production lines guarantee the accuracy of cutting and welding, ensuring high annual productivity and logistical quality through ERP systems.
We offer three main categories: fixed center pivot, towable center pivot, and lateral move systems. The choice depends on your mobility needs and water source (ditch or hose fed).
We provide a 1-year warranty on electrical equipment, and 10 years or 10,000 working hours for gearboxes and motors. Galvanized equipment is guaranteed for 15 years against corrosion.
No, the machines are designed for simplicity. Most operators can learn the functions within an hour. Once the control panel is set, the system functions automatically.
Yes. Lateral move systems work on slopes up to 5%, while center pivot systems can handle more rugged terrain with slopes up to 20%.
This system is used when obstacles like poles or houses prevent a full rotation. A touch device installed on the tower allows the pivot to stop or reverse automatically upon contact.

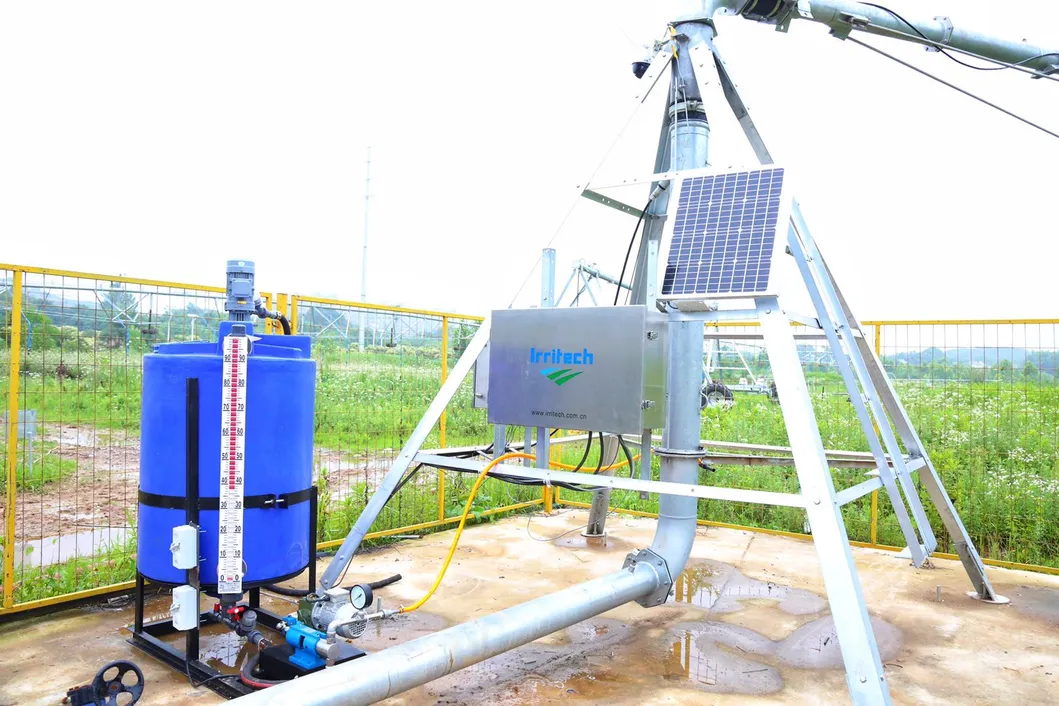

Yes, our chemical injectors are portable and easily transferred between different center pivot or lateral move systems by a single person.
