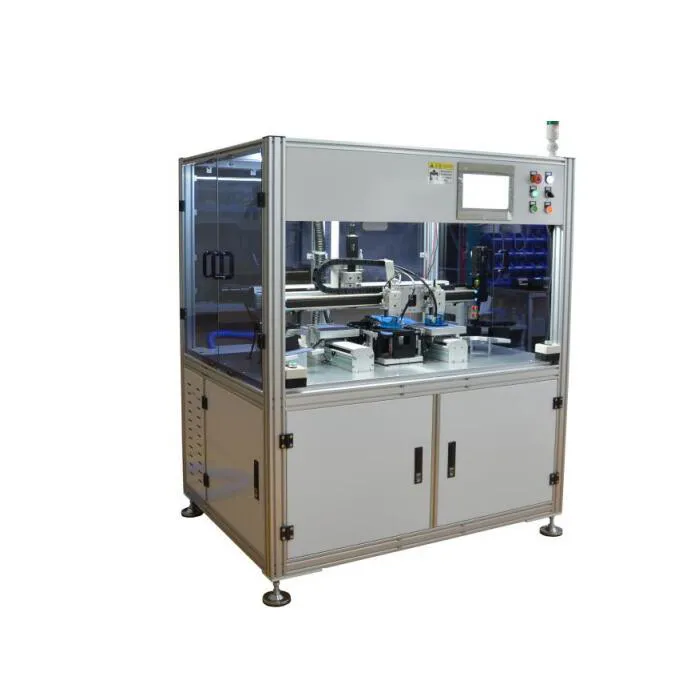

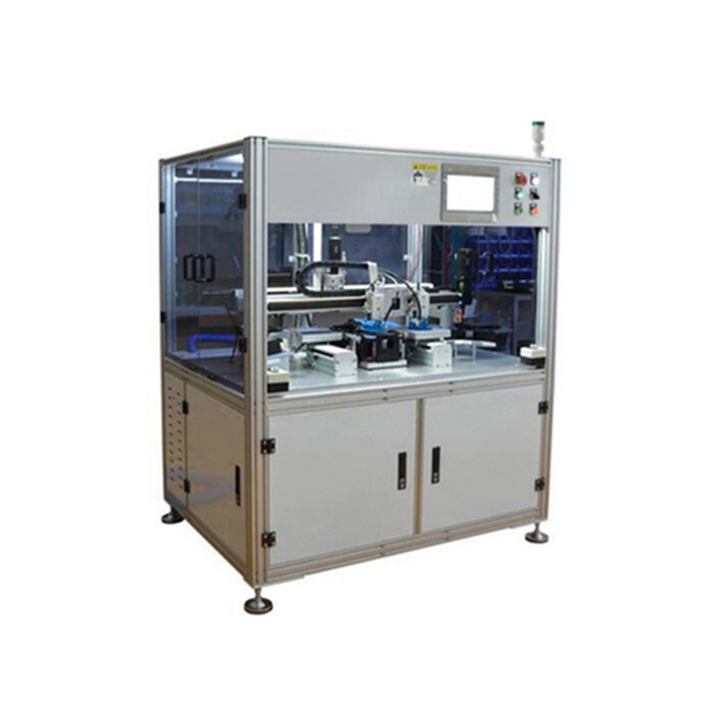

Laser Scribing Solar Cell Machine in PV Module Production Line
| Model | XC-2000 | Laser power | 30W |
| Scriber precision | ≤±0.1mm | Laser wavelength | 1064nm |
| Scriber line width | ≤40μm | Capacity | 1800 pcs/hour (one cut) |
| Maximum Scribing speed | ≤600mm/s | Solar cell | 156*156-166*166mm |
| Power | AC220V/50HZ/2.5KW | Cooling method | Air-cooling |
Adopt Raycus laser source, good quality laser beam, slim laser scribing line, more uniform solar cell cutting surface, small damage to solar cell, high accuracy cutting.
High laser scribing speed, producing capacity can reach to 1800 full cells/hour.
Solar cell full automatic positioning, positioning accuracy ≤±0.1mm.
Solar cell automatic loading and unloading, automatic positioning, automatic scribing. Stable performance, low failure rate, easy maintenance.

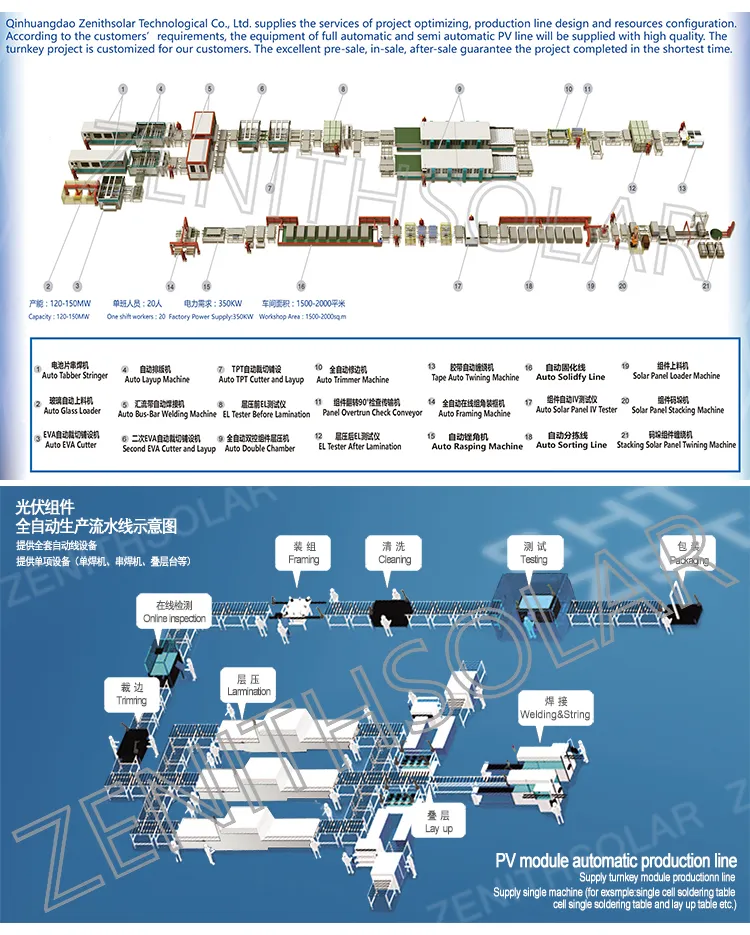

We can supply the customized complete production line. The engineer can adjust the layout and performance of the production line according to different requires of customers.
The XC-2000 model can achieve a capacity of up to 1800 pieces per hour for a single cut operation.
The machine is designed to handle solar cells ranging from 156*156mm to 166*166mm.
The machine offers high precision with a scriber accuracy of ≤±0.1mm and a scribing line width of ≤40μm.
No, the XC-2000 utilizes an efficient air-cooling method, which simplifies maintenance and reduces installation complexity.
Yes, it features a high automation level, including automatic loading/unloading, automatic positioning, and automatic scribing.
Absolutely. We provide customized complete production lines where engineers adjust the layout and performance based on specific customer requirements.
