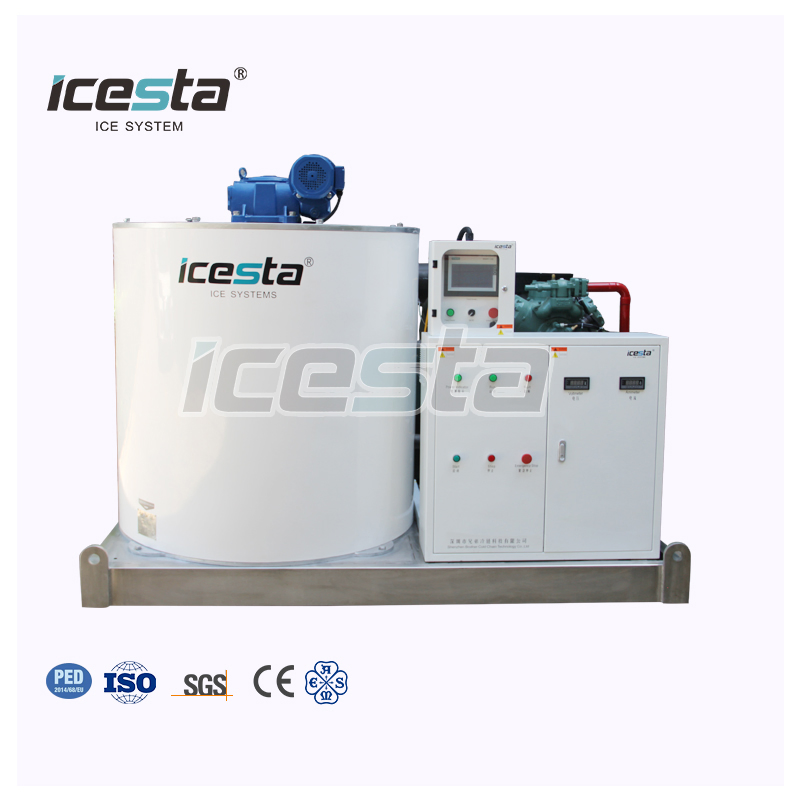

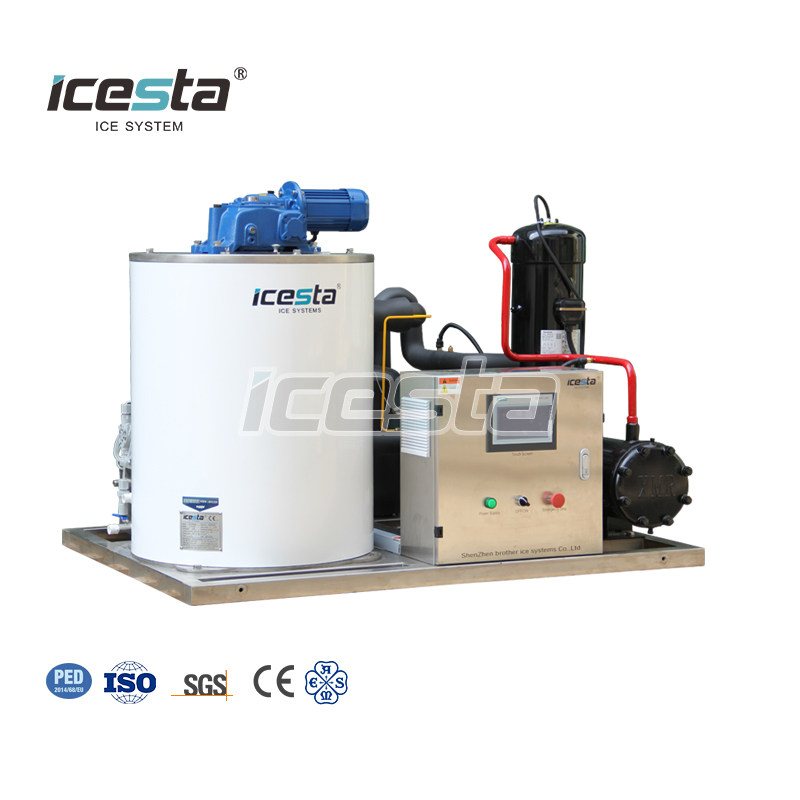

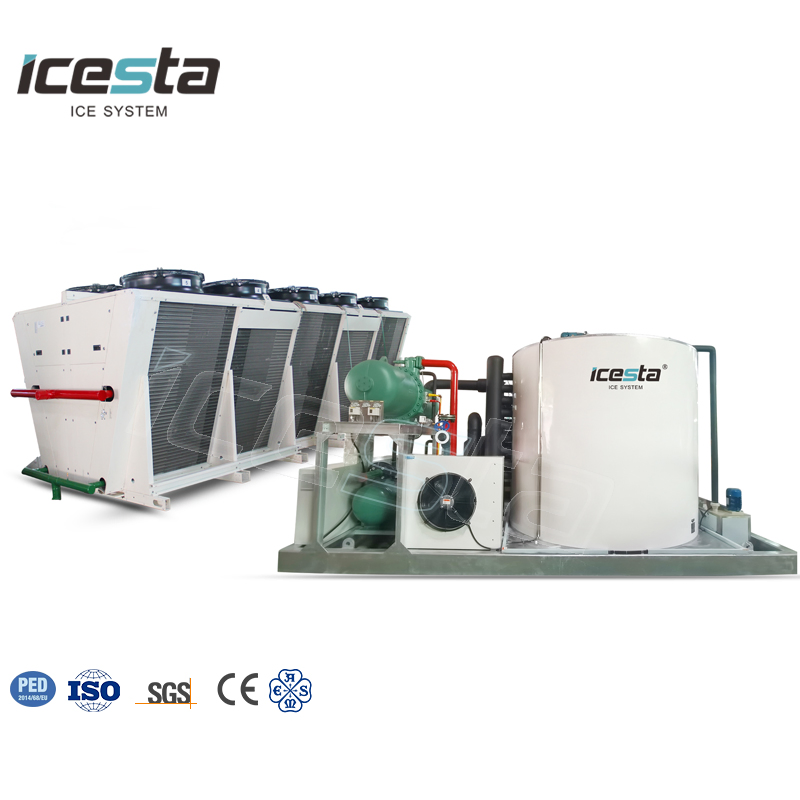

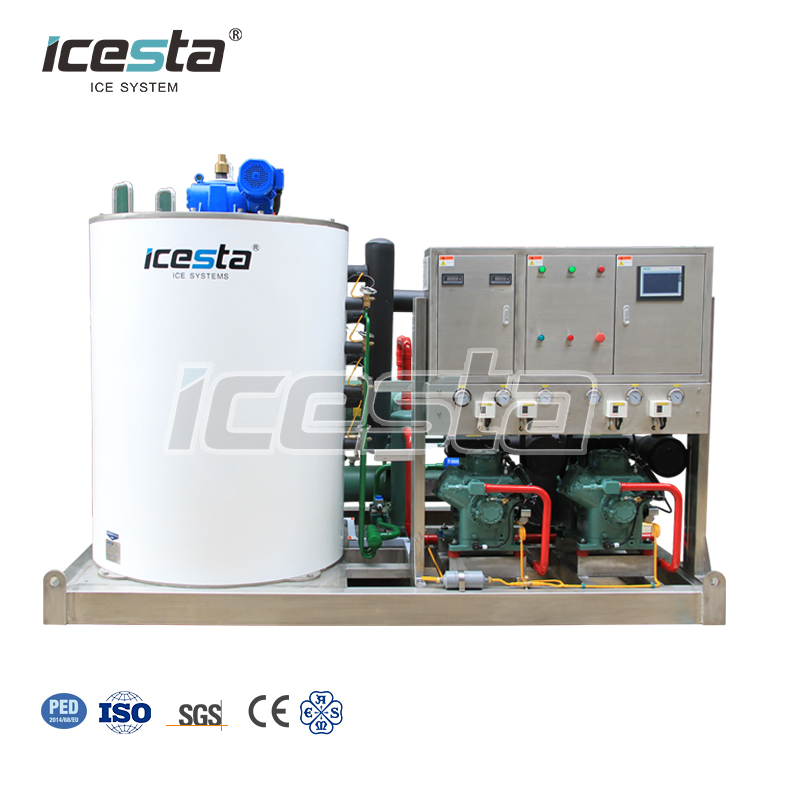

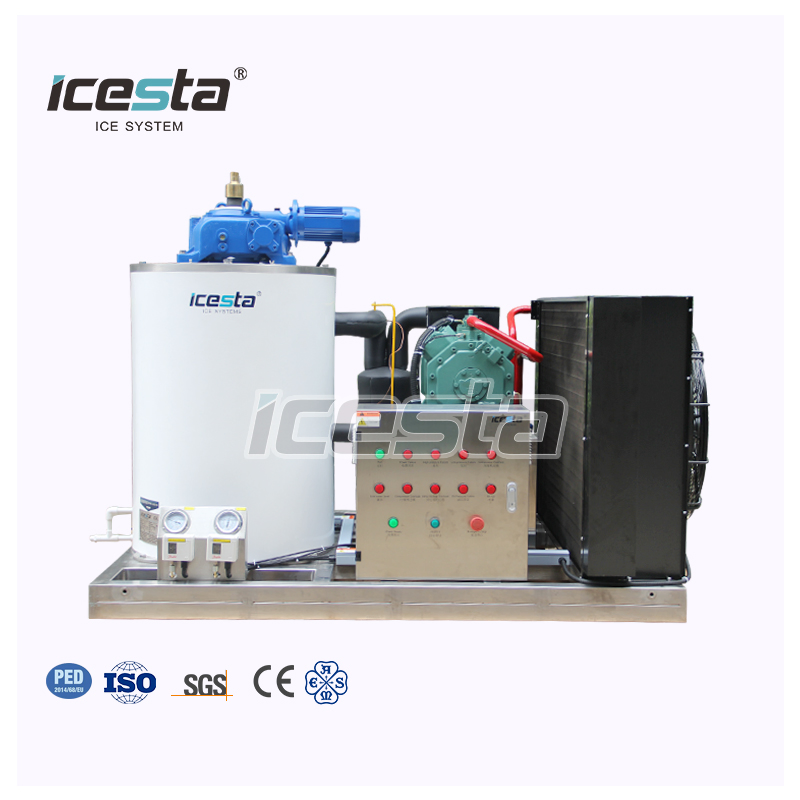

The seawater type flake ice machines are specifically designed for fishing boats. Utilizing complete stainless-steel materials, these machines are built to withstand harsh marine environments, preventing corrosion and ensuring stability despite ship swaying and unfavorable conditions at sea.
During fishing operations, the machine produces ice directly from seawater. By utilizing low-temperature seawater for heat exchange via the condenser, the resulting ice maintains an excellent cooling degree, providing superior fresh-keeping for aquatic catches.
Note: Technical data based on 25°C ambient temp and 20°C water inlet temp. Power supply options: 3P/380V/50HZ, 3P/220V/60HZ, 3P/460V/60HZ.
| Model | IFS1T-R4W | IF2T-R4A | IF3T-R4A | IF5T-R4A | IF10T-R4A |
|---|---|---|---|---|---|
| Ice Production | 1t/24h | 2t/24h | 3t/24h | 5t/24h | 10t/24h |
| Cooling Capacity | 7.4kw | 13.7kw | 18kw | 32.5kw | 65kw |
| Input Total Power | 5.68kw | 9.2kw | 12.09kw | 20.39kw | 40.72kw |
| Unit Size (mm) | 1400*1000*980 | 1500*1200*1420 | 1500*1200*1500 | 1800*1500*1680 | 3200*2050*1870 |
| Weight (kg) | 180kg | 530kg | 645kg | 920kg | 1980kg |
With over 20 years of dedication to ice-making technology, our systems have been implemented in over 80 countries. Our R&D capability is supported by over 80 patents and certifications including ISO 9001, CE, PED, and ASME.
