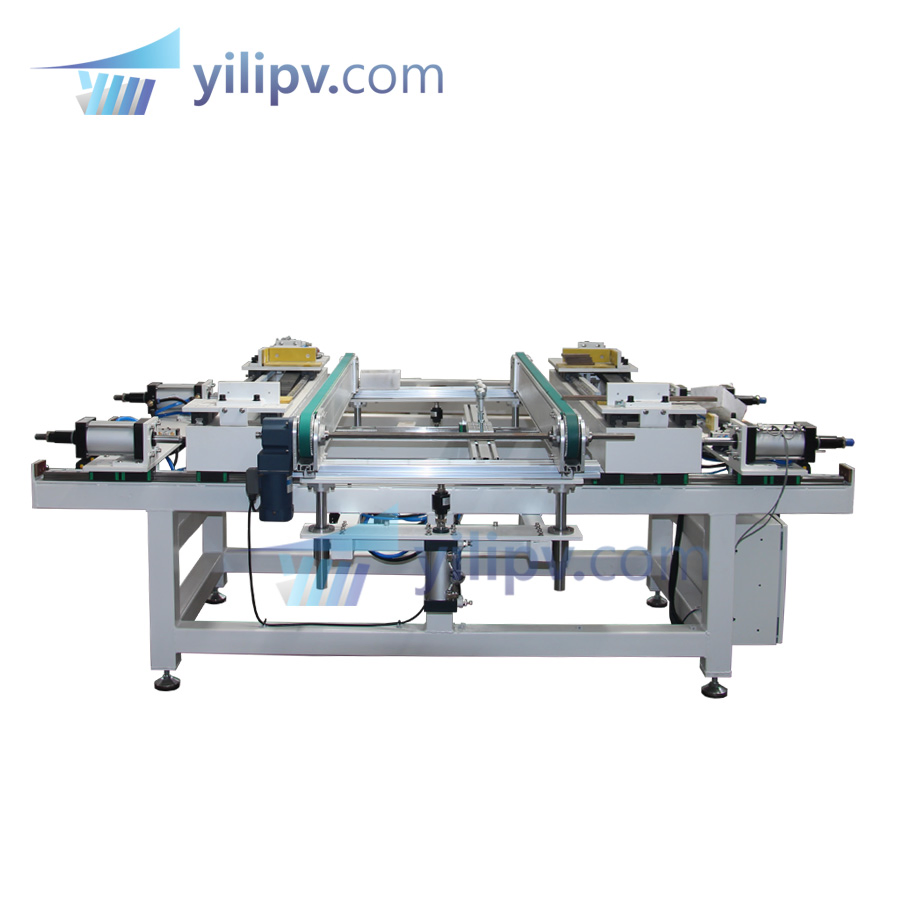

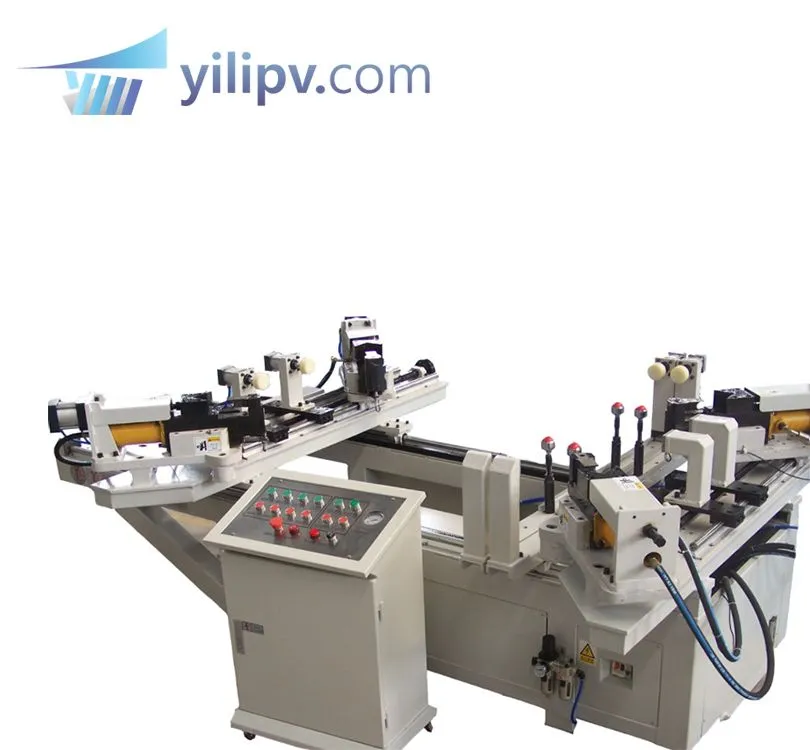

This specialized equipment is engineered for the precise combination of solar module frames. It offers exceptional flexibility with a wide adjustment range, accommodating dimensions from 800x800mm up to 2500x1500mm, allowing for casual adjustment based on production needs.
Key Technical Features:
- Equipped with customizable punching cutters tailored to specific profiles.
- High-performance operation ensured by premium imported hydraulic components.
- User-friendly control system designed for safety and reliability.
- Adjustable hydraulic pressure (up to 15Mpa) via relief valve for optimized punching effects.

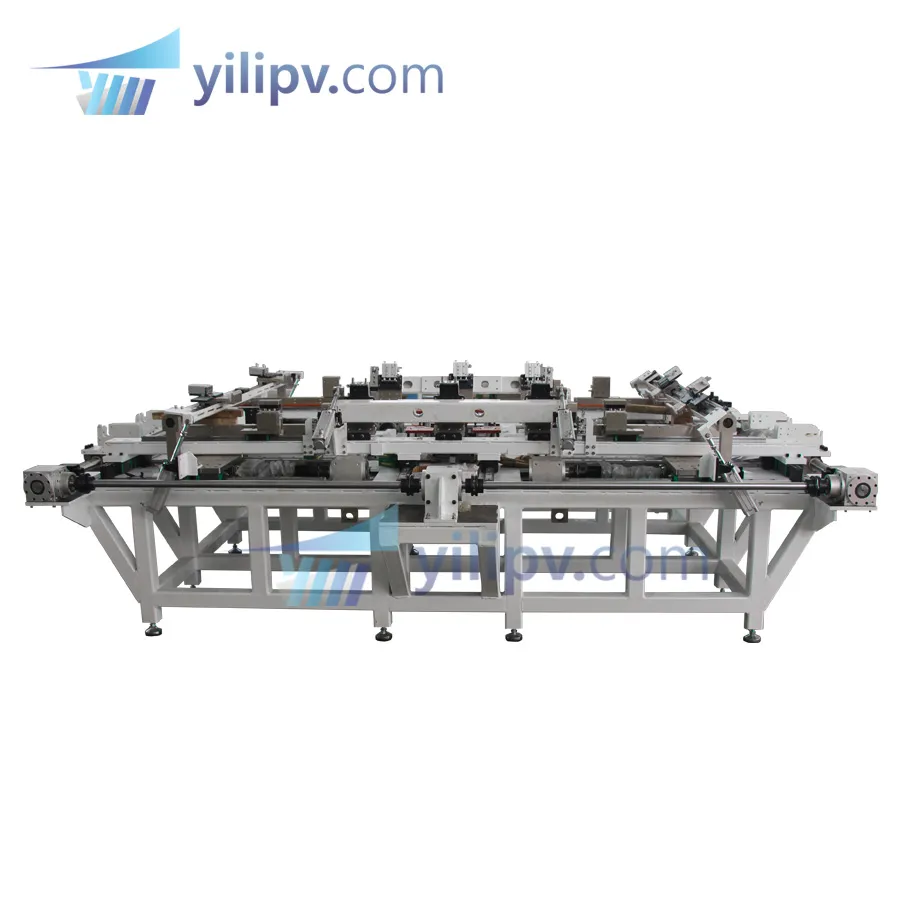

The machine integrates a sophisticated hydraulic cylinder and director system. The internal piston design, coordinated with the director system, provides an elastic, stable, and easy-to-maintain operation. Utilizing CNC-machined components including the cutter, knife, and horn block, the equipment ensures superior precision and consistent quality.
The sliding support plate features a unique double-locking structure. This design effectively eliminates intervals, ensuring long-term precision and extending the functional lifespan of the machine during continuous operation.
✈

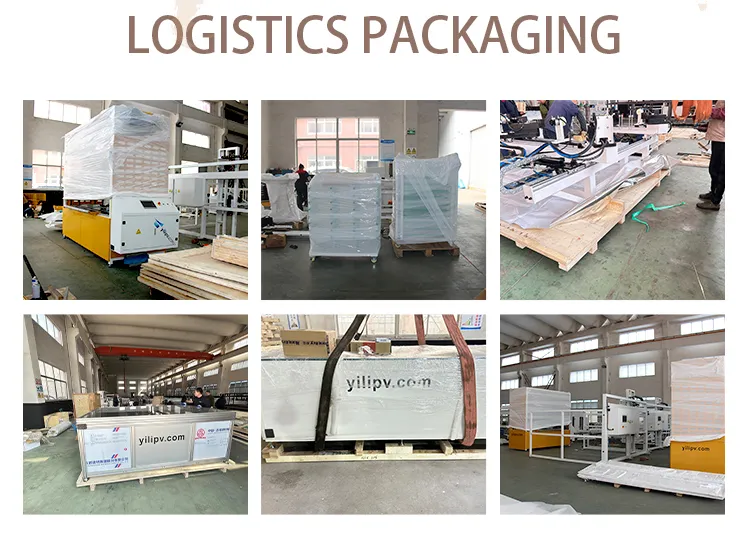

Packaging & Manufacturing Expertise

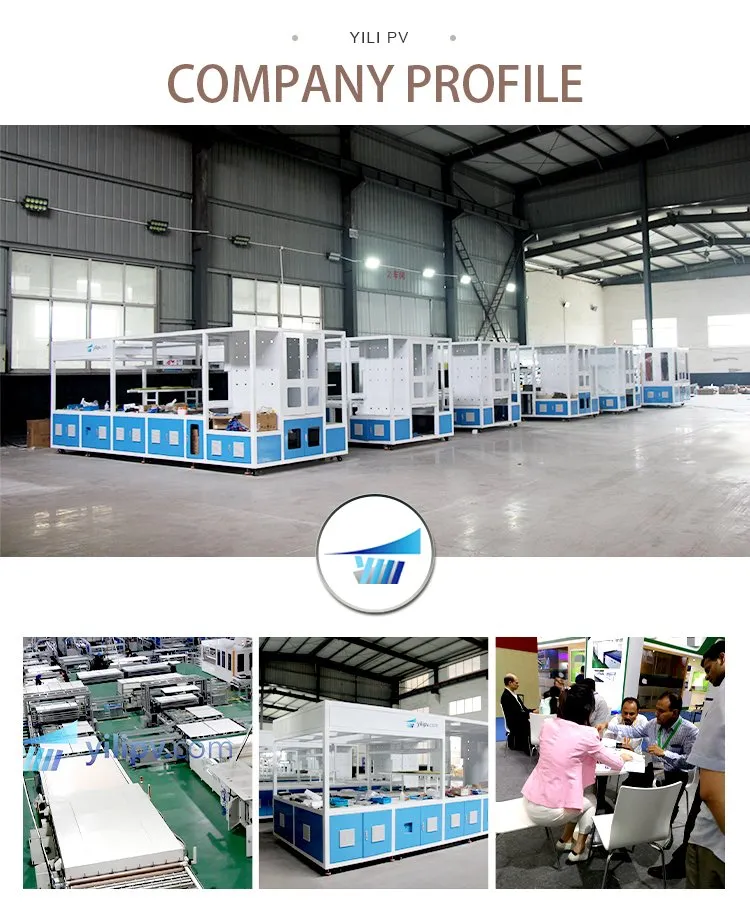

As a pioneer in photovoltaic module production equipment since 2008, we provide comprehensive high-tech solutions integrating R&D, manufacturing, and installation. Our facilities include independent finishing and roughing workshops to guarantee the precision of every part processed.
Our turnkey solutions cater to fully packaged production lines, including multi-layer laminating machines, robot typesetting, and frame integrated machines. We design products compatible with all central solar cell techniques, including Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, and Topcon processes.
?
Frequently Asked Questions
What is the range of panel sizes this machine can handle?
The machine is highly versatile and can be adjusted to handle solar panels ranging from 800x800mm up to 2500x1500mm.
What types of solar modules are compatible with this equipment?
It is compatible with Conventional, Half-cut, MBB, Shingled, Double-glass, Flexible, Back-contact, and Lightweight solar modules.
How does the hydraulic system ensure high performance?
We use premium imported hydraulic components and a CNC-machined director system to ensure stability, precision, and ease of maintenance.
Can the punching cutter be customized?
Yes, the machine is equipped with a punching cutter that can be customized according to the specific profiles of your solar module frames.
What is the benefit of the double-locking structure?
The unique double-locking design of the sliding support plate prevents intervals or gaps, maintaining high precision and extending the machine's service life.
Is the machine easy to operate for new users?
Yes, the control system is designed to be intuitive, safe, and reliable, allowing for easy adjustment of specifications and hydraulic pressure.
