Complete Set Hybrid Solar Power System 50kw 60kw Water Pump Irrigation System

1 / 5

Complete Set Hybrid Solar Power System 50kw 60kw Water Pump Irrigation System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.:LF30-500KW-HY

Certification:ISO, CB, CE, TUV

Application:Industrial, Commercial

System Type:Hybrid Solar PV System

Inverter:Pure Sine Wave Inverter

Controller Type:MPPT

Battery Type:Lead-Acid, Lithium Ion (LiFePO4)

Solar Panel:Mono Perc Solar Panels

Load Power:30-500kw

Output Voltage:380-415V

Frequency:50/60Hz

Mounting Type:Ground / Roof Mounting

Product Description

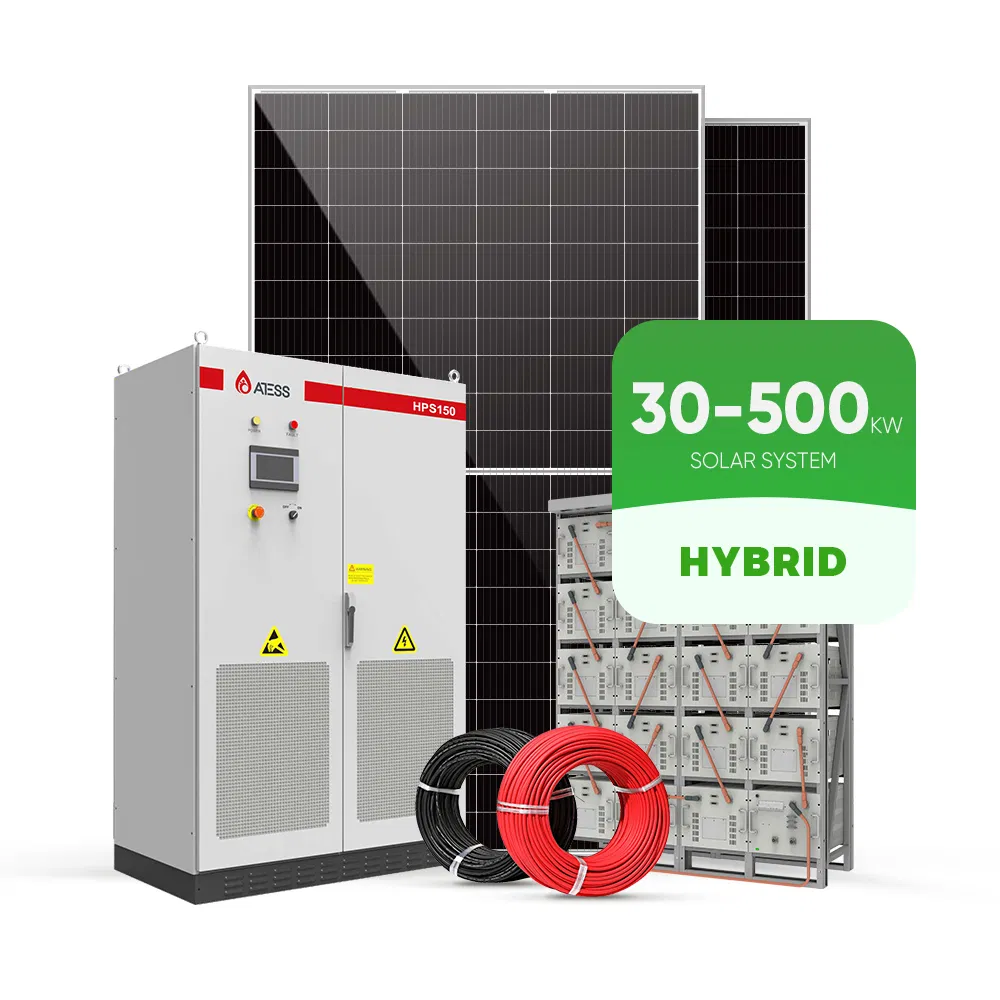

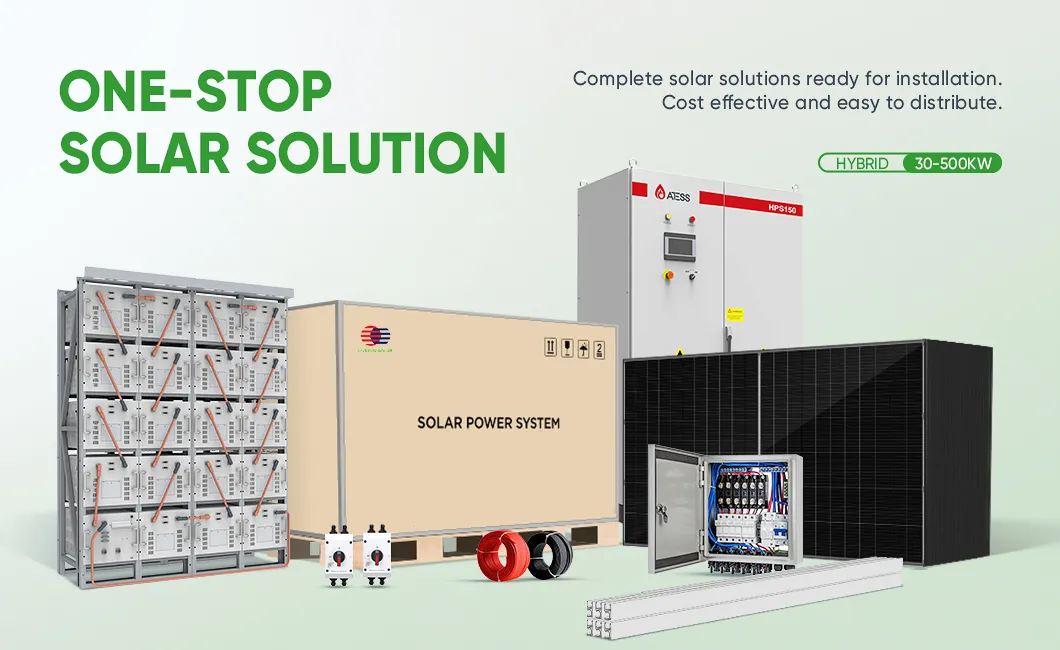

Complete Set Hybrid Solar Power System 50KW 60KW Water Pump Irrigation System

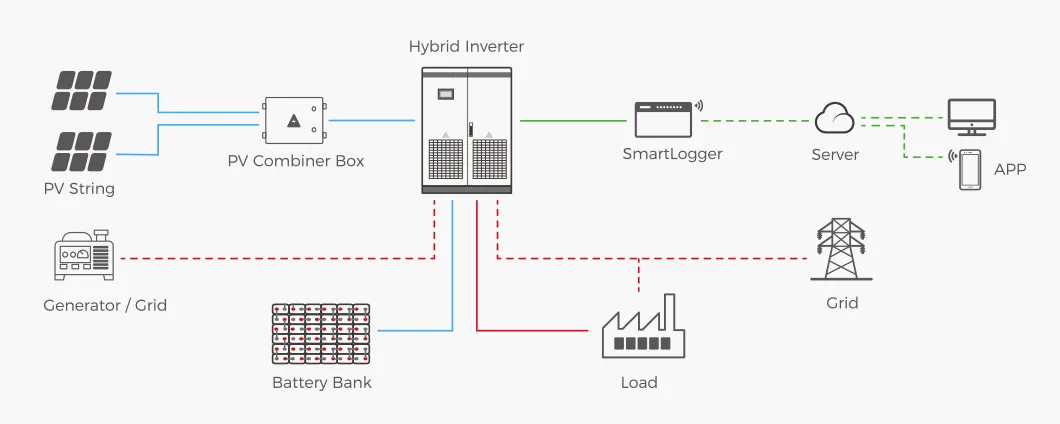

How it works

What's Included: Technical Specifications

Model	LF-30KW-HY	LF-50KW-HY	LF-100KW-HY
Mono 550W Solar Panel	55 Pcs	91 Pcs	180 Pcs
PV Combiner Box	1 Pc	1 Pc	4 Pcs
Hybrid Inverter	HPS30	HPS50	HPS100
LiFePo4 Battery Bank	30Kwh	50Kwh	100Kwh
DC Cable 4mm2	500m	1000m	1500m

Model	LF-300KW-HY	LF-400KW-HY	LF-500KW-HY
Mono 550W Solar Panel	540 Pcs	720 Pcs	900 Pcs
Hybrid Inverter	HPS100/3PCS	HPS100/4PCS	HPS100/5PCS
LiFePo4 Battery Bank	300Kwh	400Kwh	500Kwh
DC Cable 4mm2	4500m	6000m	7500m

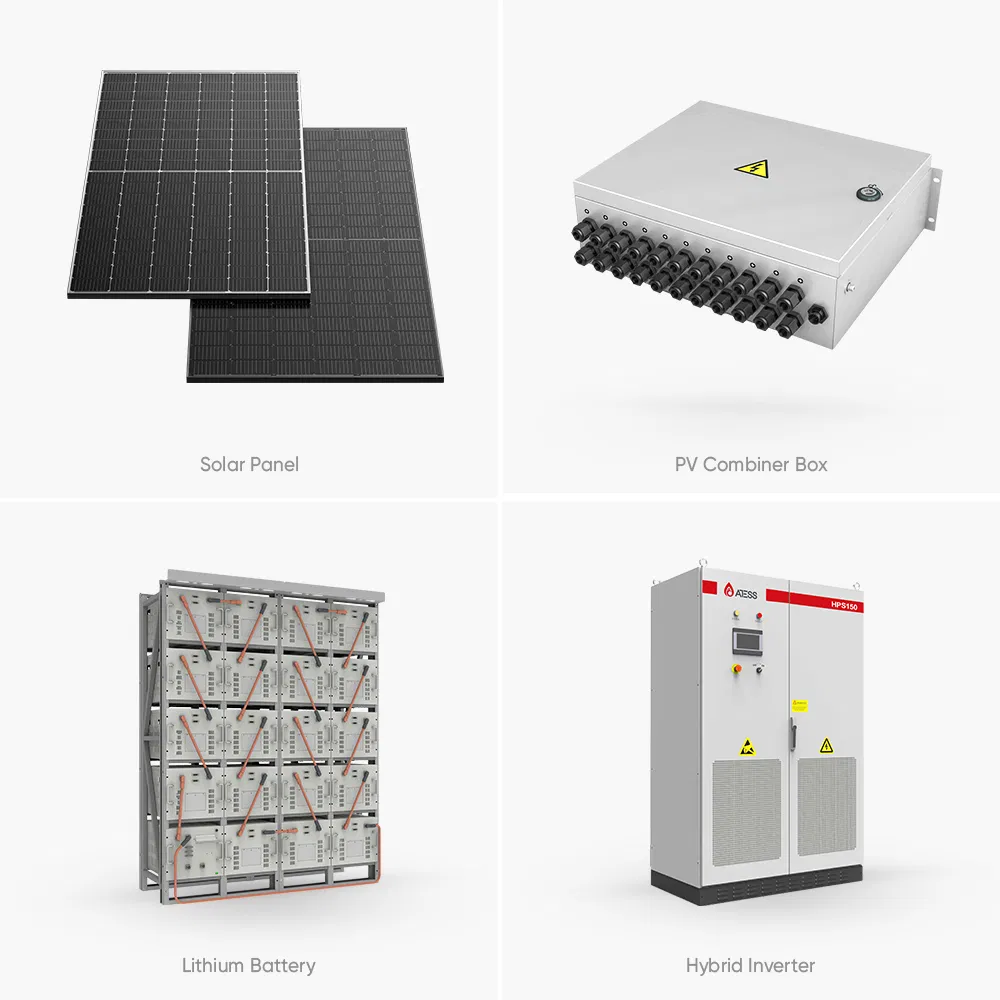

Core Components

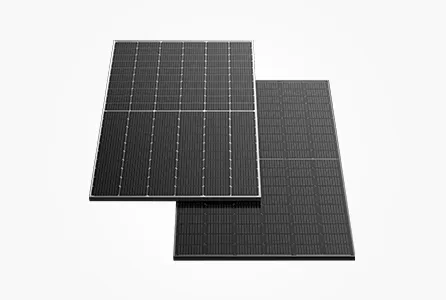

Half Cut Mono 560W Solar Panel

Peak Power: 560W | Max Voltage: 42.06V | Max Current: 12.84A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

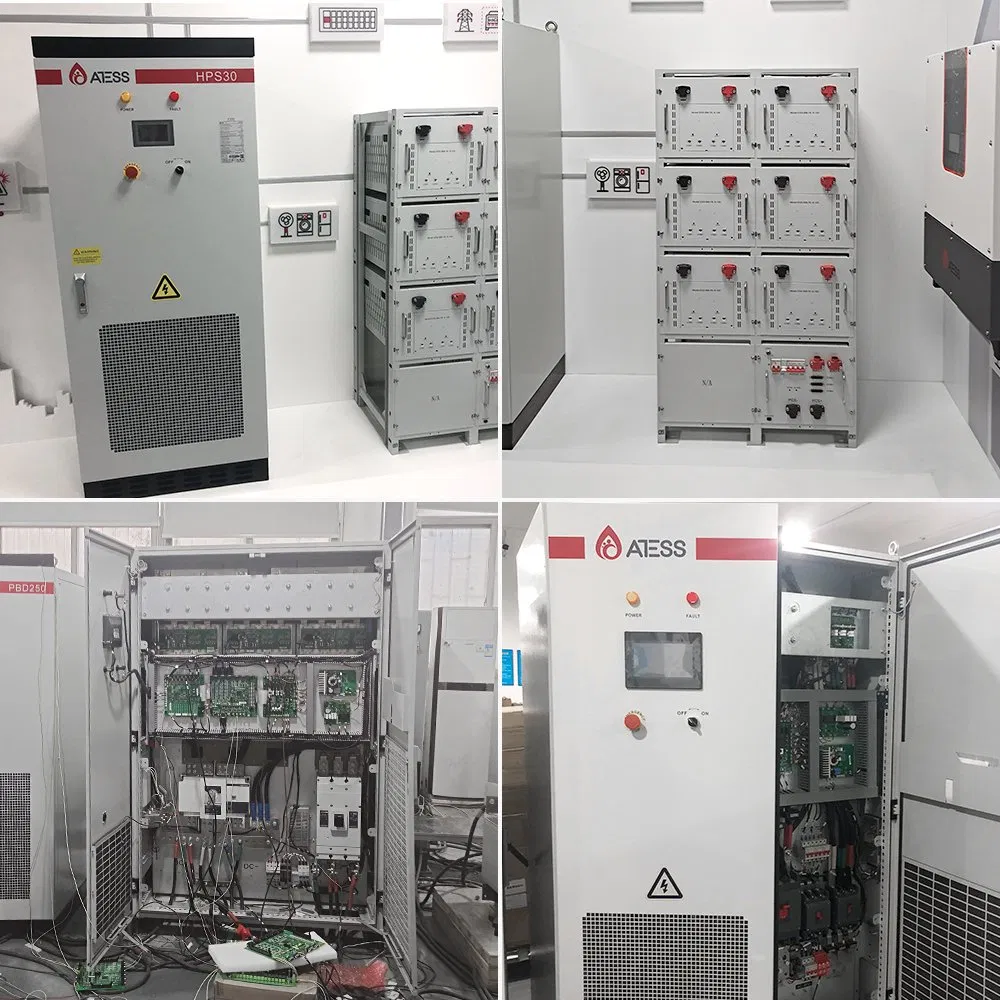

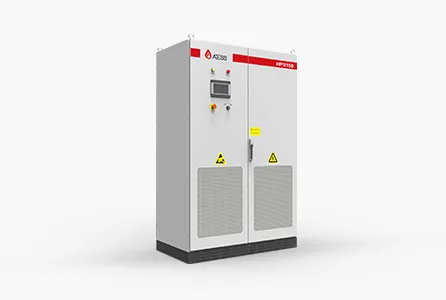

Hybrid Solar Inverter

Transformer isolation design with 6 time periods for battery charging/discharging. Max charging/discharging current of 240A. Supports up to 10pcs in parallel.

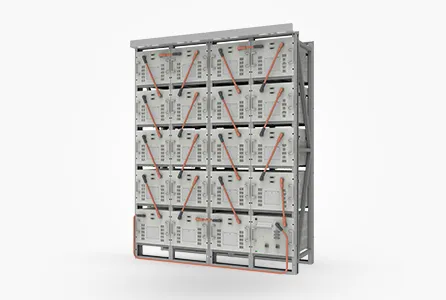

Wall Mounted LiFePo4 Battery

High density LFP battery with aluminum shell (>130wh/kg). 3-level BMS for complex protection, safe and reliable. Standard rack & module design.

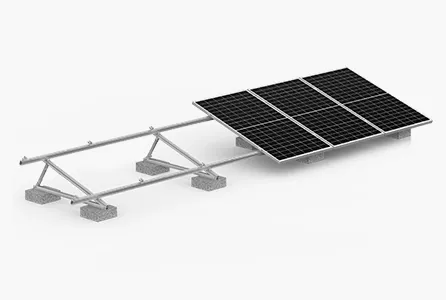

PV Mounting System

Mounting Rail & Splice Kit: AI6005 & SUS304 Bolt. Customized for Asphalt Shingle, Tile, or Ground installations. Includes ground clips and lugs.

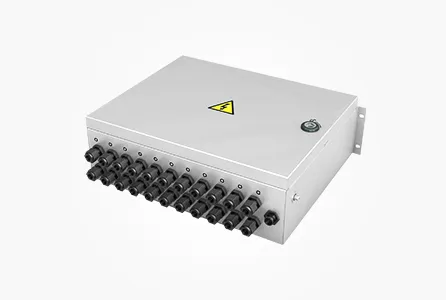

PV Combiner Box

IP65 Rating for outdoor safety. Rated Voltage: 1000VDC. Designed for 4-6mm2 input cable terminals.

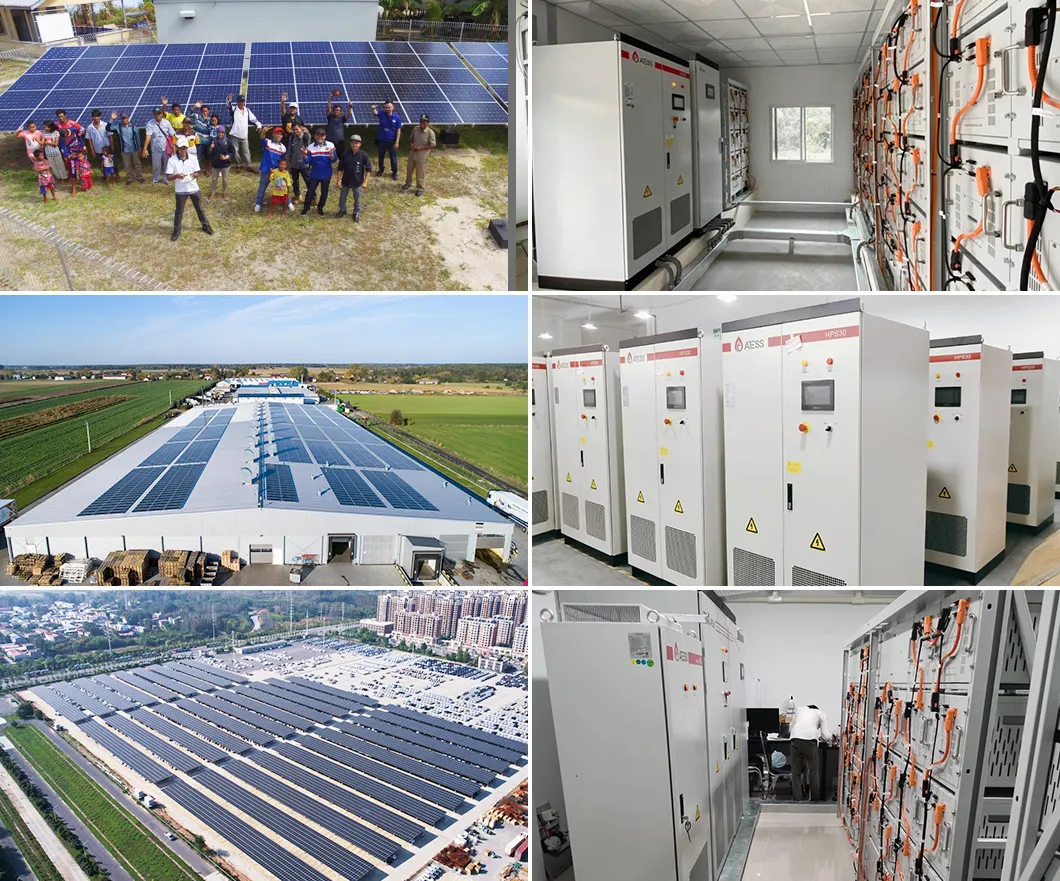

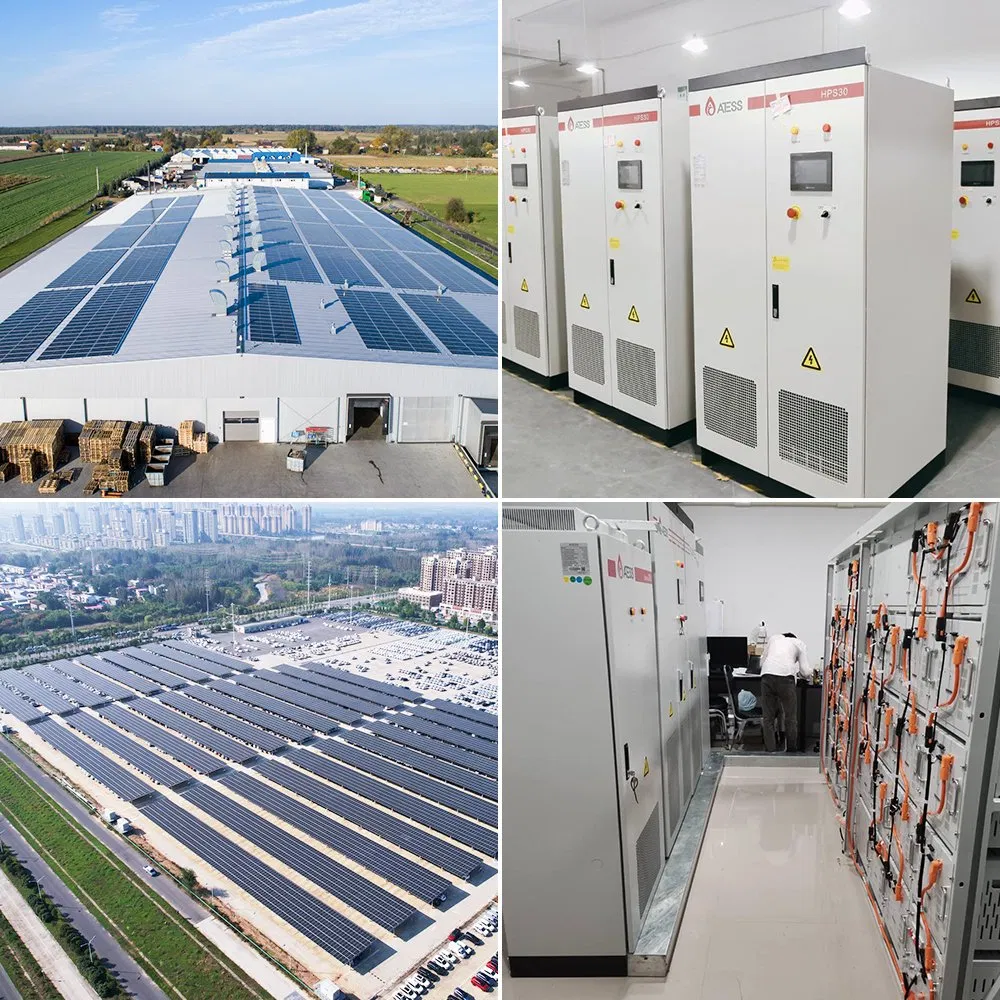

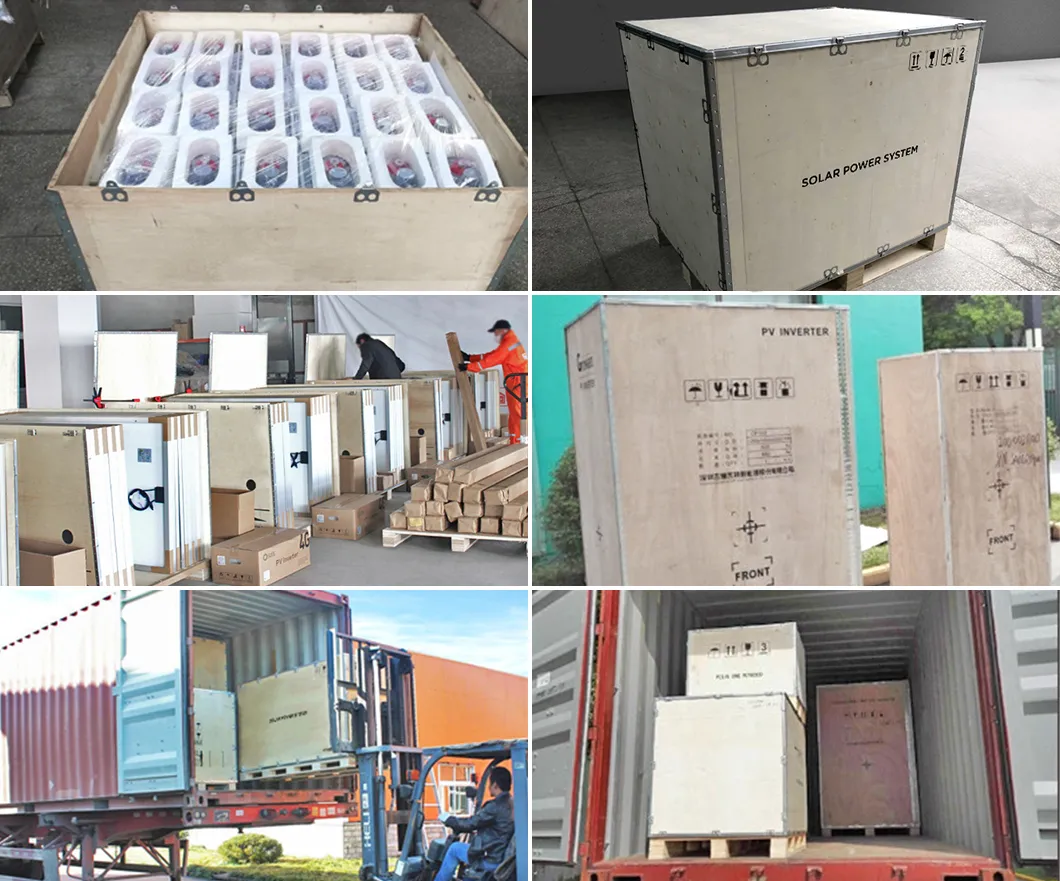

Packaging & Project Cases

Frequently Asked Questions

Q1: What is a Hybrid Solar PV System? A hybrid system combines solar panels and batteries with a connection to the utility grid, allowing for energy storage during the day and grid support when needed.

Q2: What is the benefit of LiFePO4 batteries in this system? LiFePO4 batteries offer higher energy density, longer life cycles, and superior safety compared to traditional lead-acid batteries.

Q3: Is the mounting system suitable for all roof types? Yes, our mounting systems are customized based on your specific installation requirements, whether it is for a roof (shingle/tile) or ground mounting.

Q4: Can the system handle industrial power requirements? Absolutely. With load capacities ranging from 30KW up to 500KW, our systems are specifically designed for commercial and industrial applications.

Q5: What certifications do these solar systems have? Our products are fully certified with ISO, CE, TUV, and CB, ensuring compliance with international quality and safety standards.

Q6: How long do the cables and connectors last? The DC cables and MC4 connectors are designed for a lifetime of up to 25 years under normal operating conditions.
