1158 Hybrid Inverter 26HP 35HP 40HP for Water Pumping Solar System Hot Sale

1 / 5

1158 Hybrid Inverter 26HP 35HP 40HP for Water Pumping Solar System Hot Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

Water pump inverter

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Off-Grid Inverter

System Type

Home Solar Power System

Power

Electric

Pump Type

Positive-Displacement Pump

Industry

Air Conditioning Pump

Media

Sea Water Pump

Theory

Centrifugal Pump

Conveying Medium

Water Transfer

Transport Package

Carton/Wooden Box

Capacity

1.2 Gw/Year

📝

Product Description

Solar power system has a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.

With the promotion of new energy utilization, recently the usage of solar water pumps is increasing. You can find them in government projects, landscape architectures and fountains of city squares, parks, tourist attractions, hotels and residential areas.

⚙️

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1
Safety rope	Pump Depth * 2	pc	1
Check Valve	Check valve with connector	set	1
Other accessories	Raw material tape, MC4 connector, pump cable connector, etc	set	1

AGRICULTURAL IRRIGATION
ANIMAL HUSBANDRY
DESERTIFICATION CONTROL

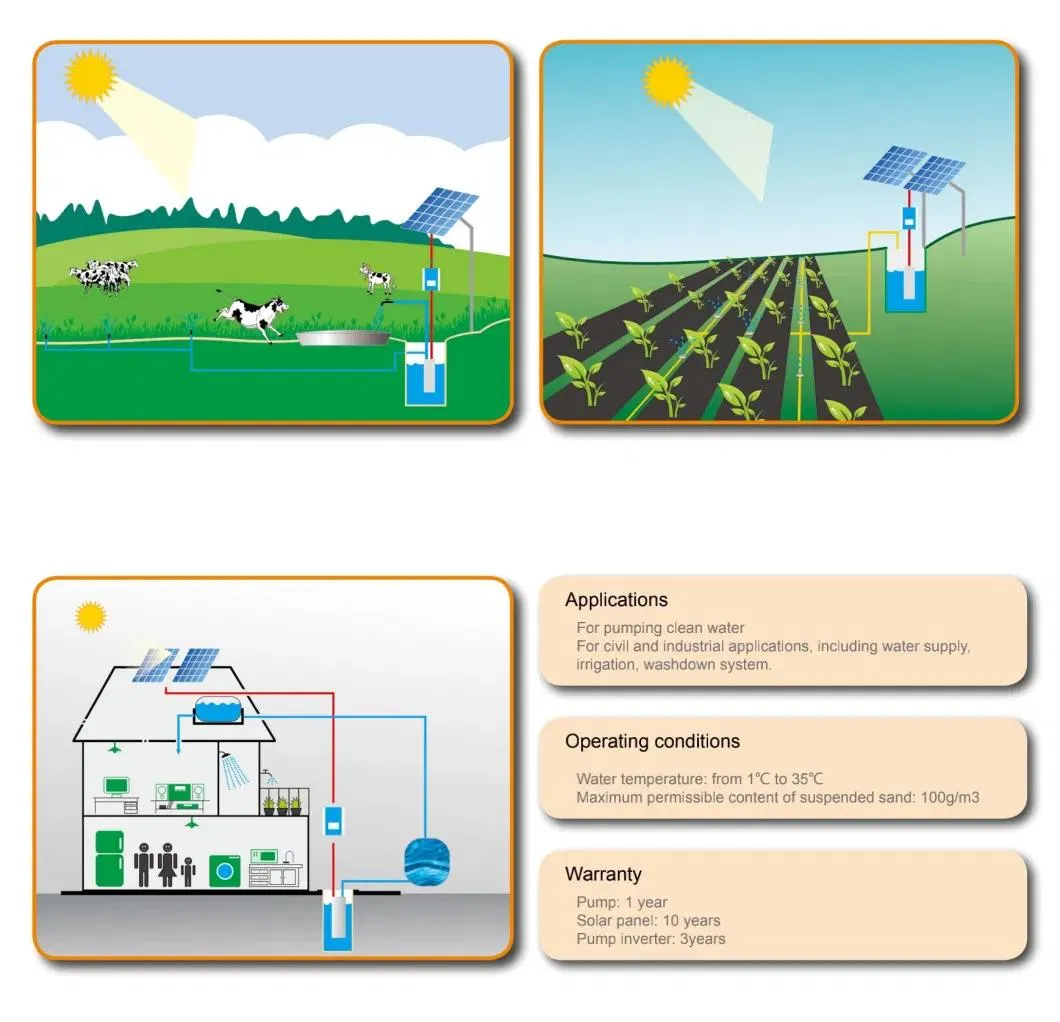

Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution.

They are specially designed to use solar power directly. No grid infrastructure is required for site selection. An optional grid back-up can be used to meet day and night running requirements.

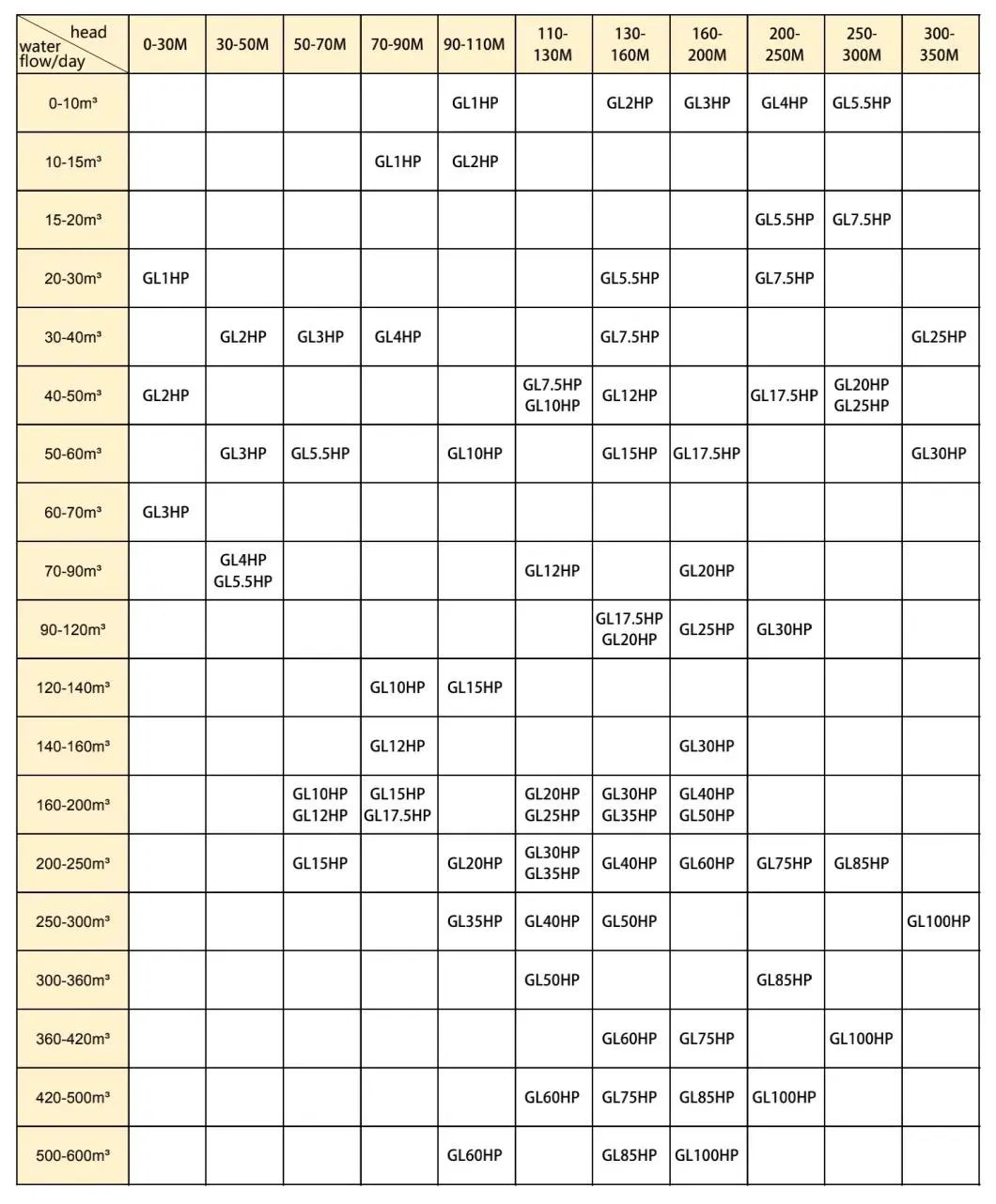

⚠️ Selection Consultation

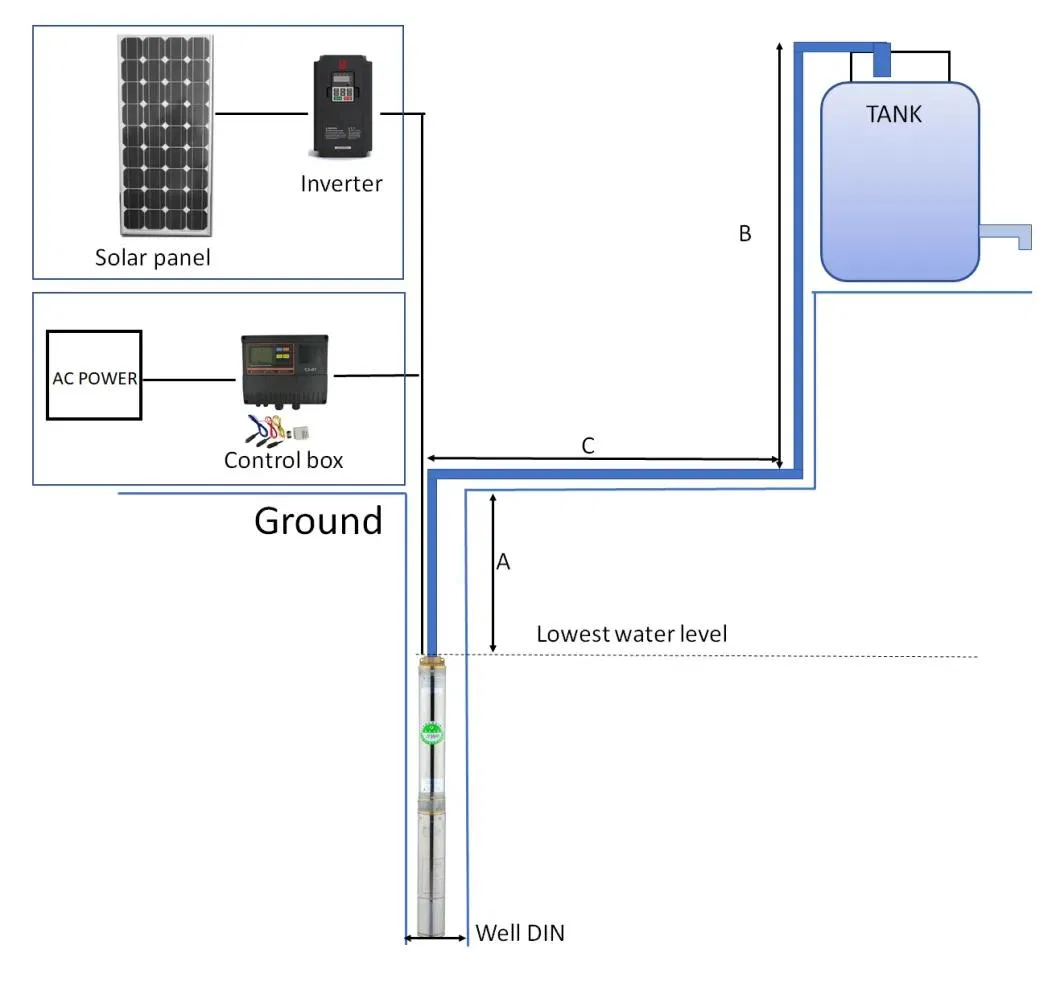

Please inform us of the following information so we can select the right pump for you:

Where will the pump be used?
How much water discharge (liters, gallons, or m3) is required per day or per hour?
Do you need a submersible pump or surface pump?
If pumping from a borehole (deep well), what is the depth?
What is the pipe distance from the top of the borehole/river to the destination tank? Is it sloped or horizontal?
What is the height of the storage tank?

📐

Calculation Formulas

Solar Panel Selection: Power of solar panel = Power of pump X 1.3. Voltage must match the pump.
Battery Selection: Use hours = Capacity ÷ (Machine power ÷ Voltage) X 0.6.
Capacity Selection: Capacity = Use hours ÷ 0.6 x (Machine power ÷ Voltage).

📦

System Components

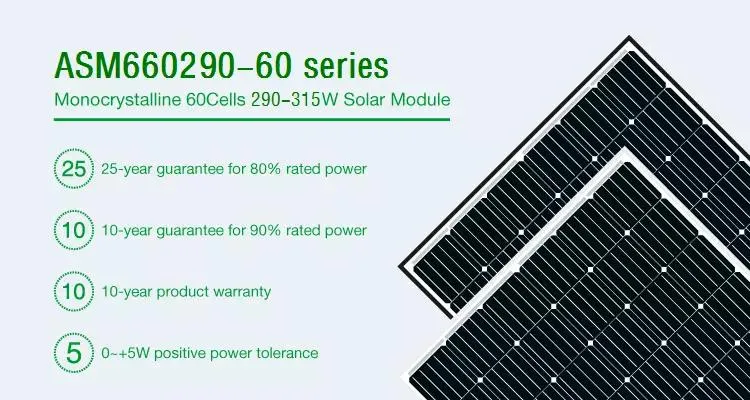

Mono Solar Panels

Peak Power Watts: 290W
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 39.5V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

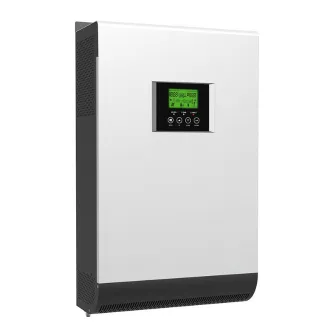

Off-Grid Inverter

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V / 230V
Warranty: 5-10 Years
Wifi/Lan/GPRS Optional

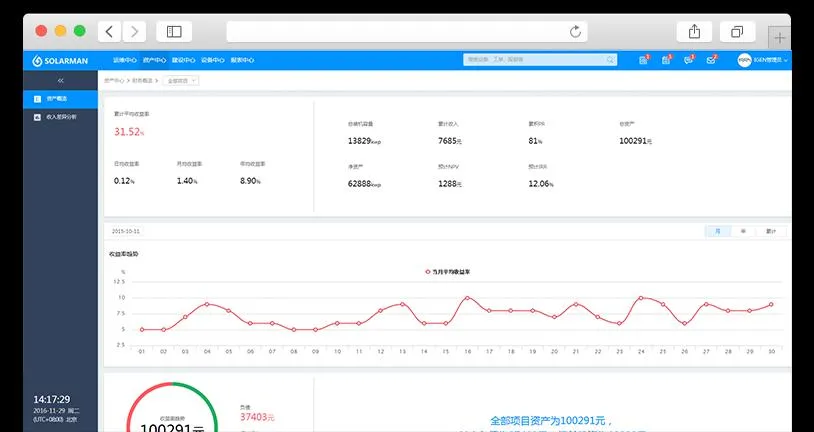

Remote Monitoring System

Data Logging Stick for real-time PV system information. Accessible via Web server, Wi-Fi, Lan or GPRS. App available for PC, iOS & Android.

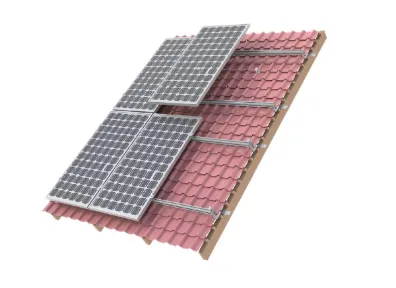

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35-50mm. Options for Ground or Roof mounting with Ground clips and lugs.

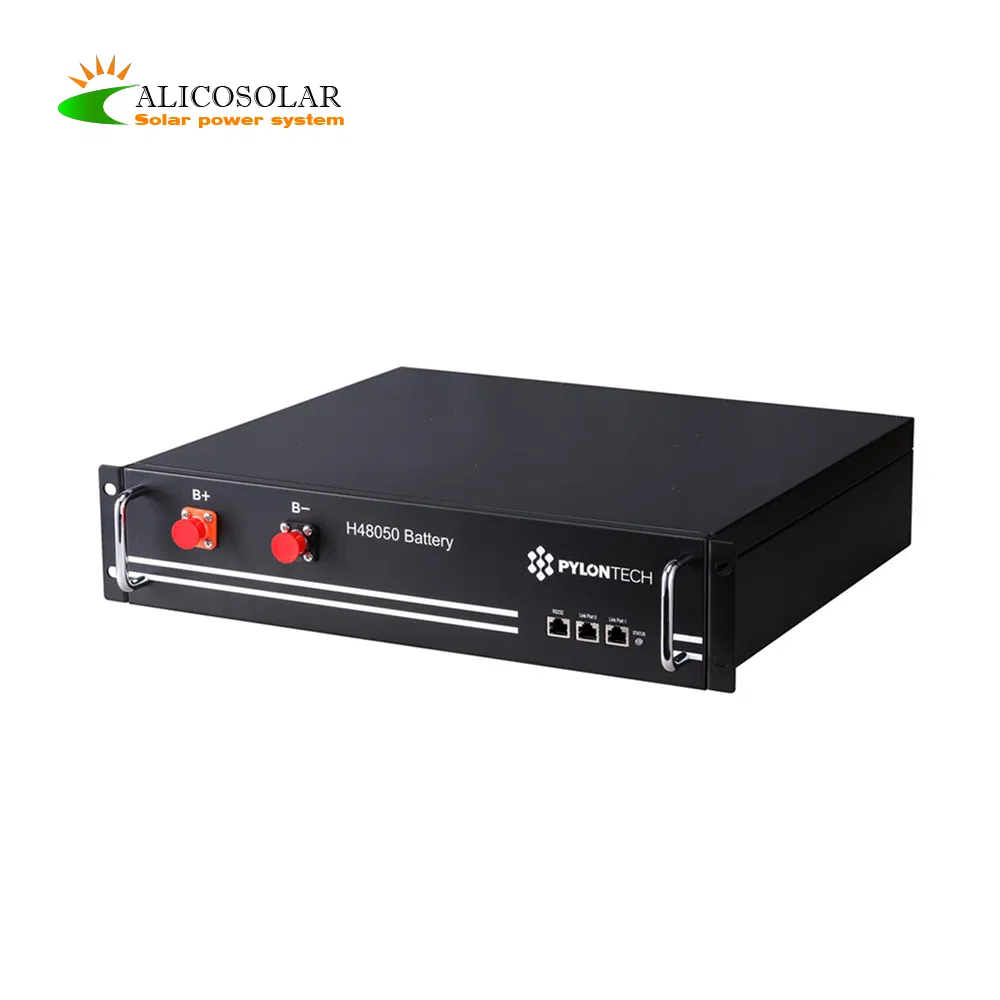

Lithium Battery

Voltage: 48V
Capacity: 100Ah
Dimension: 4-5U Rack Mounted

🏗️

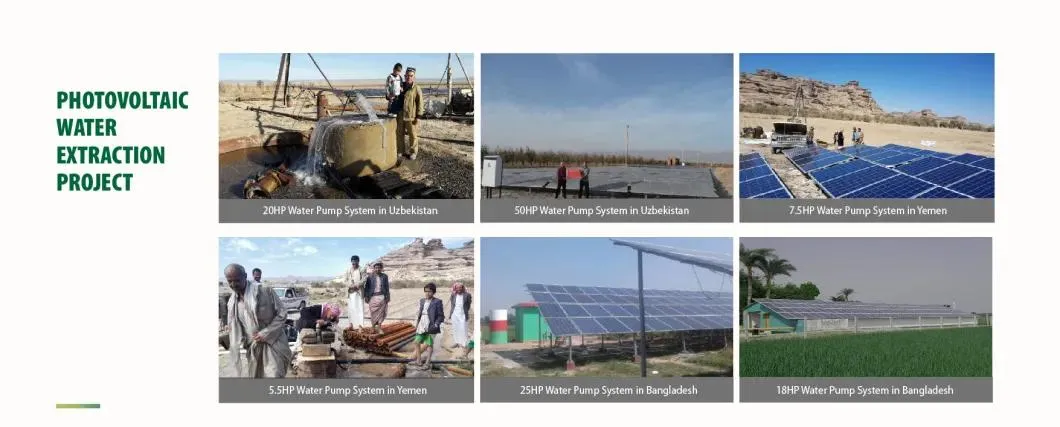

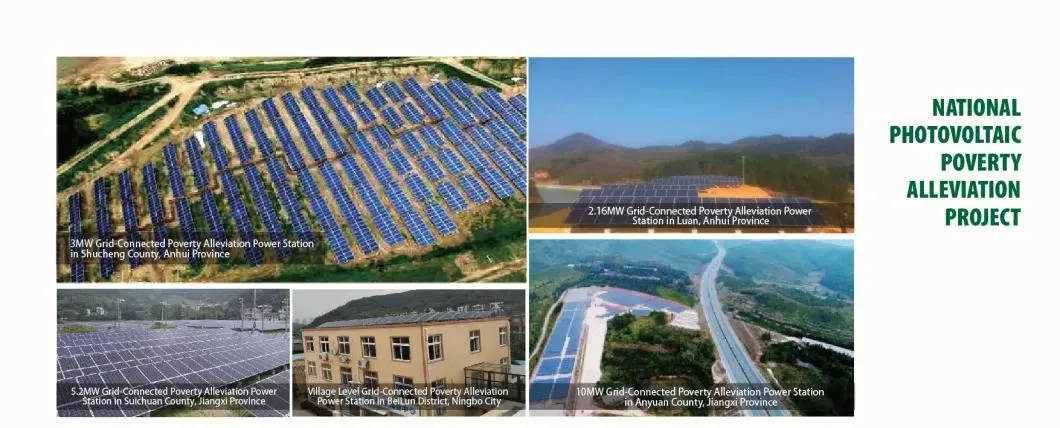

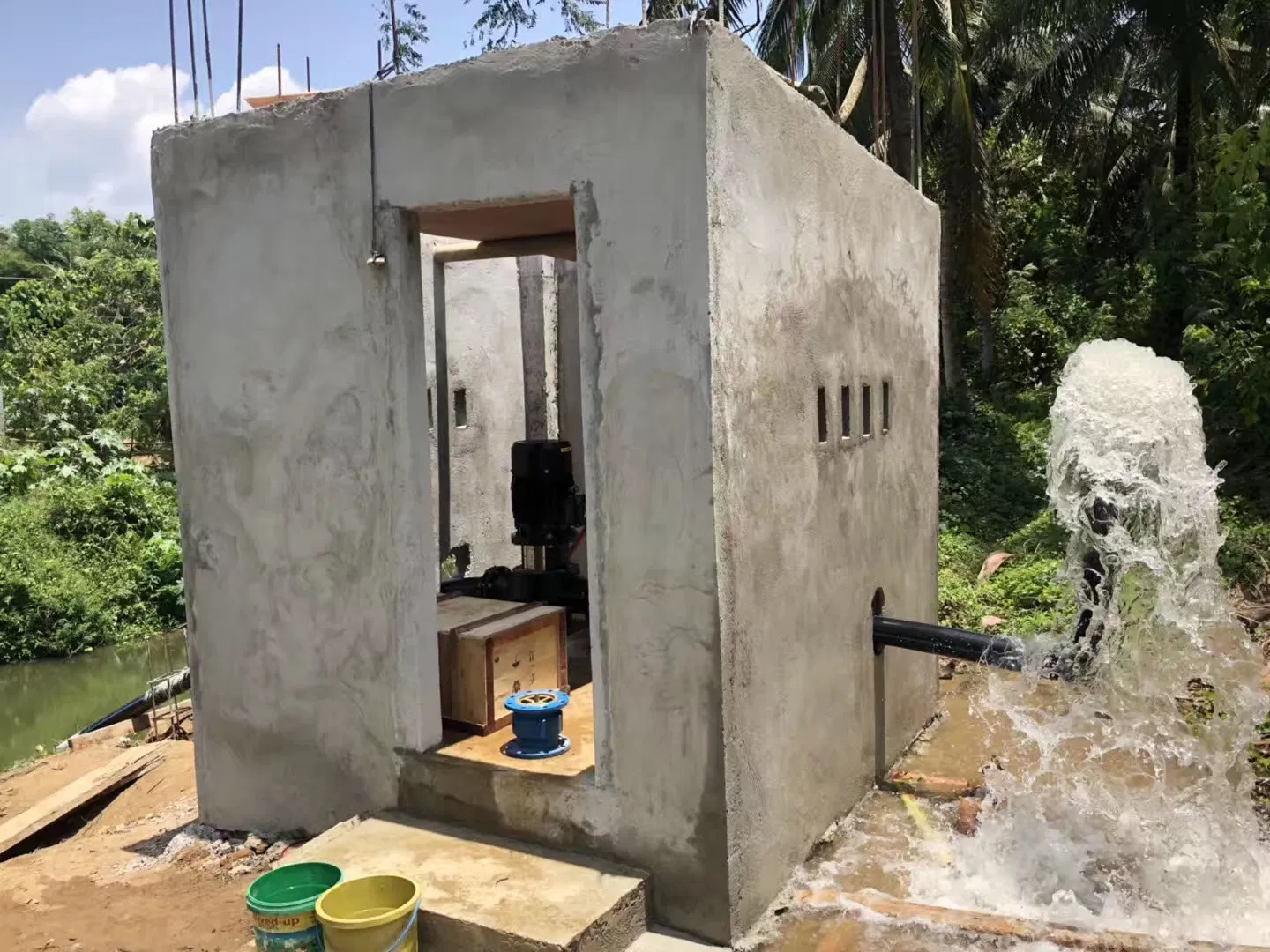

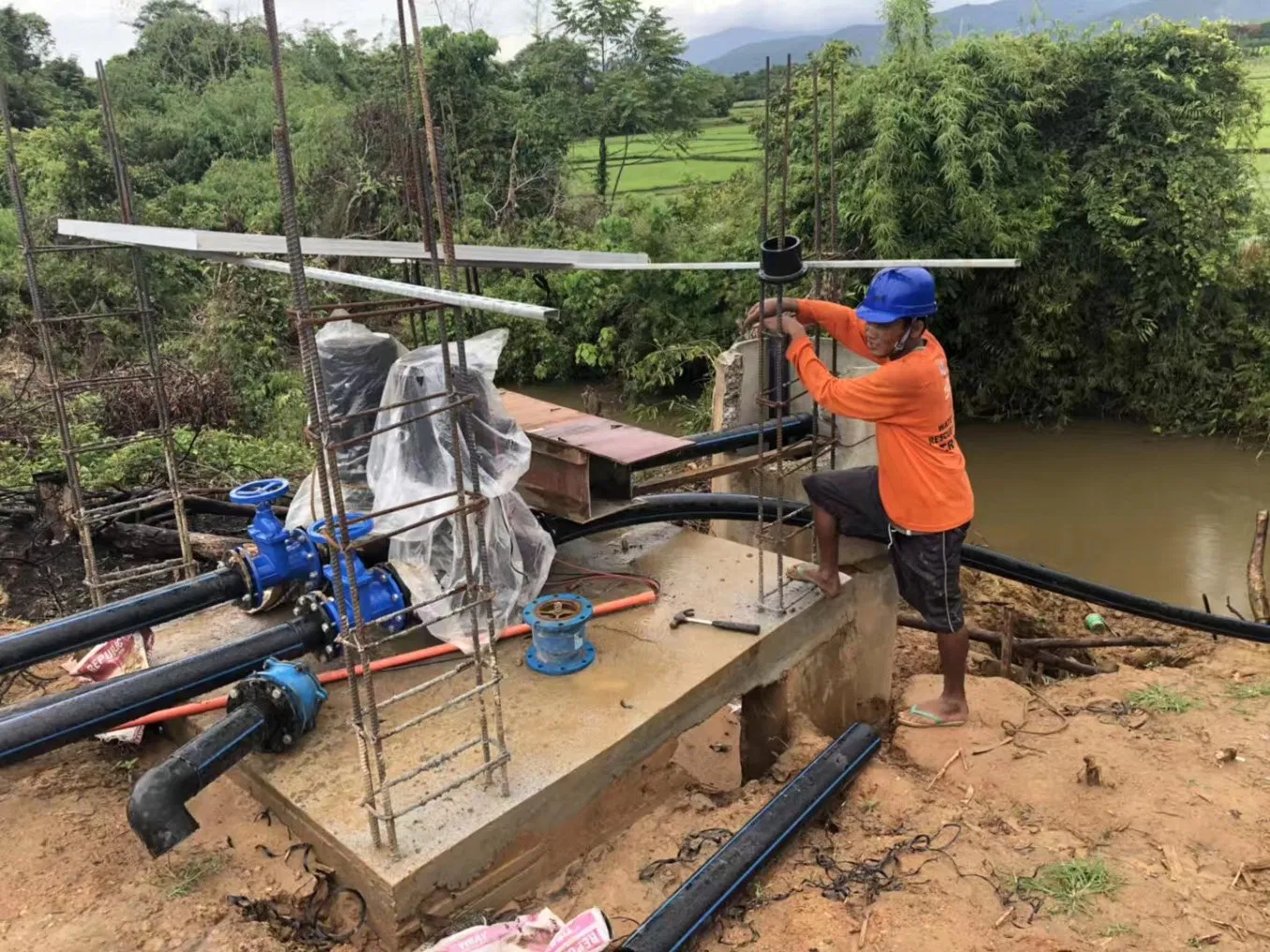

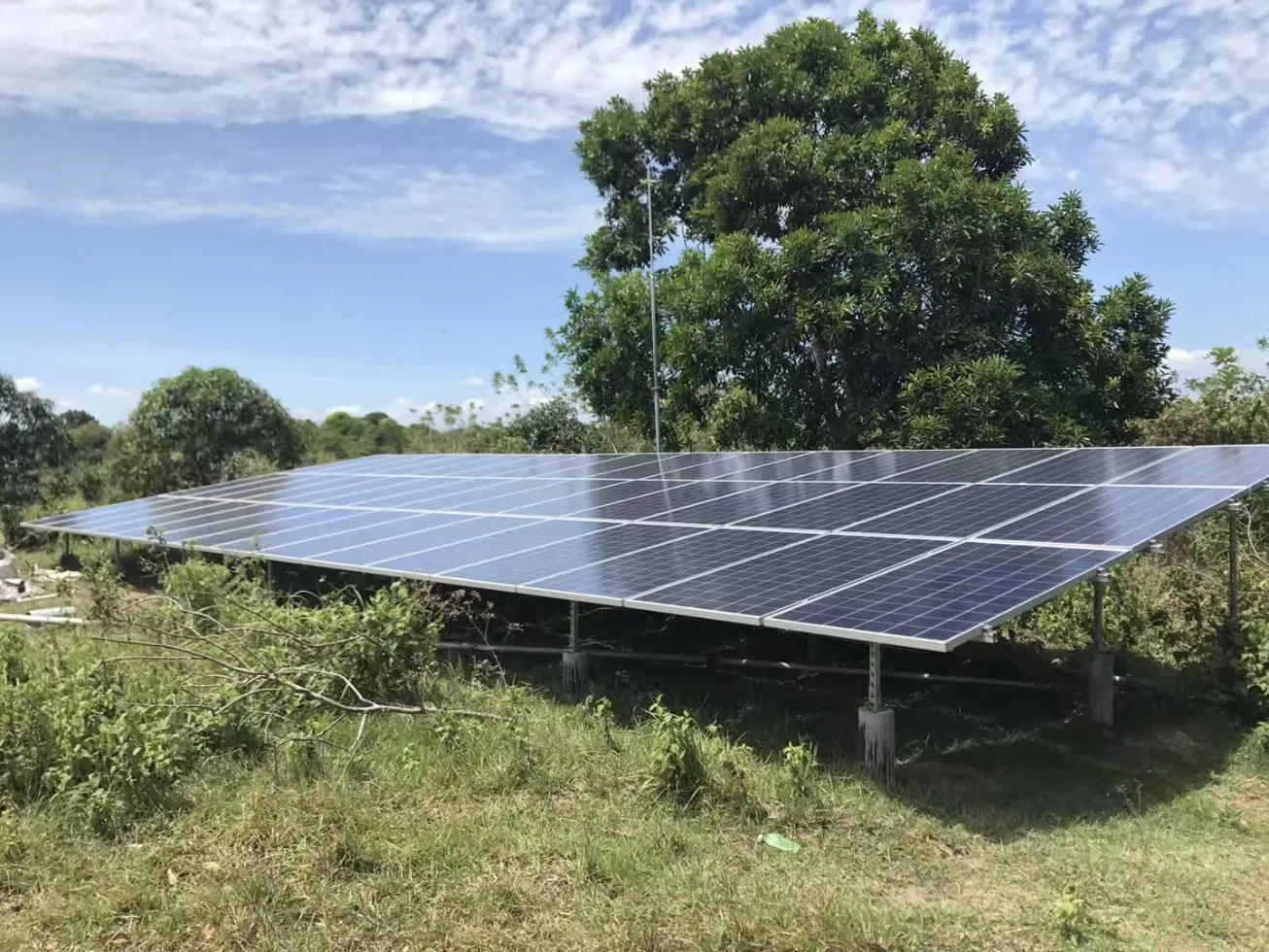

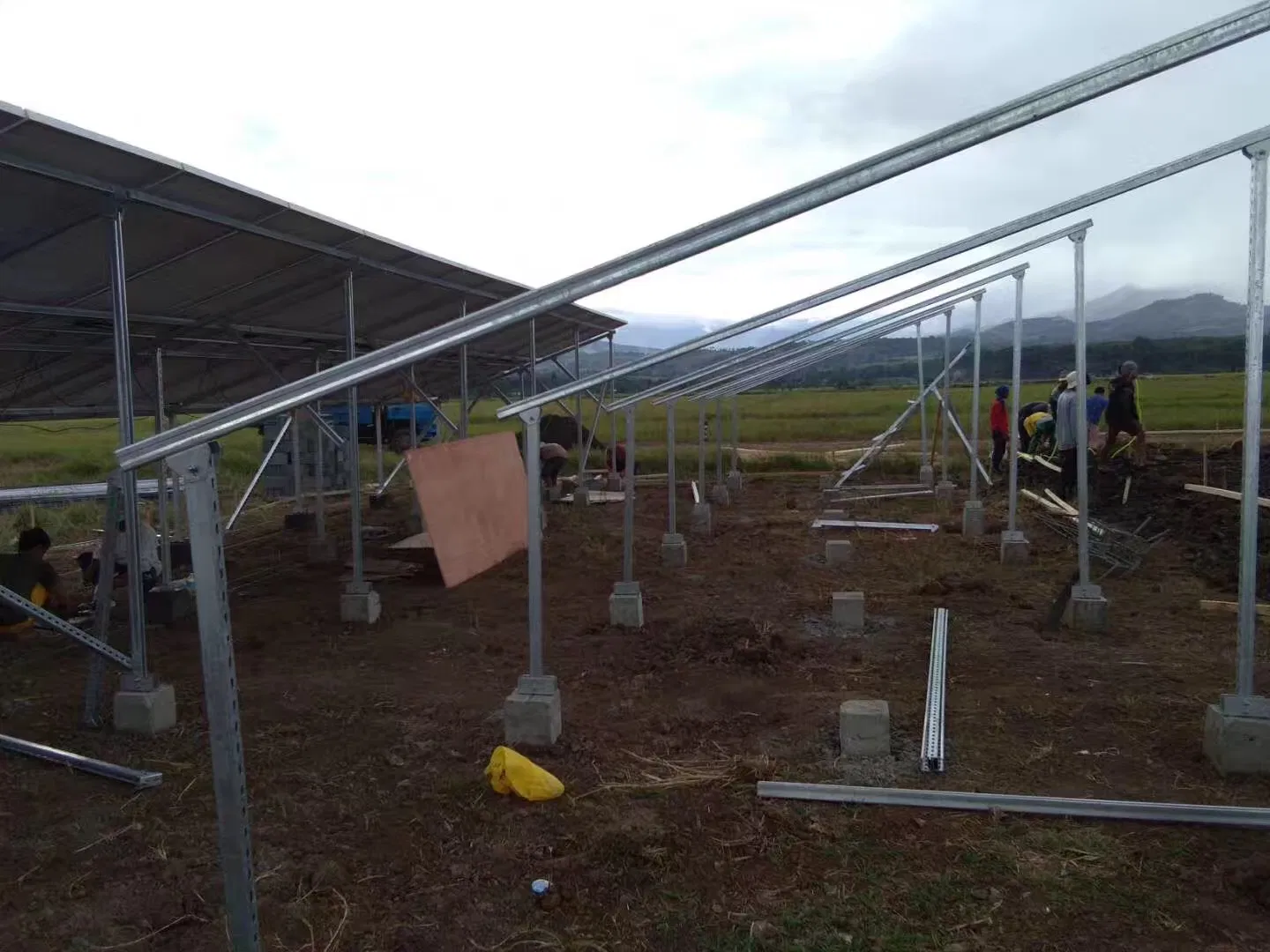

Projects Shown

❓

Frequently Asked Questions

1. How do I determine the number of solar panels needed for my pump?

The general rule is that the total power of the solar panels should be approximately 1.3 times the rated power of the water pump to ensure stable operation.

2. Can this solar pump system work at night?

Standard solar pump systems work during daylight. For night operation, you can integrate a lithium battery system or connect to an optional power grid as a backup.

3. What is the difference between a submersible and a surface pump?

Submersible pumps are installed underwater (like in a deep well), while surface pumps are installed above ground to draw water from shallow sources like ponds or rivers.

4. Is the system compatible with remote monitoring?

Yes, the system supports data logging sticks that allow you to monitor performance via Wi-Fi, Lan, or GPRS using an App on PC or mobile devices.

5. What kind of maintenance does the solar pump system require?

The system requires minimal maintenance. It is recommended to clean the solar panels periodically to ensure maximum efficiency and check cable connections once a year.

6. How long is the warranty for the system components?

The off-grid inverters typically come with a 5-year warranty for EU standards and up to 10 years for US standards, while solar panels usually have a long service life of up to 25 years.
