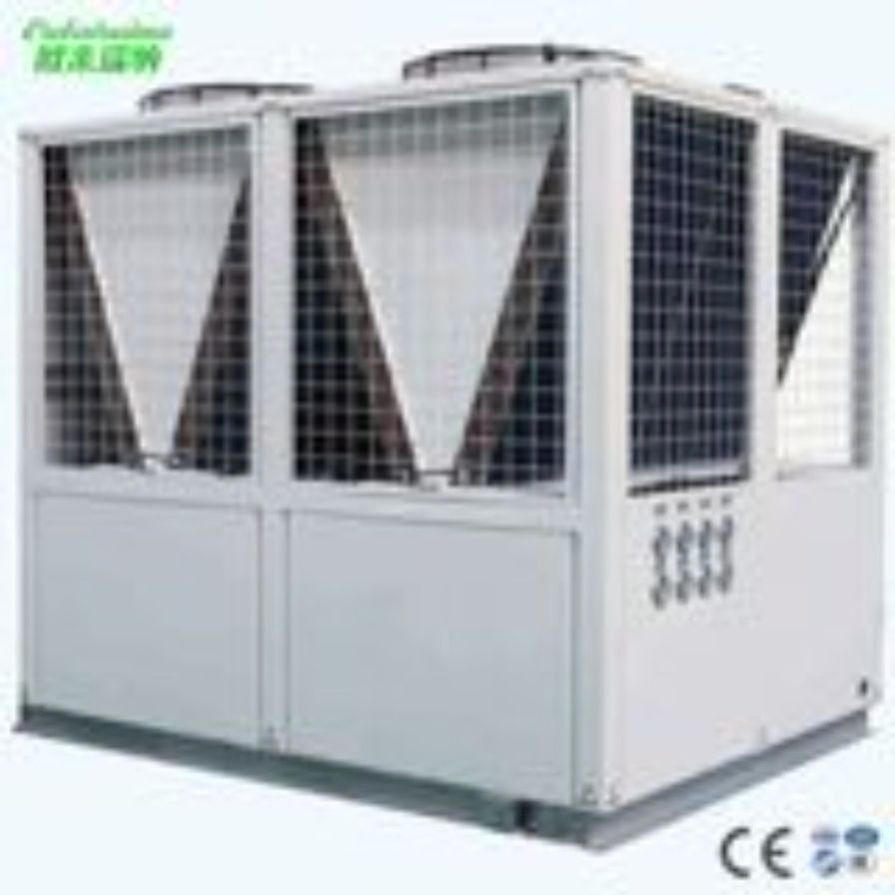

The factory produces customizable air-cooled heat pump dehumidification AC system air conditioners for industrial rooftops.

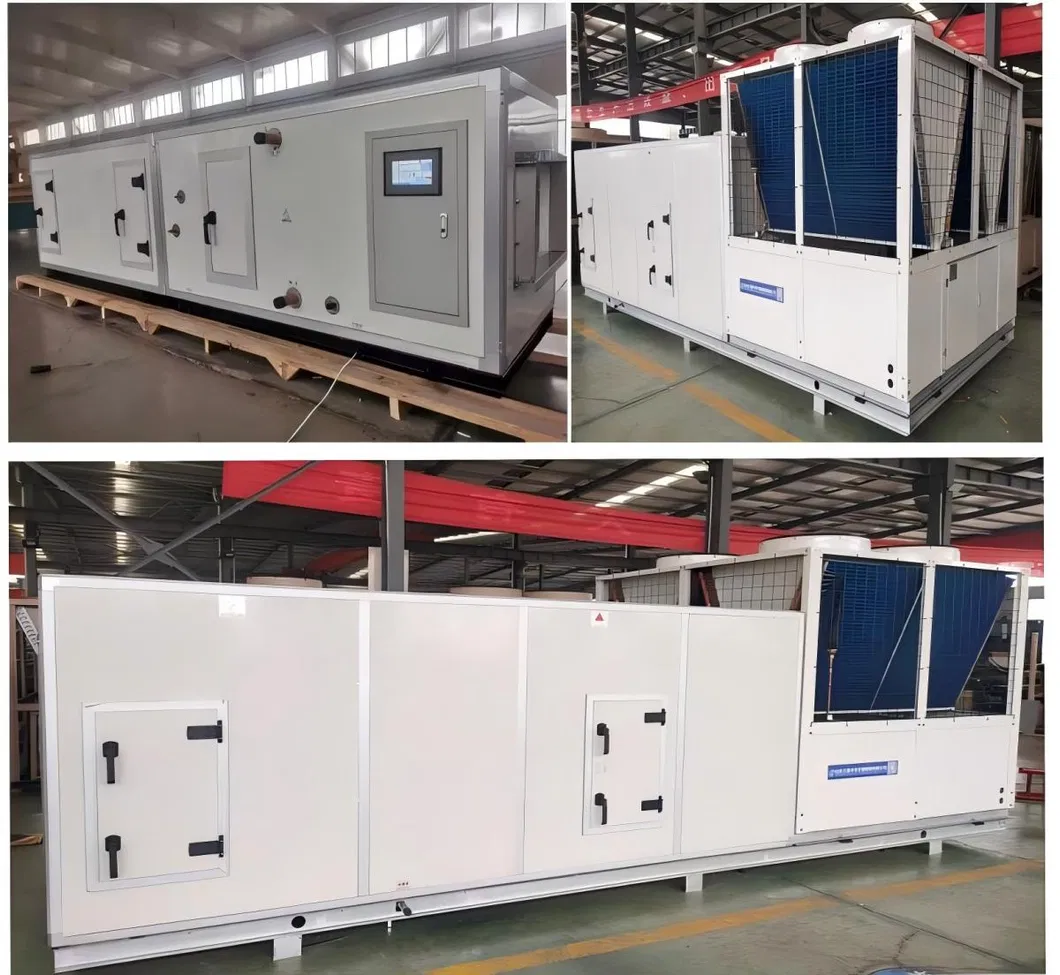

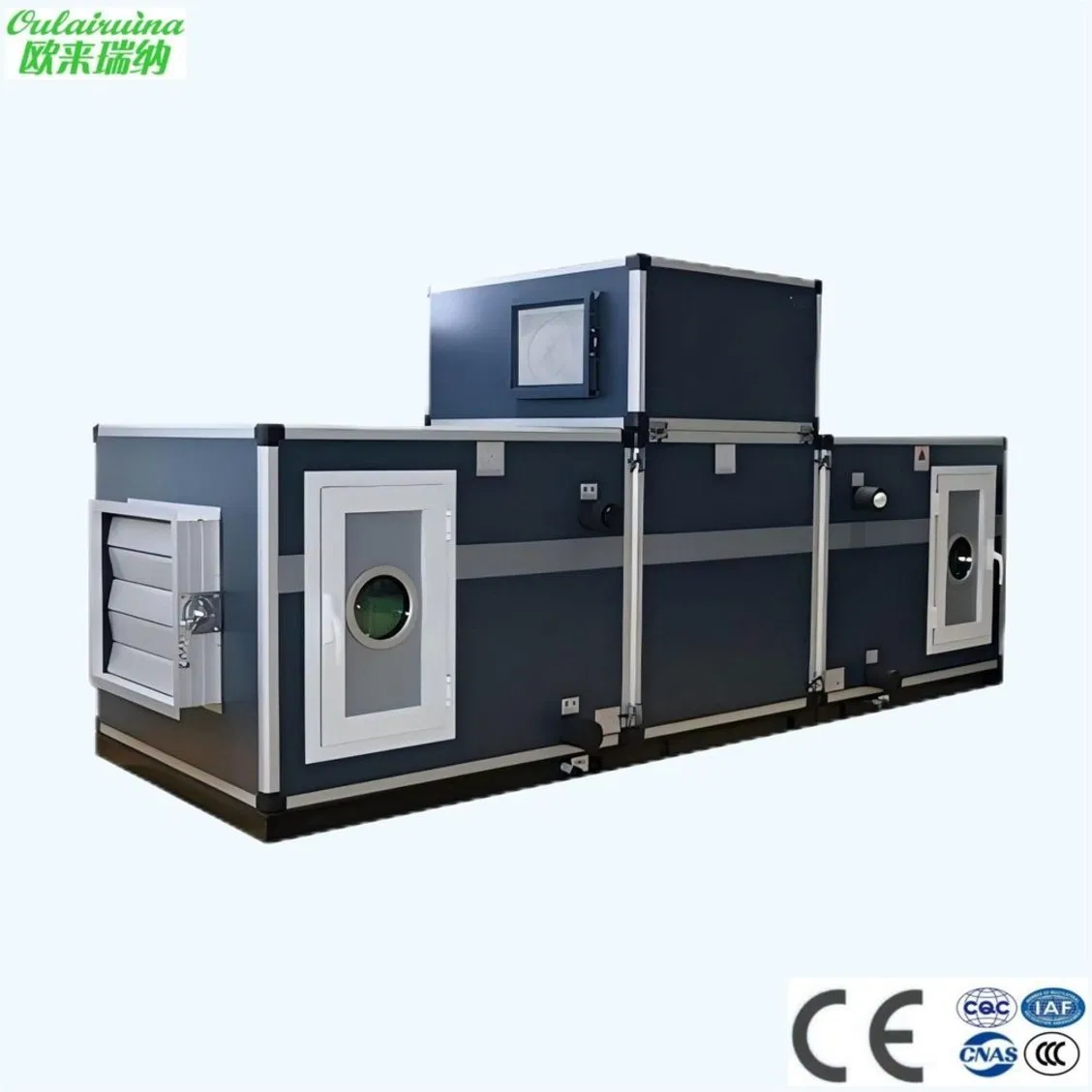

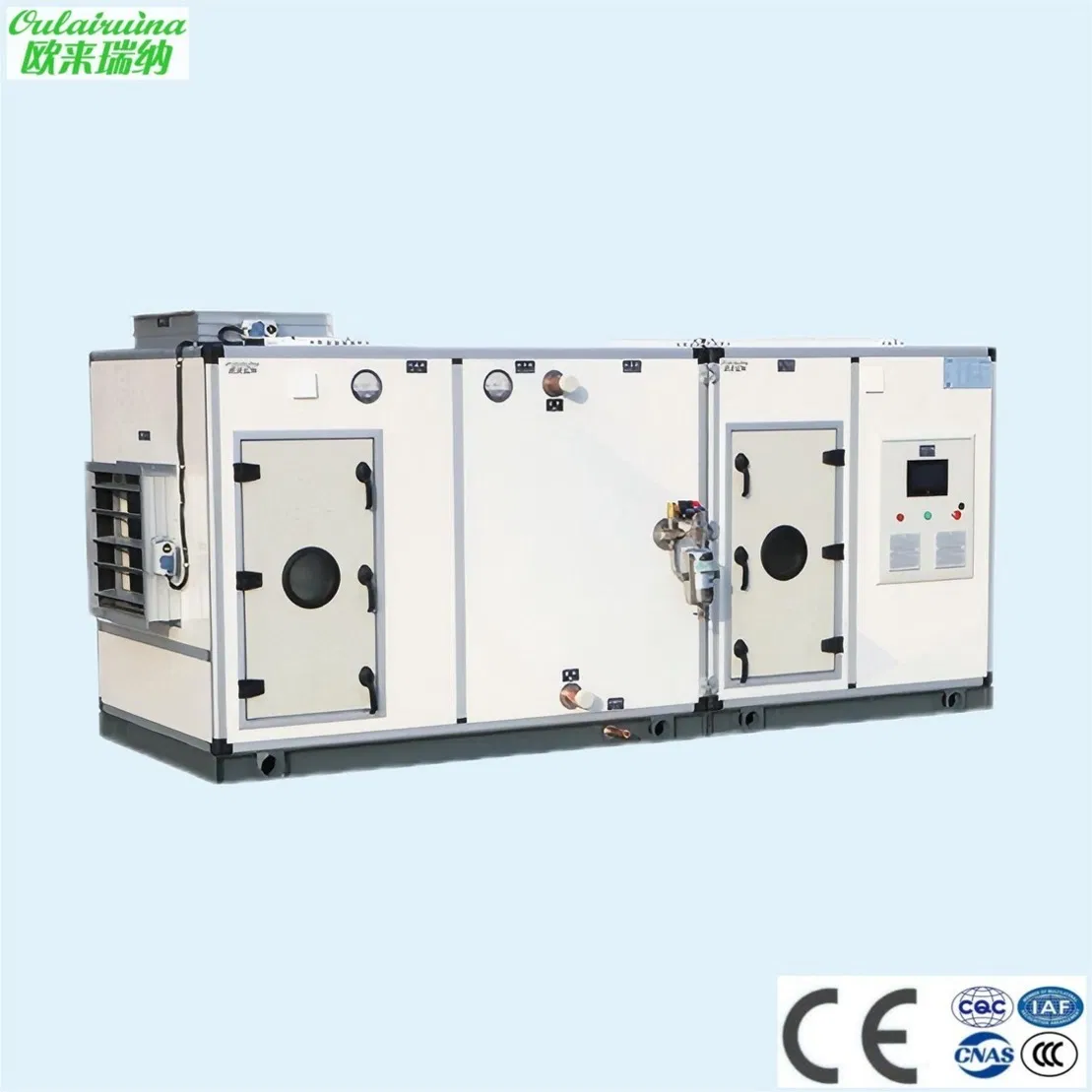

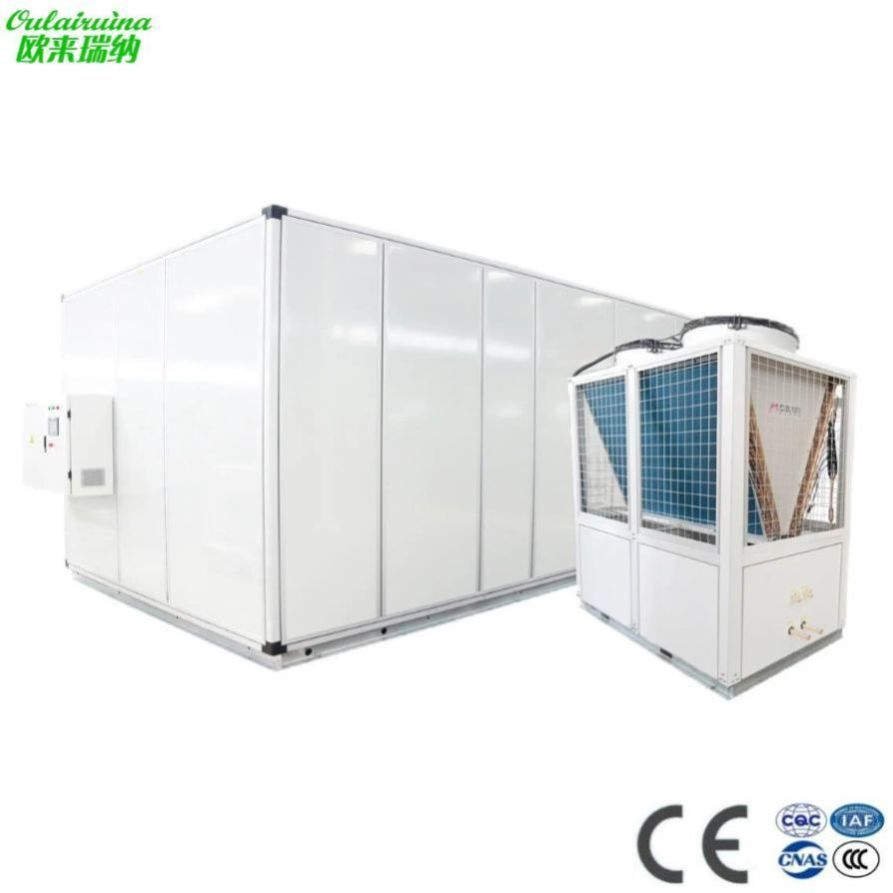

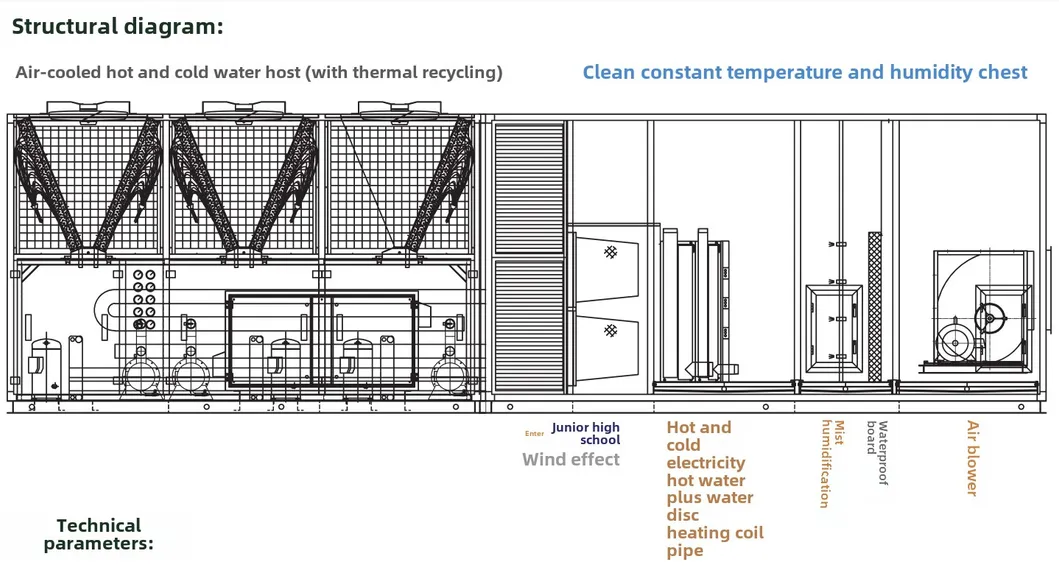

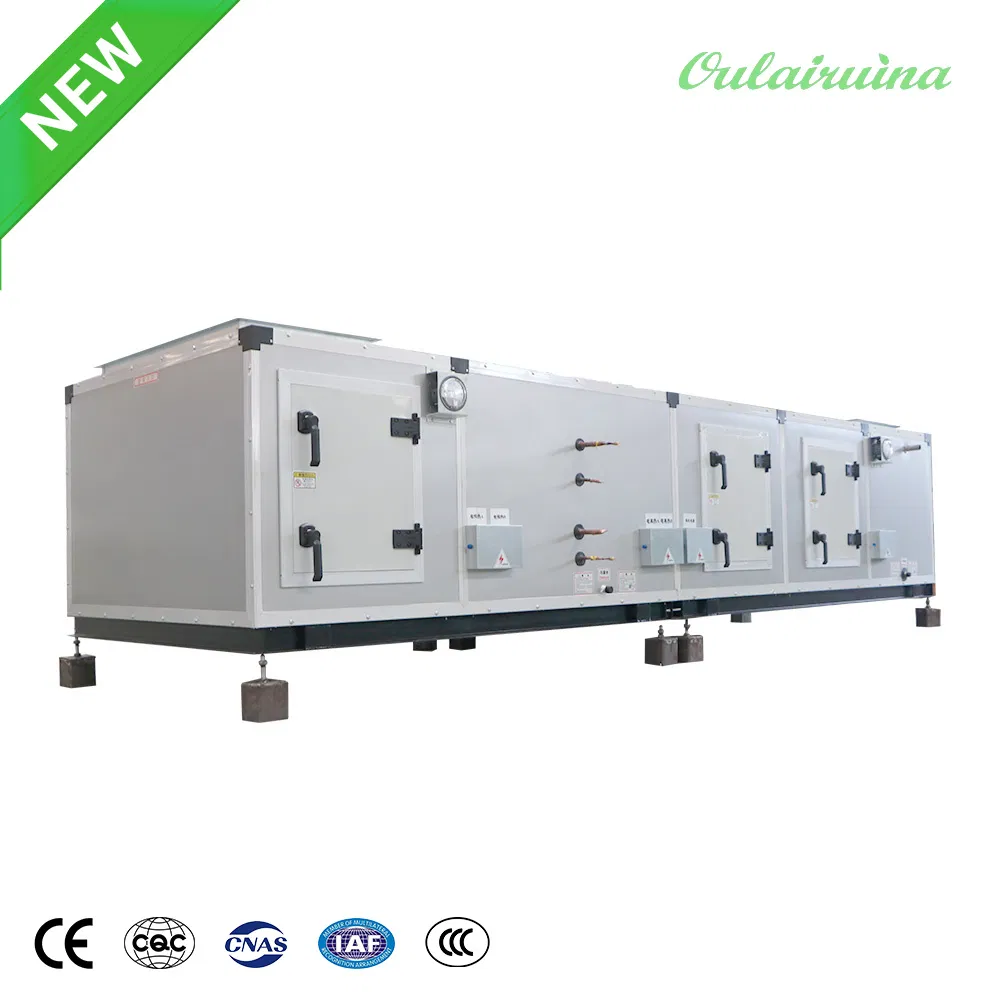

Direct-expansion combined air treatment unit is a kind of combined air treatment unit with cold and heat source, which is composed of outdoor part (air cooling pipe type condensing unit) and indoor part (air treatment unit using refrigerant evaporator, including control system). Indoor and outdoor unit through refrigerant copper pipe connection, quick installation, indoor machine without frame maze profile structure, using the same modular function combination form.
The unit configuration intelligent temperature and humidity control system can realize the use of regional temperature and humidity and cleanliness precision control. Suitable for hospital operating rooms, PCR laboratories, animal rooms, biopharmaceuticals, food testing, and electronic semiconductor facilities.
| Model | Air volume m3/h | Power KW | Pa | Noise dB | Overall Dimensions (mm) | Refrigeration Capacity KW | Heating Capacity KW |
|---|---|---|---|---|---|---|---|
| RNZK-15R | 1500 | 2.2 | 400 | 50 | 3200X1000X1000 | 10.70 | 22.40 |
| RNZK-20R | 2000 | 2.2 | 400 | 52 | 3200X1000X1000 | 24.30 | 25 |
| RNZK-30R | 3000 | 3 | 420 | 55 | 3300X1000X1000 | 27.80 | 33.60 |
| RNZK-40R | 4000 | 3 | 450 | 56 | 3200X1000X1000 | 35.30 | 39 |
| RNZK-50R | 5000 | 4 | 500 | 57 | 3400X1000X1000 | 42 | 45 |
| RNZK-100R | 10000 | 7.5 | 600 | 62 | 3800X1000X1000 | 98 | 107 |
| RNZK-200R | 20000 | 15 | 700 | 60 | 4000X1000X1000 | 101 | 217 |
