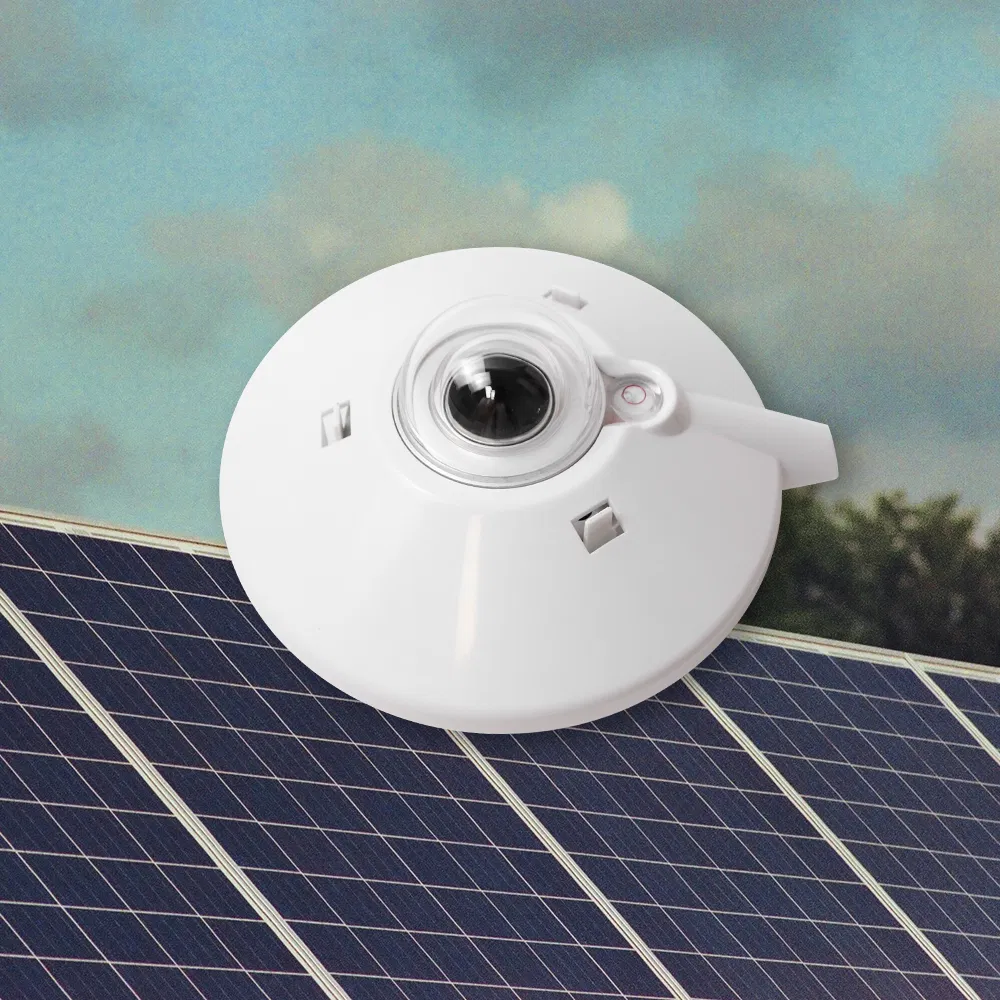

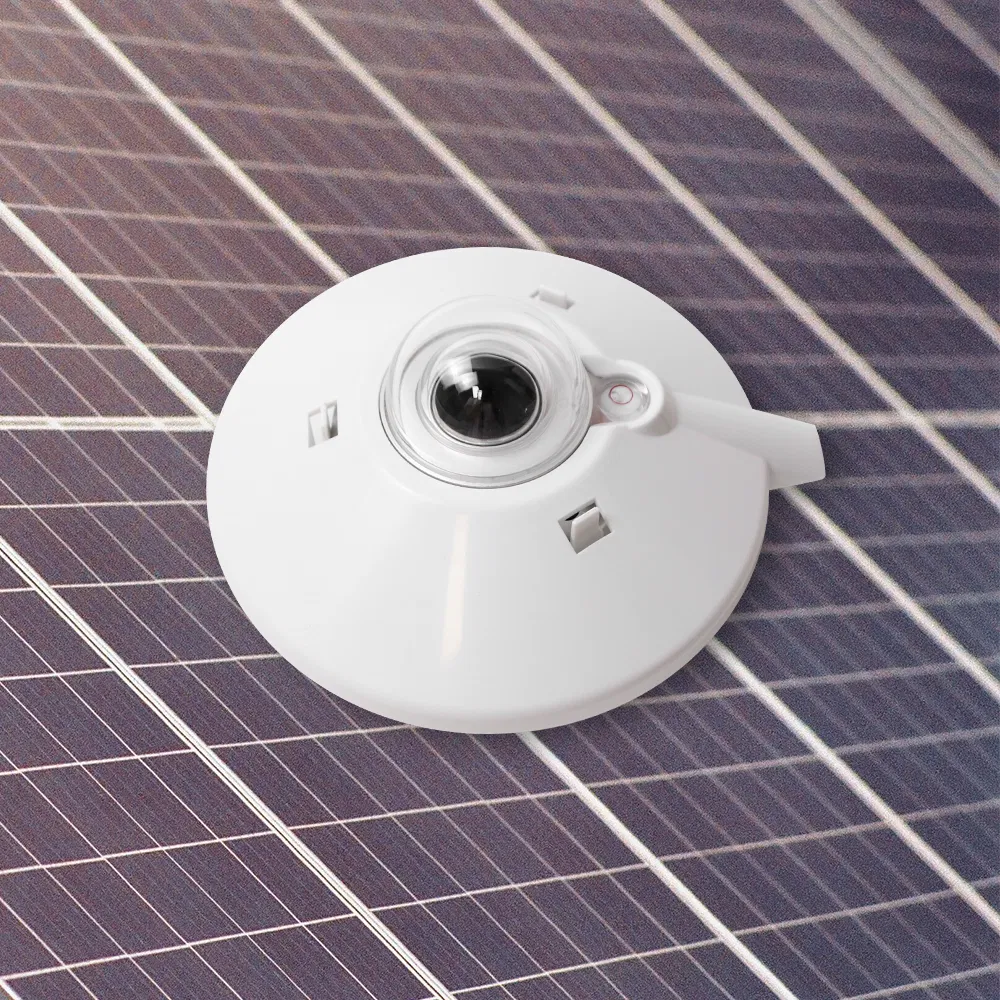

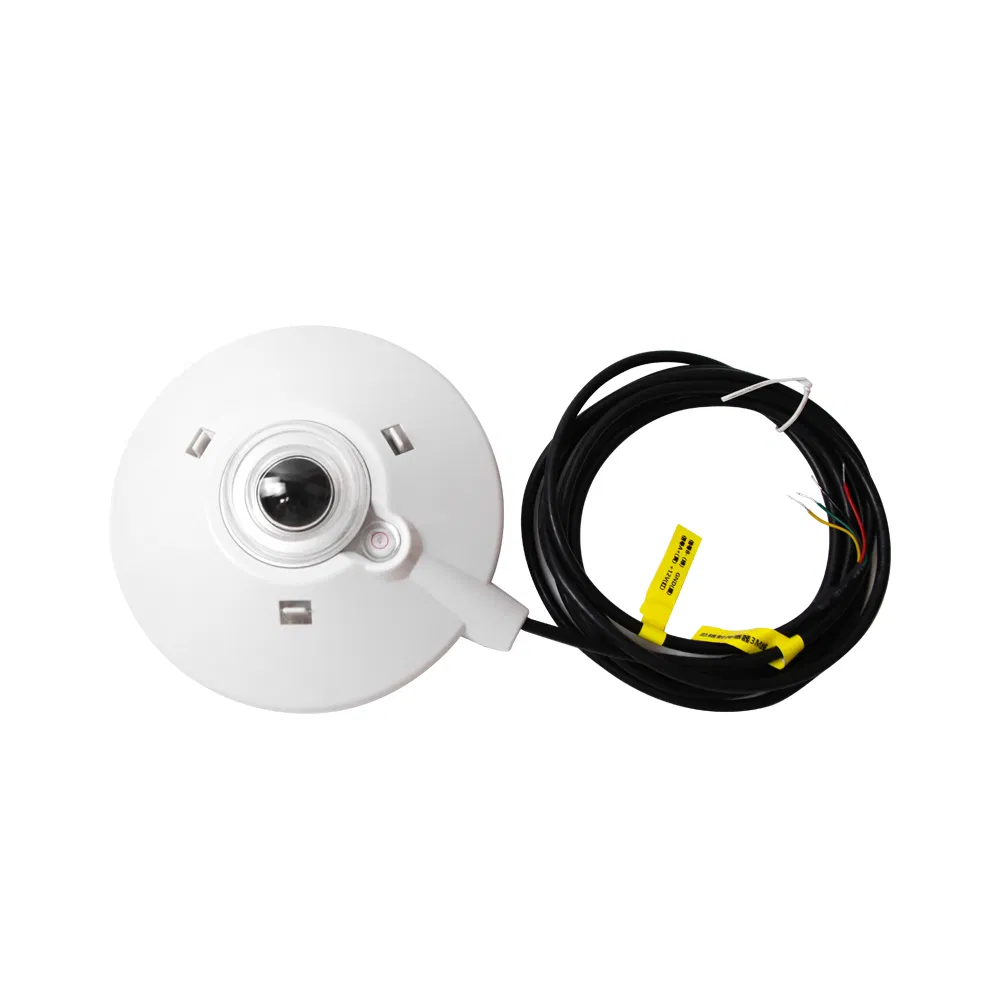

High-Performance Pyranometer for Accurate Solar Radiation Monitoring Solutions

1 / 5

High-Performance Pyranometer for Accurate Solar Radiation Monitoring Solutions

Customization:	Available
Range:	0-2000W/M2
Sensitivity:	7-14UV/W/M2

Send Inquiry

Product Description

Basic Info

Model NO.

RK200-03A

Non-Linearity

<2%/Year

Measuring Angle

2tt Solid Angle

Output

4-20mA, 0-5V, RS485

Reception Paincoat

3m Matte Black Paint

Desiccant

Silicon

Supply

12-24V

Cable Length

Item

Pyranometer

Specification

measure spectral range: 300-3200nm

HS Code

90279000

Production Capacity

10000PCS/Month

Product Description

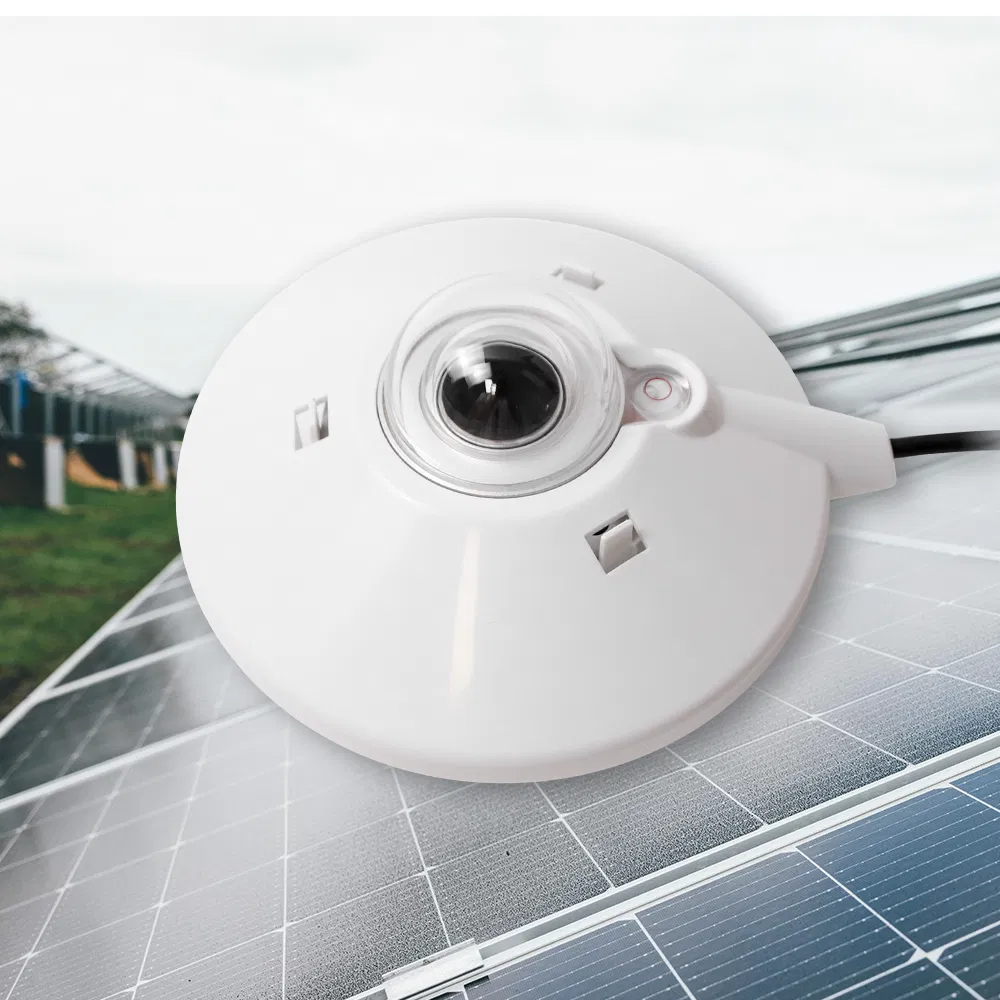

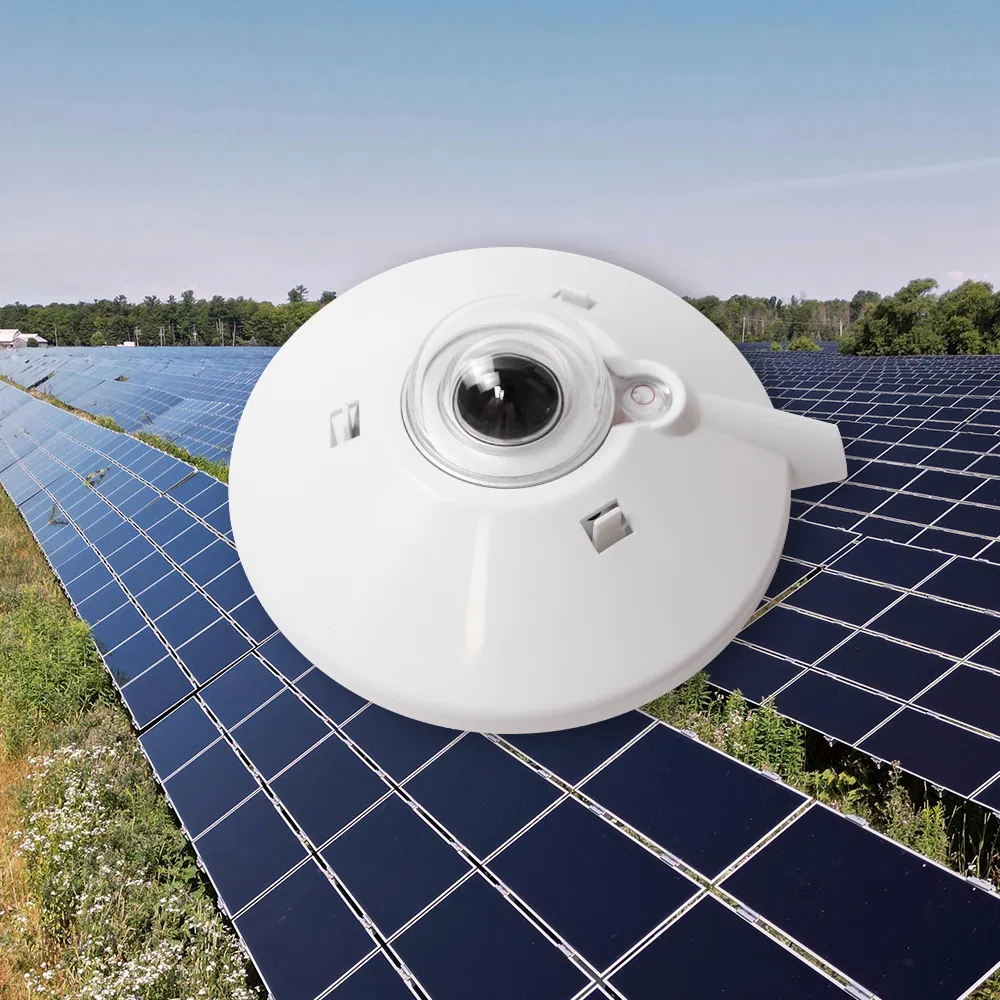

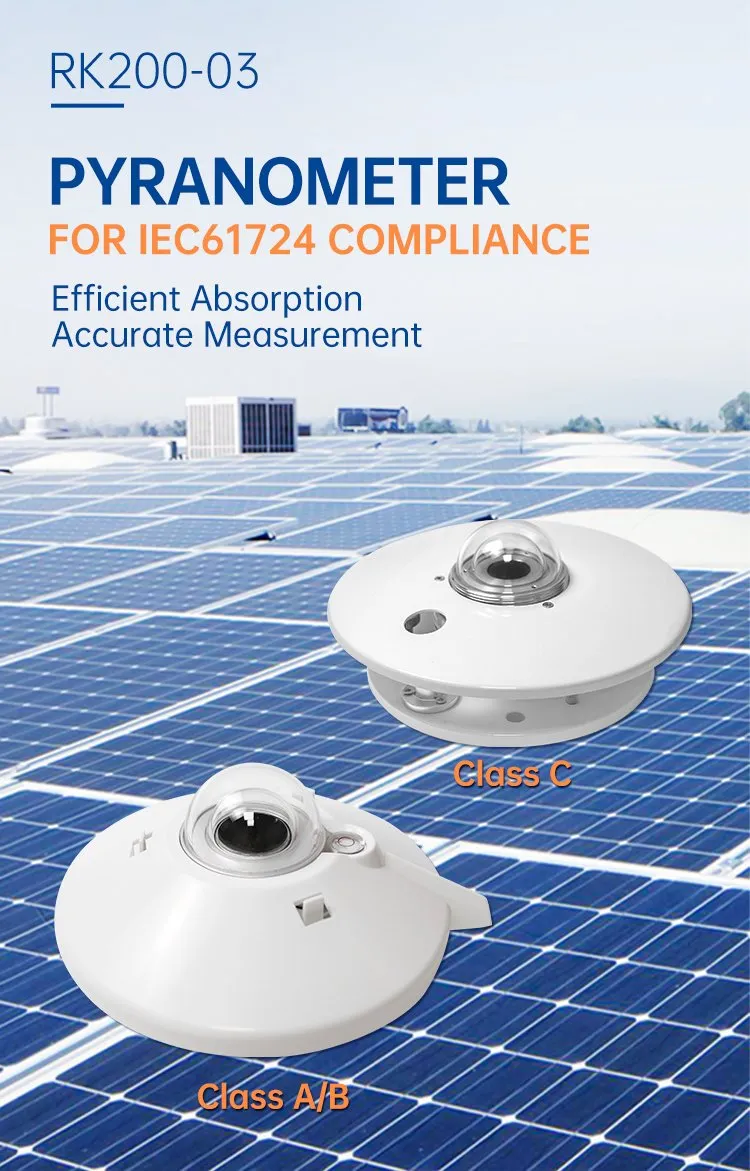

Introducing the RK200-03 Industrial Class A TBQ Solar Radiation Sensor Pyranometer, a state-of-the-art device crafted for precise environmental monitoring.

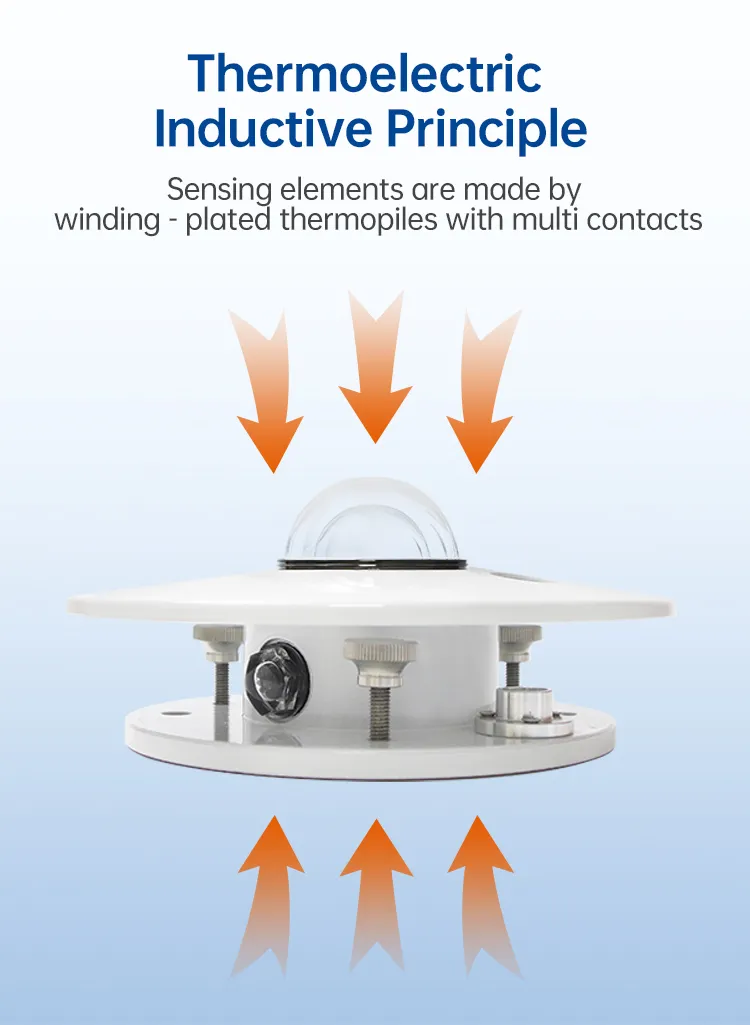

The remarkable RK200-03 Pyranometer is engineered utilizing the thermoelectric principle, where precision is paramount. Its sensing elements are intricately designed with wound-plated thermopiles featuring multiple contacts. To ensure maximum efficiency, the surface boasts an advanced black coating with superior absorption capabilities. The sensor's design positions the hot contacts on the surface while housing the cold junction within the body. This strategic placement allows for the generation of electromotive force through the temperature difference between hot and cold junctions, directly correlating with solar radiation levels. To further enhance reliability, a meticulously crafted temperature compensation circuit is integrated, effectively minimizing the impact of ambient temperature variations on the product's performance.

Main Applications:

★Solar energy: Unleash the potential of solar power with precision monitoring.
★Agriculture and forestry monitoring: Ensure optimal environmental conditions for thriving ecosystems.
★Crop growth monitoring: Keep a vigilant eye on your crops' progress with advanced technology.
★Tourism eco: Enhance ecotourism initiatives by understanding solar dynamics.
★Weather stations: Equip weather stations with cutting-edge technology for accurate data.

Output Character:
Radiation Output (W/m²) = Voltage Output Value (μV) / Sensitivity Coefficient (μV·W¹·m²).
Every product is accompanied by a unique sensitivity coefficient, distinctly mentioned on its label, ensuring precise and tailored output readings.

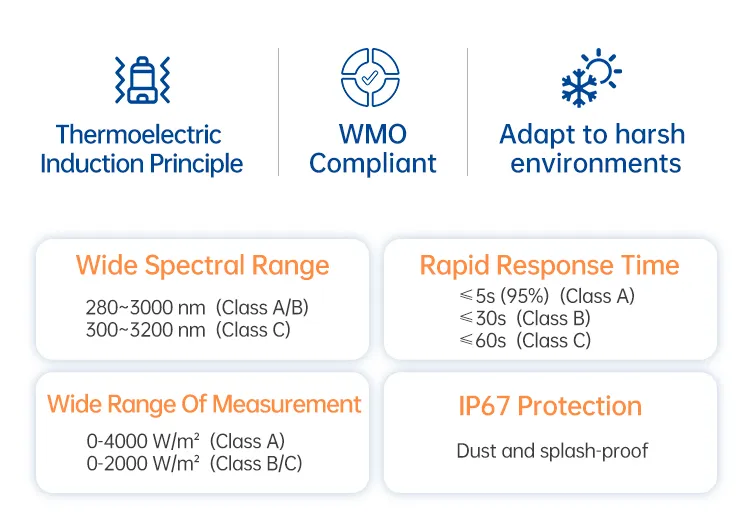

Technical Specifications

Item	Technical Specification
ISO9060:2018	Class A
ISO9060:1990	Secondary standard
Spectral range	280~3000 nm
Output	0-20mV, 4-20mA, RS485
Supply	12-24VDC
Range	0-4000W/m2
Sensitivity	7-14μV/(W/m²)
Non-linearity	<±0.2%(100~1000W/m²)
Response time	≤5s(95%)
Stability	<±0.8%/year
Ingress protection	IP67

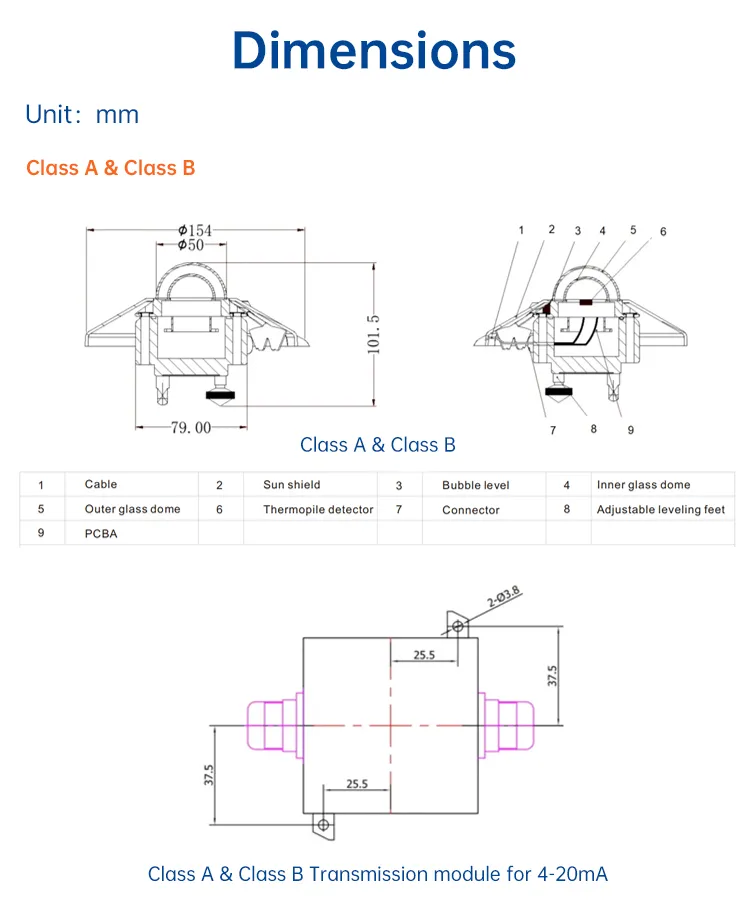

Dimension	154*101.5mm
