High-Efficiency Solar Panel Ground / Roof Mount Solution

Customization:	Available
After-sales Service:	Online
Warranty:	12-25years

Send Inquiry

Product Description

📋

Basic Product Information

Model NO.

Roof Mounting Solution

Condition

New

Certification

ISO, CE

Material

Aluminum 6063 T3-T5; Steel

Surface Treatment

Hot DIP Galvanized or Anodizing

Application

Home, Industrial, Commercial, Ground

HS Code

76109000

Capacity

200,000 sets/Month

☀️

Solar Mounting Solutions

New Design Solar Mounting Solutions for Various Applications

Residential houses and home buildings.
Commercial buildings, factories, shopping malls, schools, and stadiums.
Power stations, field operations, and large-scale engineering constructions.

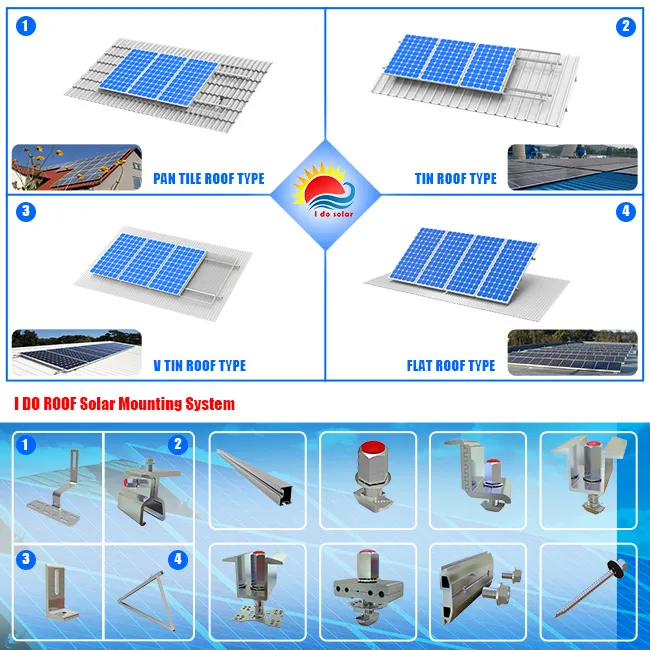

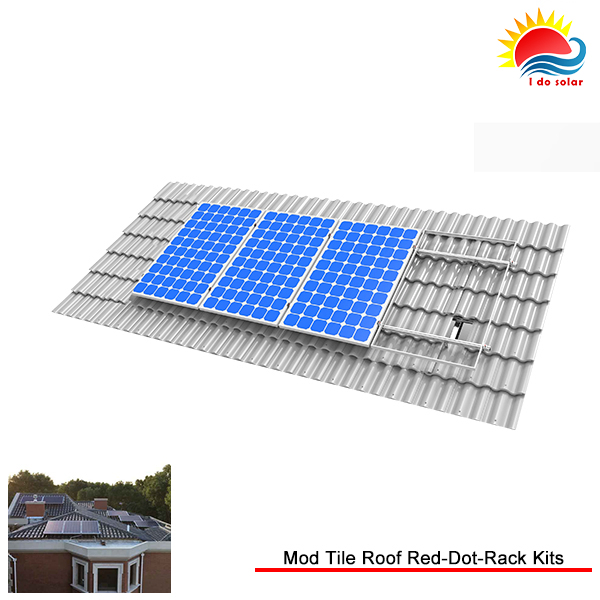

Roof Solar Mounting System

Unmatched Durability: Engineered for long-term stability with high-quality components.
Easy To Install: Simple design and pre-assembled parts ensure a fast setup.
All Weather: Designed to withstand diverse environmental conditions.

Roof System Specifications
Installation Site	According to Roof Type
Survival Wind Speed	< 60m/s
Design Snow Load	Up to 1.4KN/m²
Solar Panel Type	Framed or Frameless
Panel Orientation	Transverse or Vertical
Warranty	12-25 years
Duration	More than 20 years

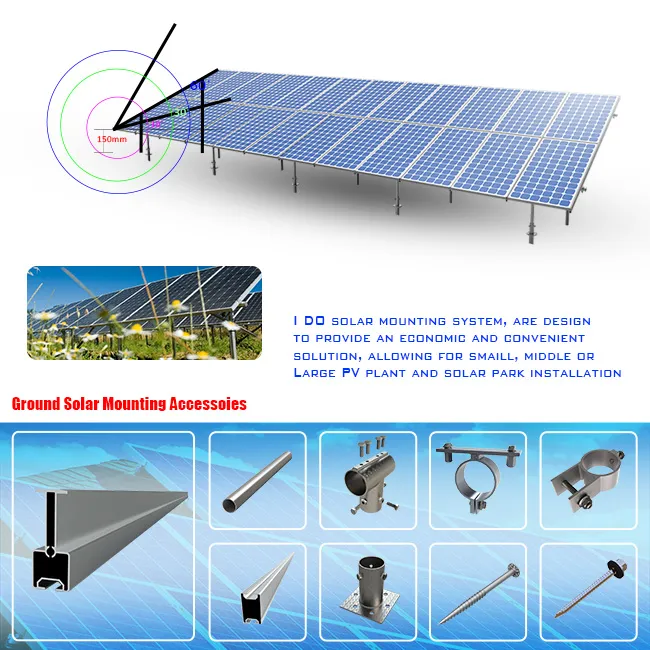

Ground Solar Mounting System

Our ground screw mounting system is comprised of high-quality galvanized steel and anodized aluminum alloy, designed for a 25-year service life.

Ground System Specifications
Type	Ground Screw Solar Mounting System
Material	Aluminum 6063 T3-T5; Steel
Anticorrosive	Hot-dip Galvanized
Delivery Time	7-15 days

🛡️

Standards & Quality Assurance

Australian Standard:
AS 1170.0-2002, AS 3566.1-2002, AS 4600-2005, ISO 3506

European Standard:
BSEN 1990:2002+A1:2005, Eurocode 1 (Snow & Wind loads)

Warranty: Systems are backed by a standard 12-year guarantee, extendable up to 25 years for large-scale and commercial projects.

⚙️

System Components & Hardware

Item Name	Material	Size / Specification
Universal Mid Clamp	Anodized Aluminium, SS Fixings	31mm to 50mm

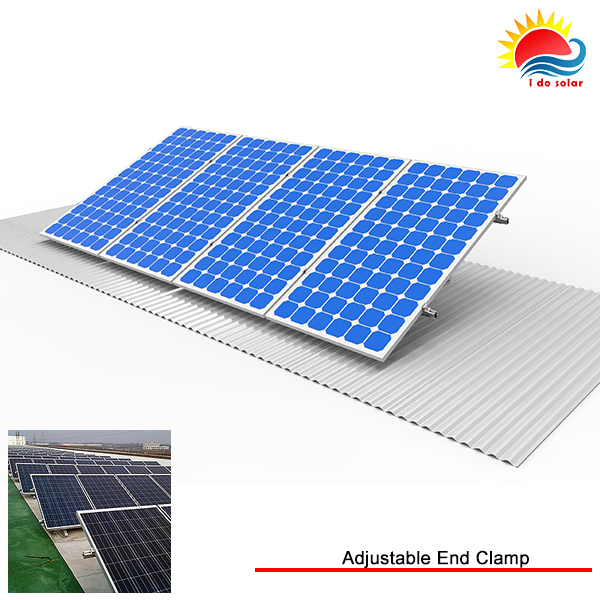

Universal End Clamp	Anodized Aluminium, SS Fixings	50mm
Rail Joiner	Anodized Aluminium	100mm

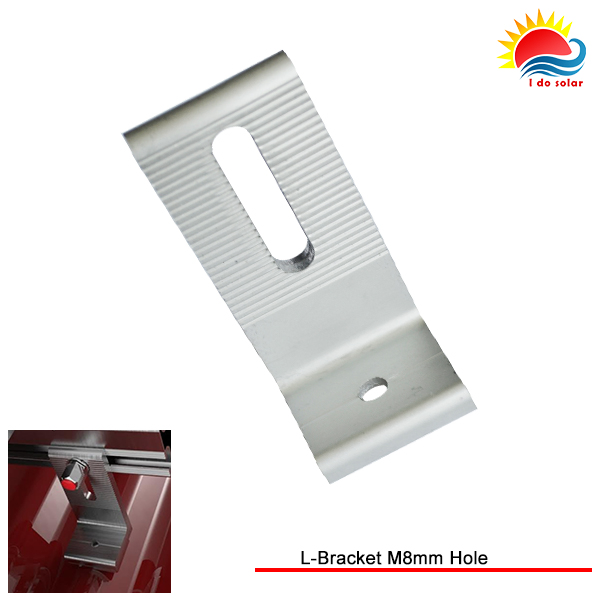

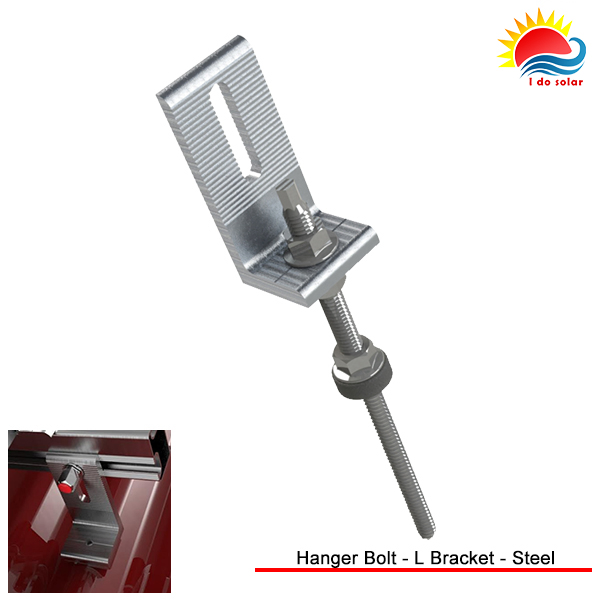

L-Bracket	Anodized Aluminium with Rubber	40mm
Klip-lok Bracket	Anodized Aluminium	80mm
Hanger Bolt	Stainless Steel	200mm M10
Steel Tube Rear Leg	Galvanised Steel	1200mm x 60mm
Aluminium Slot Rail	Anodized Aluminium	4000mm

🚀

Key Advantages

Flexible post spacing withstands various wind & snow loads.
Highly corrosion-resistant surface treatments.
Fasteners and rail nuts fully configured to save parts purchasing.
Mechanical calculation and reliability tested for highest quality.
Enables easy, fast, and cost-effective installation.

📦

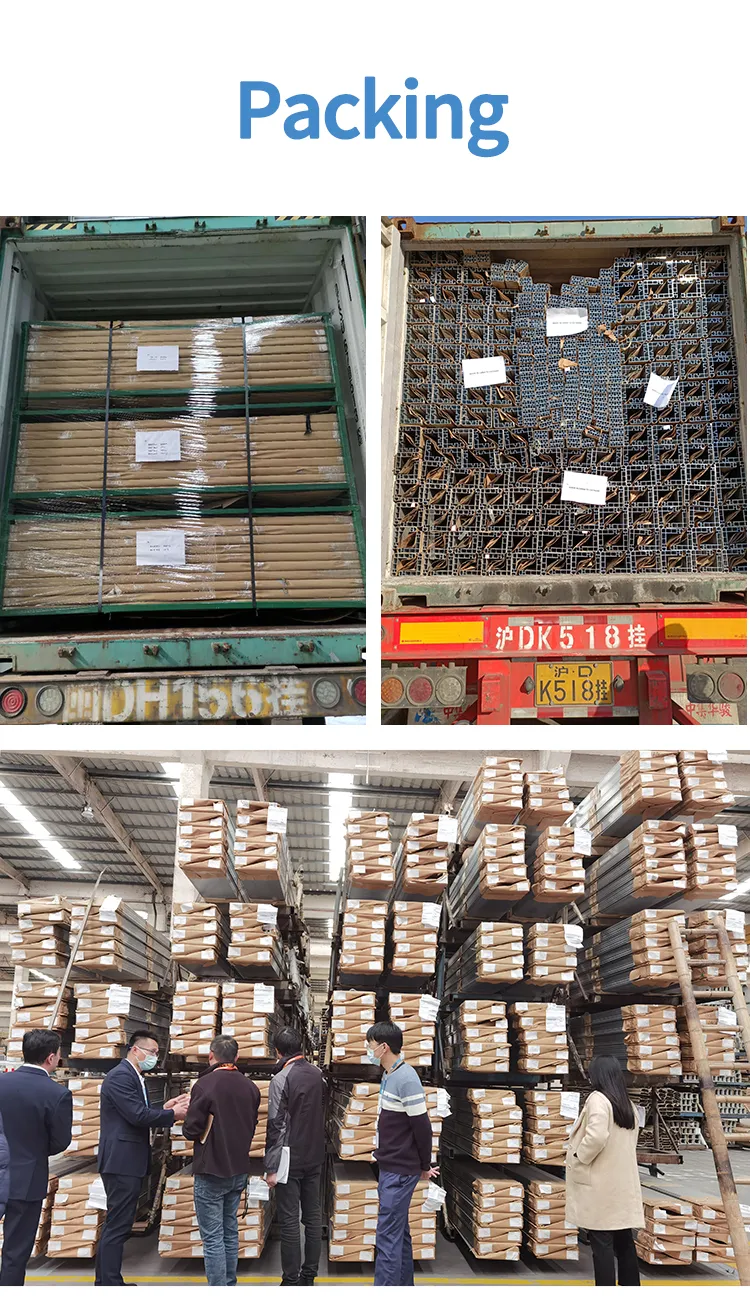

Packing & Shipping

We provide professional packaging solutions for both mass production and sample orders, including film packaging, carton packaging, and secure container loading.
