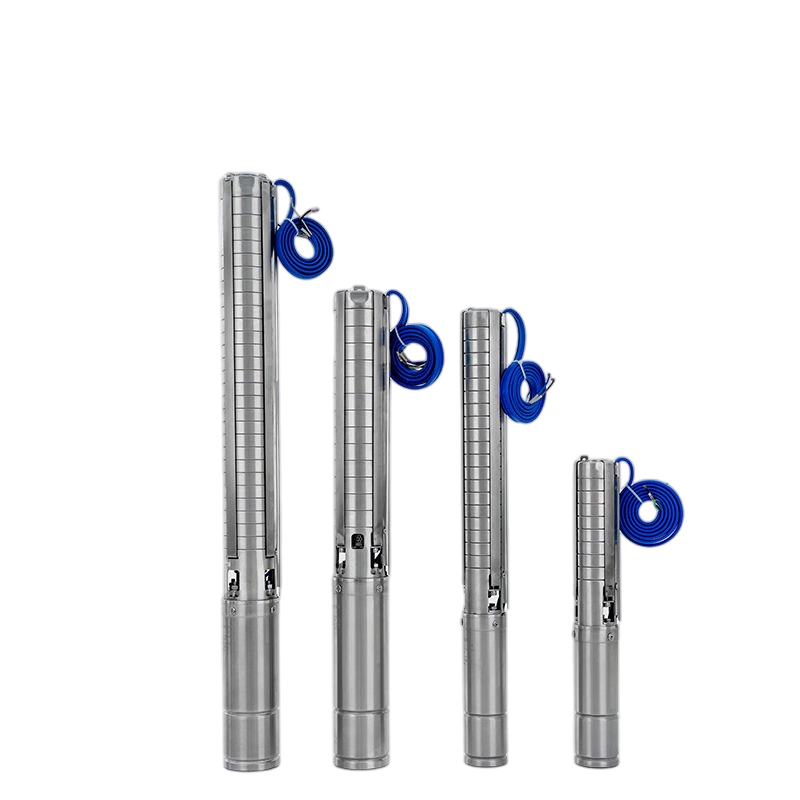

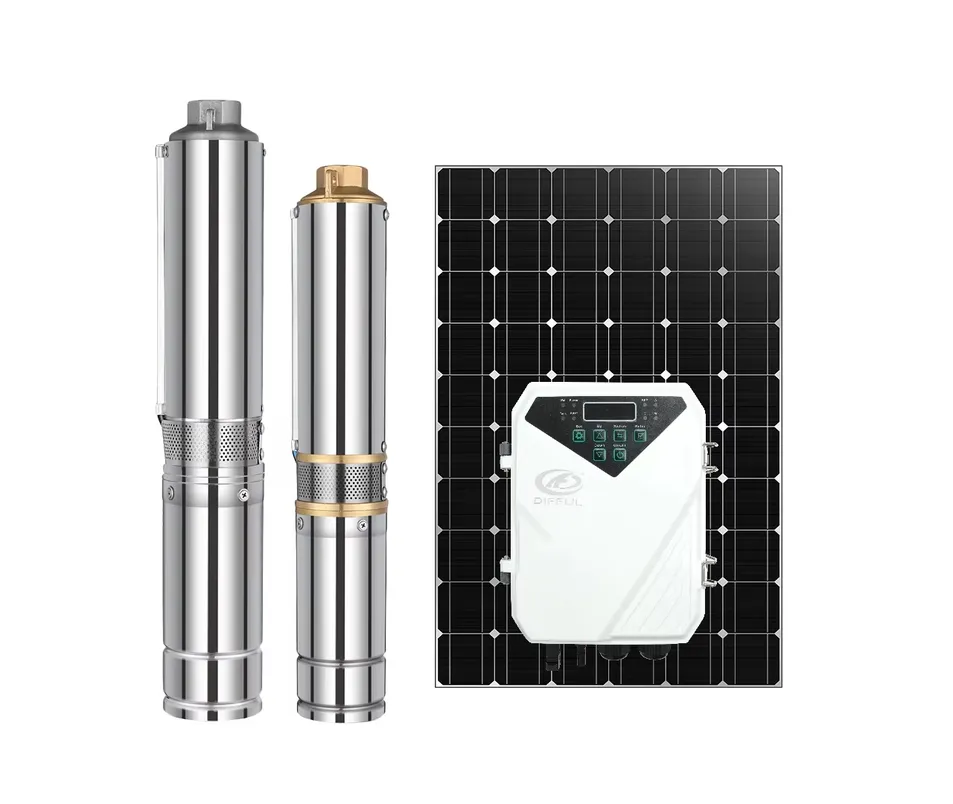

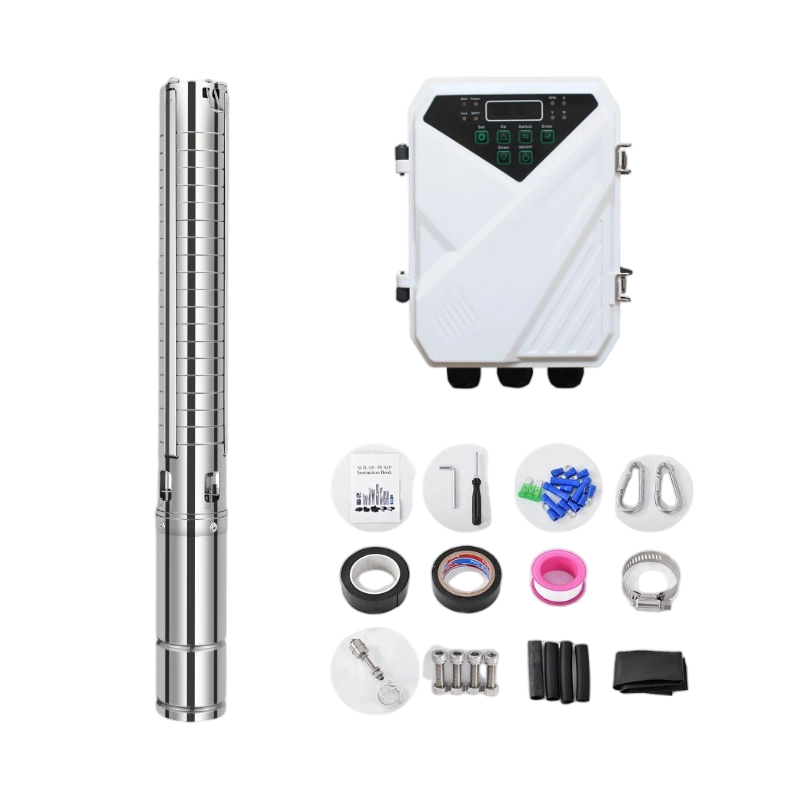

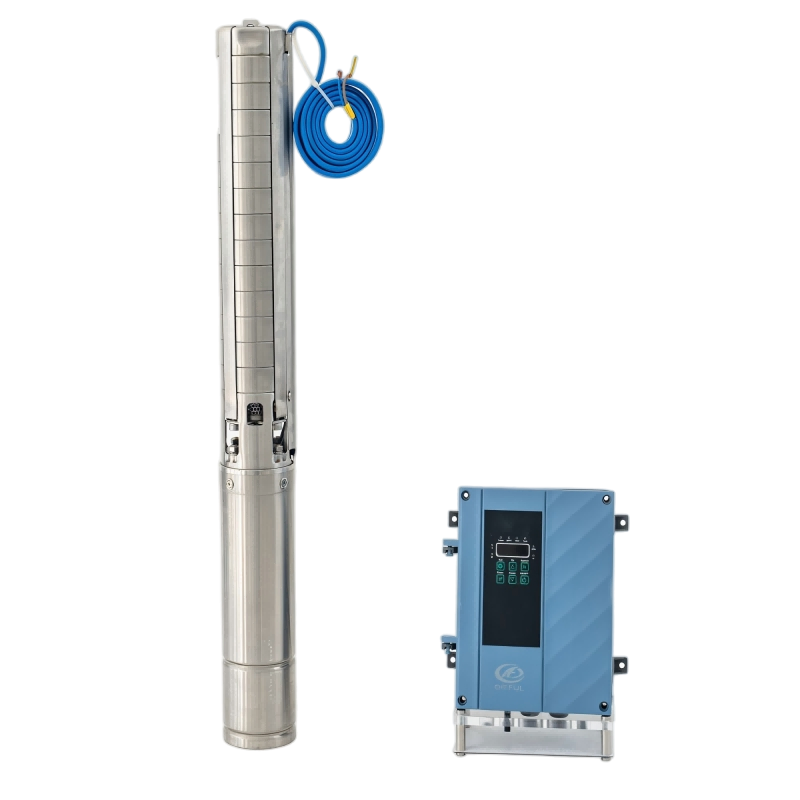

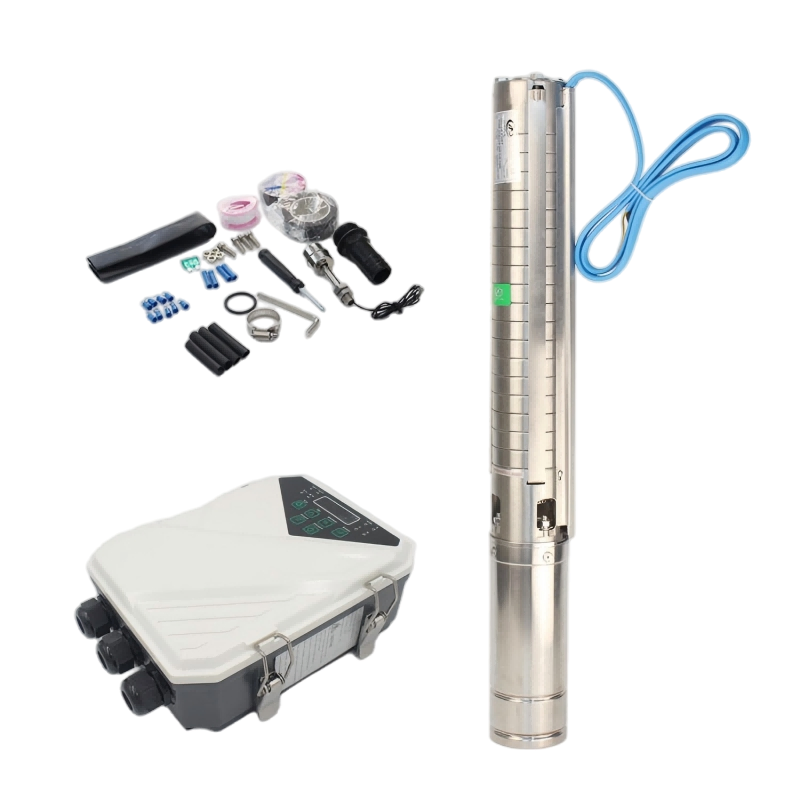

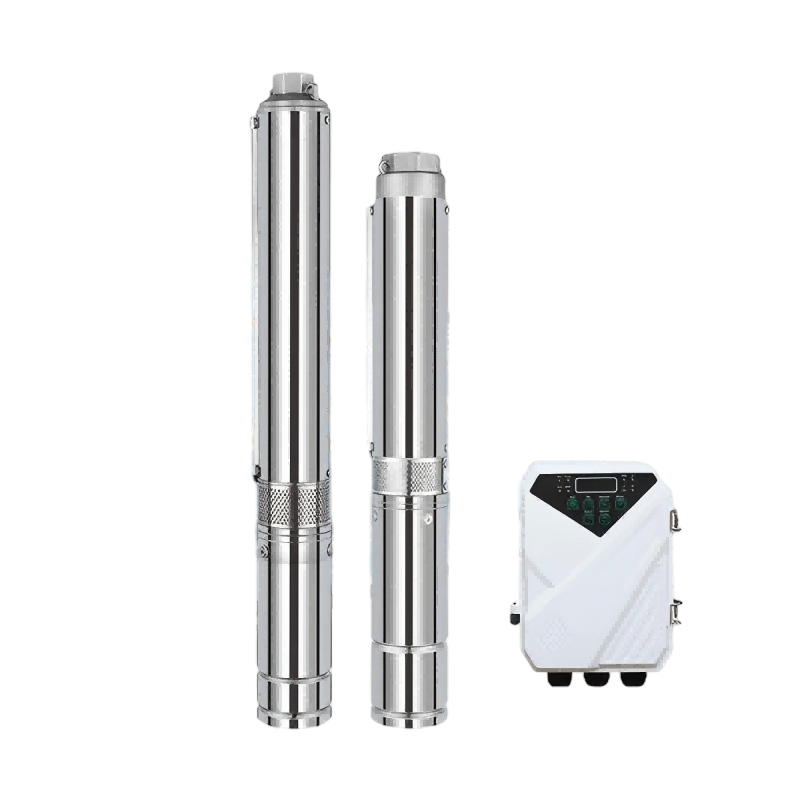

High Speed AC/DC Deep Well Water Pump 10HP 400m Head Solar Water Pump
Harness the power of the sun with our 10HP, 400m Head Solar Water Pump. This high-speed AC/DC system is engineered for deep well applications. It delivers reliable water access even in remote locations.
Specifications:
- Voltage (DC): 200-780V | Voltage (AC): 260-528V
- Power: 11,000W | Max Flow Rate: 8 m³/h
- Max Head: 473m | Outlet Diameter: 1.25"
| ITEM | Rated Flow (m³/h) | Rated Head (m) | Max Flow(m³/h) | Maxhead(m) | AC voltage(v) | Optimum DC(v) | Power(kw) | Outlet(mm) |
|---|---|---|---|---|---|---|---|---|
| 4DGS3-100/5-2200S-A/D | 3 | 100 | 8 | 117 | 220 | 520-750 | 2.2 | 100 |
| 4DGS3-100/5-2200-A/D | 3 | 100 | 8 | 117 | 380 | 520-750 | 2.2 | 100 |
| 4DGS3-175/9-4000-A/D | 3 | 175 | 8 | 206 | 380 | 520-750 | 4 | 100 |
| 4DGS3-251/8-550-A/D | 3 | 251 | 8 | 294 | 380 | 520-750 | 5 | 100 |
| 4DGS3-400/20-11000-A/D | 3 | 400 | 8 | 473 | 380 | 520-750 | 11 | 100 |
*(Custom configurations available upon request.)
We have been deeply engaged in the export of agricultural machinery for 10 years. We focus on providing cost-effective agricultural machinery solutions for emerging markets. Our agile service system covers the entire chain from R&D to production and delivery. We have served customers in over 50 countries, acting as a professional engineering partner for localized agricultural upgrading.
Global Trust, Certified Excellence: Supported by both CE certification and ISO9001 quality management systems. We strictly implement a three-level quality inspection process (raw materials → production → durability test), ensuring the failure rate is 20% lower than the industry average.
