Product Introduction: The 2000 ton conical bottom steel plate warehouse is a heavy-duty customized storage equipment for ultra-large bulk materials, specializing in closed and fresh-keeping storage of grain, feed raw materials, and industrial granular powders. It features a 45° standard cone bottom self-discharge structure, ensuring no residue or blockage.
1. National/Provincial Grain Logistics Centers for strategic storage of wheat, corn, and rice.
2. Large-scale agricultural and animal husbandry feed groups for continuous raw material supply.
| Feature | Details |
|---|---|
| Silo Body Angle | Roof angle 30°, Cone bottom angle 45° |
| Core Specifications | Volume 2618 m³, Wheat capacity 2015 tons; Diameter 12.834m, Total height 27.99m |
| Material | Silo roof: 1.0mm Zinc-Aluminum-Magnesium steel; Enclosure: Double-sided galvanized corrugated steel (275g/m²) |
| Plate Thickness | Graduated from 1.5mm to 3.0mm based on layer position |
| Configuration | 15 layers of plates; 42 sets of external M-type galvanized steel columns |
| Service Life | Up to 30 years |

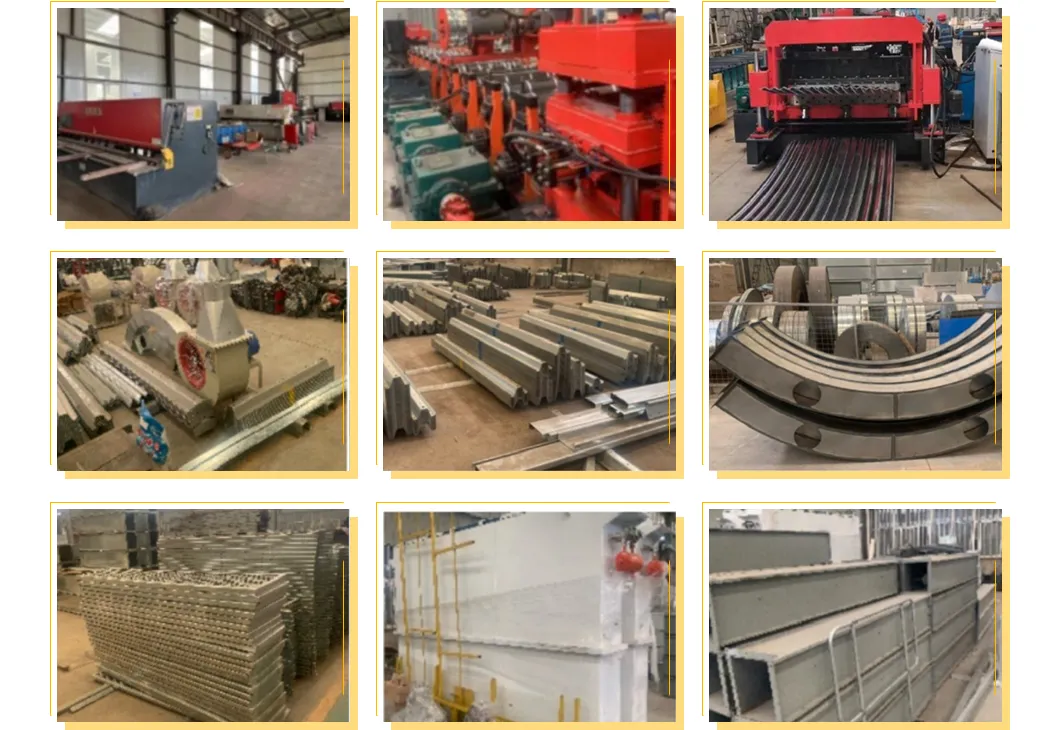

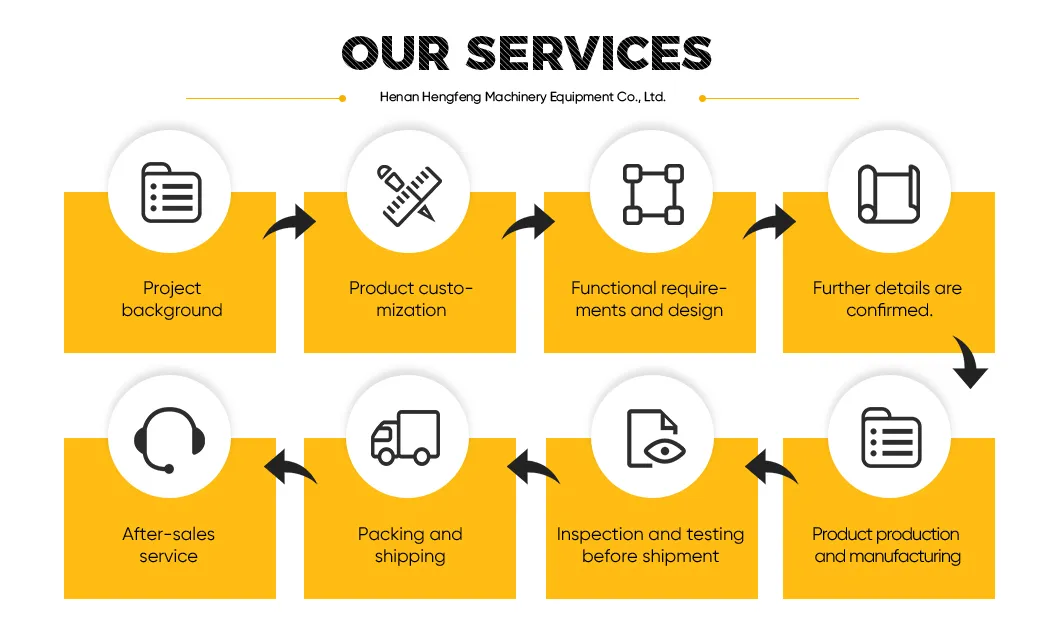

We provide one-stop grain storage solutions integrating intelligent design, automated equipment manufacturing, installation, and after-sales service. Our 18,000 square meter facility produces prefabricated steel plate silos with capacities ranging from 1 ton to 15,000 tons.
