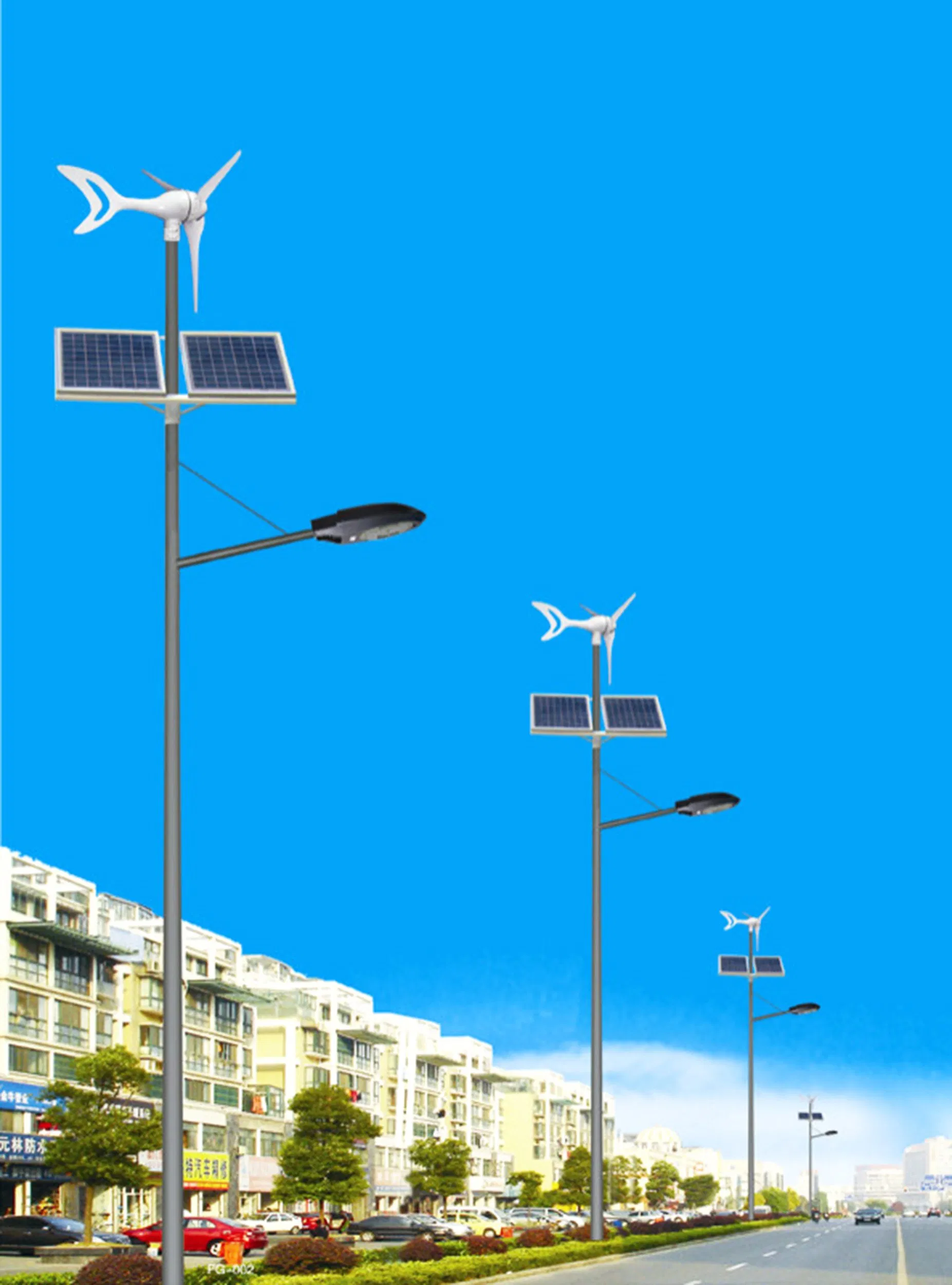

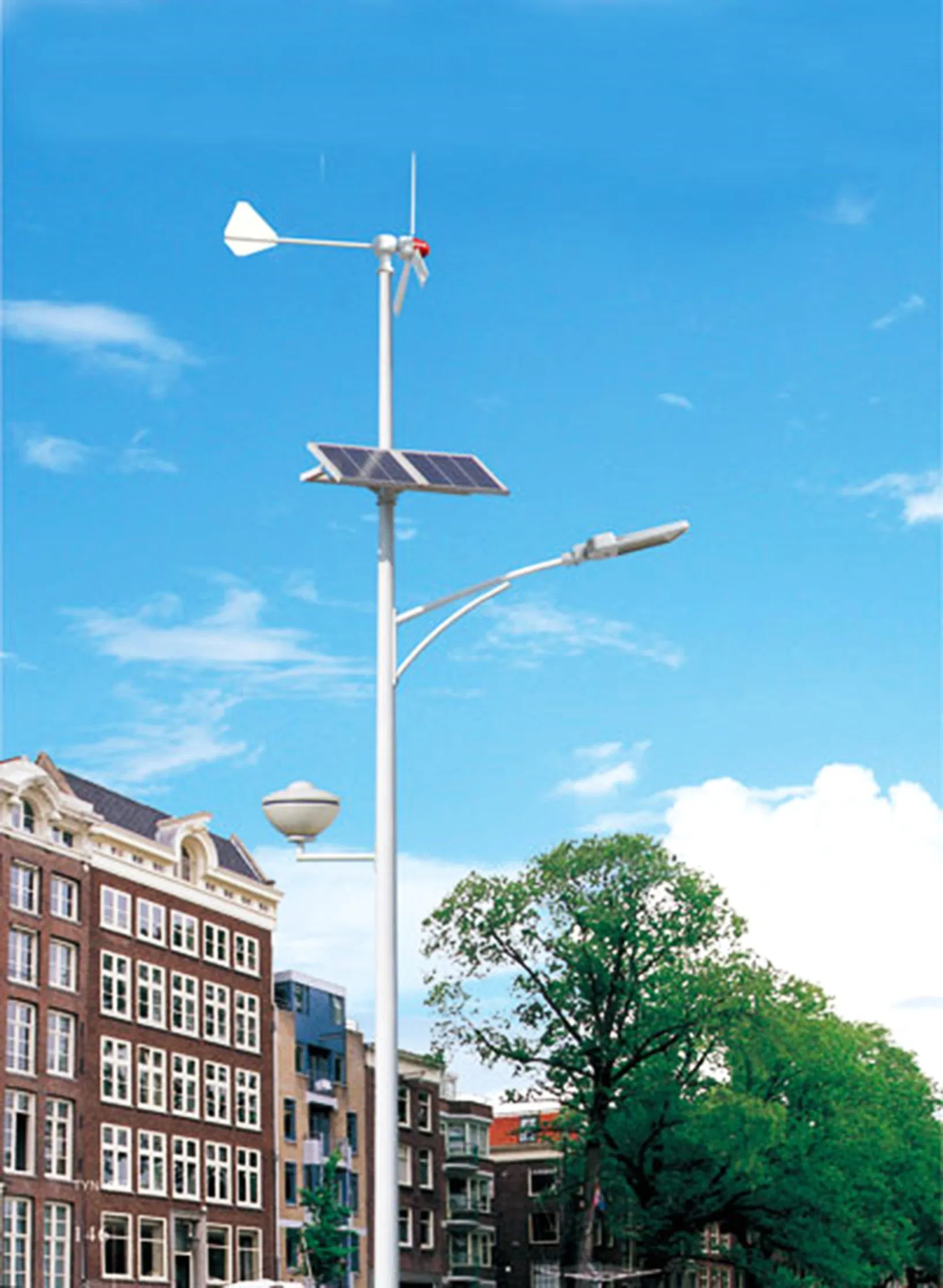

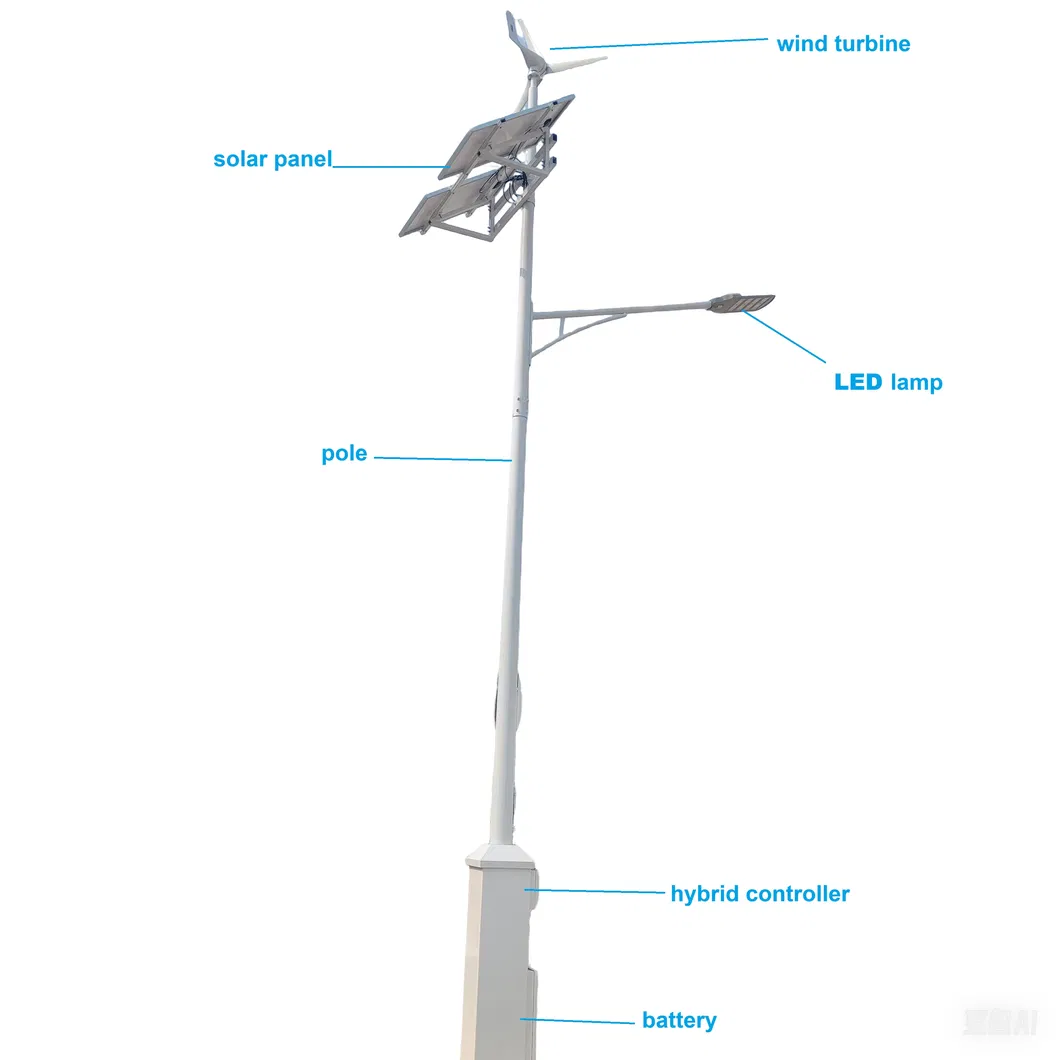

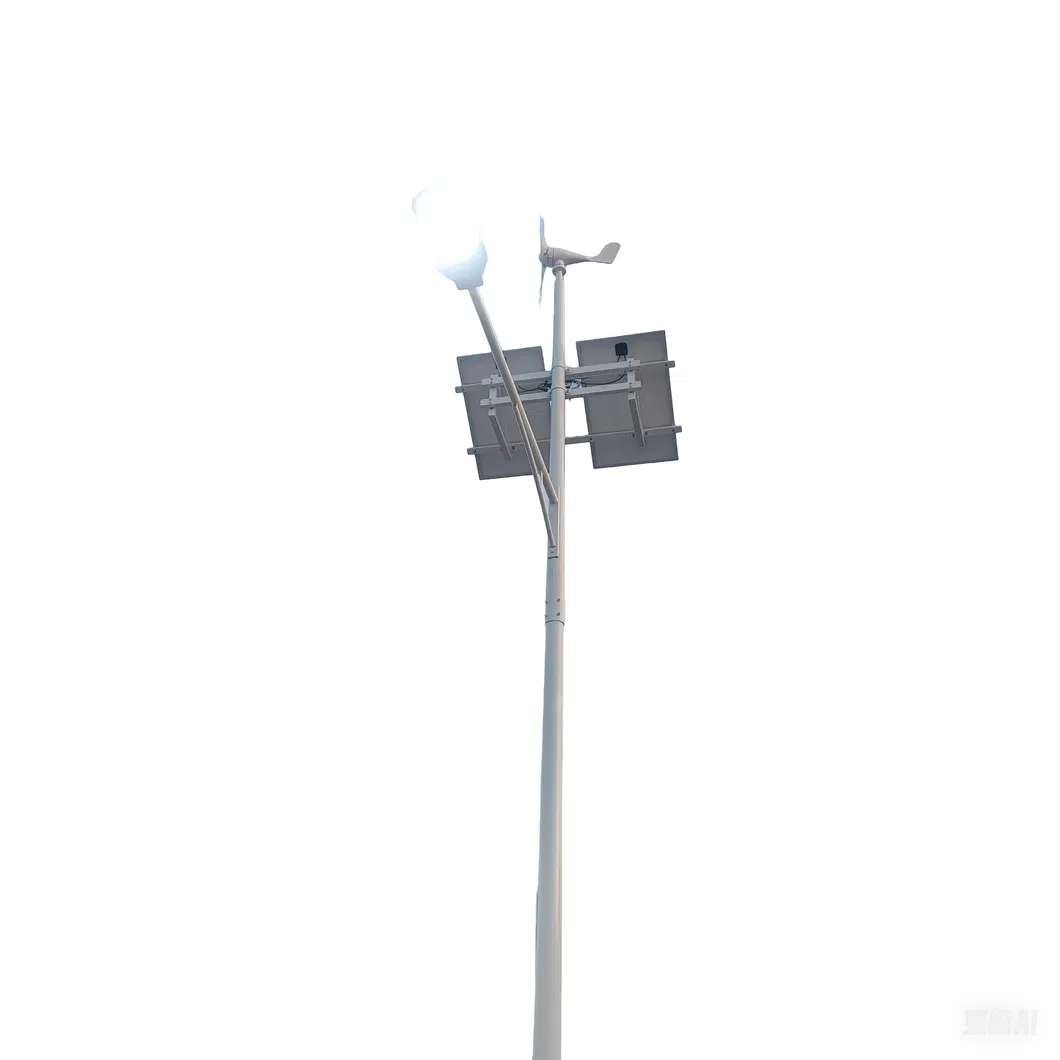

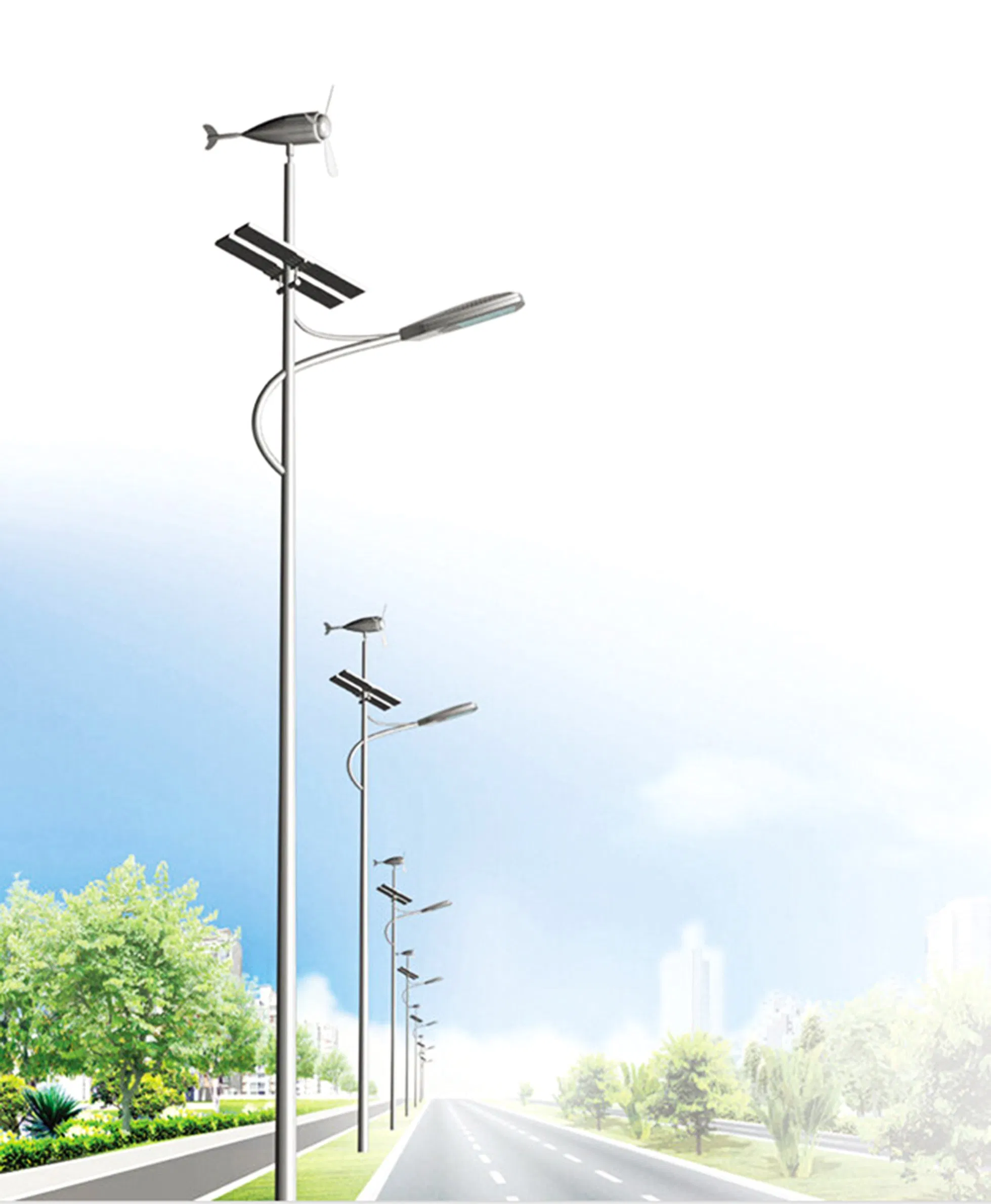

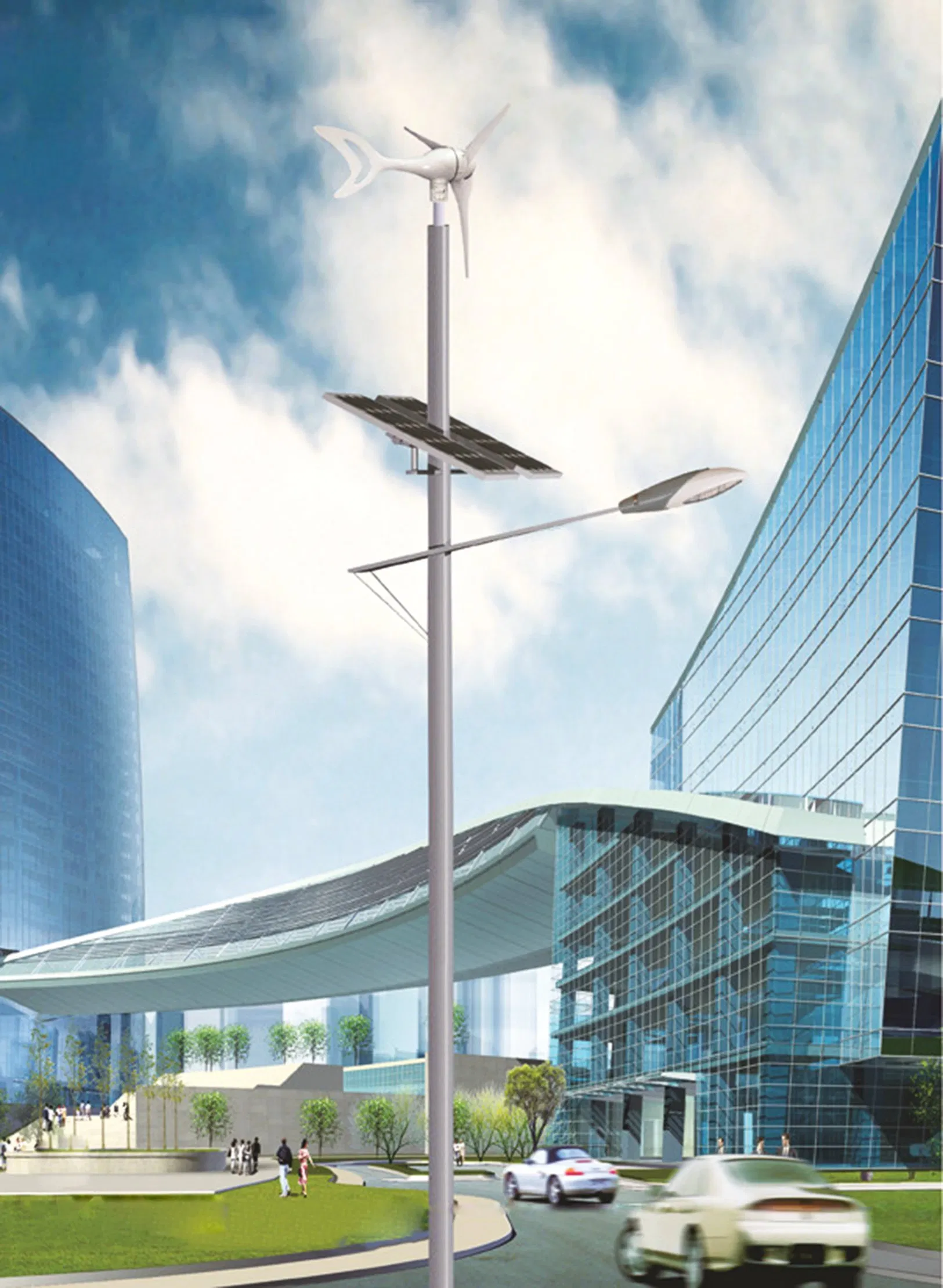

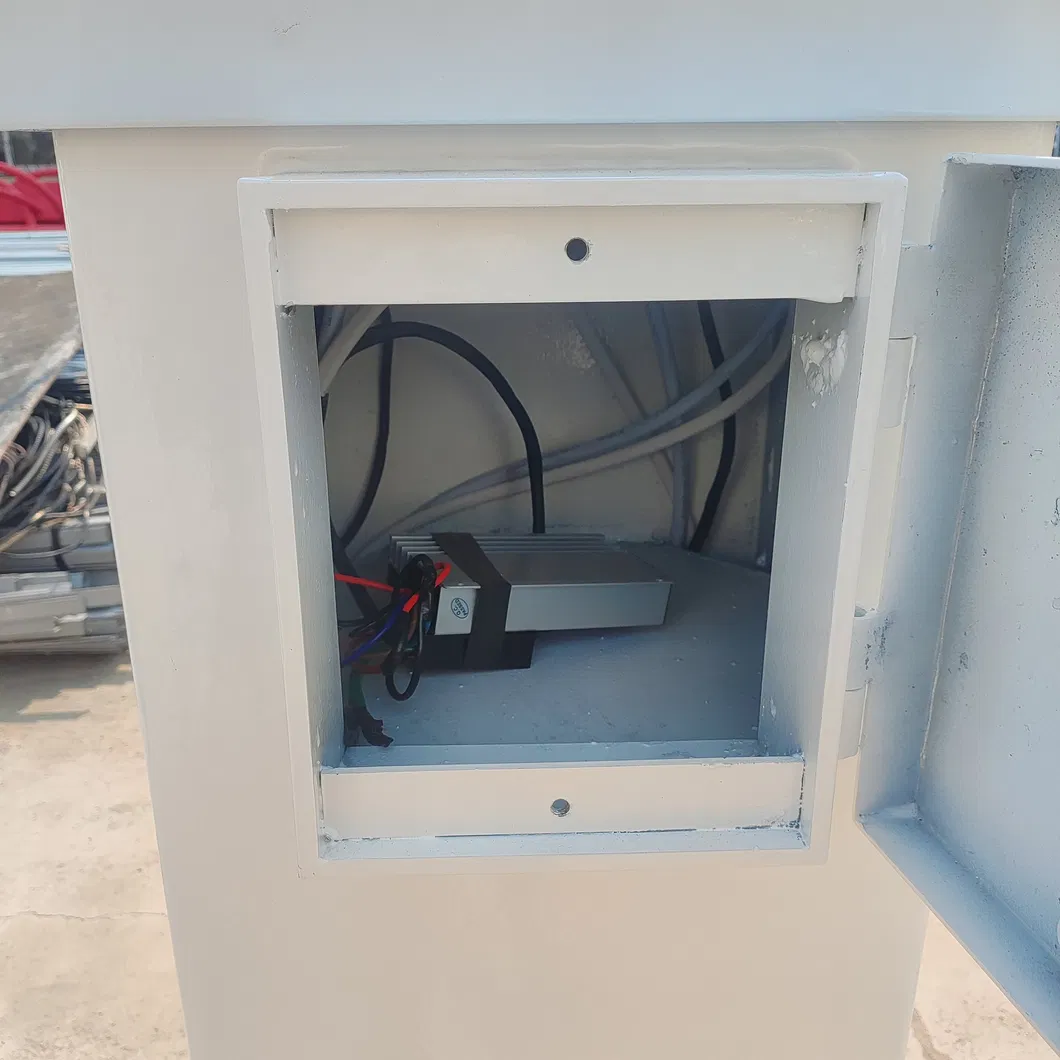

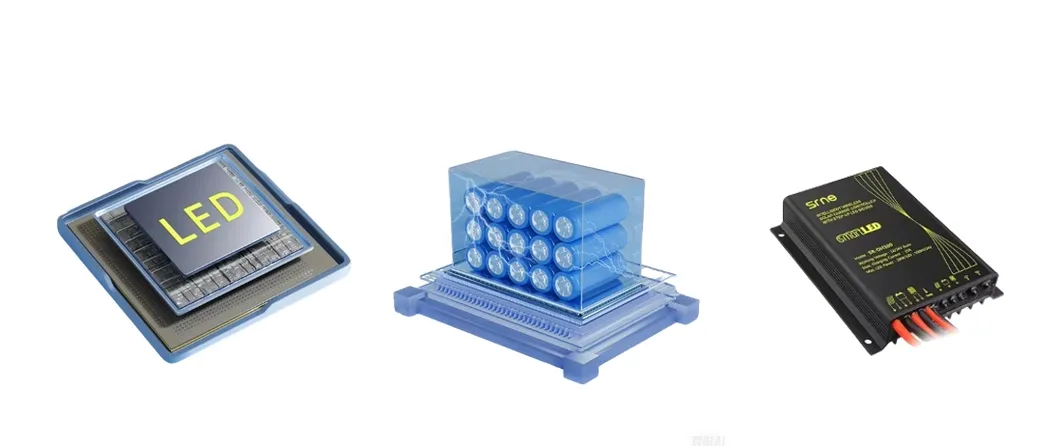

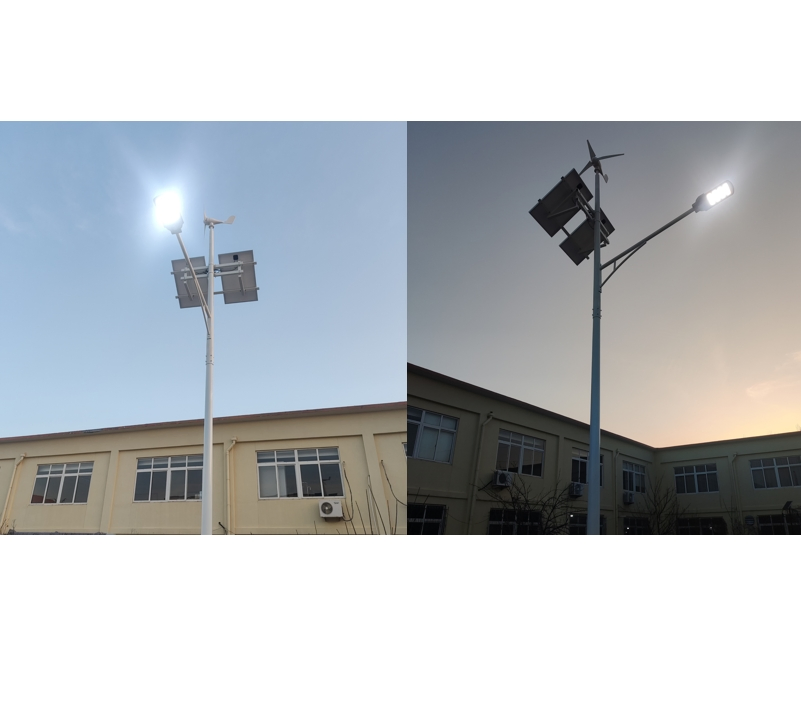

Wind Solar Hybrid Street Light: This system intelligently harvests energy from both wind and solar resources. Electricity converted is stored in LiFePO4 batteries to provide stable, constant power to LED lamps during the night. The operation is fully automated via an integrated controller.
| Rated Power (W) | 400W | Max Output Power (W) | 600W |
|---|---|---|---|
| Start-up Wind Speed | 2.5 m/s | Rated Wind Speed | 11 m/s |
| Working Wind Speed | 3-25 m/s | Survival Wind Speed | 50 m/s |
| Blade Material | GRP | Blade Quantity | 3 |
| Generator Type | Permanent Magnet | Regulation Method | Yawing + Electromagnetism |
| Component | 60A System | 80A System | 90A System | 120A System |
|---|---|---|---|---|
| Wind Turbine | 400 24V | 400 24V | 600 24V | 600 24V |
| PV Module | 60W 12V x2 | 90W 12V x2 | 100W 12V x2 | 140W 12V x2 |
| LED Source | 60W | 80W | 90W | 120W |
| Battery | 100Ah 12V x2 | 120Ah 12V x2 | 150Ah 12V x2 | 200Ah 12V x2 |

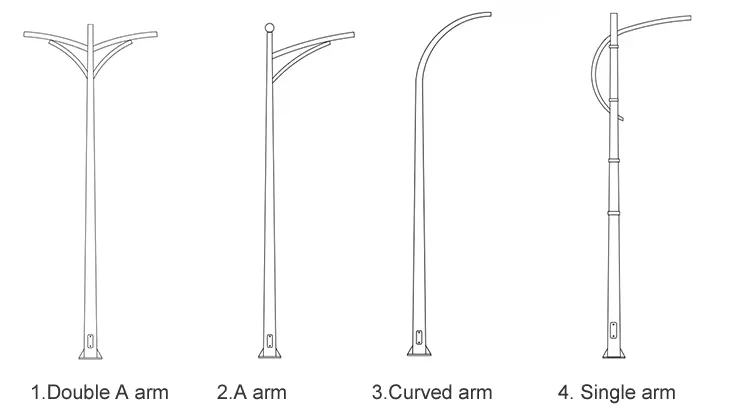

| Pole Height | 6-8m | 8-10m | 8-10m | 8-10m |

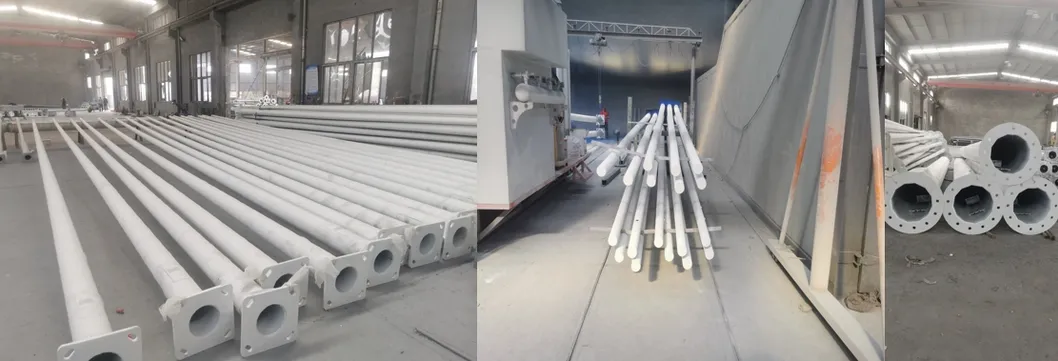

Our facility is located in a major High-tech Industrial Park. For nearly 20 years, we have been committed to the research, development, design, and production of LED lighting and solar products. Our products are exported to more than 60 countries.
We maintain a R&D team with over ten years of experience, dedicated to creating products with top-notch designs and long-lasting durability. Our goal is to promote green energy-saving products globally and contribute to national carbon neutrality targets.
