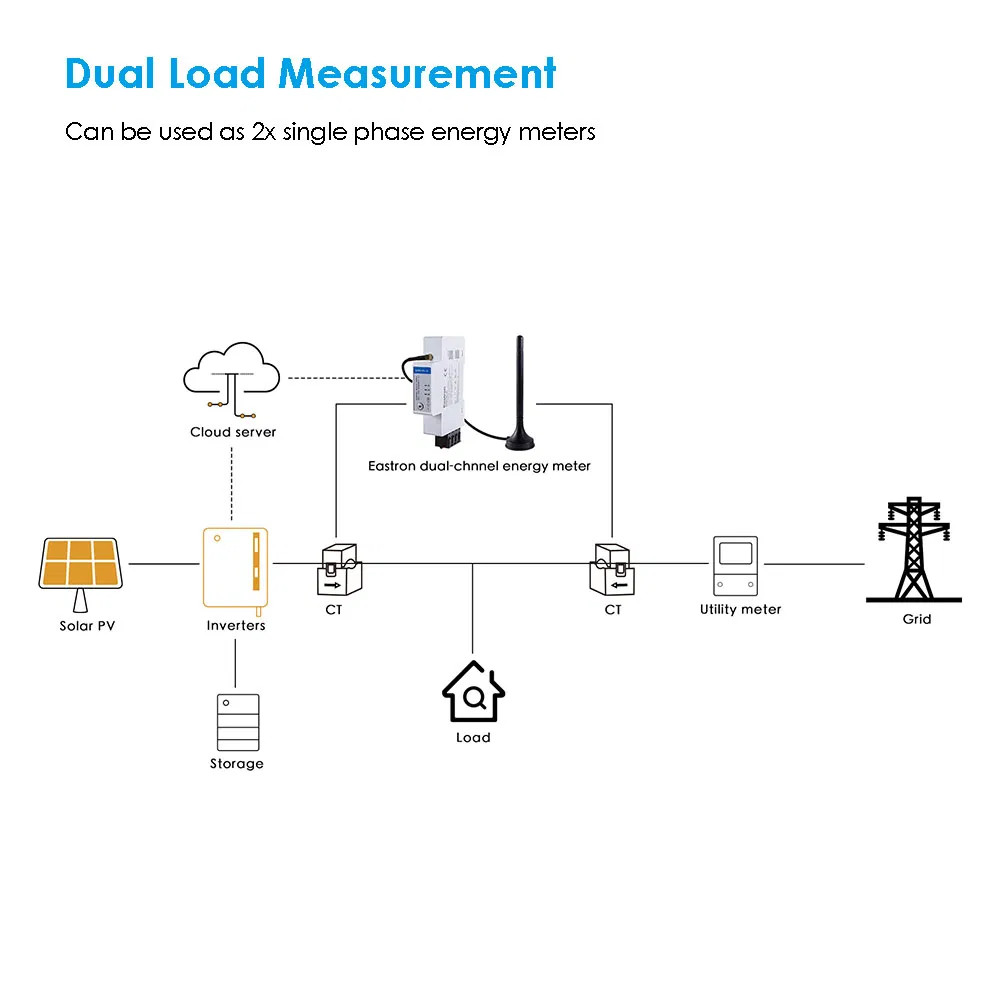

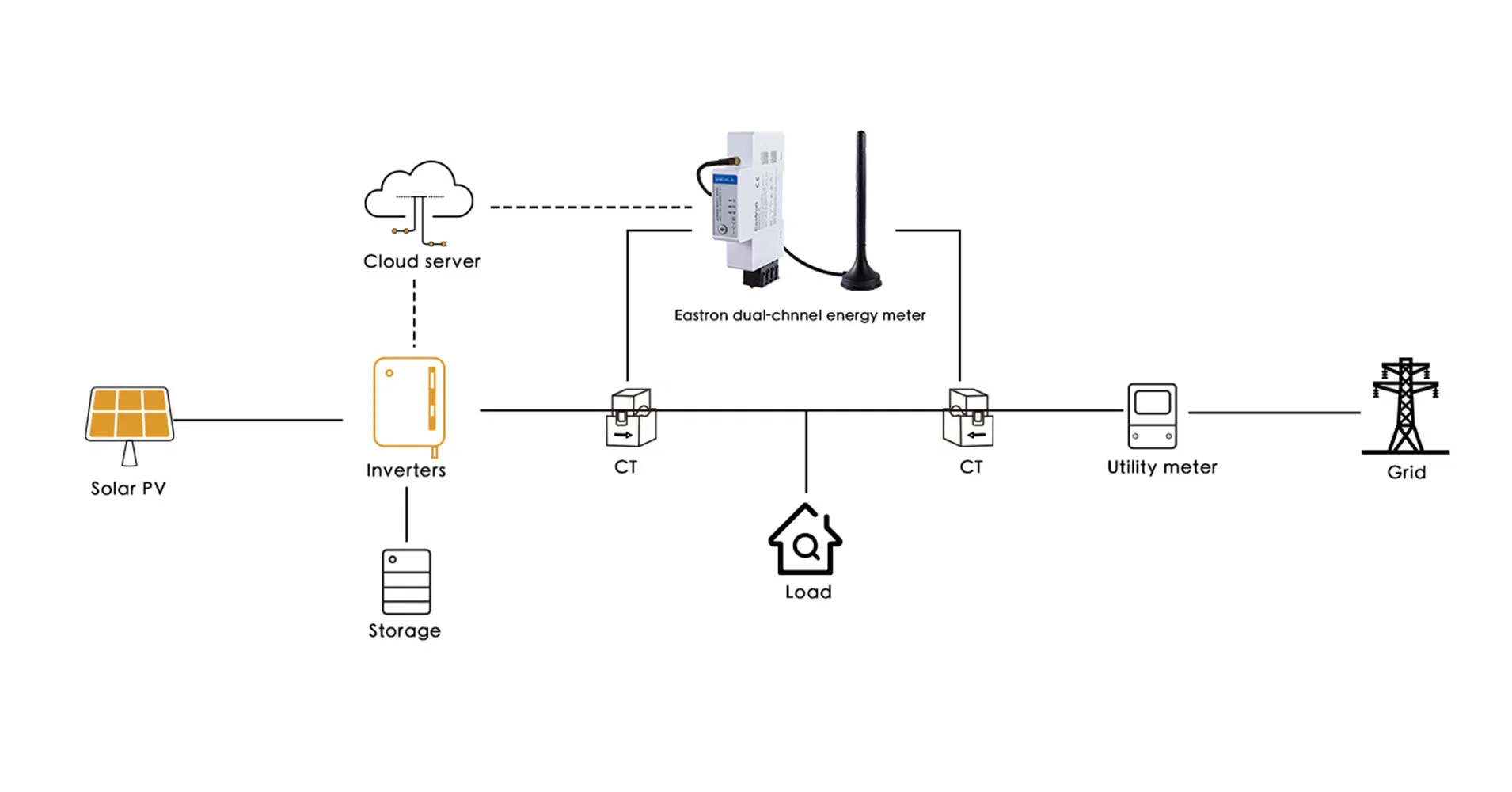

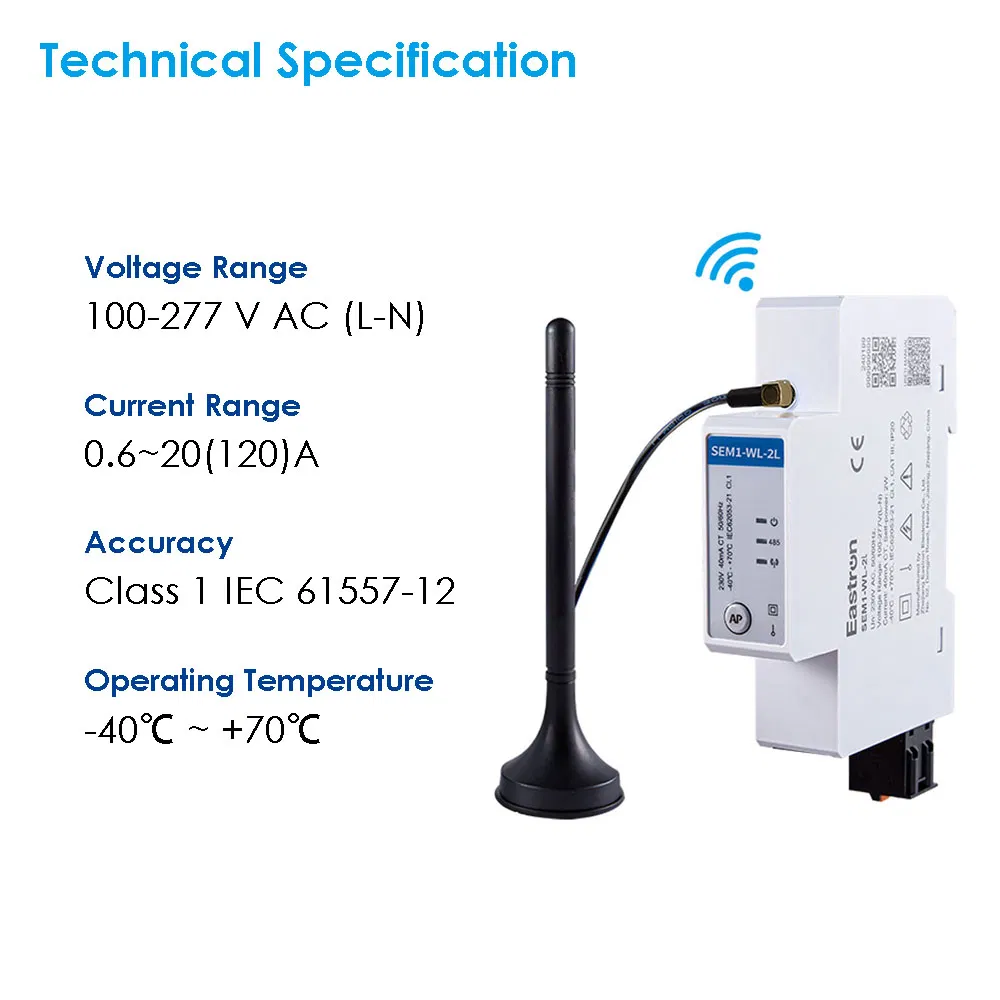

The SEM1 Series is a new generation din rail mounted energy meter, equipped with Wi-Fi and RS485 connectivity. With multi parameters measurement, this energy meter can be used for energy monitoring of various applications, such as PV energy management, smart building, industrial equipment, etc.
It measures characteristics of 1P2W network, including voltage, frequency, current, power, active and reactive energy, imported or exported, power factor etc. Energy is measured in kWh and kVArh.

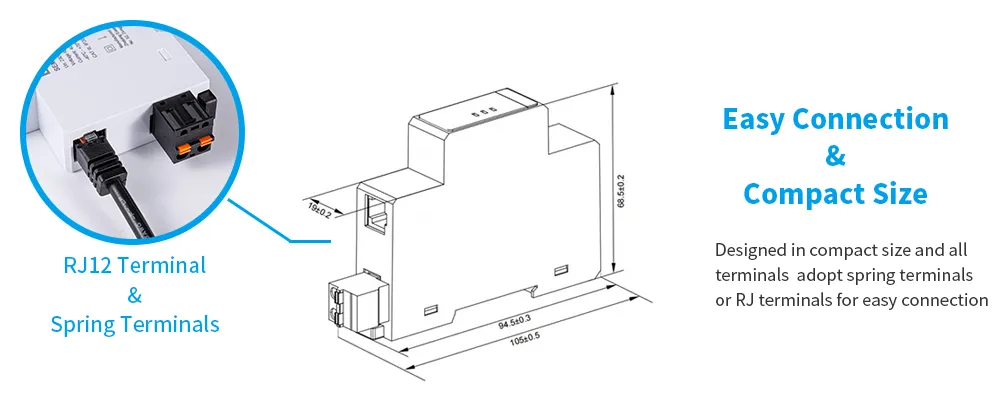

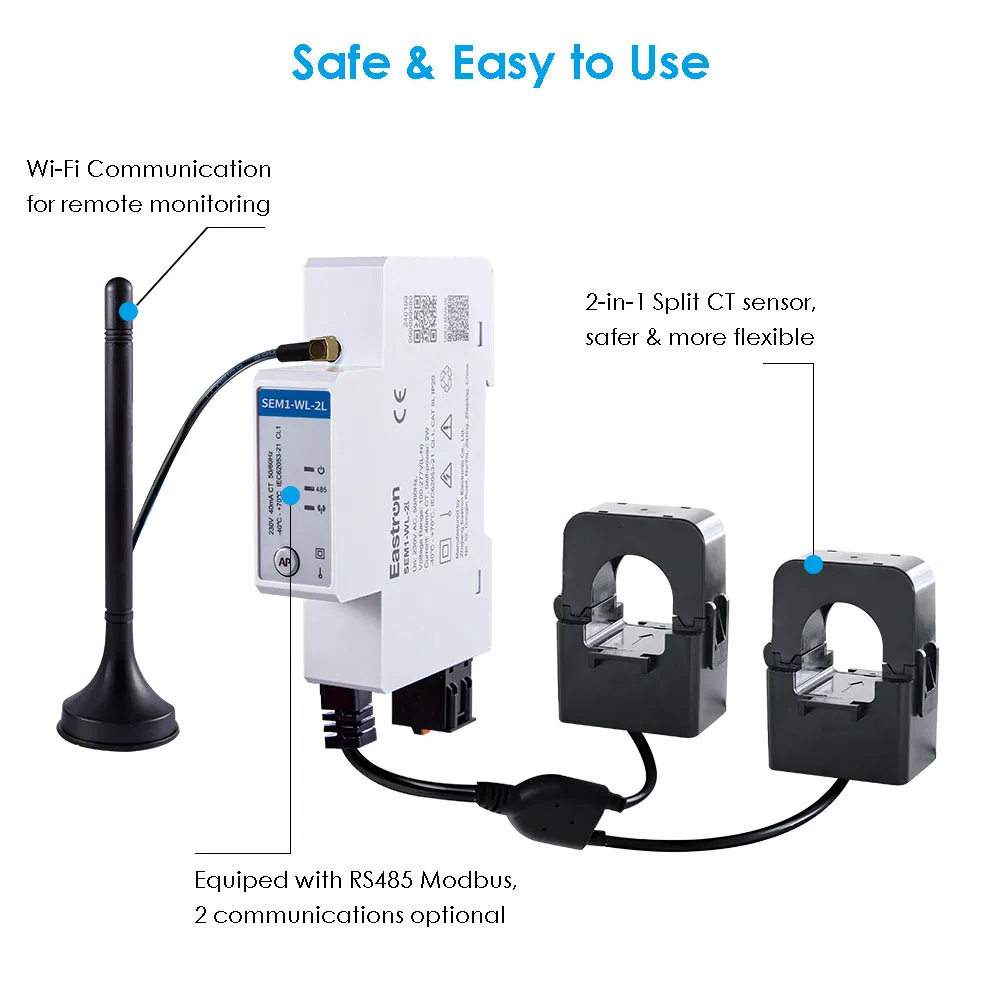

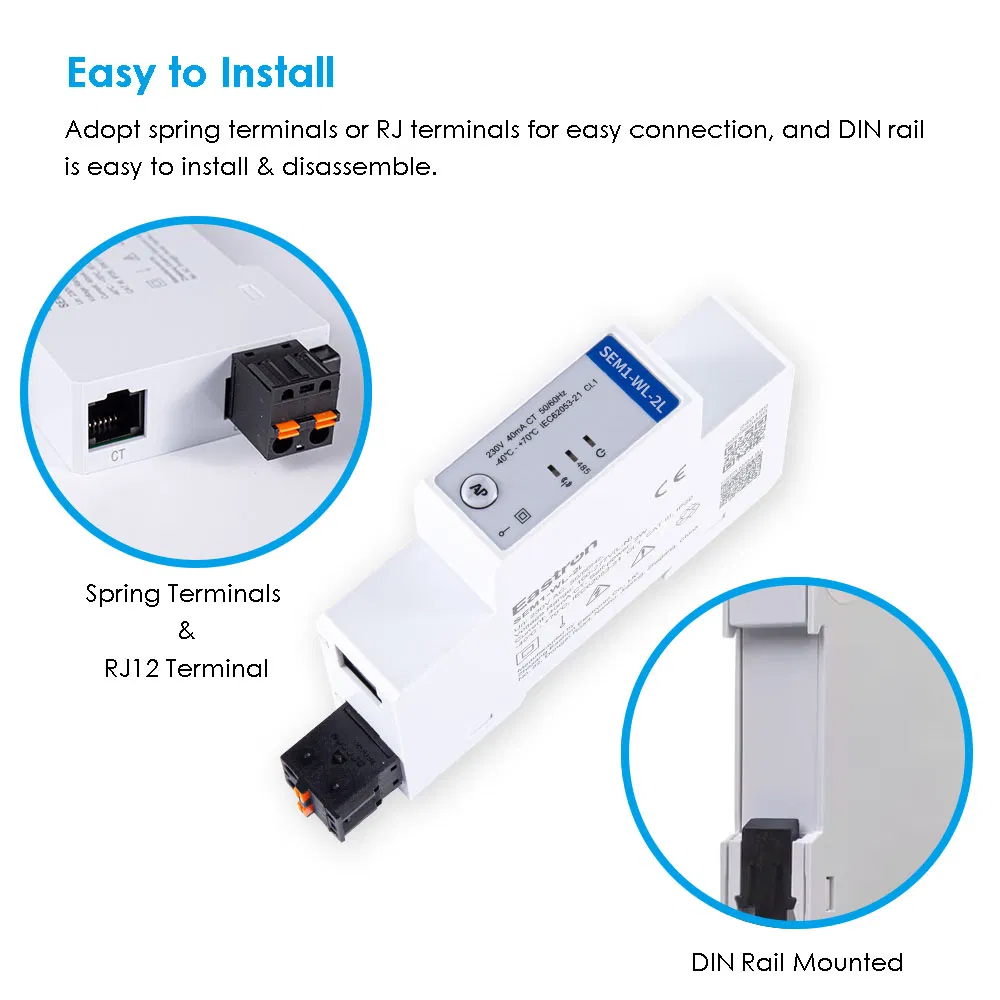

Designed in a compact size to save installation and maintenance cost, all terminals adopt spring terminals or RJ terminals for easy connection. The measurement mode is total mode, where import and export energy are measured separately.
| Electrical Characteristics | ||
|---|---|---|
| Type of Measurement | RMS | |
| Measurement Accuracy | Active/Reactive Energy | Class 1 IEC 61557-12 |
| Power / Voltage | ± 1% / ±0.5% | |
| Frequency | ±0.2% | |
| Current | ± 0.5% (4A to 120A) | |
| Data Update Rate | Active Power: 50mS (RS485), 100mS (Wi-Fi) | |
| Voltage Range | 100~277 V AC (L-N), 50/60Hz | |
| Communications | |
|---|---|
| Interface 1 | RS485 Port (Modbus RTU) |
| Transmission Speed | 2400 to 115200bps (9600 Default) |
| Response Time | <50 mS |
| Interface 2 | Wi-Fi (Modbus TCP) |
| Wi-Fi Protocol | 802.11 b/g/n (2.4 GHz) |
| Wi-Fi Range | Up to 30m indoors / 50m outdoors |

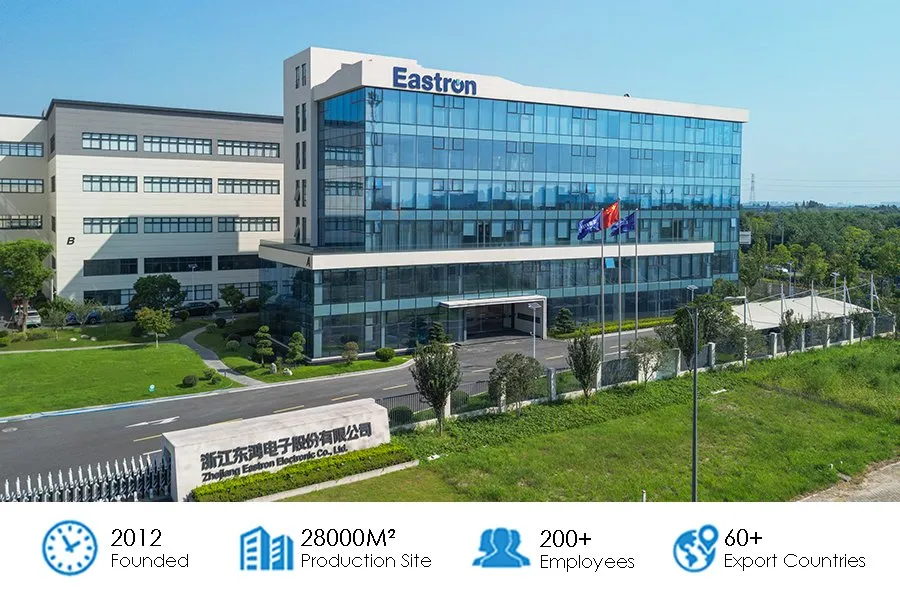

The manufacturer is a leading high-tech enterprise of electricity products and energy measurement solutions. Over the years, a wide range of electricity meters, sensors, communication modules, and management systems have been developed.
