| Model NO. | DEM-3M1C | Display | Digital |
| Installation | Direct Connected | Electric Equipment | Three-phase Four-wire |
| Theory | Electronic Meter | Measured Signal | Continuous Wave |
| Accuracy Class | 0.5 | Operating Temp. | -20~55c |
| Output Voltage | 220V | Phase | Three Phase |

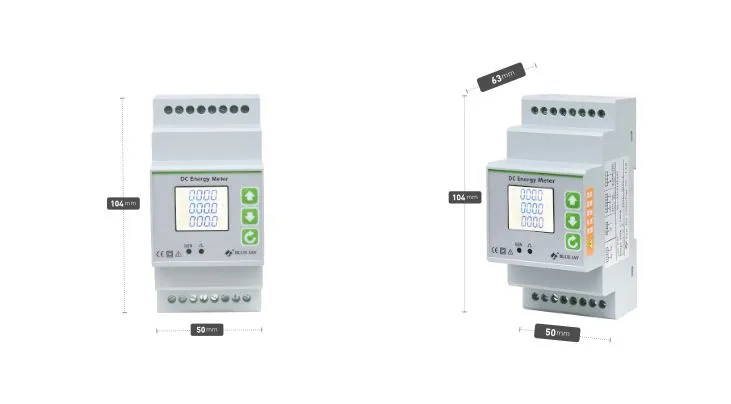

| Dimensions | 104mmx50mmx63mm | Certification | RoHS, ISO, CE |

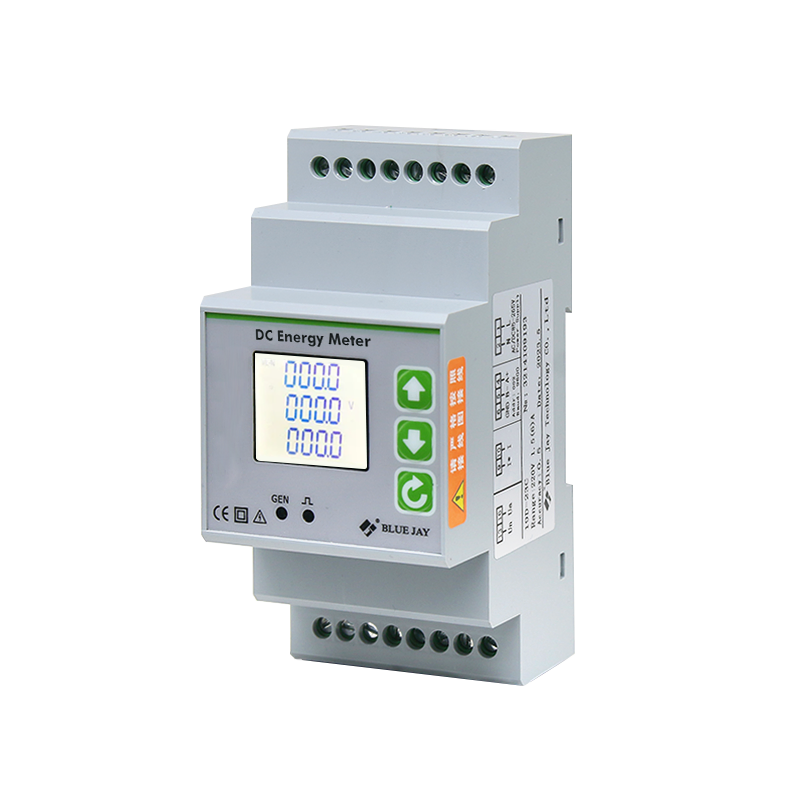

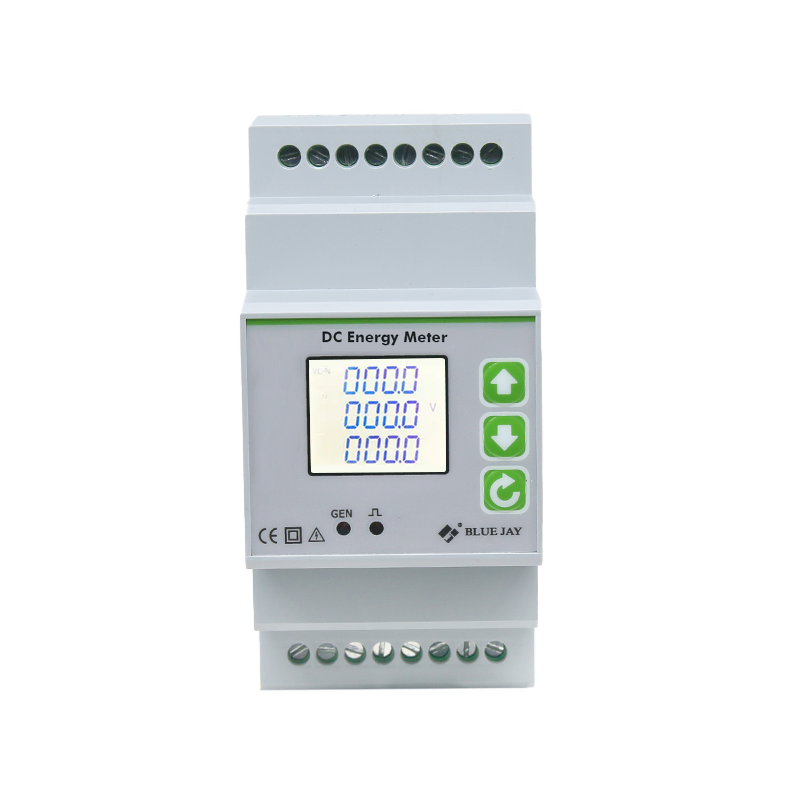

The meter featuring a white backlit liquid crystal display is a combined DC power measurement terminal designed for highly integrated DC parameter measurement applications. This DC energy meter with an integrated data logger accurately measures 1 DC voltage and 1 DC channel (with direction) using an external shunt. It monitors power, total electricity, and individual energy parameters, and can be equipped with a switch output.
Equipped with an RS485 interface, the meter supports the MODBUS-RTU communication protocol for seamless data upload of measurement values and equipment status. This DC voltage alarm meter is widely utilized in electric power, communications, railways, transportation, petrochemicals, and steel industries to monitor current and power consumption of DC equipment.
| Voltage Input | |
| Rated Value | 0-1000V |
| Overload | Measurement: 1.2x | Instantaneous: 2x/10s |
| Accuracy | 0.5% FS |
| Current Input | |
| Rated Value | Shunt: 75mV (customizable) |
| Overload | Measurement: 1.2x | Instantaneous: 10x/1s |
| Power Supply | |
| Operating Range | AC/DC 85V~265V |
| Consumption | ≤4VA |
| Communication & Output | |
| Digital Interface | RS-485, MODBUS-RTU |
| Pulse Output | Optional 1 channel active energy |
| Environmental & Safety | |
| Working Temp | -25°C to 55°C, Altitude ≤2000m |
| Insulation | Input/Output/Power > 5MΩ to chassis |
