| Model NO. | OL-51.2V 200AH | Max Charge Current | 100A |
| IP Rating | IP20 | Connection Way | Canbus Standard |
| Protection | Overcharge Overvoltage Overcurrent | Battery Voltage Range | 43.2-57.6V |
| Self-Discharge | Less Than 2% | Cycles | More Than 6000 times |
| Communication | Can/RS485 | Transport Package | Carton Box |
| Origin | China | Production Capacity | 50000 |
Digital monitoring system APP | High inverter compatibility | Reliable LFP cells | CANbus standard connection | Natural cooling system | IP65

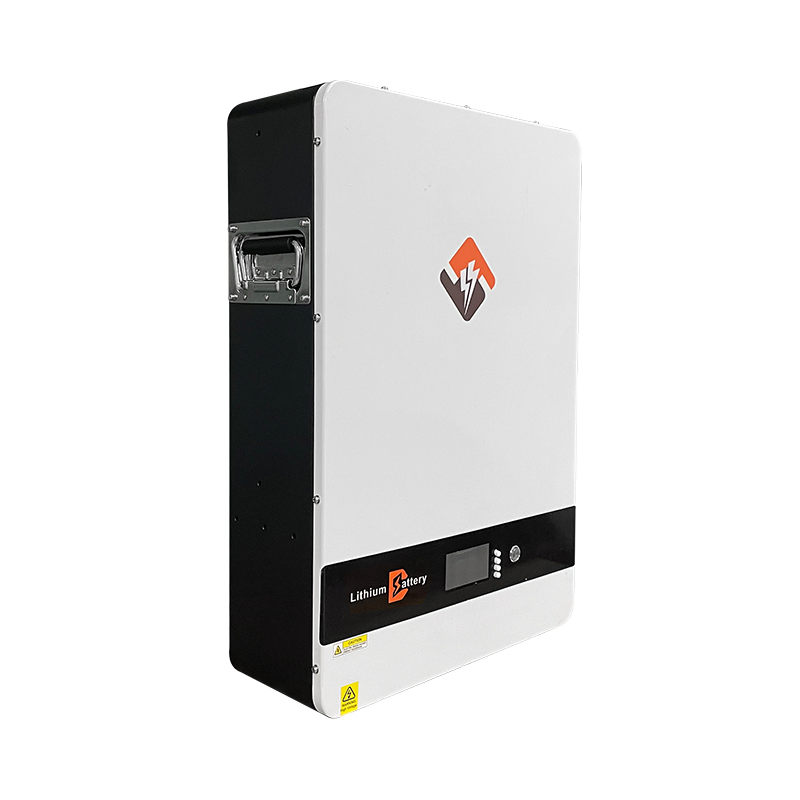

| Model | OL-51.2V 100AH | OL-51.2V 200AH |
|---|---|---|
| Nominal Voltage | 51.2V | |
| Battery Voltage Range | 43.2-57.6V | |
| Nominal Capacity | 100Ah @ 25ºC | 200Ah @ 25ºC |
| Rated Energy | 5.12kWh @ 25ºC | 10.24kWh @ 25ºC |
| Standard Charge/Discharge Current | 20A @ 25ºC | 40A @ 25ºC |
| Max. Charge/Discharge Current | 100Ah @ 25ºC | 200Ah @ 25ºC |
| Communication | CAN / RS485 | |
| Cycles | ≥ 6000 cycles (80% DOD @ 25ºC) | |
| Operating Temp | Charge: 0~+60°C | Discharge: -20~+60ºC | |
Safer: Cobalt Free LFP Battery, Intelligent BMS protection.
Reliable: Wide temperature range: -20°C to 55ºC.
Flexible: Modular design, easy to expand for residential use.

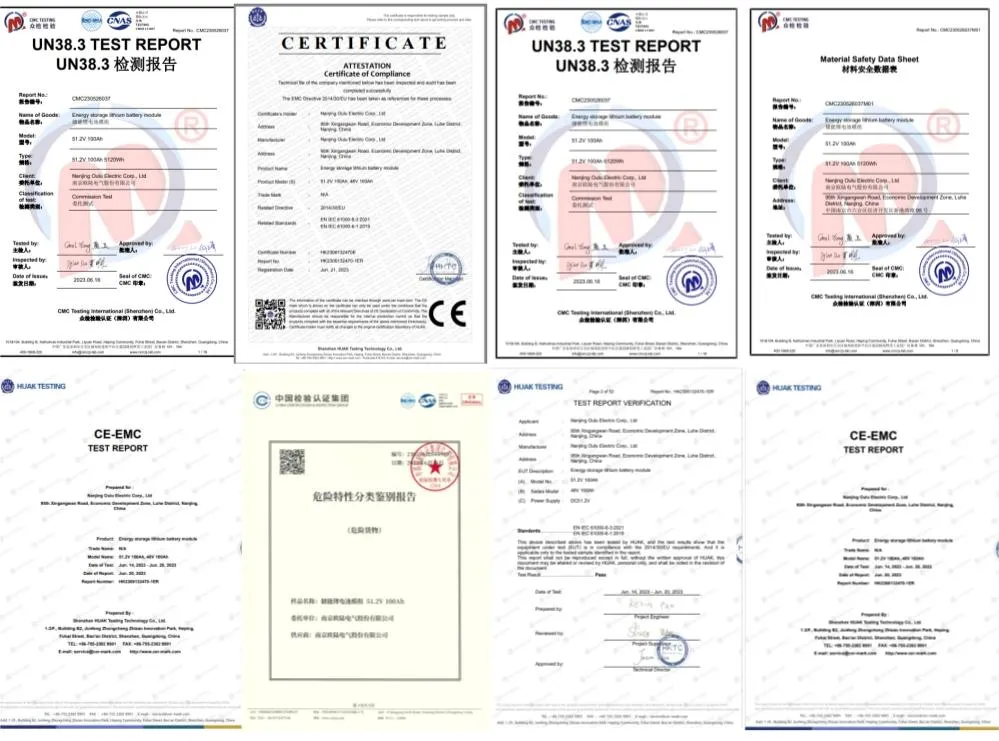

We have obtained CE certificate, UN38.3 Test report, and safety transport approval.
