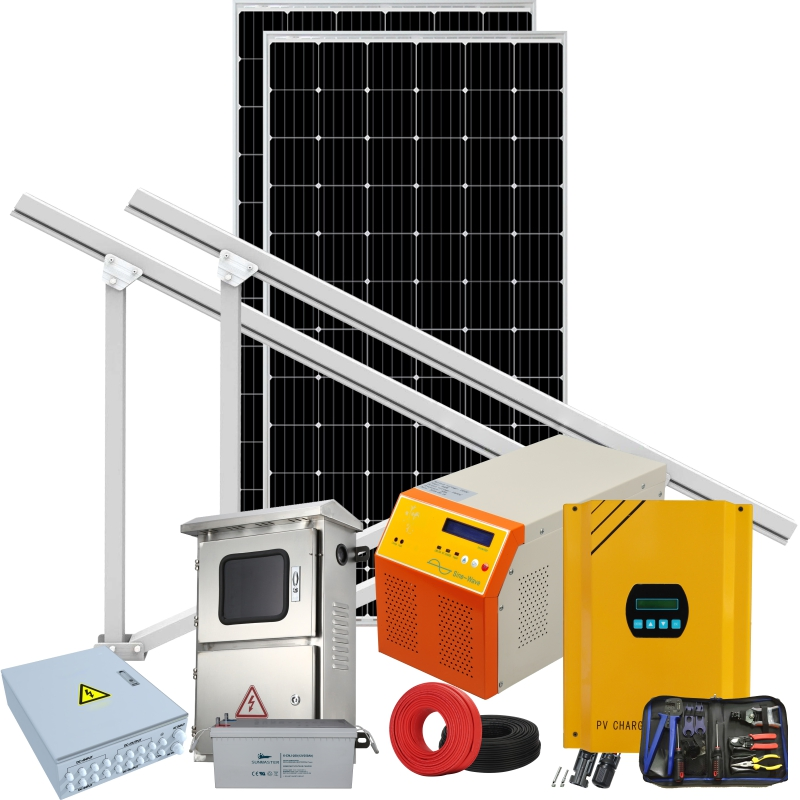

DC Solar Pump Irrigation Systemsolar Powered Water Pump 5HP with Solar System

1 / 5

DC Solar Pump Irrigation Systemsolar Powered Water Pump 5HP with Solar System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

✓Model NO.: SMSH-80KW

✓Application: Home, Industrial, Commercial

✓Specification: Normal, CE, RoHS, ISO 9001

✓Waterproof Degree: IP67

✓Working Time: 6-8 hours

✓Roof Required Areas: 8-10 Sq.Meters Per 1kw

✓Working Temp: -30℃ to +60℃

✓Charge Method: Utility Grid or Solar Panel

✓Max Loads Power: 100W~1500W

✓Display: LCD Display

✓Over Load Capacity: 120%, 1min

Product Description

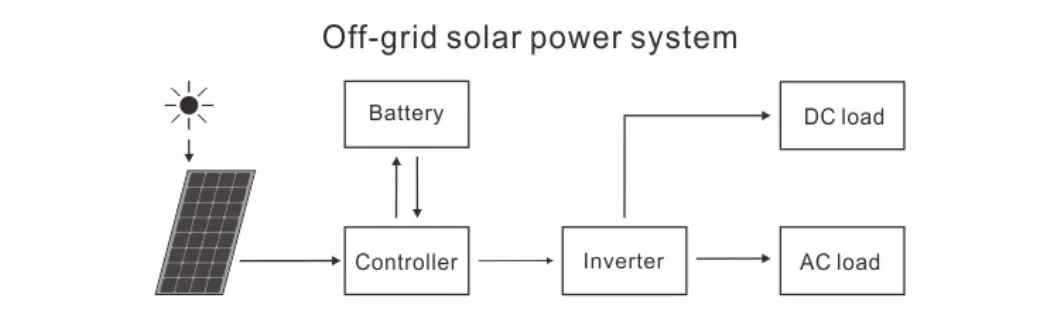

● Connecting Diagram

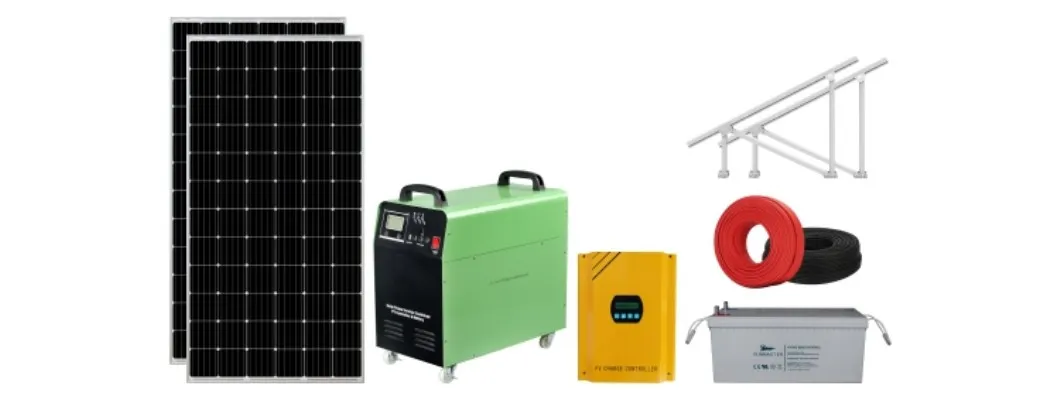

● Configuration List

Item	Certification	Description	Q'ty	Warranty

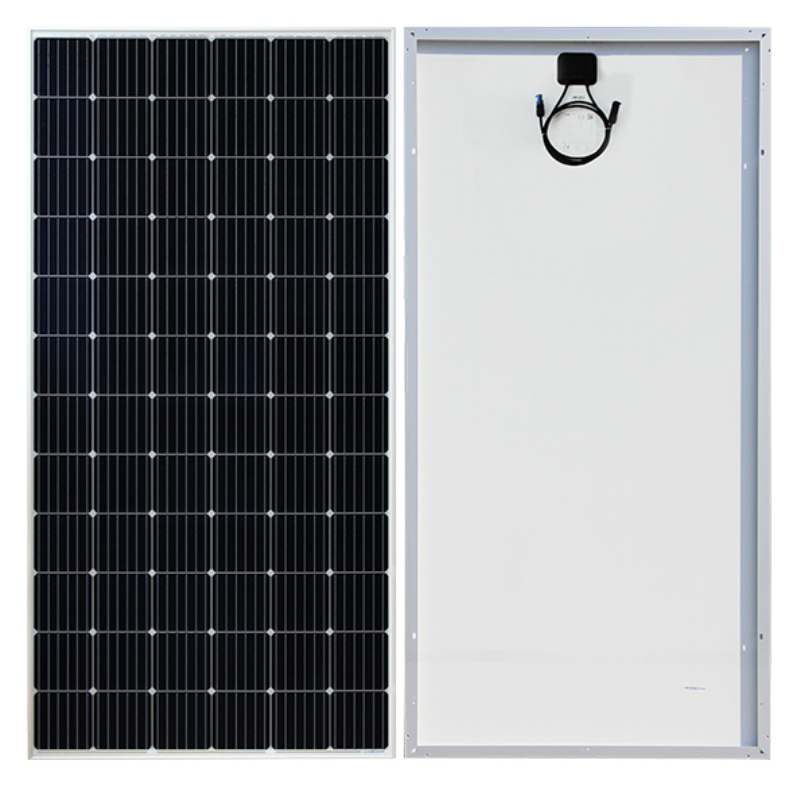

Solar panel	TUV / IEC / EC	Mono or Poly	160 pcs	20 years
Inverter	CGC / CQC / VDE	One (MPPT) tracking/ 50/60Hz; 230Vac, 10kW	8 set	5 years
Mounting system	CE	Slant roof/Cement Ground/Soil ground bracket	1 set	10 years
PV cable	TUV/ UL	DC port 16mm² / AC port 38mm²	200m / 10m	10 years

Technical Specifications

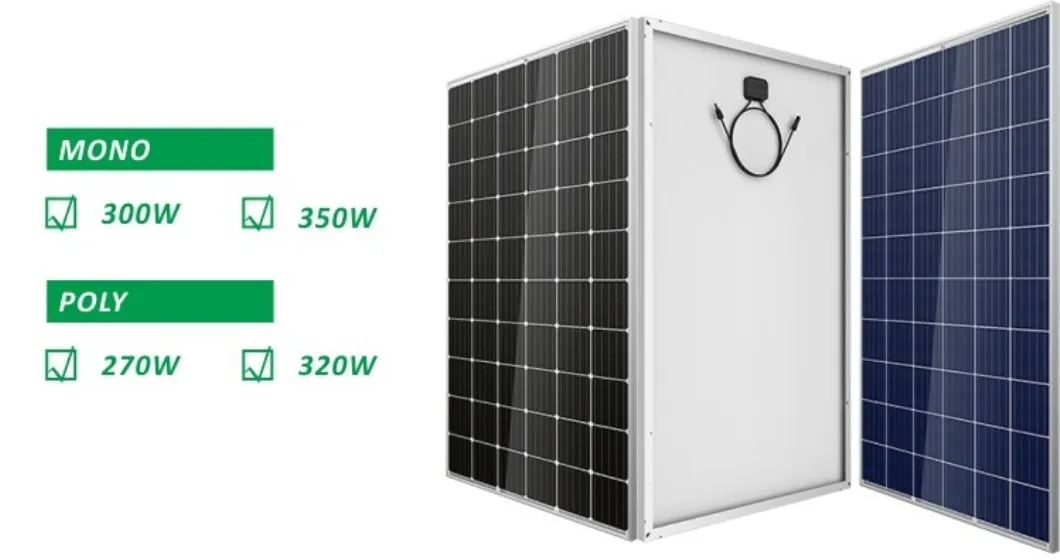

Solar Panel Data

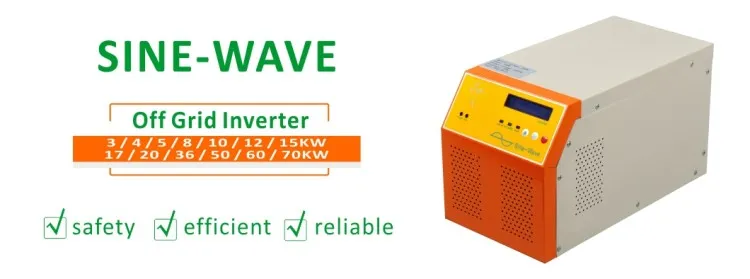

Solar Inverter

Protection degree	IP65	Topology	Transformerless
Night consumption	<1W	Noise emission	<25dB
Display	LCD	Warranty	5-25 Years Optional

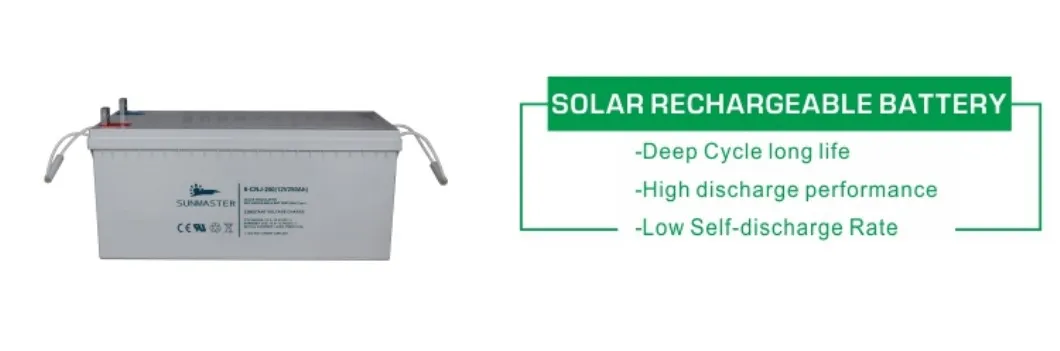

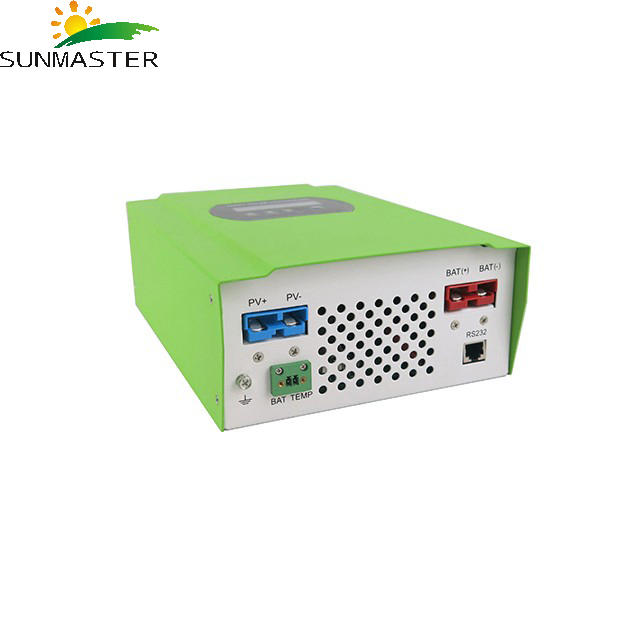

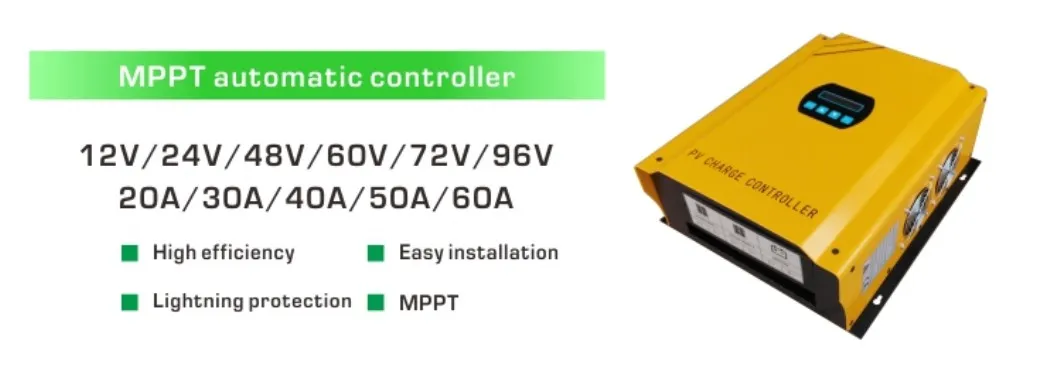

Solar Controller & Battery

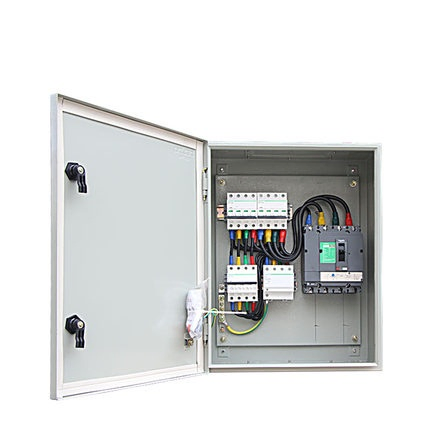

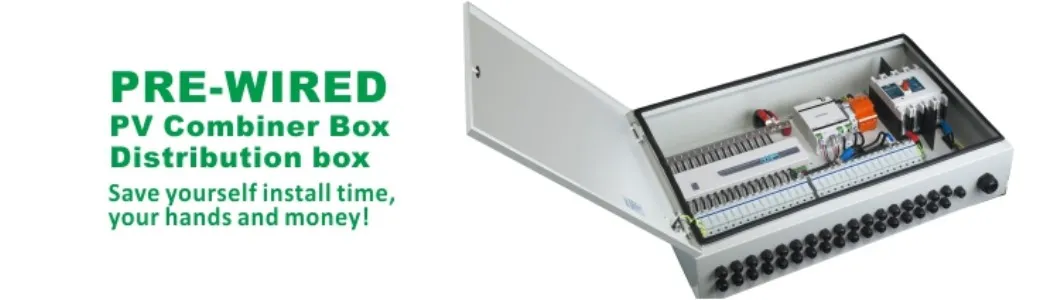

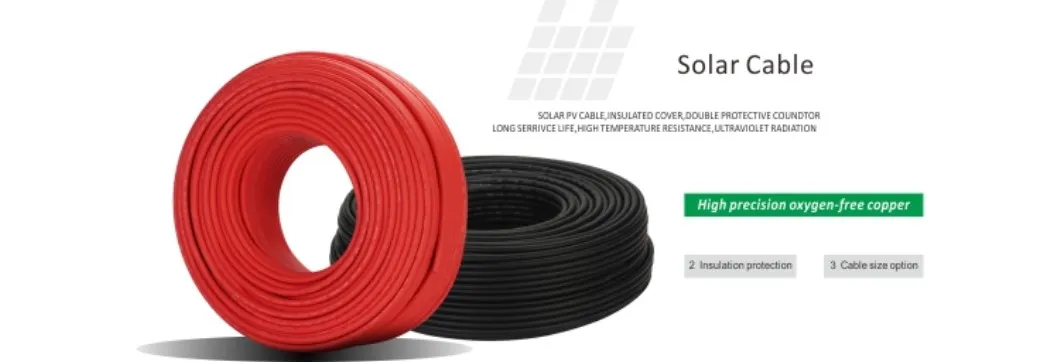

PV Combiner Box & Cables

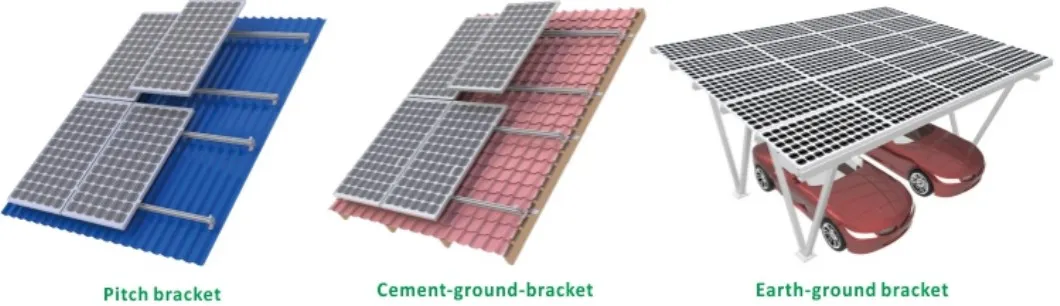

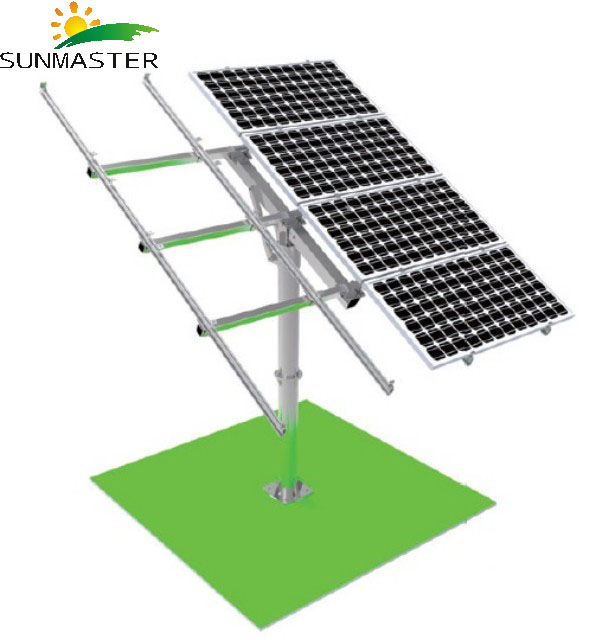

Mounting System

The wind capacity of this mounting system can reach 40m/s (level 13), and the snow load capacity can reach 70kg/sq.m. The whole system provides strong safety performance and can be customized based on actual site conditions, whether for slope roofs, flat ground, or soil ground.

Frequently Asked Questions

❓ What is the main application for the SMSH-80KW system?

The system is designed for a wide range of applications including residential homes, industrial facilities, and commercial buildings.

❓ Is the system suitable for outdoor use in harsh weather?

Yes, the system features an IP67 waterproof degree and can operate in temperatures ranging from -30℃ to +60℃.

❓ How long does it take to charge and how long will it run?

The system provides a working time of approximately 6-8 hours and can be charged via the solar panels or the utility grid.

❓ What kind of protection features are included?

The system includes comprehensive protection against overloads, overcharge, short circuits, polarity reversal, and low/under voltage with alarms.

❓ Can the mounting system be customized for my roof type?

Yes, the mounting system is highly adaptable and can be designed for slant roofs, flat cement grounds, or standard soil grounds based on your specific requirements.

❓ What is the lifespan of the components?

Major components like the solar panels come with a 20-year warranty, while the mounting system has a 10-year warranty, ensuring long-term reliability.
