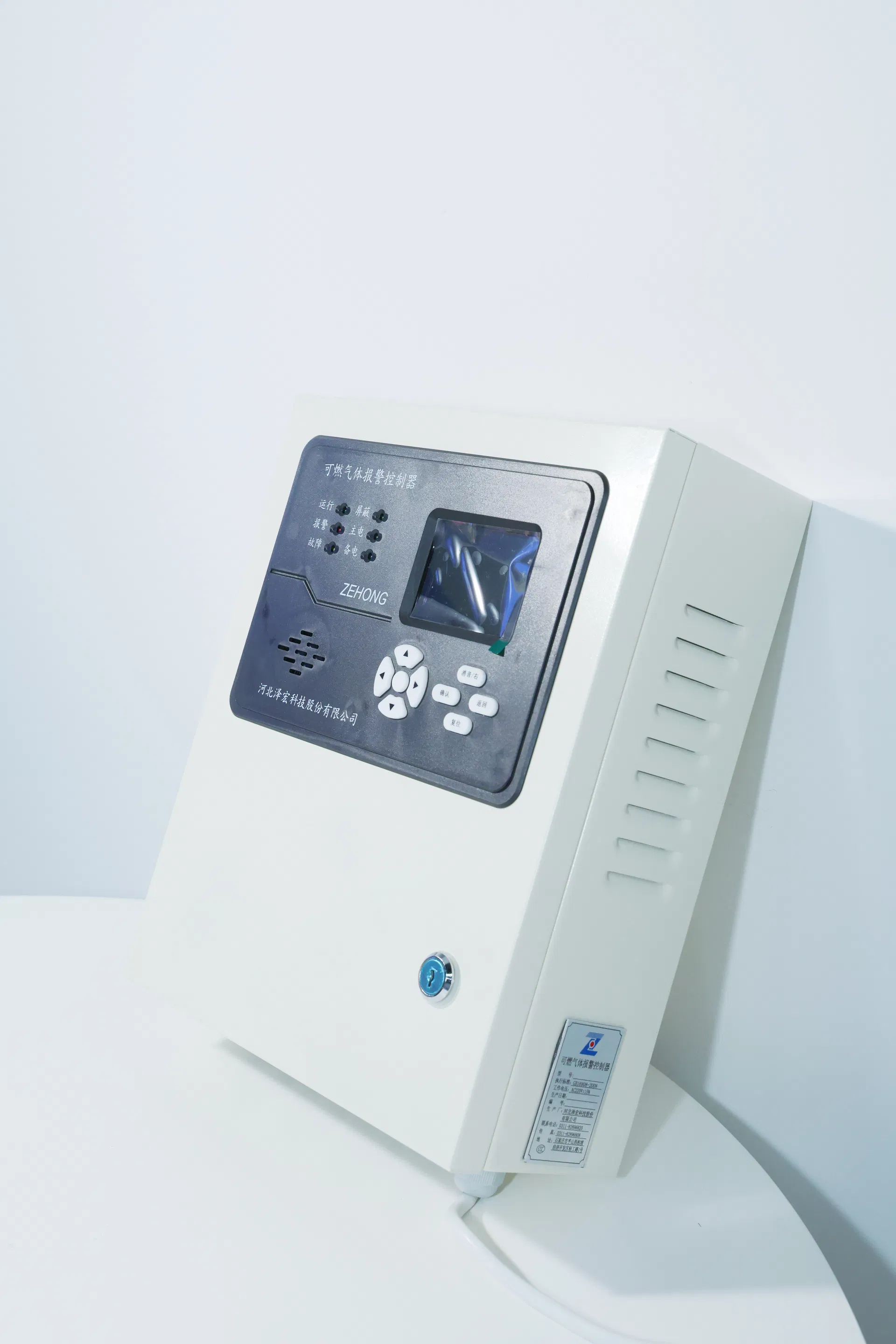

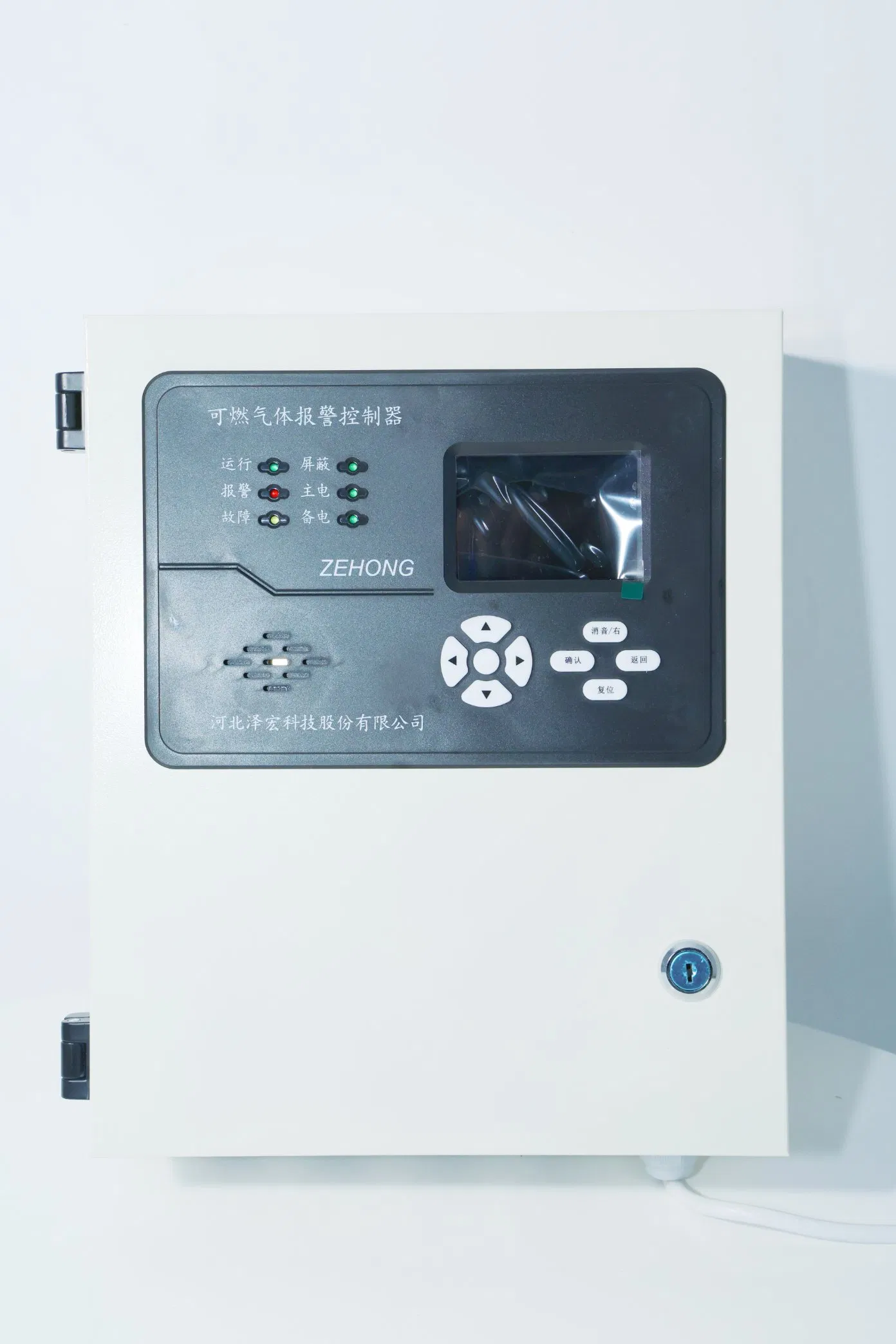

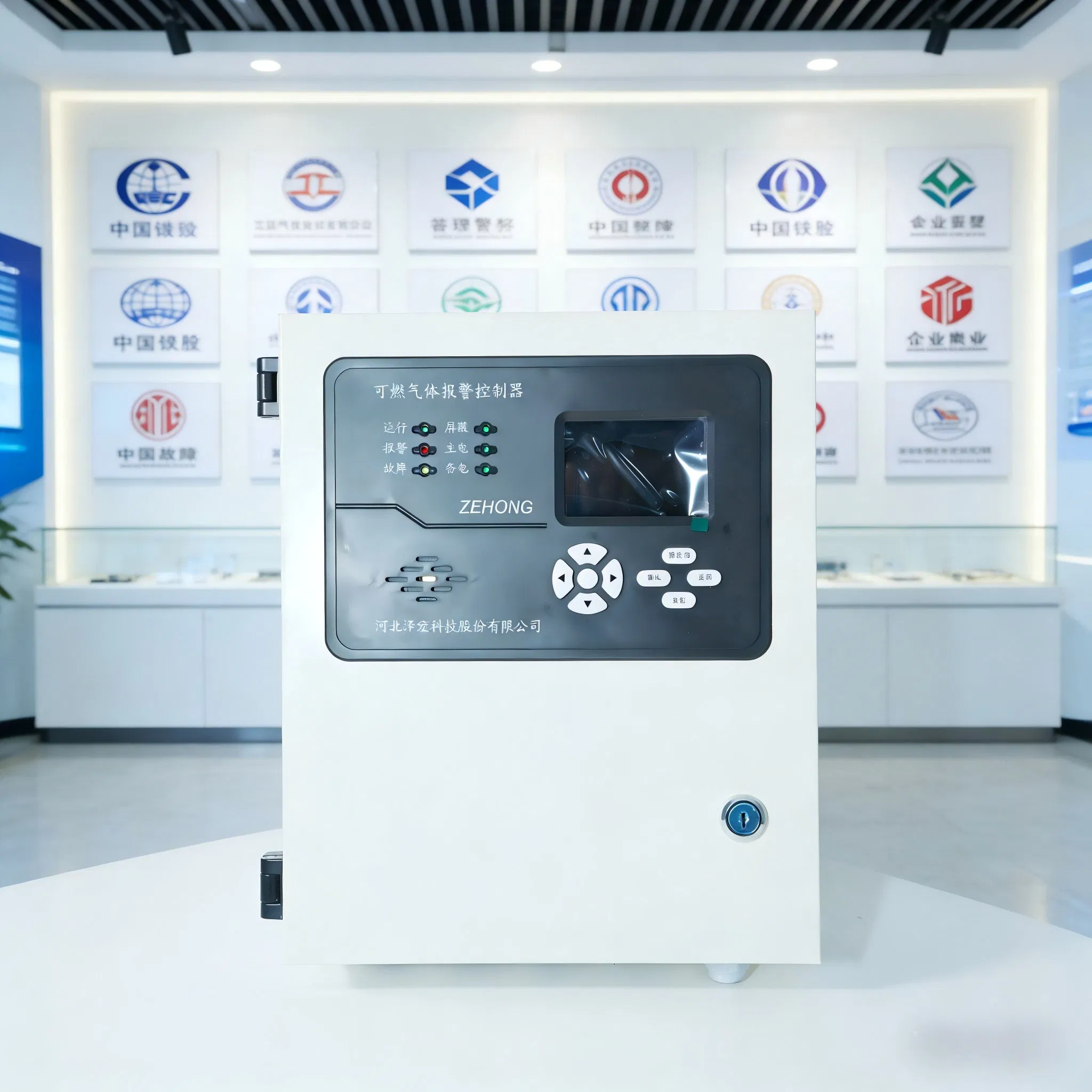

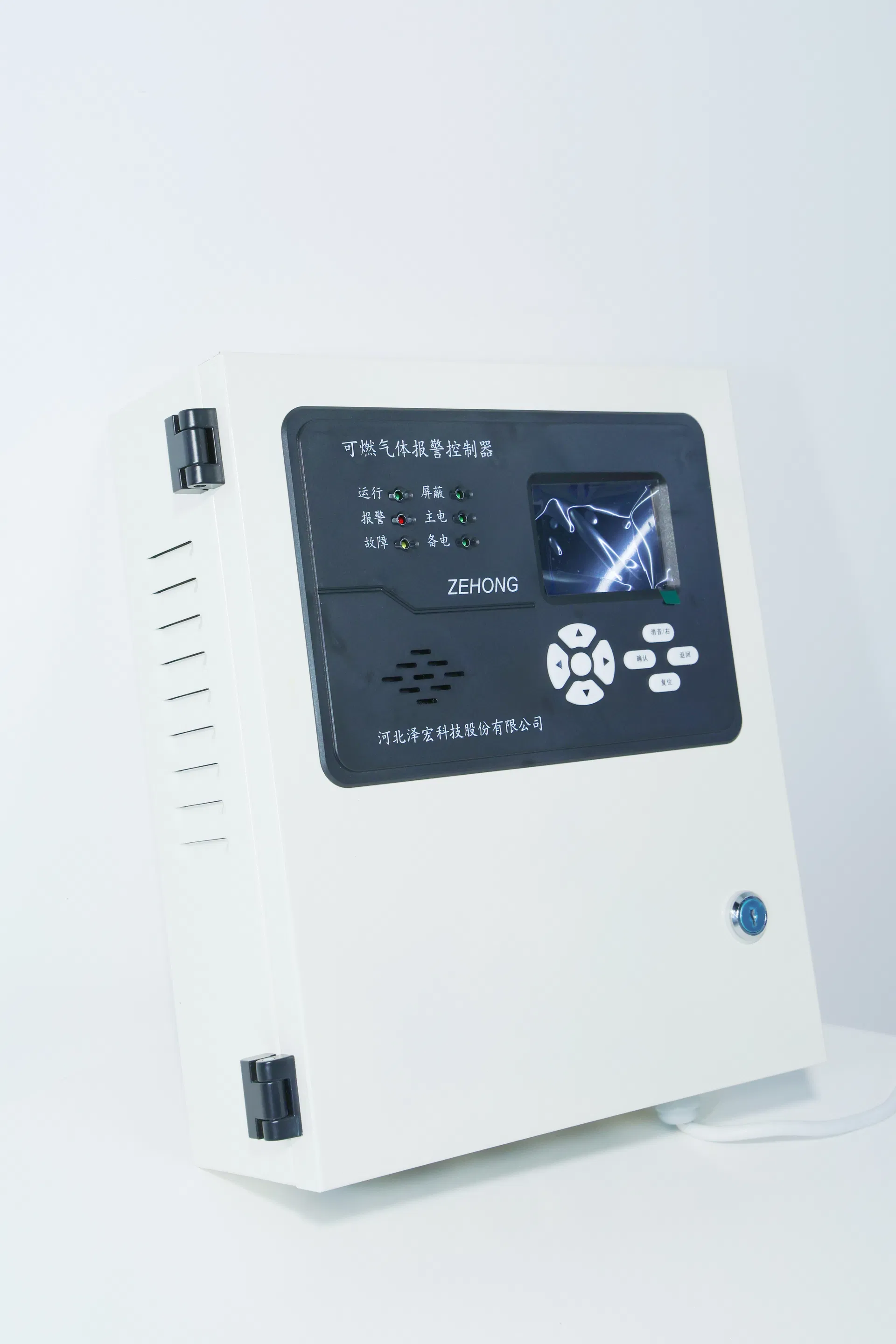

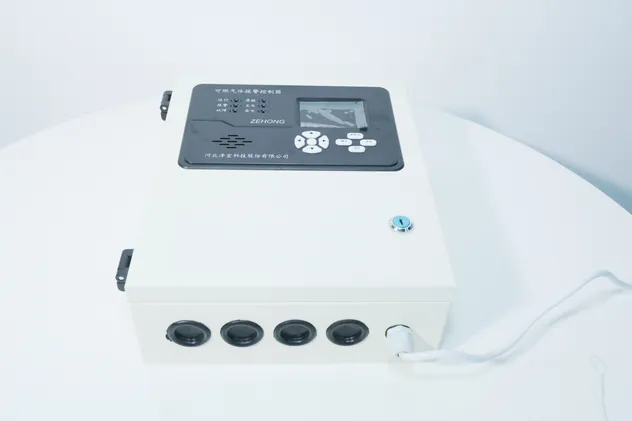

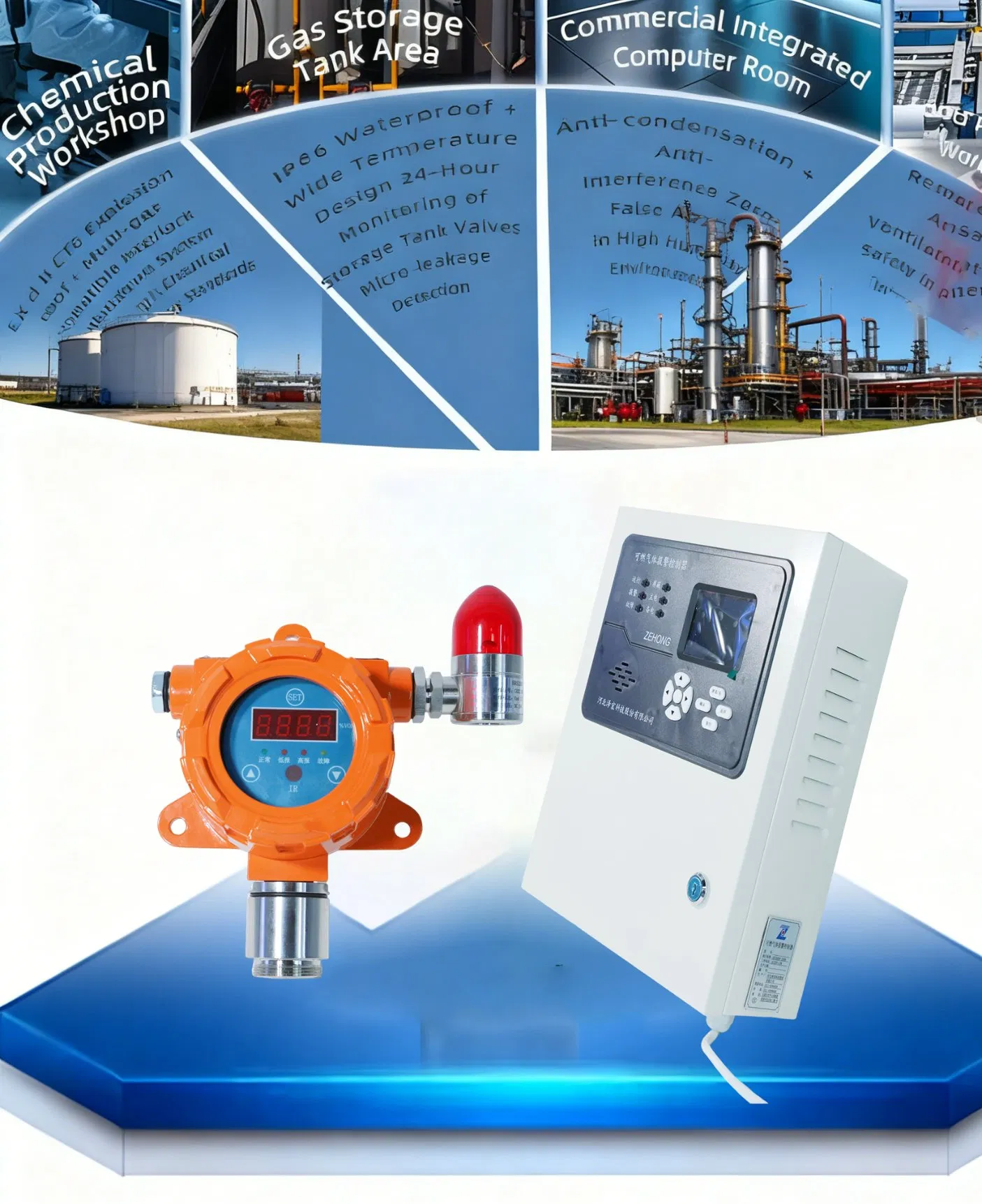

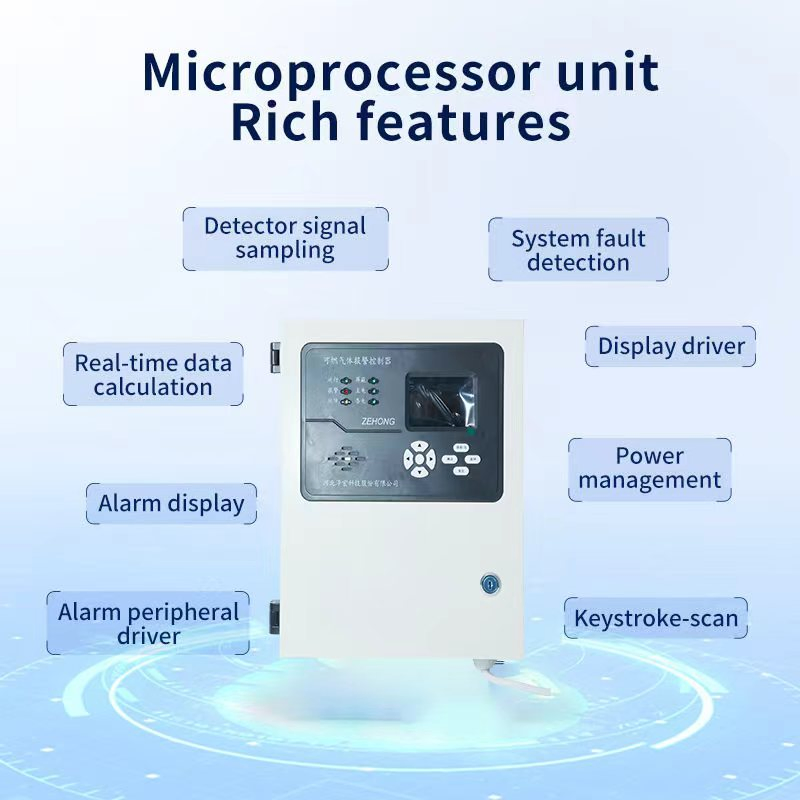

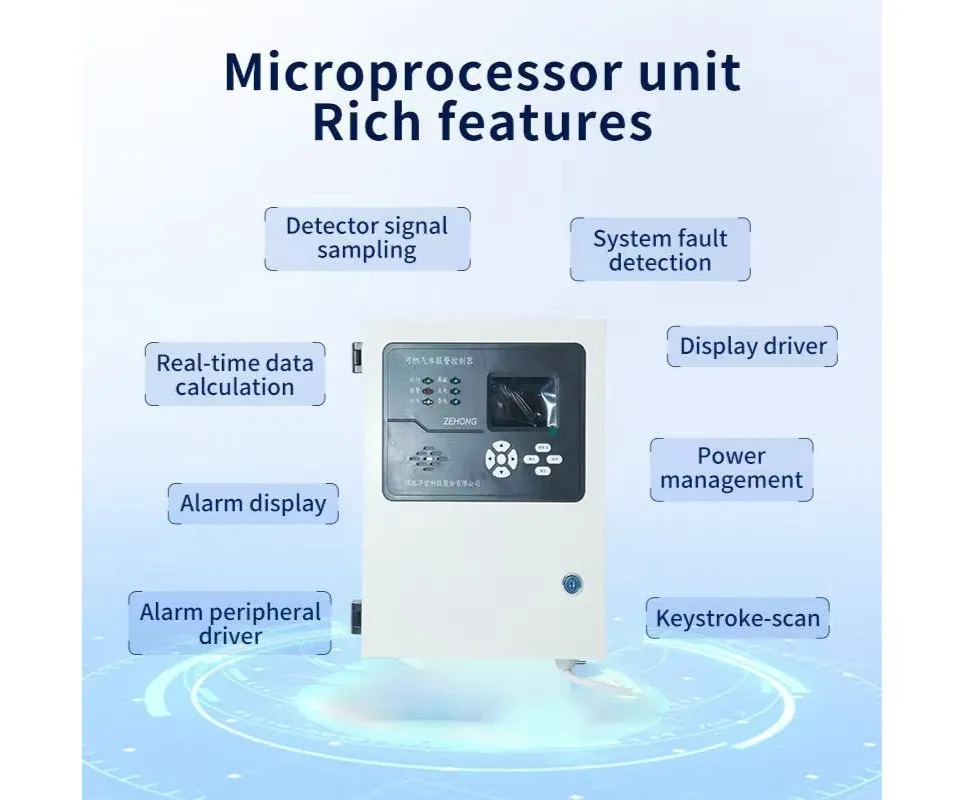

The KZ32 Combustible Gas Alarm Controller is a new generation gas alarm controller used to detect the concentration of target gases in the ambient air. This system uses an STM32 microprocessor as the control unit.

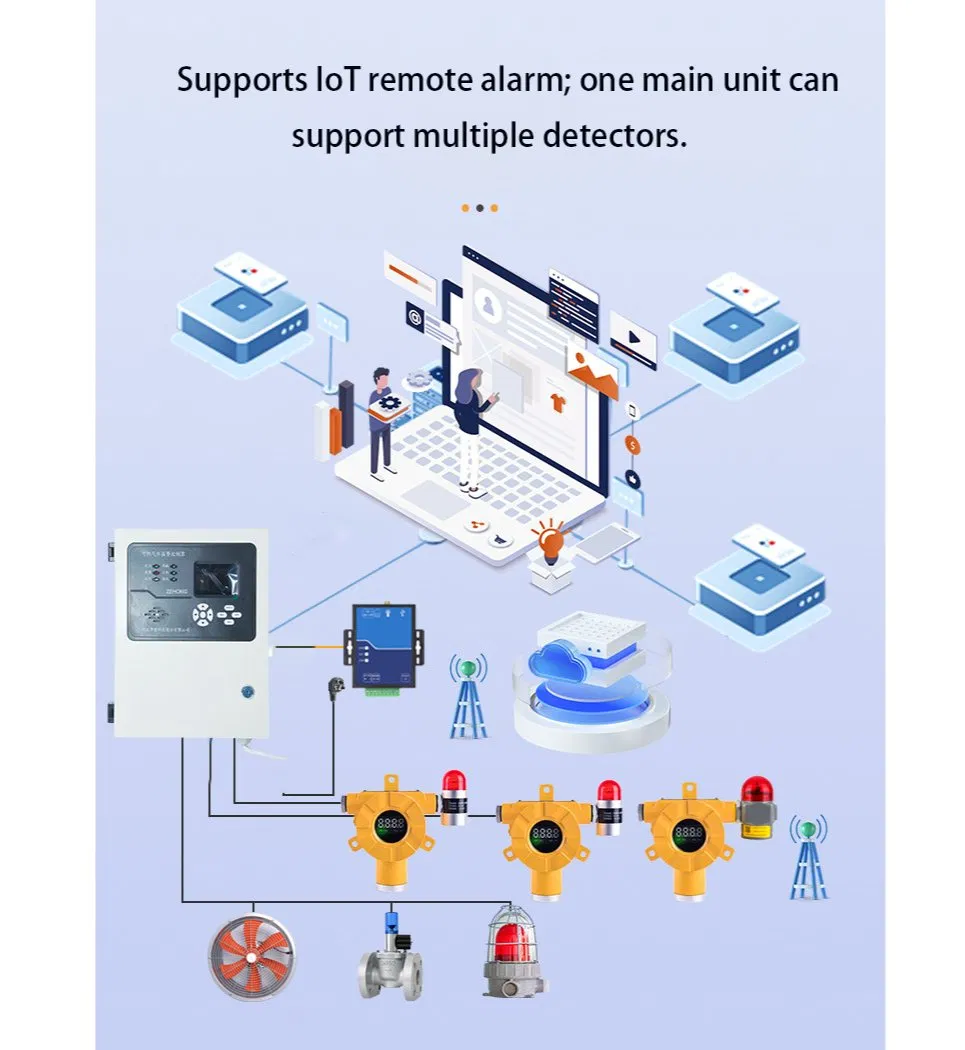

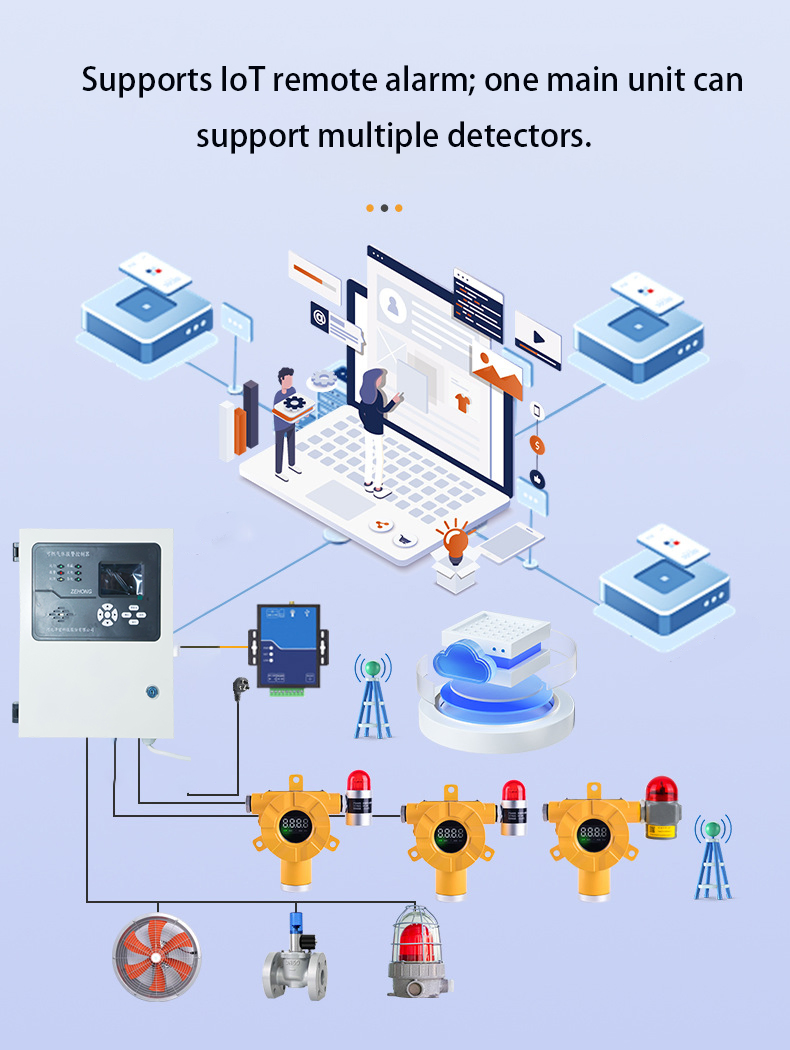

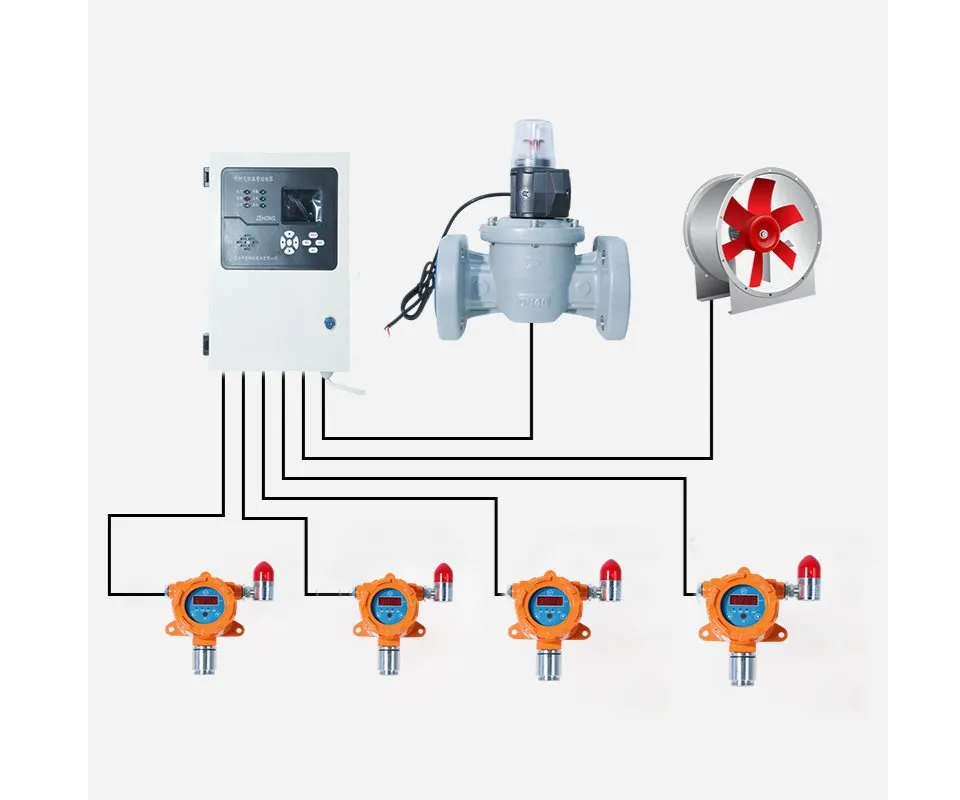

When the detected gas concentration in the environment reaches or exceeds the preset alarm value, the controller immediately activates audible and visual alarms to prompt timely safety measures and starts actuators to control ventilation or other peripheral equipment, preventing poisoning accidents, explosions, and fires, thereby ensuring the safety of life and property.

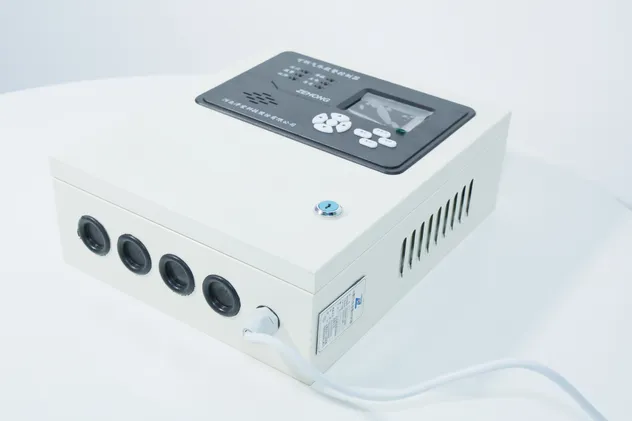

| Installation Method | Wall-mounted |
| Response Time | ≤10s |

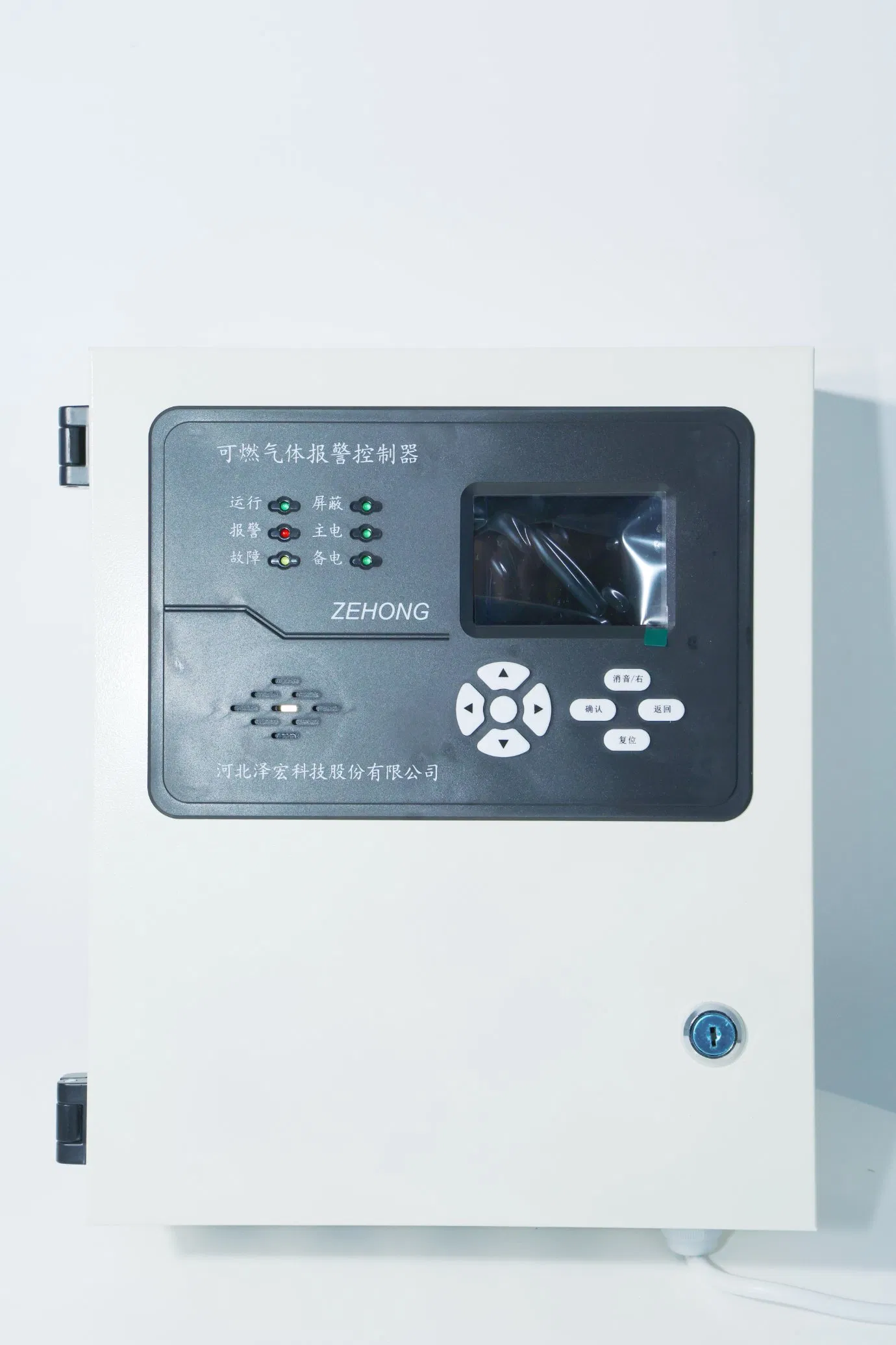

| Display Method | Color LCD displays real-time data and system status |
| Status Indication | LED indicates alarm/fault; Sound indicates alarm/fault |
| Node Output | 3 sets passive contacts (2A/AC220V); 1 set 24V contact (3A/24V) |
| Operating Mode | Continuous operation |
| Operating Environment | Temp: -10°C to 50°C; Humidity: ≤95% RH |
| Main Power Supply | AC 220V±15%, 50Hz±1% |
| Backup Power Supply | DC 24V ±10% |
| Dimensions | 320mm x 265mm x 110mm |
