| Model NO. | Black Busbar Ribbon | Application | Multi-Busbar Modules |
|---|---|---|---|
| Material Grade | Tu1 (Cu ≥ 99.97%) | Resistivity | ≤ 0.01725 Ω.mm²/M |
| Tensile Strength | ≥ 170MPa | Yield Strength | 75-125MPa |
| Elongation | ≥ 25% | Coating | Tin-Coated |

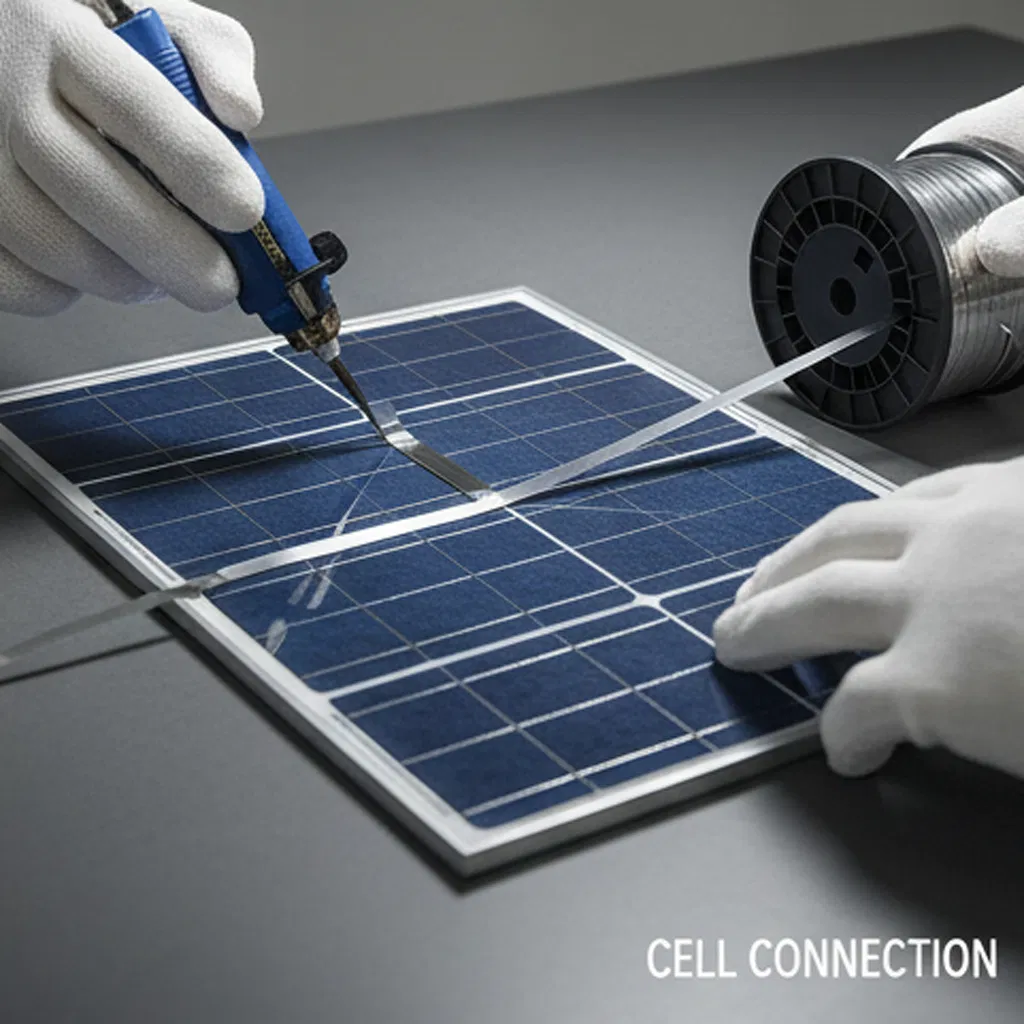

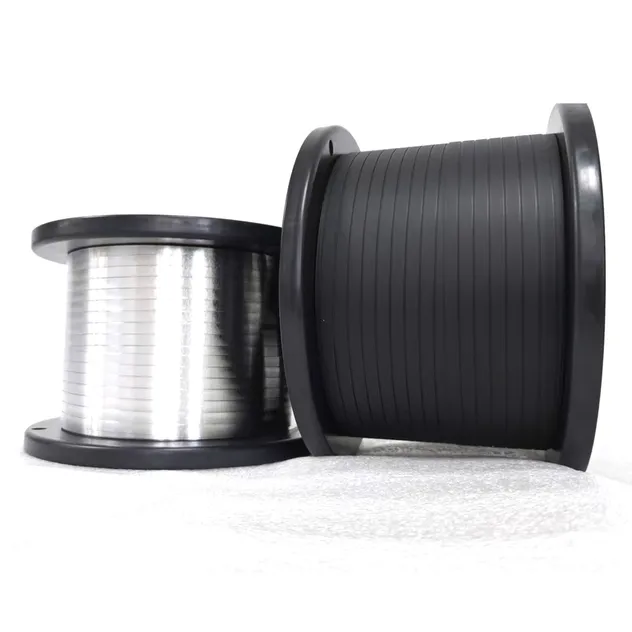

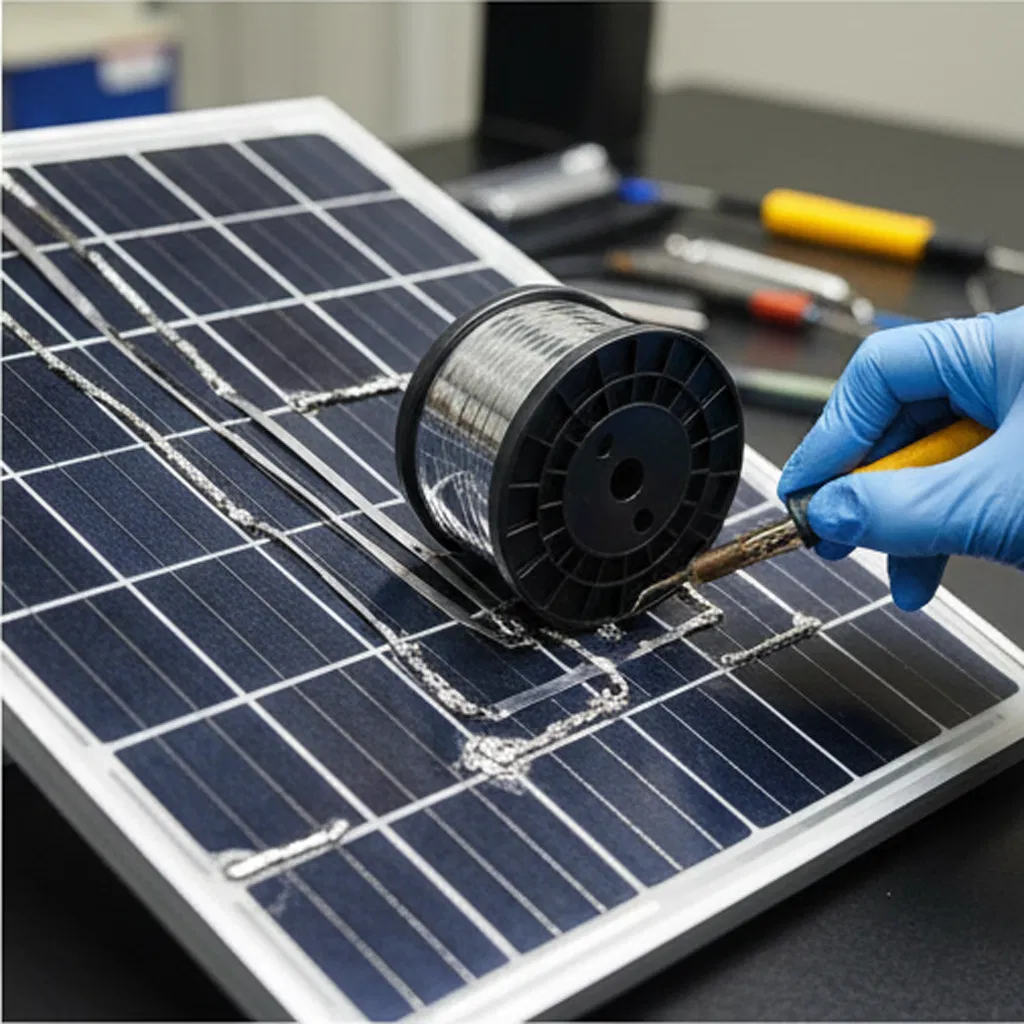

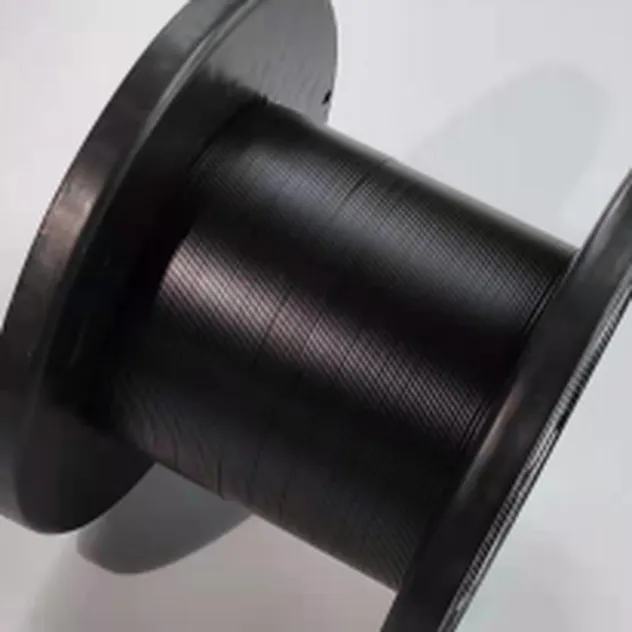

This critical photovoltaic module component connects solar cells. Crafted with a special black material, it offers a uniform, aesthetically pleasing look over traditional ribbons. Typically composed of a conductor and insulating layer, the high-purity copper conductor ensures optimal conductivity while the insulating layer safeguards against leakage. The black insulation not only excels in insulation but also enhances the module's all-black design.
AESTHETICS

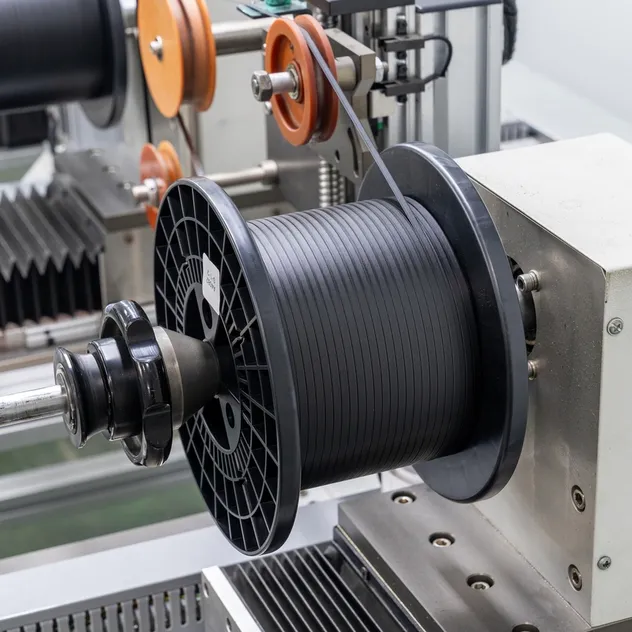

PERFORMANCE

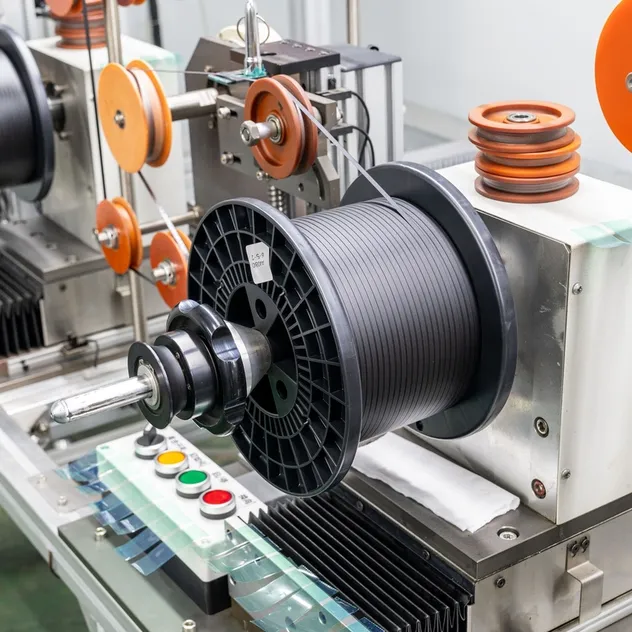

WEATHER RESISTANCE
| Core Specifications | |
|---|---|
| Material | Cu+Sn+Pb |
| Bending Strength | ≤ 4.0mm/M |
| Purposes | Connecting Cell Strings and Junction Boxes |
| Production Capacity | 50,000 Kg/Year |
| Product Name | Available Sizes (mm) | ||||
|---|---|---|---|---|---|
| PV Black Ribbon | 0.15*4 | 0.2*4 | 0.25*4 | 0.3*4 | 0.35*4 |
| 0.15*5 | 0.2*5 | 0.25*5 | 0.3*5 | 0.35*5 | |
| 0.15*6 | 0.2*6 | 0.25*6 | 0.3*6 | 0.35*6 | |
| 0.15*7 | 0.2*7 | 0.25*7 | 0.3*7 | 0.35*7 | |
| 0.15*8 | 0.2*8 | 0.25*8 | 0.3*8 | 0.35*8 | |
BIPV Integration: Allows modules to integrate into roofs and walls for high-end landmarks.
Landscape Projects: Perfect for awnings and pavilions where environmental harmony is prioritized.
Competitive Differentiation: Provides a distinct pure black look to attract aesthetic-conscious customers.
Green Building: Enhances compatibility with sustainable development and energy conservation concepts.
