Basic Specification
Model NO.ZST-AYZ-27-47
Production LineComprehensive Automatic
Production ScopeProduct Line
ManufacturingFlexible Intelligent Manufacturing
CertificationISO, CE
ConditionNew
AutomationAutomatic
After-sales ServiceEngineers Available Overseas
Transport PackageFrame Container
Specification15100*3700*1850mm
HS Code848640
Production Capacity100 Set/Sets Per Year
📦
Packaging & Delivery
Package Size1510.00cm * 370.00cm * 185.00cm
Gross Weight19500.000kg
⚙
Product Description
| Power |
AC380v/50HZ/3phases/5Lines |
Capacity |
15-45(1-3shift)MW/year |
| Noise at work |
<65dB |
Vacuum Rate |
602 m³/H |
| Normal Power |
22KW |
Max.Power |
65KW |
| Working Temp |
120-160ºC |
Lamination Area |
2700*4700mm |
| Heating Platform |
Non-flatness≤300μm/sqm |
Temp Uniformity |
≤±1.5ºC |
| Dimension |
15100*3700*1850mm |
Weight |
19.5T |
★
Key Characteristics
✔
Lower Noise: Using imported vacuum pump technology, reducing operating noise to below 65dB for a better working environment.
✔
Smokeless Operation: Unique pump design eliminates smoke, removing the need for complex exhaust systems.
✔
Energy Efficiency: Optimized design provides approximately 30% energy savings compared to standard brands.
✔
Certified Quality: All machines in the PV production line have successfully passed CE certification.
🛠

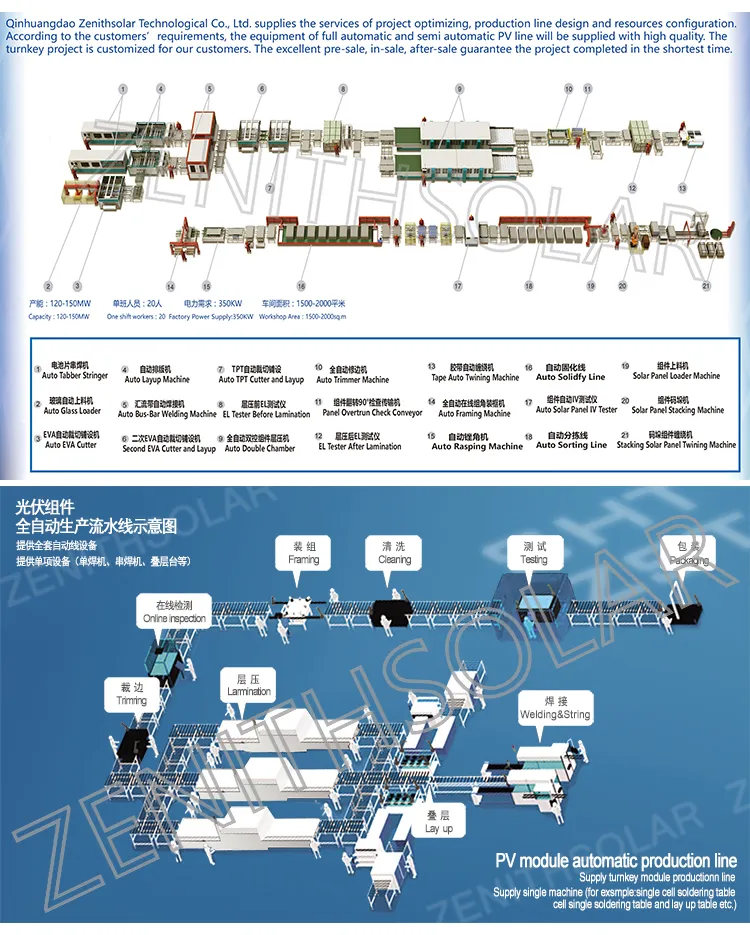

Customized Production Line
We supply complete customized production lines. Our engineers can adjust the layout and performance parameters based on specific customer requirements.
❓

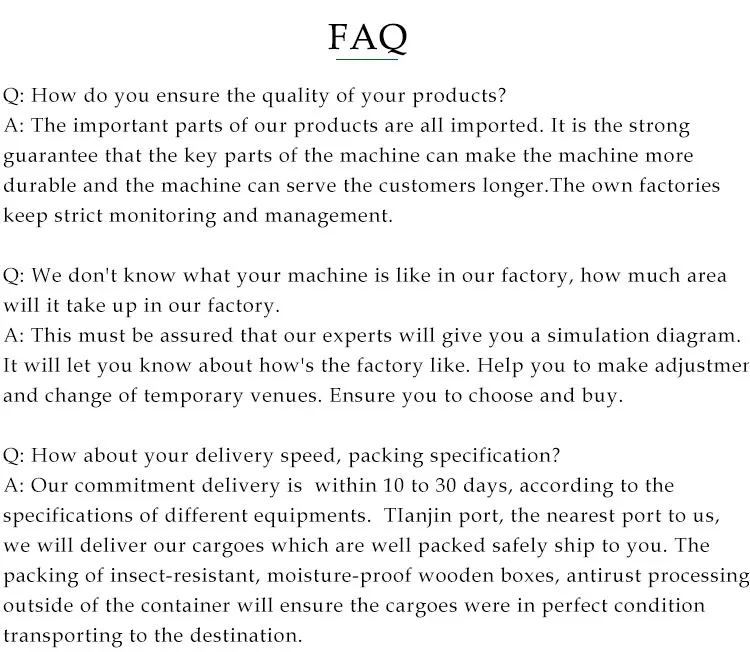

Frequently Asked Questions
1. What is the maximum lamination area for this machine?
The maximum lamination area for the ZST-AYZ-27-47 model is 2700*4700mm.
2. How much energy can be saved with this laminator?
Our vacuum laminating machine is designed for high efficiency, offering about 30% energy savings compared to other brands.
3. Does the machine require an external exhausting system for smoke?
No, the unique design of the vacuum pump ensures smokeless operation, so an external exhaust system is not necessary.
4. What is the noise level during operation?
By using high-quality imported vacuum pumps, the working noise is kept under 65dB.
5. Is technical support available for international customers?
Yes, we provide after-sales service with engineers available to service machinery overseas.
6. What certifications does the equipment hold?
The equipment is fully certified with both ISO and CE standards for safety and quality assurance.
