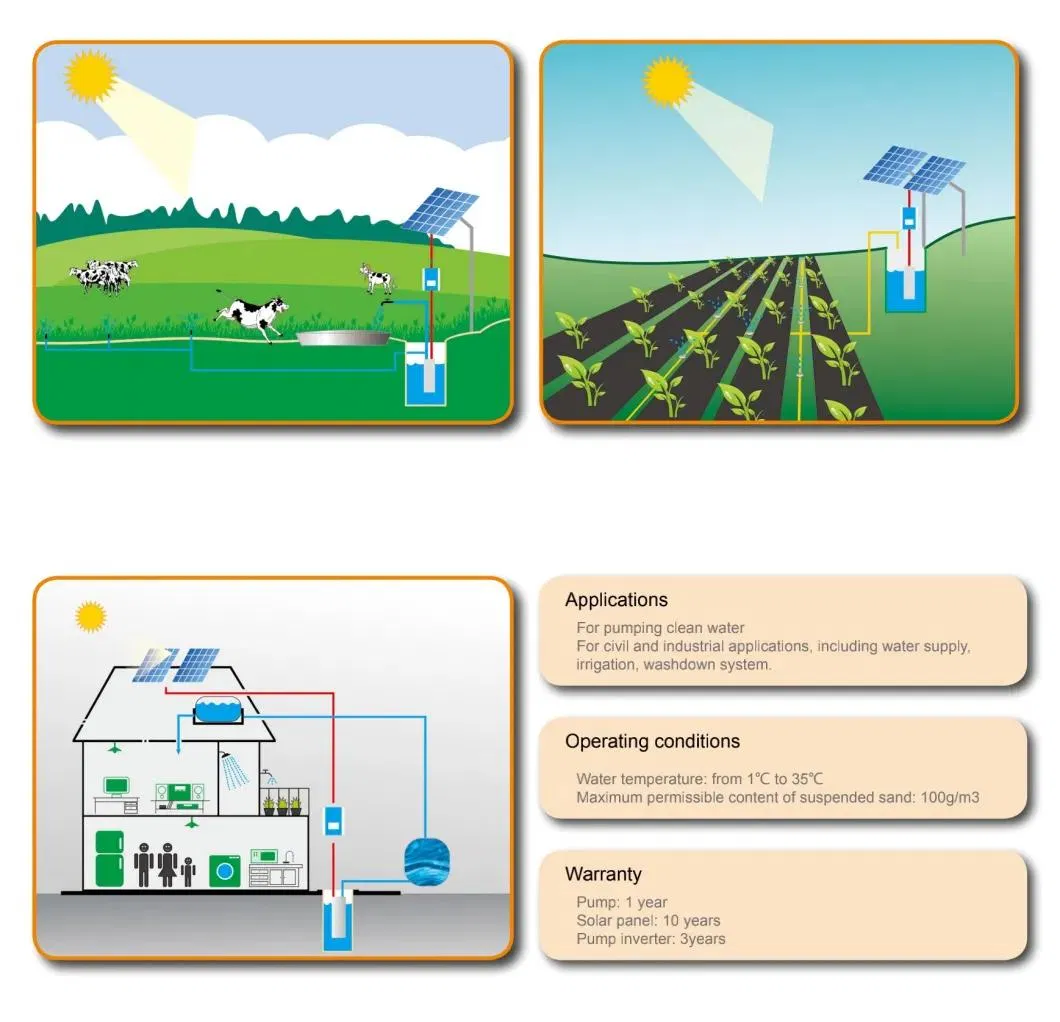

Solar power systems have a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.
With the promotion of new energy utilization, the usage of solar water pumps is increasing in government projects, landscape architectures, fountains, parks, tourist attractions, and residential areas.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |

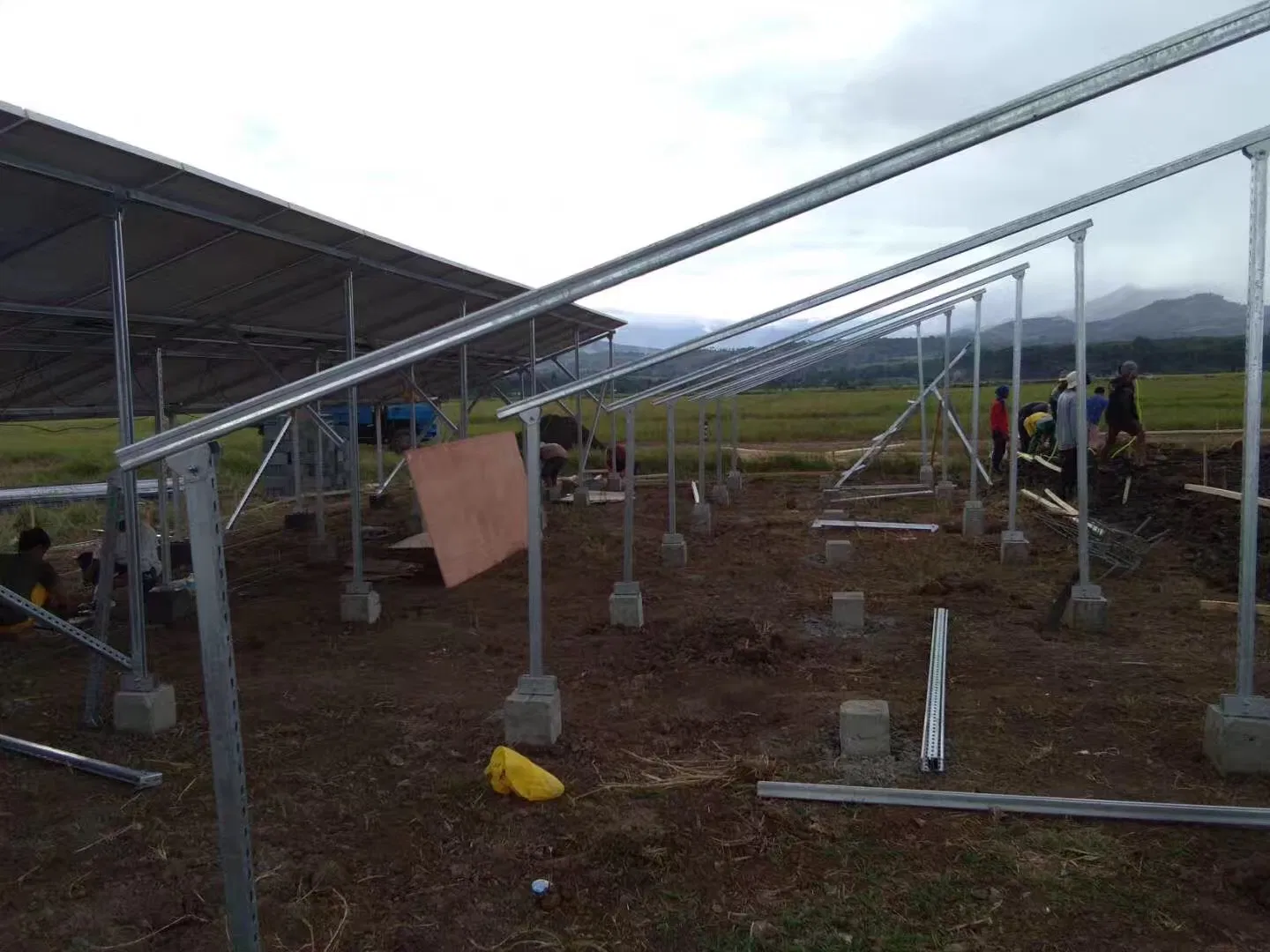

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Valve | Check valve with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, etc | set | 1 |
√ AGRICULTURAL IRRIGATION | √ ANIMAL HUSBANDRY | √ DESERTIFICATION CONTROL
Solar pump systems are high-quality products designed for drinking water supply, livestock watering, and irrigation applications without pollution. They use solar power directly, requiring no grid infrastructure.

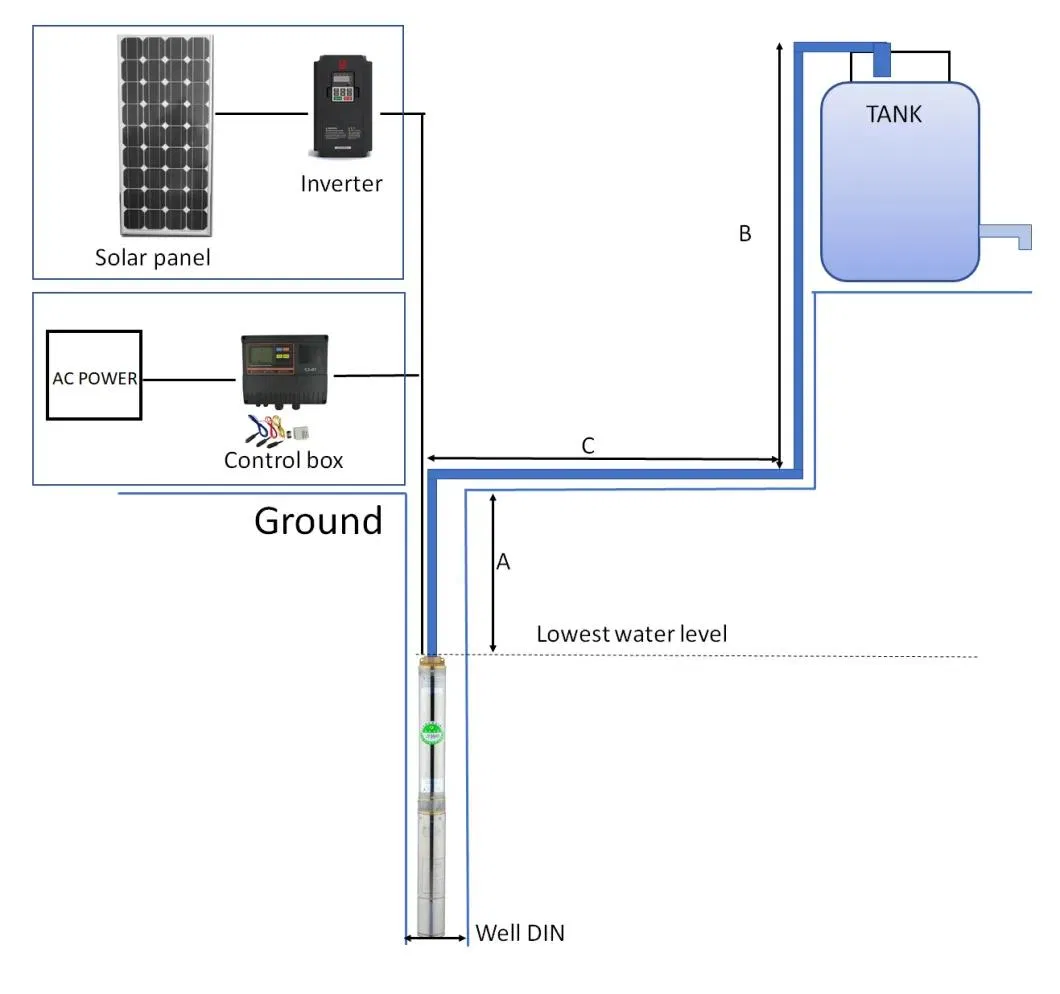

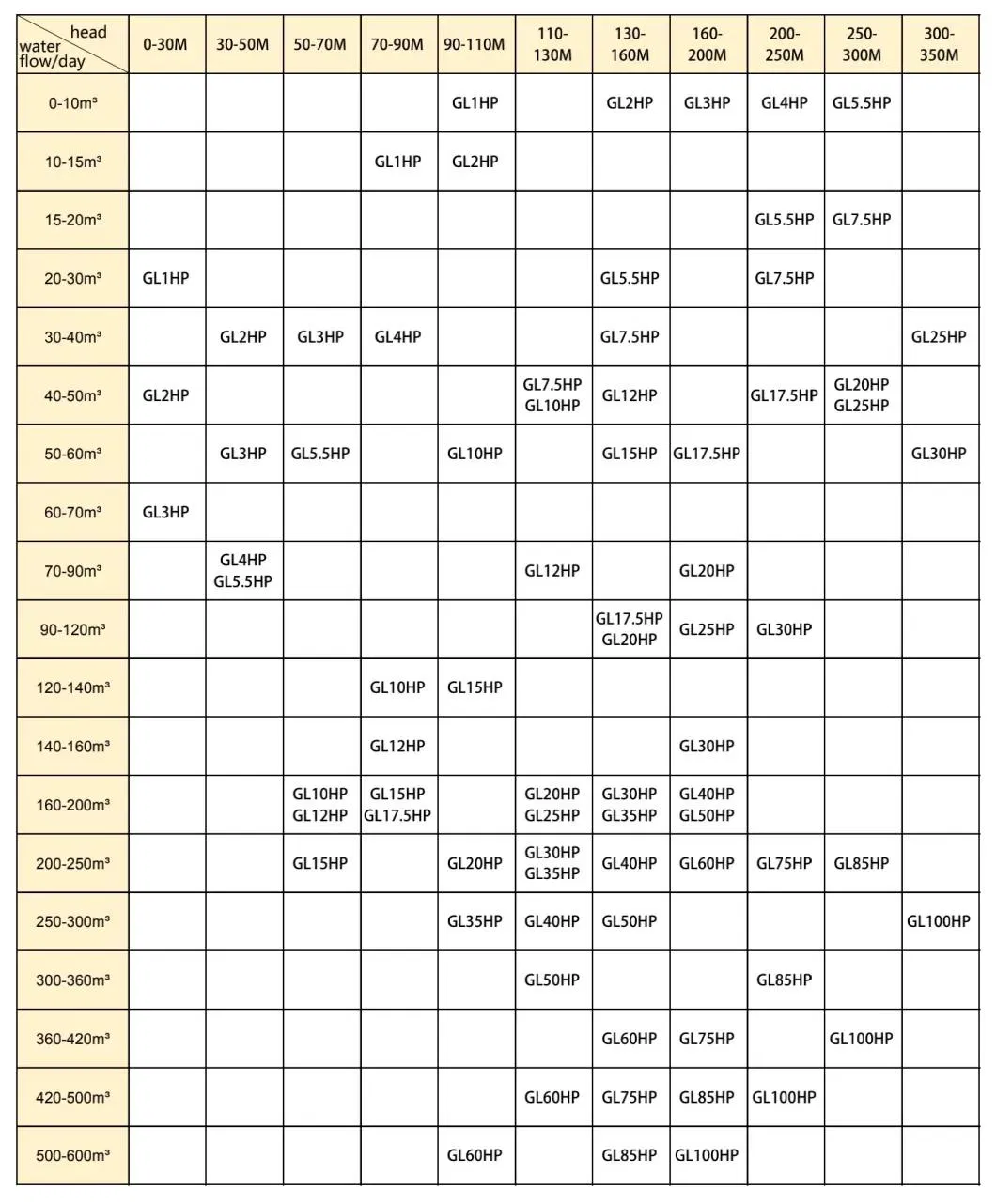

Please provide the following information for pump selection:

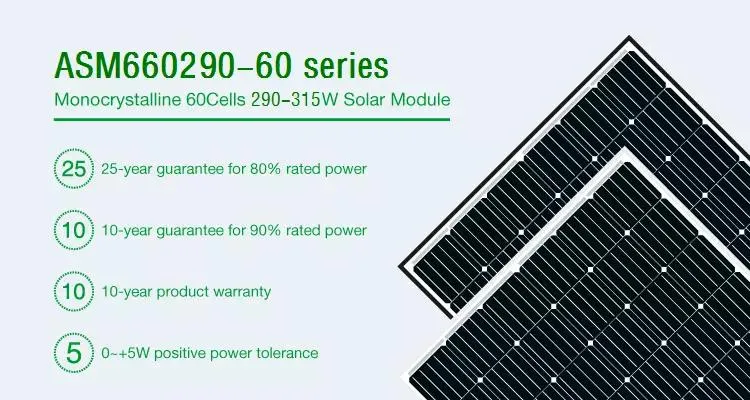

Peak Power: 290W | Max Voltage: 32.2V
Max Current: 9.02A | Open Circuit Voltage: 39.5V
Dimensions: 1640×992×35 mm | Weight: 18.6 kg

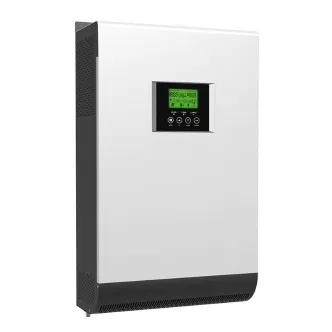

Max DC Input: 8.5KW | Max Voltage: 600V
MPPT Range: 90-520V | Rated Voltage: 230V(EU)/240V(US)

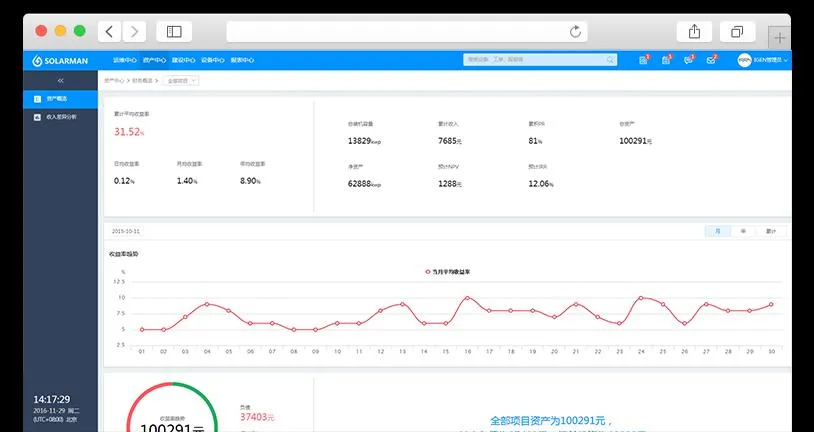

Optional: Wifi, Lan & GPRS Monitoring.
Data Logging Stick for real-time PV system information. Accessible via Web Server, Wi-Fi, Lan, or GPRS. App available for PC, iOS & Android.

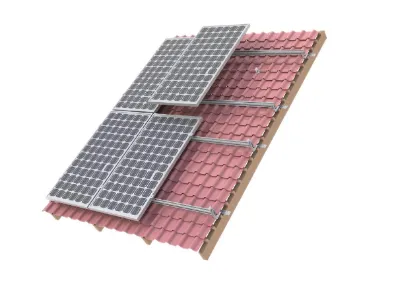

Material: AI6005 & SUS304 Bolt. Mid & End Clamps: 35-50mm. Options: L Foot Asphalt Shingle Mount, Hanger Bolts, Cable Clips, and Ground Lugs.

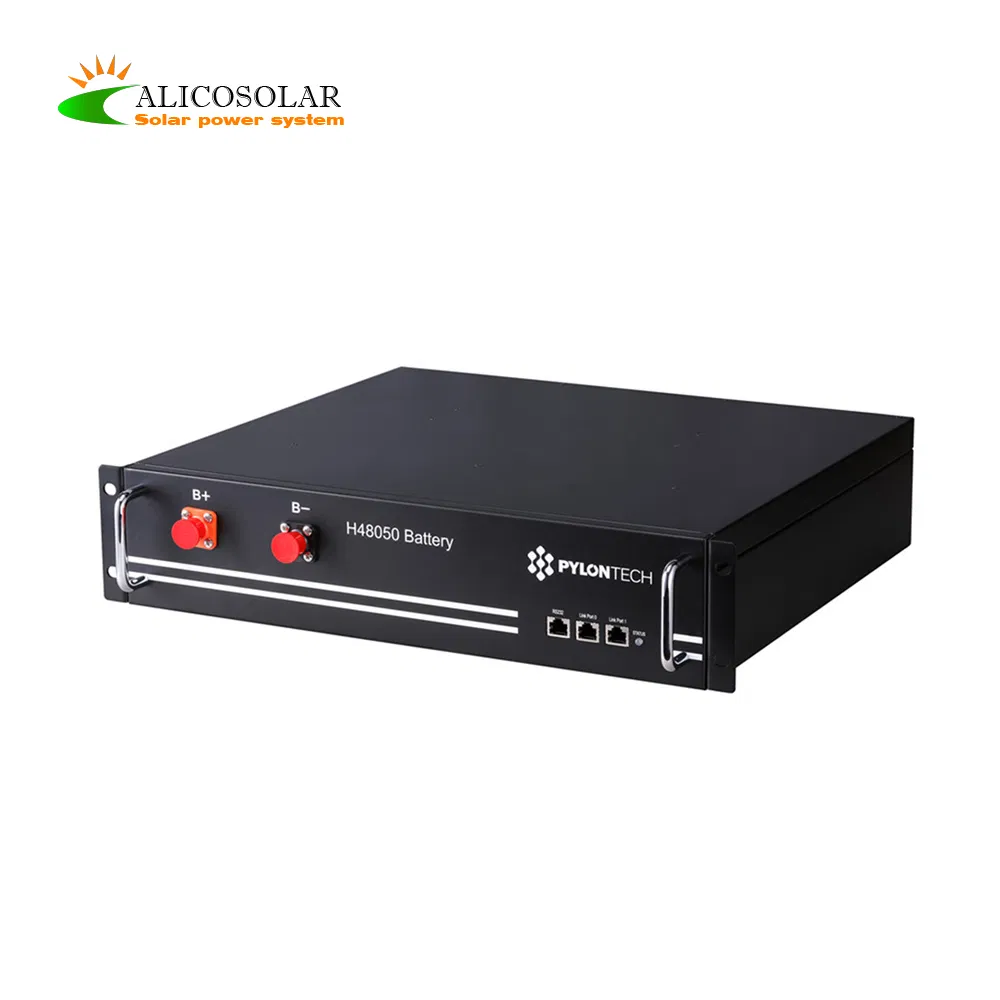

Specification: 48V 100Ah
Dimension: 4-5U Standard Rack Mount.
