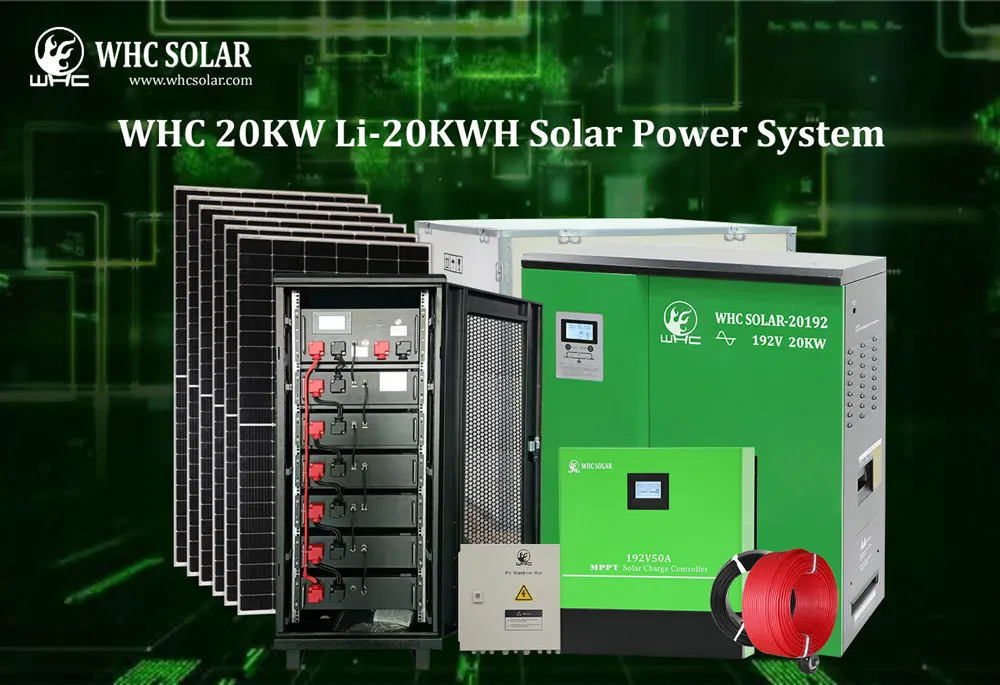

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage System
Model: 20KW Li-20KWH | Product Name: Offgrid Solar Power System Home

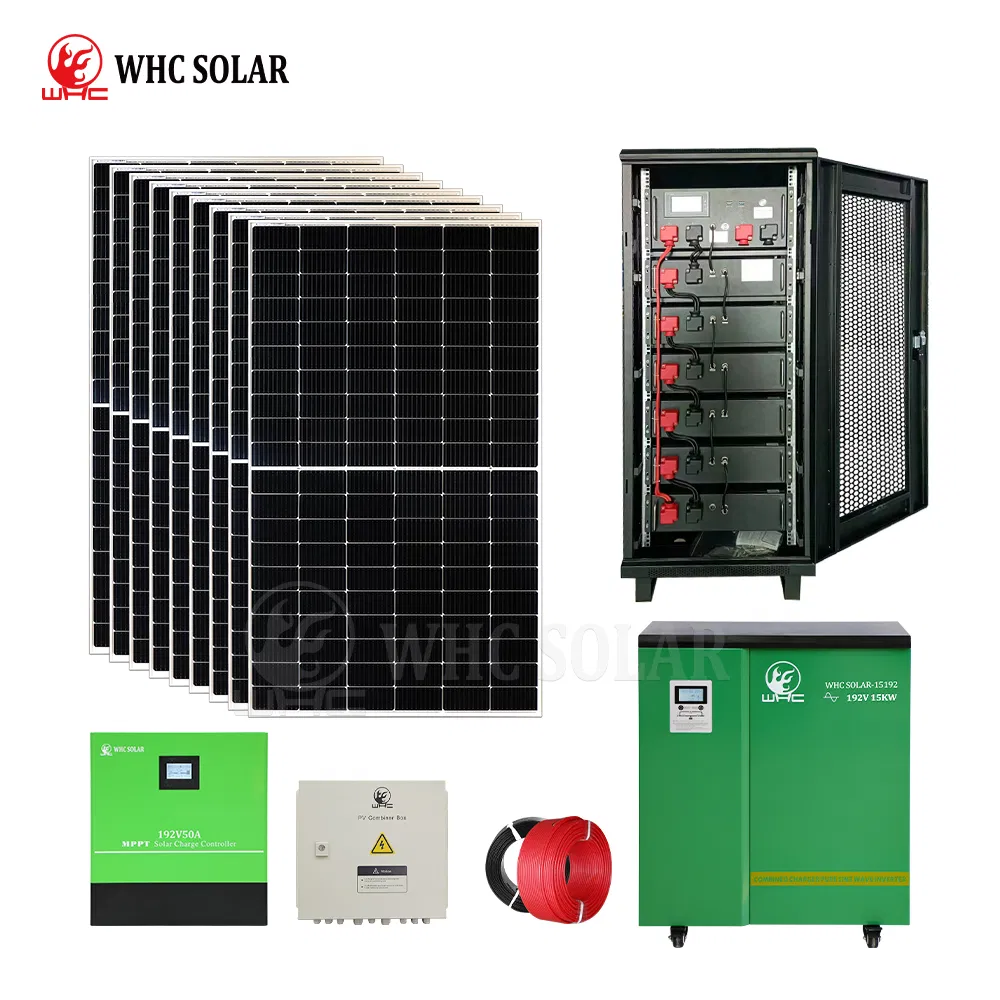

This off-grid solar system is the most cost-effective solution for home energy. It is a complete setup featuring high-efficiency solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and all necessary accessories. This system provides continuous electricity and significantly reduces electricity bills.
| System Configuration (10KW-Li-10KWH Example) | ||
|---|---|---|
| Item | Description | Quantity |
| Solar Lithium Battery | 192V100AH LiFePO4 Lithium Battery | 1 Pieces |

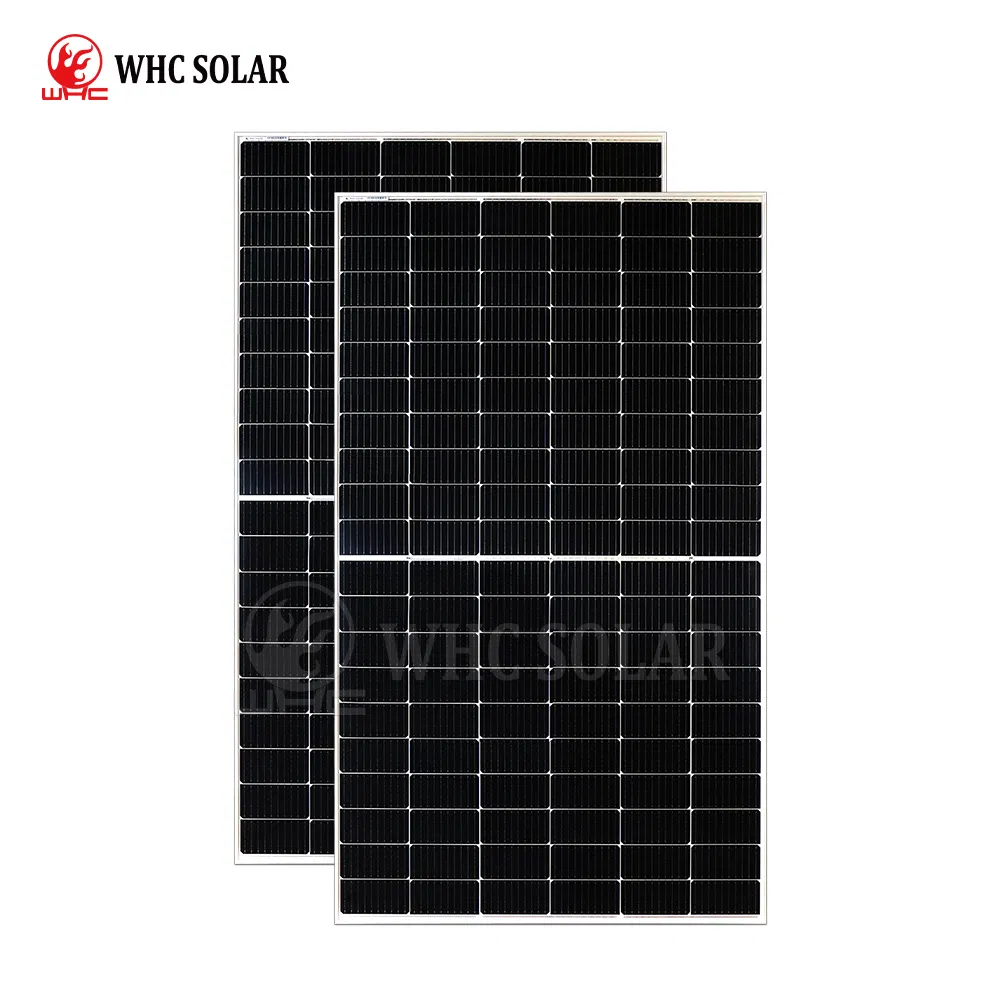

| Solar Panel | 450W Solar Mono Panel | Quantity as per requirements |

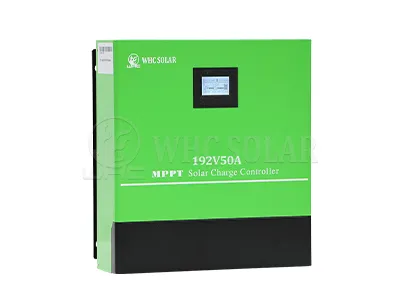

| Solar Controller | 192V 50A MPPT Controller | 1 Pieces |

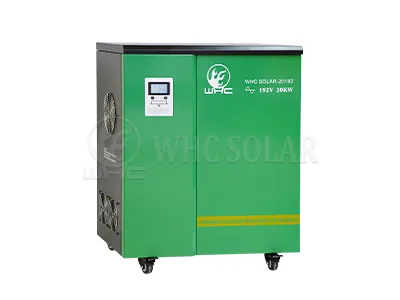

| Solar Inverter | 192V 20KW Solar Inveter | 1 Pieces |

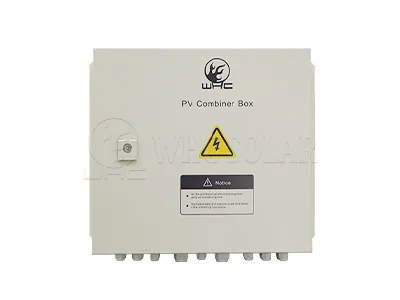

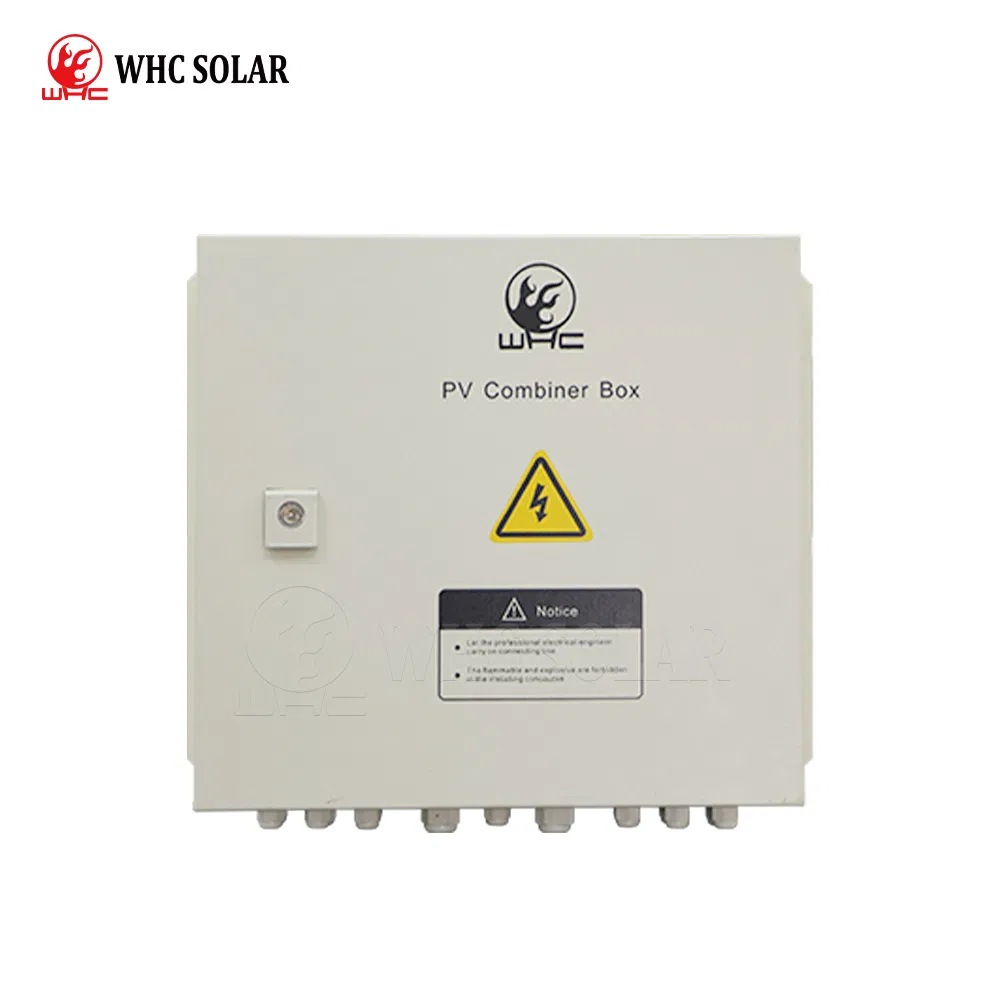

| PV Combiner Box | Six Input + Two Output | 1 Pieces |

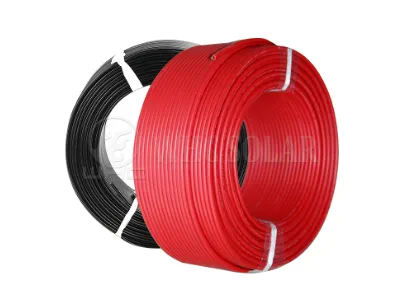

| PV Cable | Single-core 6mm2 PV cable 100m | 2 Pieces |

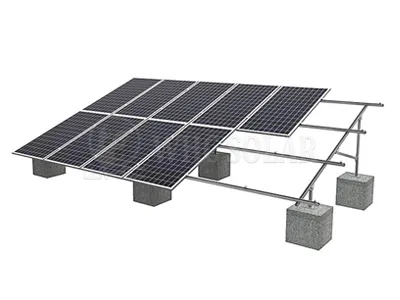

| PV Mounting Support | Hot Galvanizing Ground Mounting Support | 1 Set |

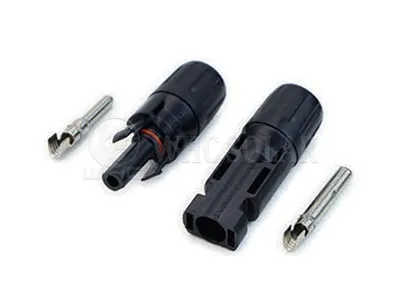

| Connector | MC4 Connector | 30 Pieces |

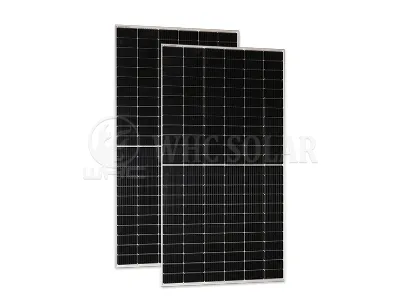

1. Model: 450M-120
2. Max Power Voltage: 34.67V
3. Max Power Current: 12.98A
4. Open Circuit Voltage: 41.25V
5. Short Circuit Current: 13.89A
6. Dimensions: 1909*1134*35mm

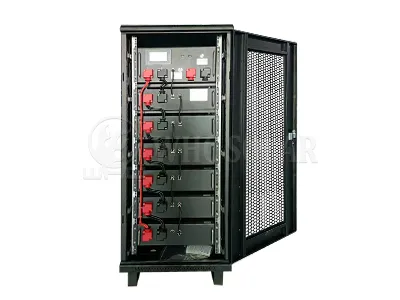

1. Type: LiFePO4 Lithium Battery
2. Nominal Voltage: 204.8V
3. Capacity: 20480WH
4. Lifespan: 10 Years
5. BMS Max discharging Current: 100A

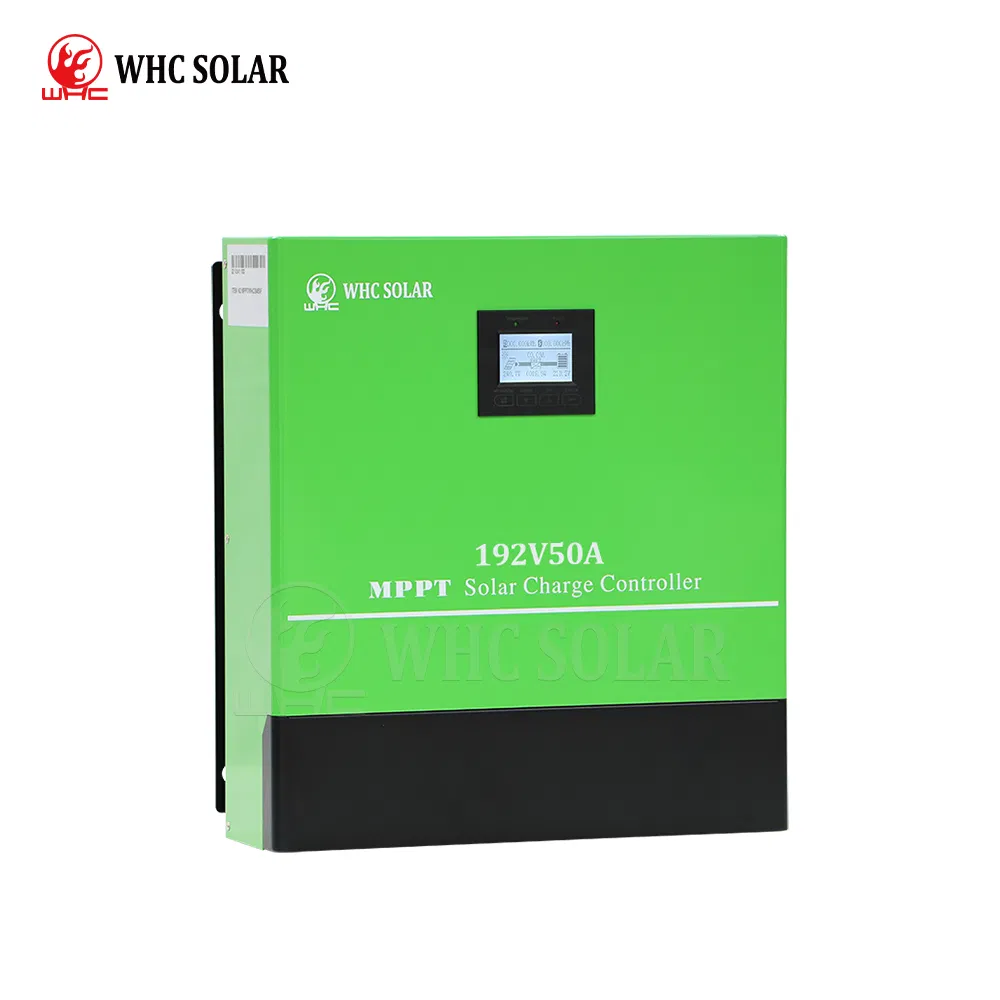

1. Type: Heatsink Cooling
2. Max Charging Current: 50A
3. Max PV Open Circuit Voltage: 430V
4. DC Input Voltage: 192V
5. MPPT Efficiency: 99%

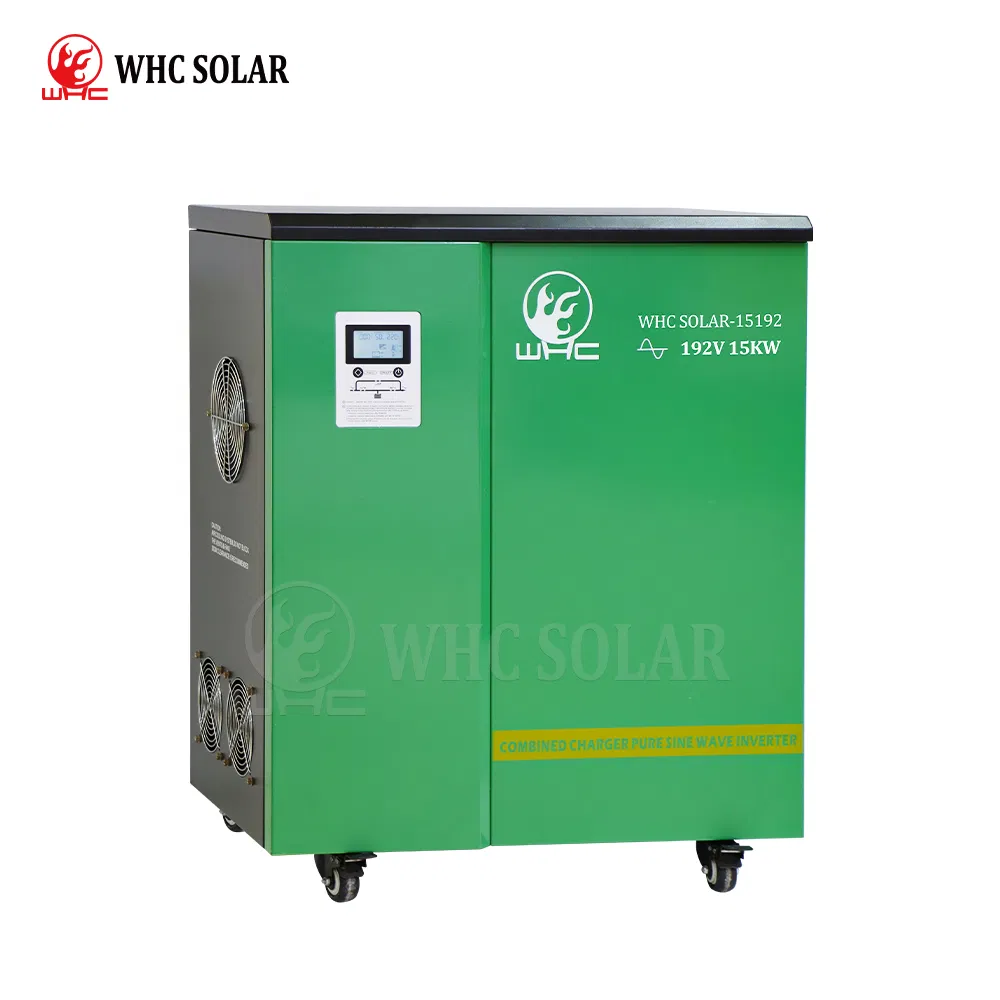

1. Type: Low Frequency IGBT Pure Sine Wave
2. Big Transformer Integrated
3. DC Input: 192V / AC Input: 220V
4. Output: 220V 50/60HZ
5. Recharging current: 10A
Waterproof IP65, Max output 1000V, Lightning Protection.
Anodized Aluminum / Stainless Steel, Wind load: 55m/s.
Pure Copper, Temp Rating: -40°C to 120°C, 25+ years lifespan.
IP68 Waterproof, Copper core, Safe and quick operation.
