| 30HP Solar Water Pump System | |||
|---|---|---|---|
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |

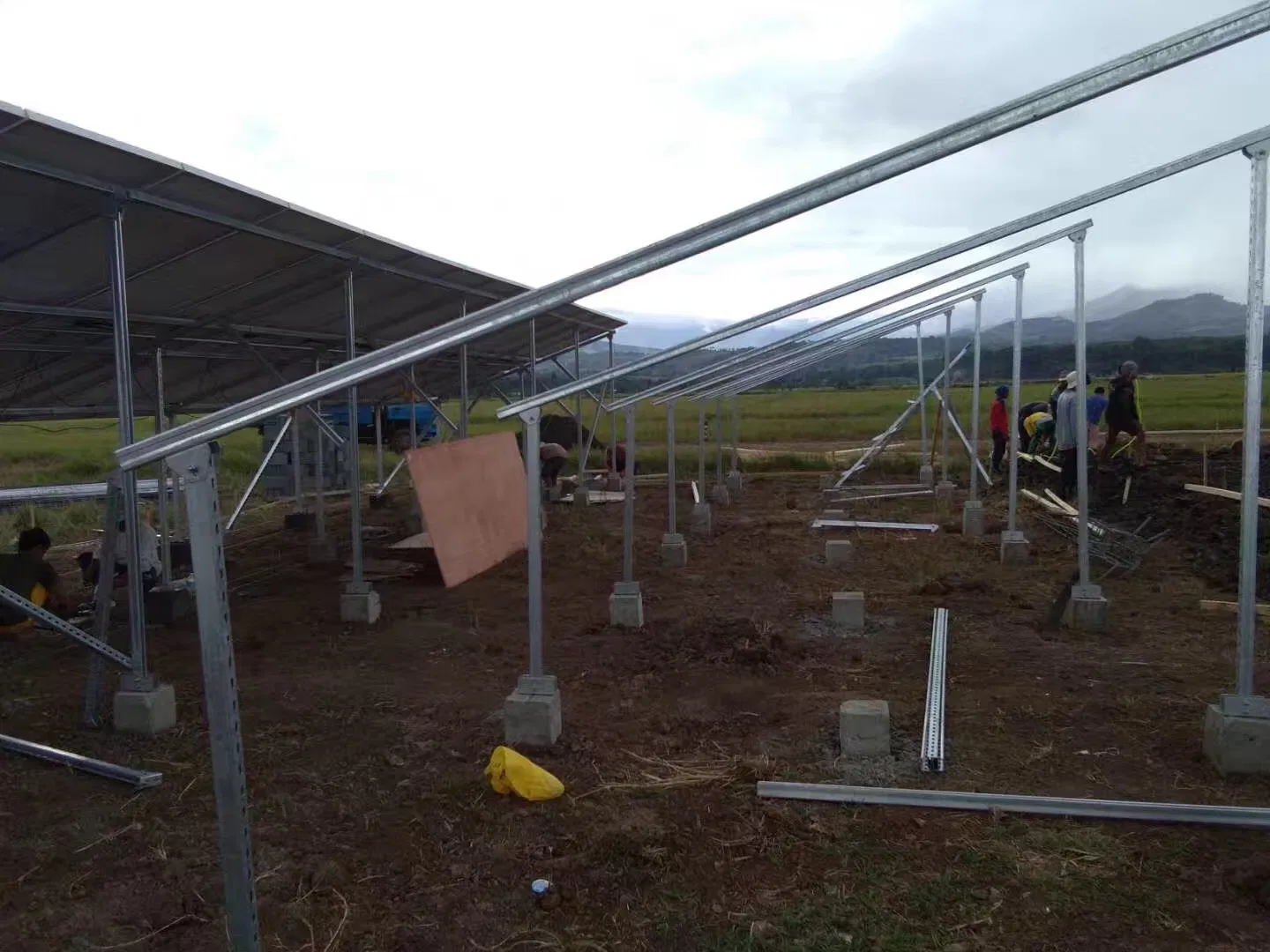

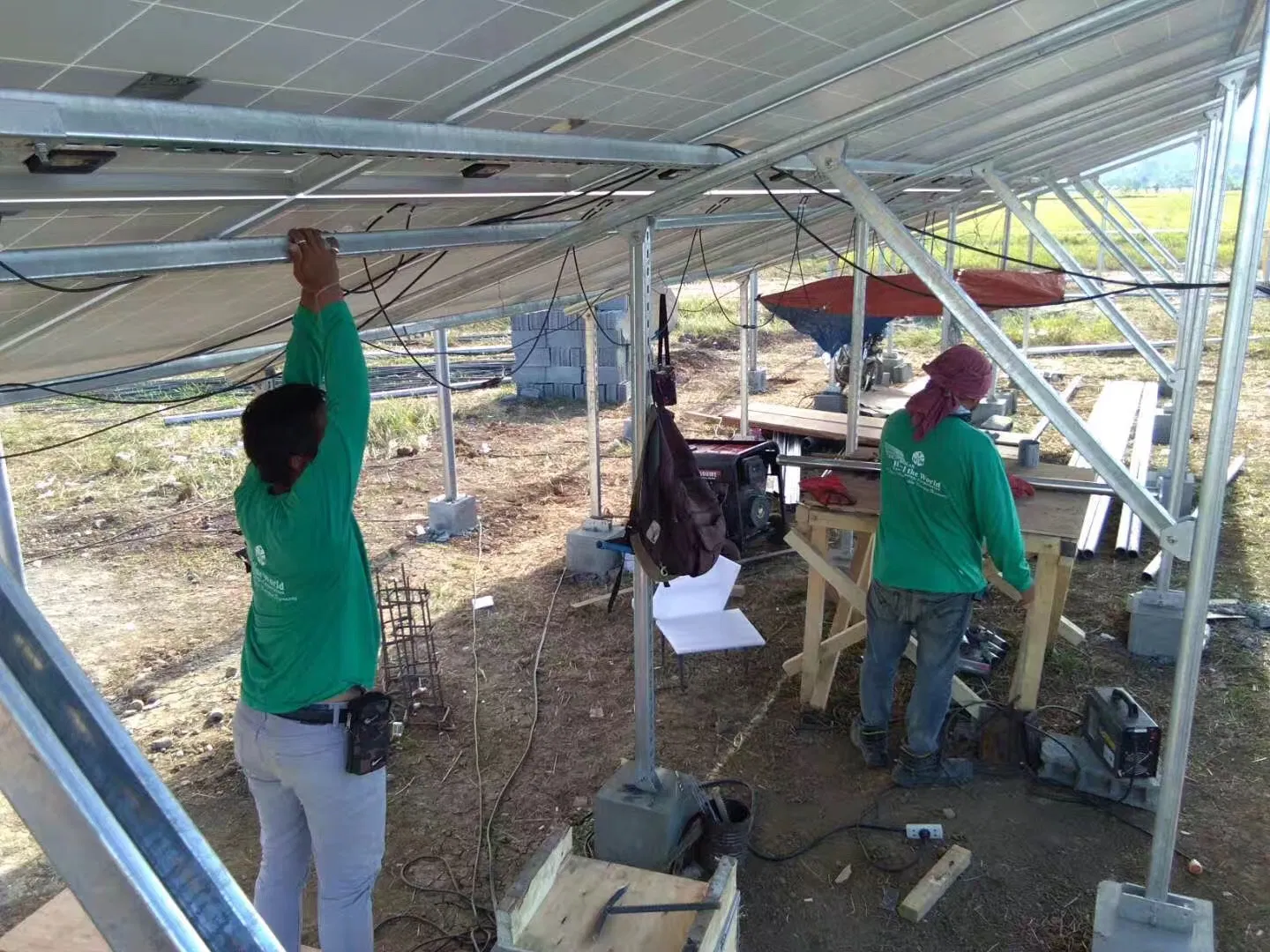

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | With connector | set | 1 |
| Accessories | MC4, cable connectors, tape, etc | set | 1 |

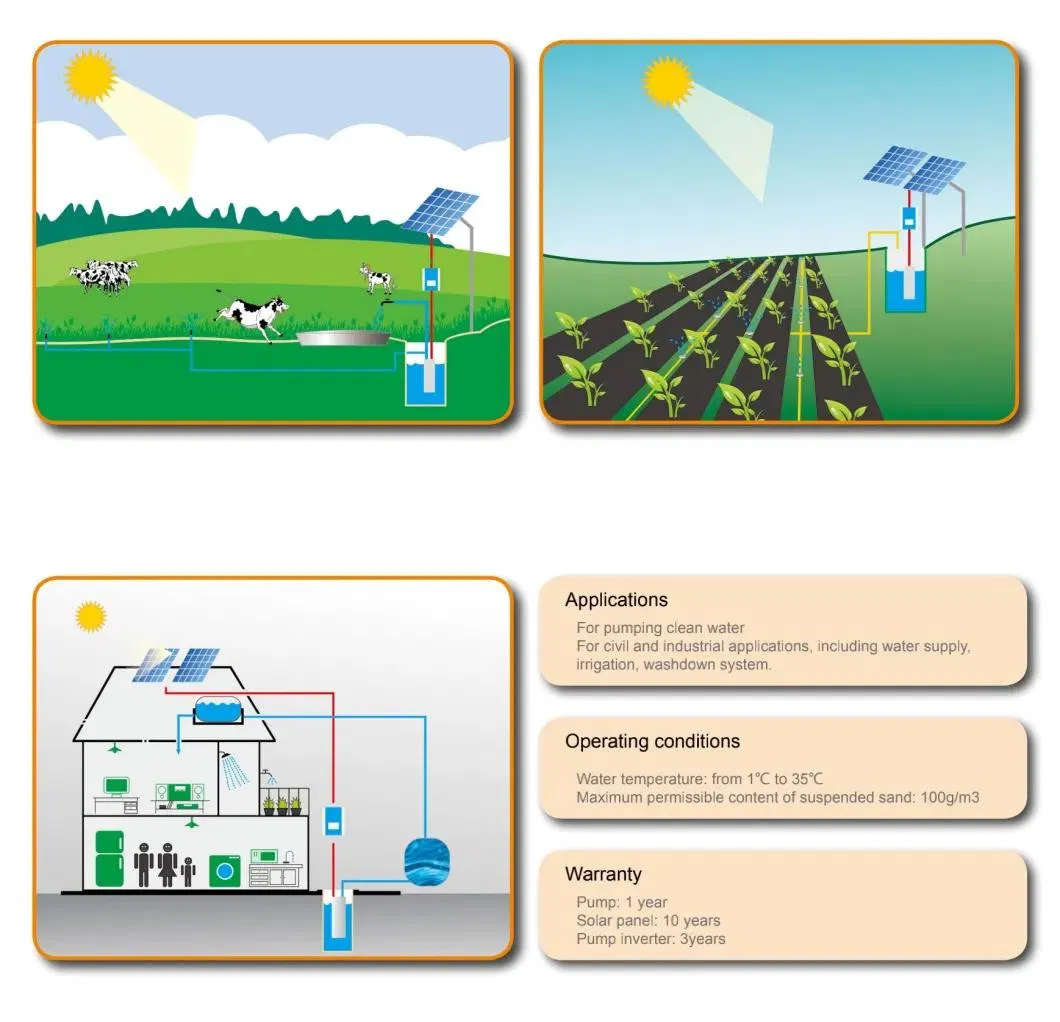

Solar pump systems are high-quality solutions designed for drinking water supply, livestock watering, and smaller irrigation applications with zero pollution. They utilize solar power directly, requiring no existing grid infrastructure. Optional grid backup is available for 24/7 operation.
Peak Power: 290W
Max Voltage: 32.2V | Max Current: 9.02A
Open Circuit Voltage: 39.5V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg
Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Warranty: 5-10 Years
WiFi/GPRS Monitoring Optional
Data Logging Stick for real-time PV system updates via Wi-Fi, Lan, or GPRS. Mobile App available for PC, iOS, and Android.

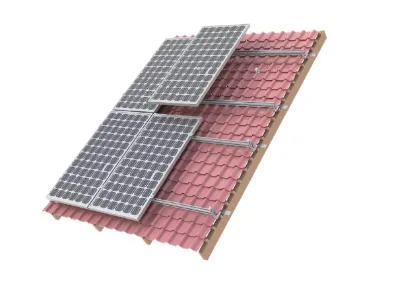

Material: AI6005 & SUS304 Bolt
Clamps: 35-50mm available
Supports Asphalt Shingle & Hanger Bolt
Includes Ground Clips & Lugs

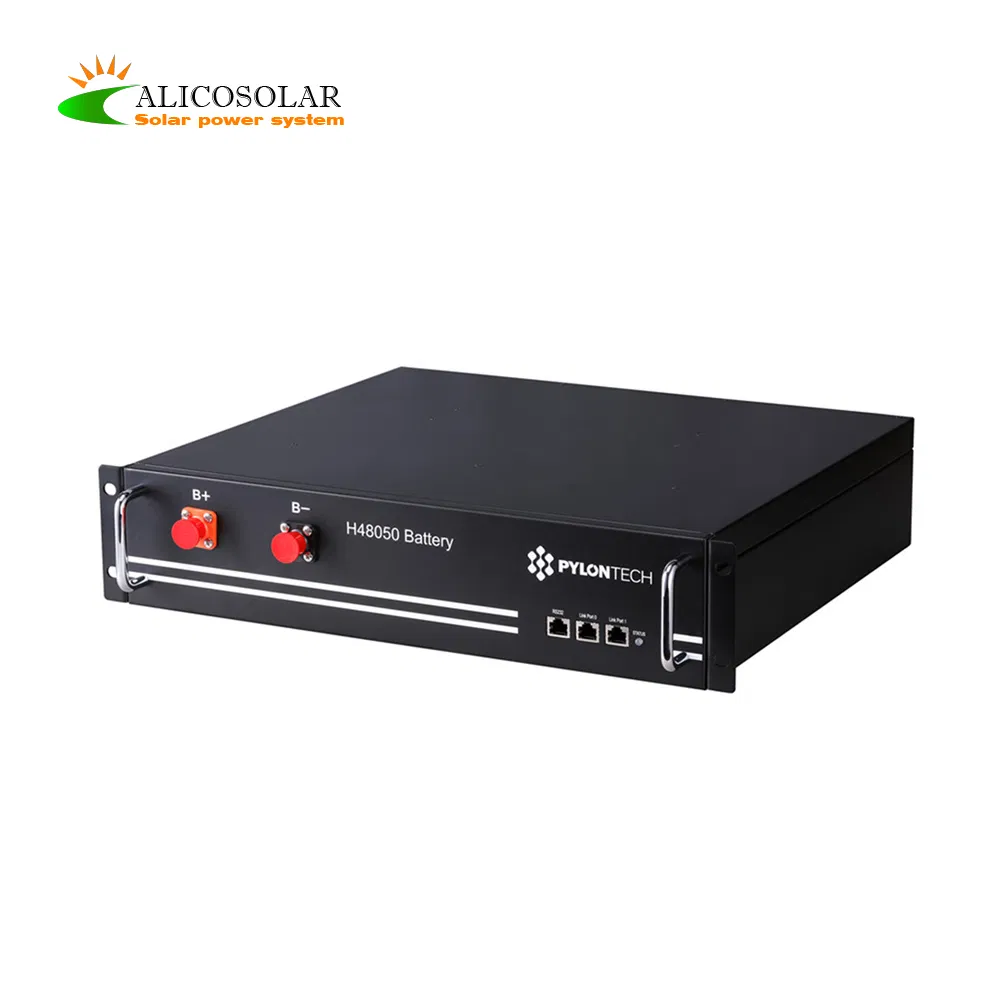

Voltage: 48V | Capacity: 100Ah
Dimension: 4-5U Standard Rack Size
