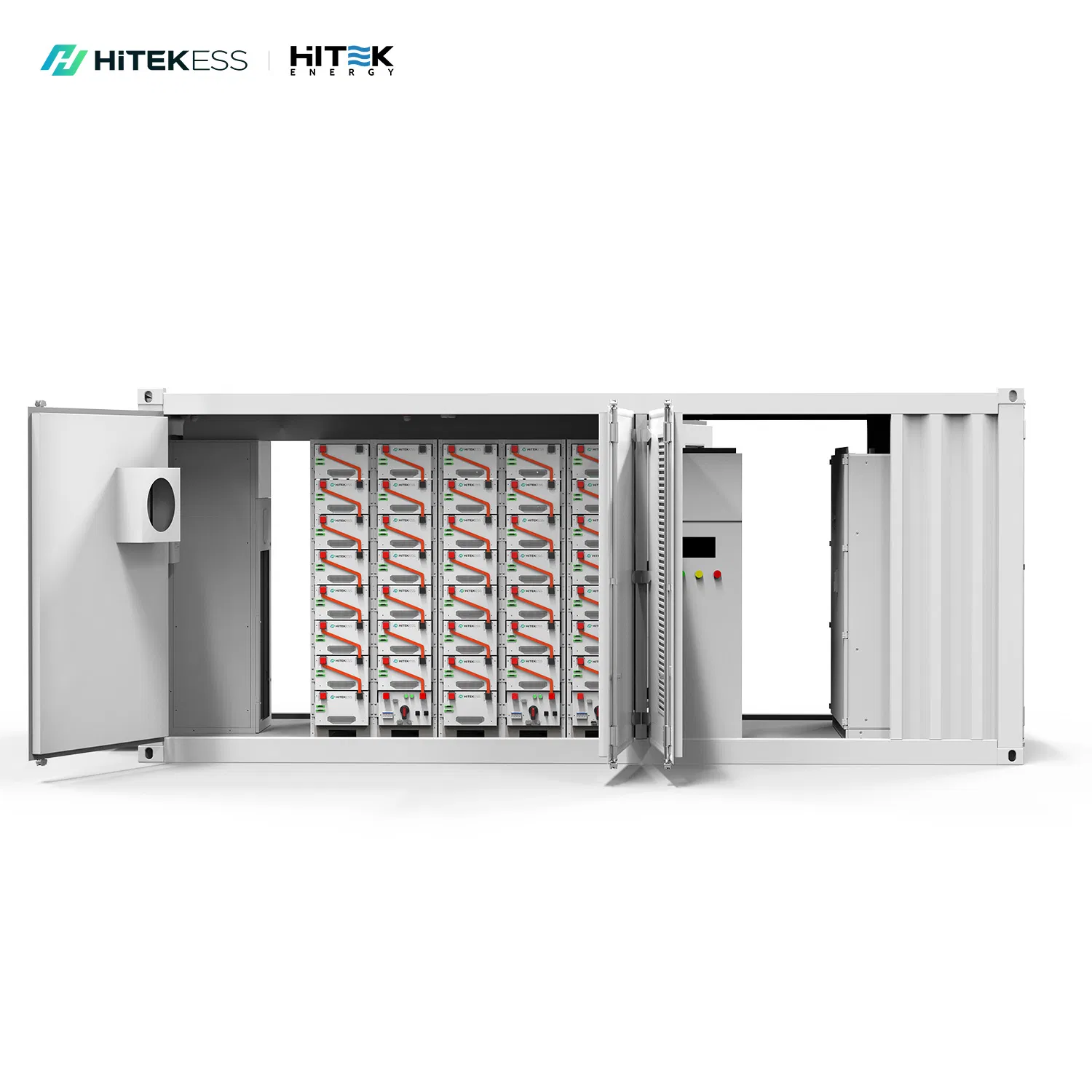

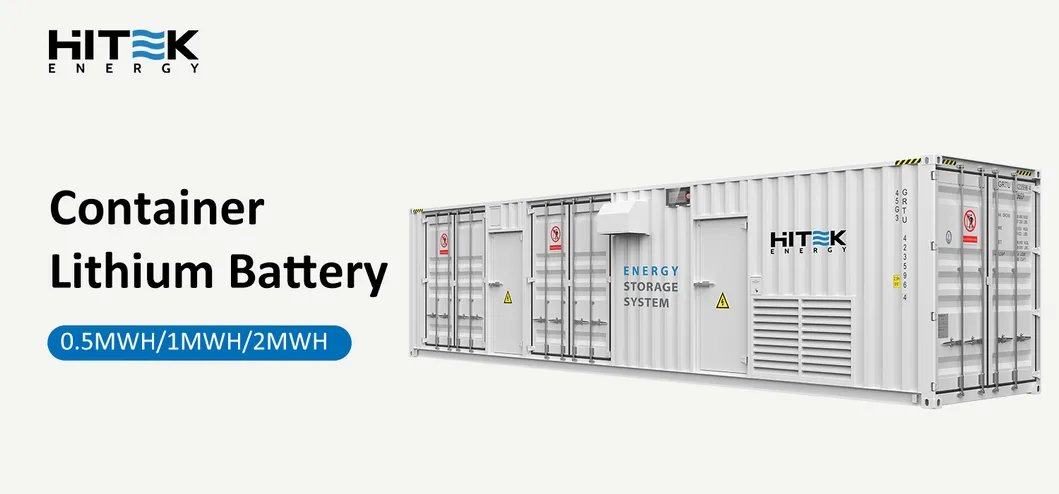

Product Description

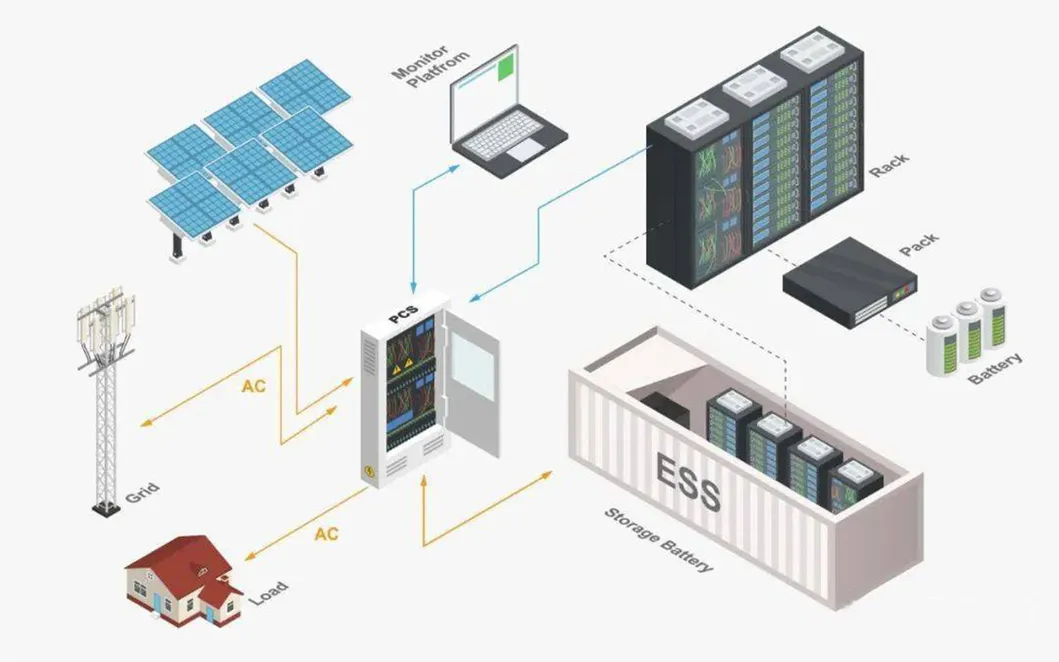

Core Features of Energy Storage System
✔
Working Mode: Ongrid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Offgrid Mode; Generator Connection (Optional).
✔
Features of BMS: Battery status monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing Management, Protection Alarms, Communication).
✔
Features of PCS: Wide Range of DC Input Voltage, Indoor/Outdoor Installation, Short Conversion Time of full Power from Charge to Discharge.
✔

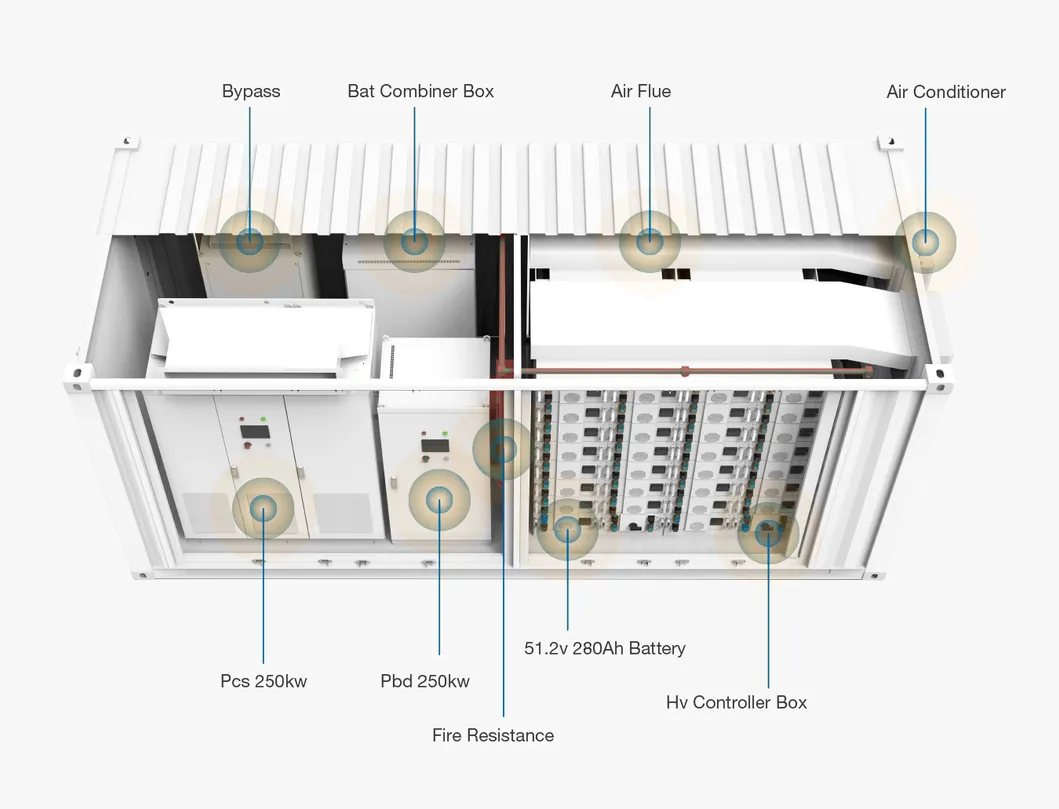

Integrated Systems: Fire Protection System & Air Condition System included.
📐
Product Parameters

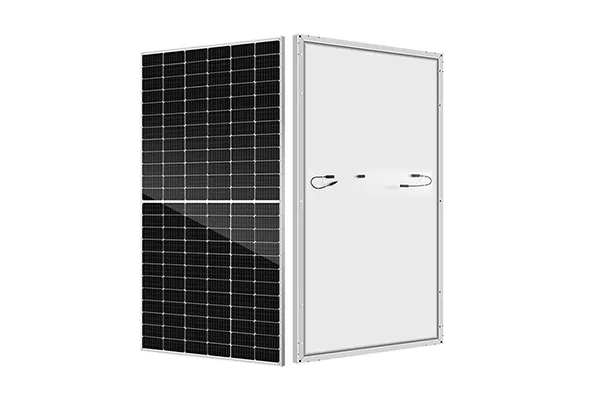

PERC Mono Solar Panel
Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84v | Isc: 14.14A
Dimensions: 2279*1134*35mm

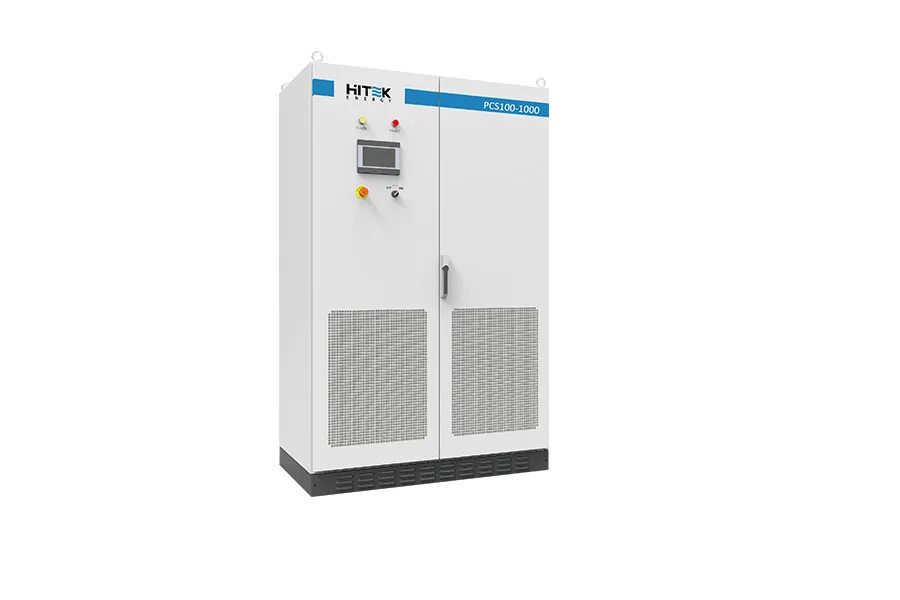

PCS 100-1000KW Inverter
Bidirectional battery inverter. Supports paralleling multiple units, flexible configuration, programmable working modes, and remote control.

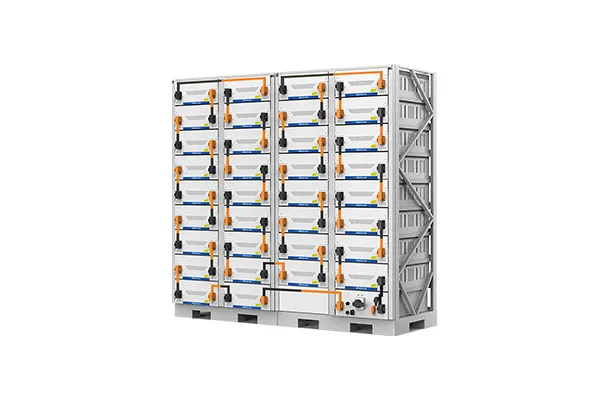

Storage Battery Bank
Consists of 150 single cells, unit power 14.3kWh, nominal voltage 51.2V, total 1720kWh @ 80% DOD.
❓
Frequently Asked Questions
1. What is the expected cycle life of the battery system?
The system utilizes high-quality LiFePO4 cells providing over 6000 cycles at standard operating conditions.
2. Can this containerized system work in off-grid environments?
Yes, it supports both On-grid and Off-grid modes, including generator connection capabilities for backup power.
3. What safety features are integrated into the container?
Each container is equipped with an IP54 outdoor rating, an integrated Fire Protection System, and an Air Conditioning system for thermal management.
4. Does the system include a monitoring solution?
Yes, the EnerLog monitoring datalogger is included to track performance and battery status in real-time.
5. Is the system customizable for different power requirements?
Absolutely. While standard sizes are 250kWh to 2MWh, the configuration of solar panels, inverters, and battery racks can be tailored to specific project needs.
6. What type of technical support is available?
We provide complete technical support, including pre-sales project design, installation support, and ongoing technical consultation.
