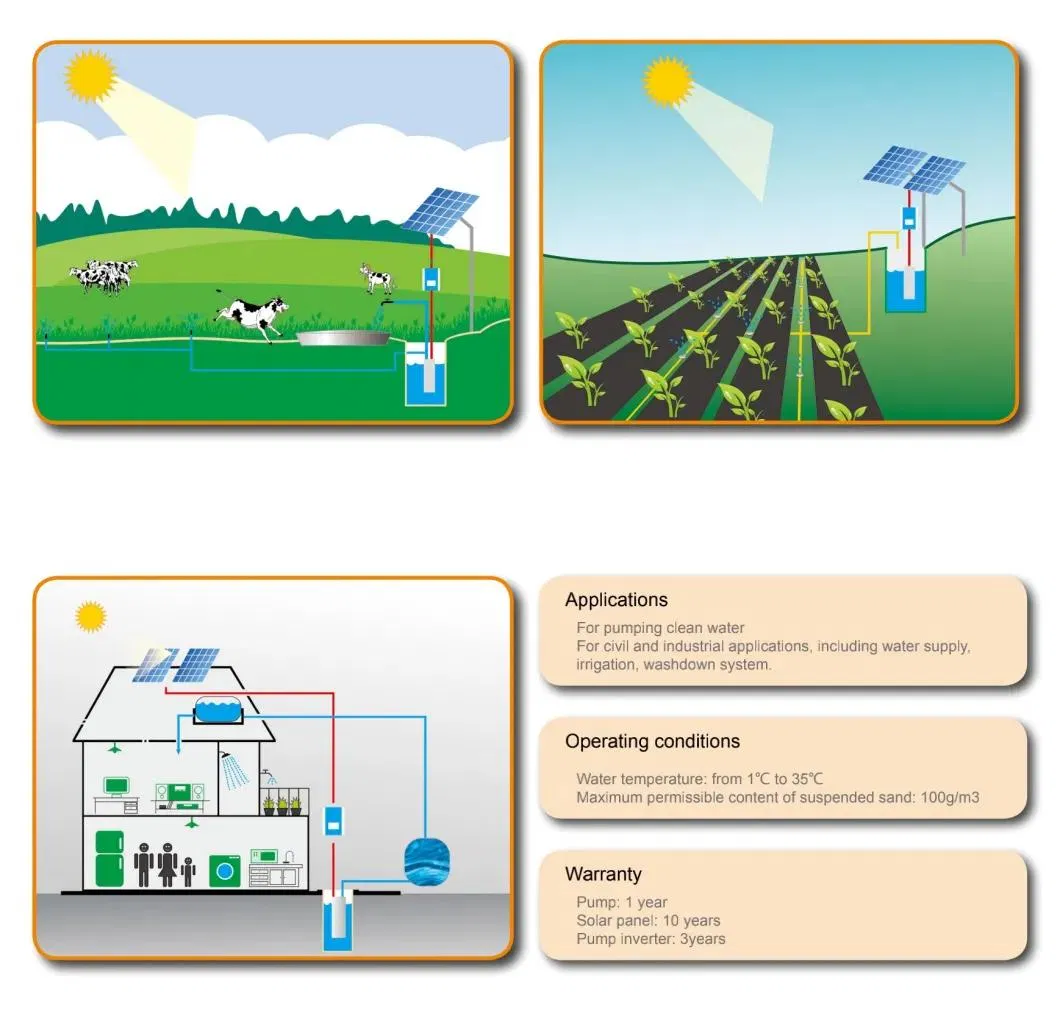

Solar power systems offer a wide range of applications, including domestic water supply, agricultural and forestry irrigation, and desertification control. They are ideal for supplying water to sea islands, animal husbandry, and water treatment projects.
Solar pump systems are high-quality solutions designed for drinking water and livestock watering without pollution. They use solar power directly, requiring no grid infrastructure, though optional grid back-up can be integrated for 24/7 operation.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | Check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, etc. | set | 1 |

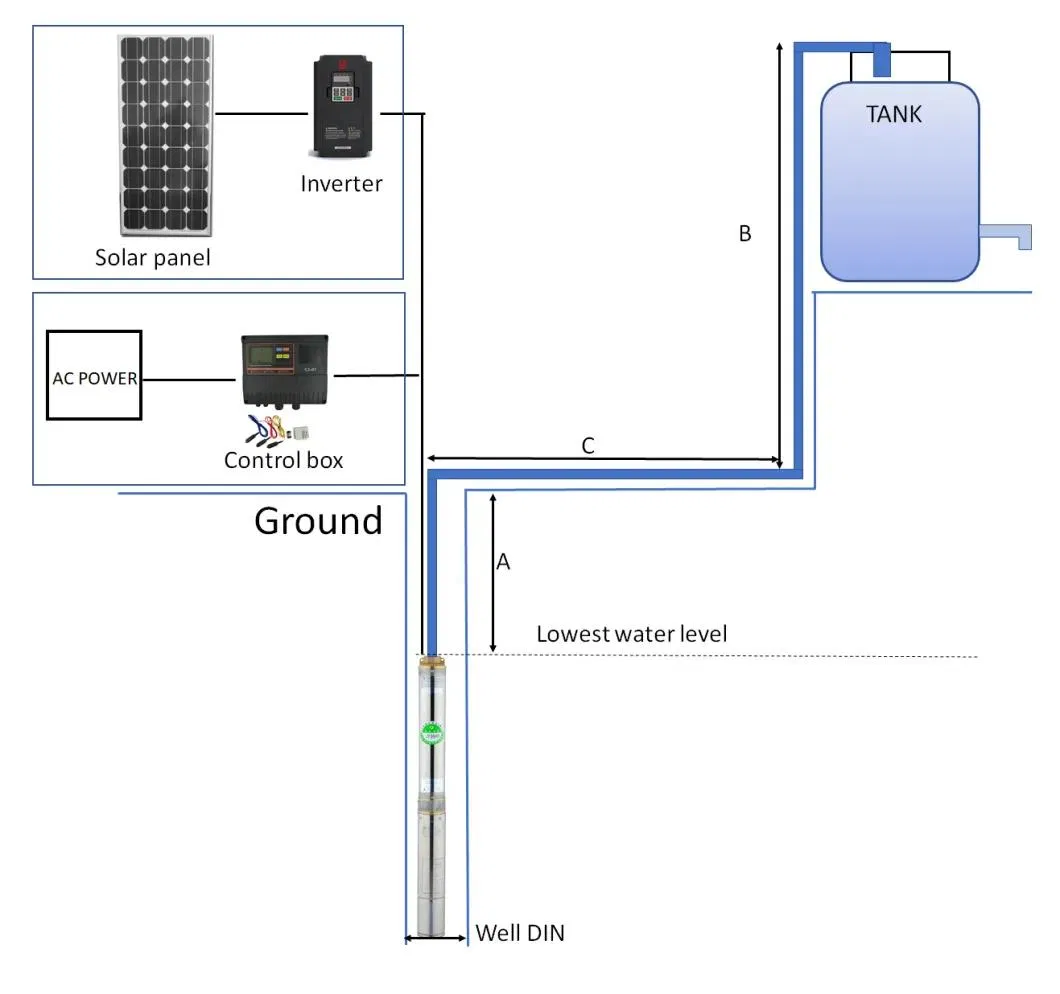

To help us select the right pump for you, please provide the following information:
Peak Power: 290W
Max Voltage: 32.2V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg
Max. DC Input: 8.5KW
Voltage Range: 90-520V

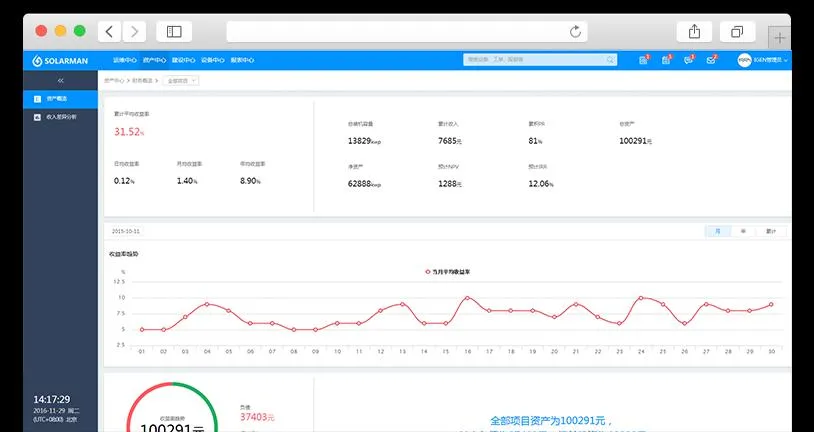

Remote Monitoring: Wifi/GPRS Optional
Track PV system status anywhere via Web, IOS, or Android App.
Specification: 48V 100Ah
High efficiency energy storage for stable output.
Yes, solar pump systems can be designed to run directly from solar panels during daylight hours. Batteries are only required if you need the system to operate at night or during prolonged cloudy periods.
The solar panels provided in this system have a service life of approximately 25 years, ensuring long-term reliability for your water supply needs.
No, the system features a simple modular design that is easy to install and operate. Since it doesn't require grid infrastructure, it is perfect for remote agricultural or desert locations.
As a general rule, the power of the solar panels should be approximately 1.3 times the power of the pump motor to ensure sufficient energy even in less-than-ideal sunlight.
Yes, our system includes a Data Logging Stick that supports Wi-Fi, LAN, or GPRS, allowing you to monitor performance via a PC or mobile app (IOS/Android).

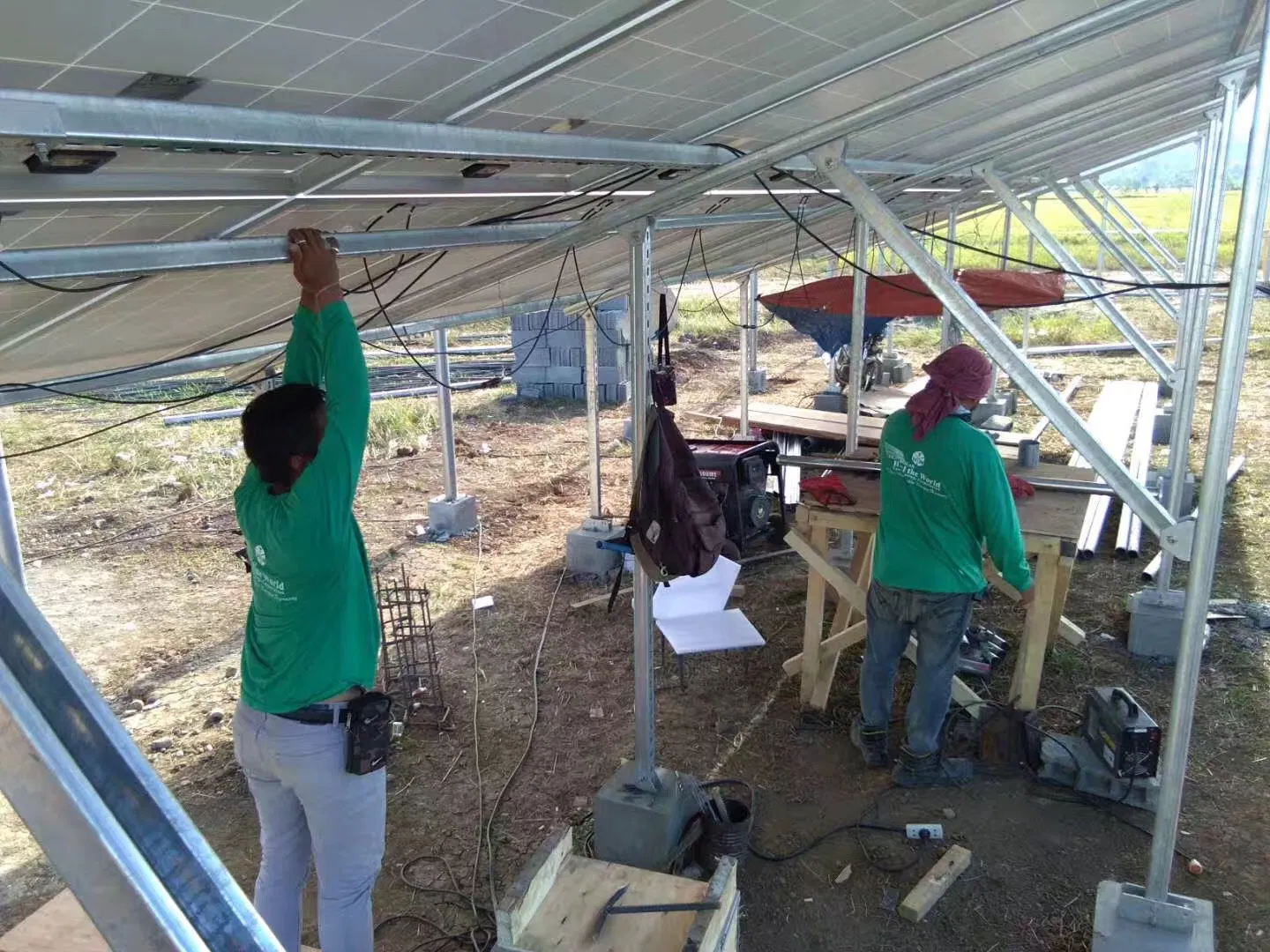

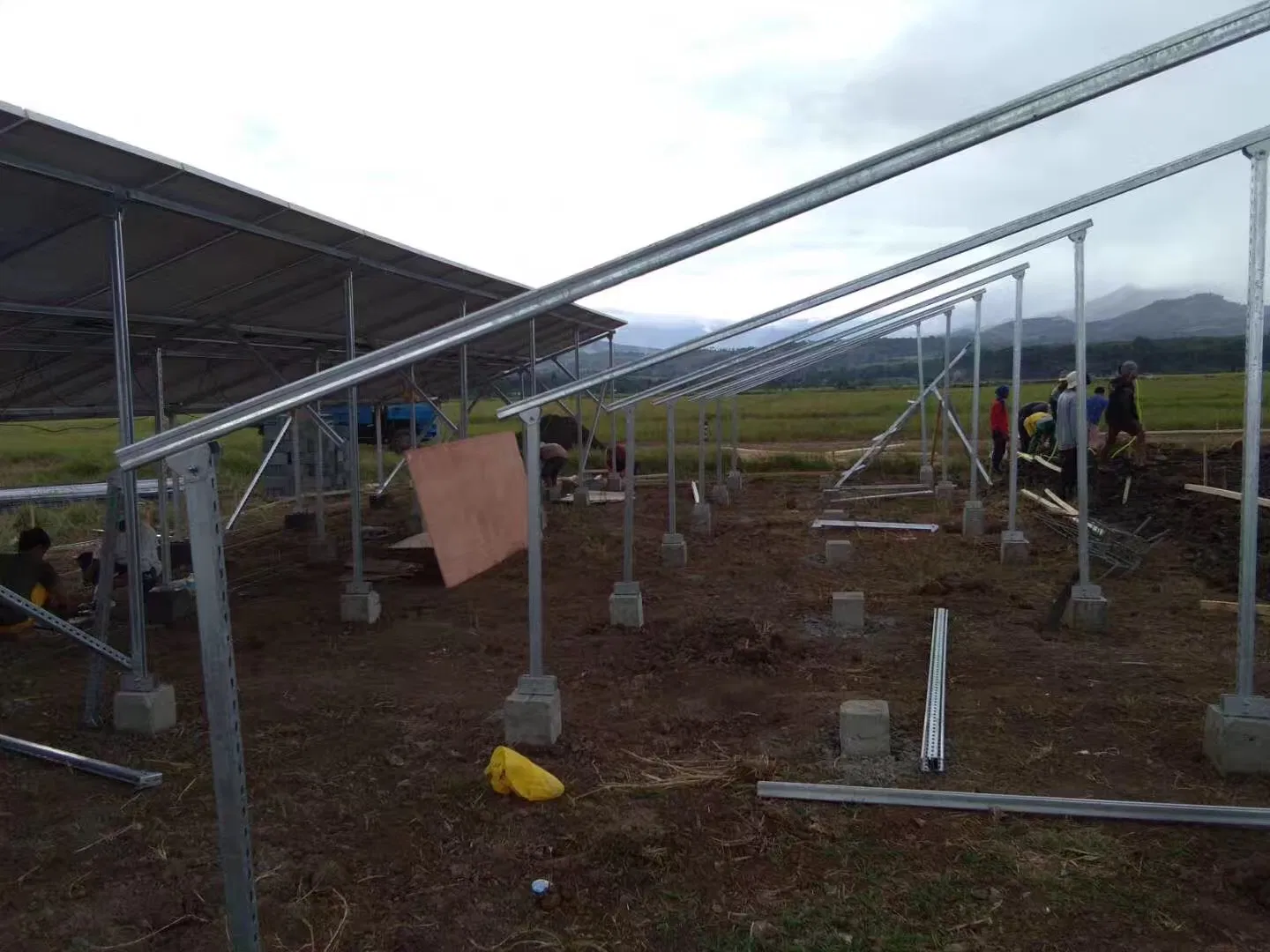

The mounting structures are made from Q235 material with hot-dip zinc coating to prevent corrosion and withstand harsh outdoor environments.
