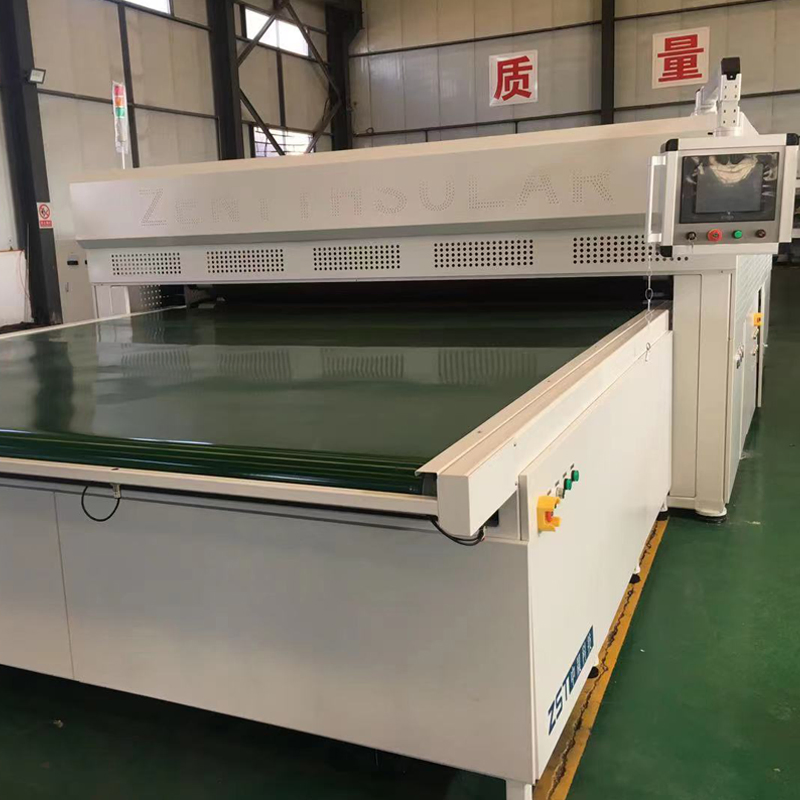

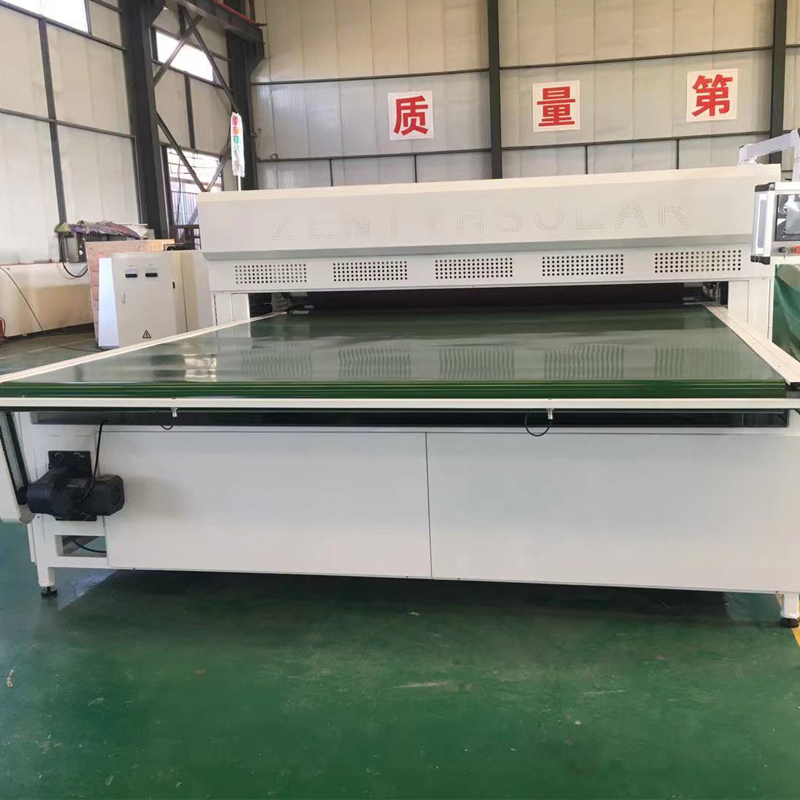

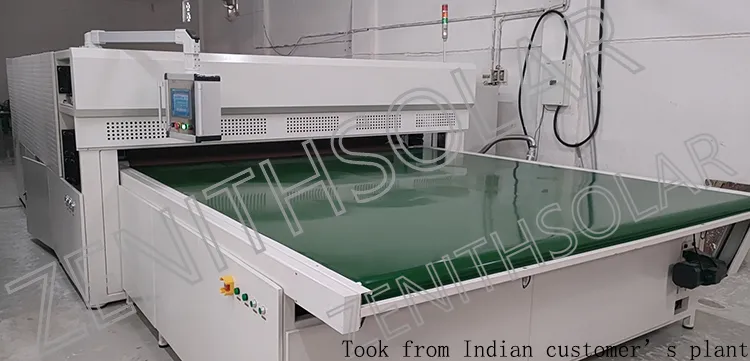

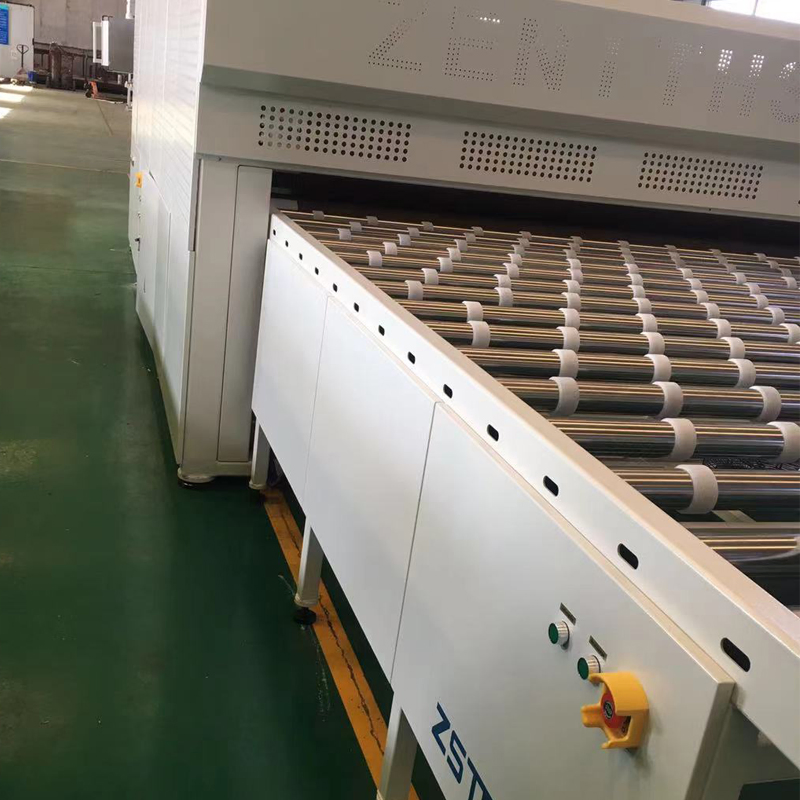

10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
1 / 5
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine
10-30MW Annual Capacity Automatic PV Module Laminating Machine

10-30MW Annual Capacity Automatic PV Module Laminating Machine

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year, 1 Year
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
27-29
Transmission Type
Flexible
Automatic Production Line
Comprehensive
Certification
ISO, CE
Automation
Automation
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Production Scope
Parts Production Line
After-Sales Service
All Life
Capacity
10-30MW
Transport Package
Frame Container
HS Code
848640
Production Capacity
30 Sets Per Year
🔍 Product Description

10-30MW annual capacity automatic PV module laminating machine, which is compatible with M12 solar cell panels.

We also are capable of customization, we can manufacture it according to your specific requirements.

10-30MW Annual Capacity Automatic PV Module Laminating Machine

Parameters

Power AC380V/50HZ/3Phases/5Lines Capacity 12-36(1-3shift)MW/year
Normal power 25KW Max.Power 55KW
Laminated cavity height 25mm Lamination Area 2700*2900mm
Temperature range 30ºC~180ºC Temperature Uniformity ≤±2ºC
Working Temperature 100ºC~160ºC Temperature Accuracy ±1ºC
Max. oil temperature 180ºC Heating Platform Per square meter of non-flatness ≤ 300μm
Dimensions 10280*3590*2330mm Weight 12.8T

Characteristics

⚙️
Integrated Design

One of the patents. The vacuum pump and oil pump can be placed inside the laminating machine to save plant space.

🔇
Lower Noise

Utilizes Germany imported vacuum pumps, reducing noise levels to 65dB for a more comfortable environment.

🌬️
Free Smoke

Unique smokeless pump design eliminates the need for an additional exhausting system configuration.

⚡
Energy Saving

Achieves approximately 30% energy savings compared to other standard brands in the market.

✅
CE Certificate

All machines within the PV production line have fully passed CE certification standards.

Automatic PV Module Laminating Machine Details 1
Automatic PV Module Laminating Machine Details 2
Automatic PV Module Laminating Machine Details 3
Automatic PV Module Laminating Machine Details 4
Automatic PV Module Laminating Machine Details 5
❓ Frequently Asked Questions
What is the annual production capacity of this laminating machine?
The machine offers an annual capacity of 10-30MW, depending on the number of shifts (12-36 MW/year range).
Is the equipment compatible with the latest solar cell technology?
Yes, it is fully compatible with M12 solar cell panels and supports intelligent manufacturing processes.
What are the main advantages of the integrated design?
The patented integrated design allows the vacuum and oil pumps to be placed inside the machine, significantly saving floor space in your facility.
How does the machine contribute to energy efficiency?
This laminating machine is designed to be highly efficient, saving approximately 30% more energy compared to other brands.
What is the temperature accuracy and uniformity of the heating platform?
The machine maintains a temperature uniformity of ≤±2ºC and a temperature accuracy of ±1ºC within a working range of 100ºC to 160ºC.
Does the machine require a special exhausting system for smoke?
No, thanks to the unique smokeless design of the vacuum pump, you do not need to configure a separate exhausting system.
